ZRE173L-GEXVKH (2017)

Toyota Corolla/Altis

Production Sep 2017 - Jul 2020
Engine 3ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )

Click highlighted areas on diagram

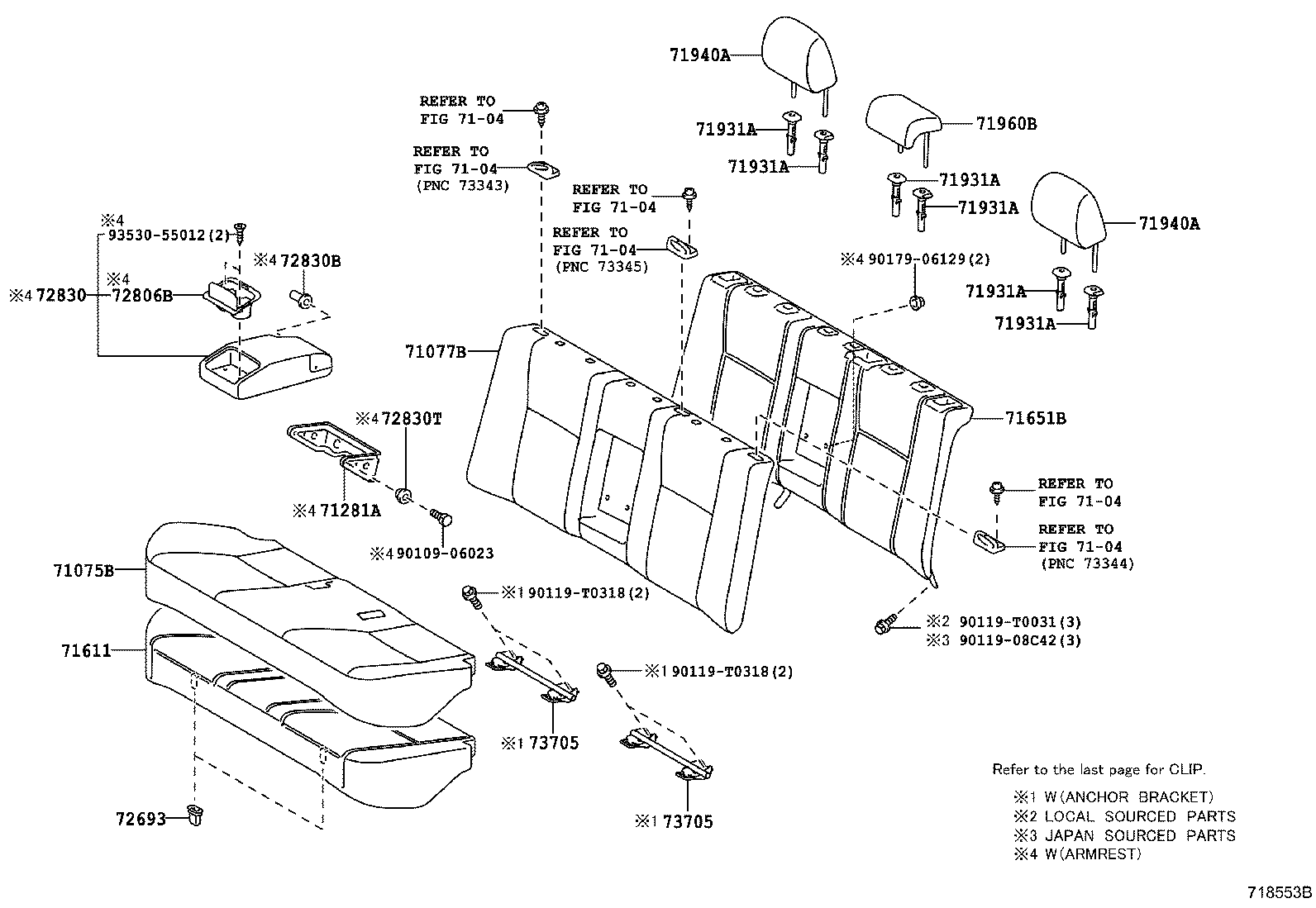

FIXED SEAT

diagram 7104 7104 7104 7104 7104 7104 71075B 71077B 71281A 71611 71651B 71931A 71931A 71931A 71931A 71931A 71931A 71940A 71940A 71960B 72693 72806B 72830 72830B 72830T 73705 73705 9010906023 9011908C42 90119T0031 90119T0318 90119T0318 9017906129 9353055012
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-02U51A4

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 1
71075-02U51C2

ZRE173..VN

BLACK,TRIM2#

 1
71611 - PAD, REAR SEAT CUSHION
71503-02330

ZRE172,173..(18E,20V)..VN

 1
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71940A - HEADREST ASSY, REAR SEAT
71940-02L51C3

ZRE173..VN

BLACK,TRIM2#

 2
71940-02L51A4

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-02L51C3

ZRE173..VN

BLACK,TRIM2#

 2
71940-02L51A4

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
71960B - HEADREST ASSY, REAR SEAT, CENTER
71960-02E81A4

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 1
71960-02E81C3

ZRE173..VN

BLACK,TRIM2#

 1
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-02J50C0

ZRE173..VN

BLACK,TRIM2#

 1
72830-02J50A0

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 1
Common parts
90109-06023
90119-08C42
90119-T0031
90119-T0318
90179-06129
93530-55012
Linked diagrams
7104

(1310- )

Click highlighted areas on diagram

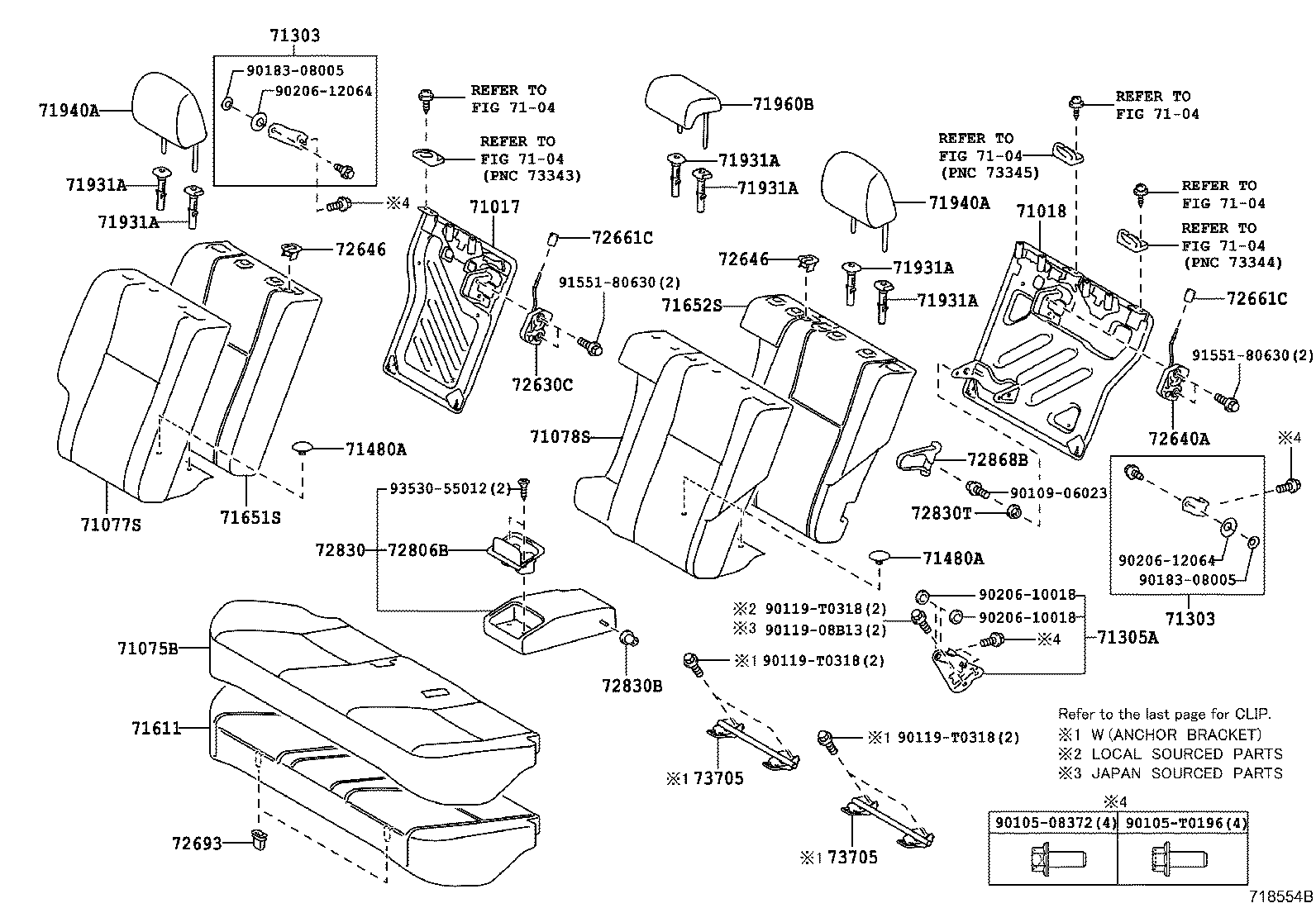

FOLDING SEAT

diagram 71017 71018 7104 7104 7104 7104 7104 7104 71075B 71077S 71078S 71303 71303 71305A 71480A 71480A 71611 71651S 71652S 71931A 71931A 71931A 71931A 71931A 71931A 71940A 71940A 71960B 72630C 72640A 72646 72646 72661C 72661C 72693 72806B 72830 72830B 72830T 72868B 73705 73705 9010508372 90105T0196 9010906023 9011908B13 90119T0318 90119T0318 90119T0318 9018308005 9018308005 9020610018 9020610018 9020612064 9020612064 9155180630 9155180630 9353055012
Part # Description Qty Price
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-02660

ZRE172,173..(18E,20V)..VN

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-02430

ZRE172,173..(18E,20V)..VN

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-02U51A4

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 1
71075-02U51C2

ZRE173..VN

BLACK,TRIM2#

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-0Z091C6

ZRE173..VN

BLACK,TRIM2#

 1
71077-0Z091A8

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-02S11A9

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 1
71078-02S11C7

ZRE173..VN

BLACK,TRIM2#

 1
71611 - PAD, REAR SEAT CUSHION
71503-02330

ZRE172,173..(18E,20V)..VN

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-02590

ZRE172,173..(18E,20V)..VN

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-02540

ZRE172,173..(18E,20V)..VN

 1
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71940A - HEADREST ASSY, REAR SEAT
71940-02L51C3

ZRE173..VN

BLACK,TRIM2#

 2
71940-02L51A4

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-02L51C3

ZRE173..VN

BLACK,TRIM2#

 2
71940-02L51A4

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
71960B - HEADREST ASSY, REAR SEAT, CENTER
71960-02E81A4

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 1
71960-02E81C3

ZRE173..VN

BLACK,TRIM2#

 1
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-47010A4

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-47010A4

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-13030A4

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
72661C - BUTTON, REAR SEAT BACK LOCK RELEASE
72661-13030A4

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-02J50C0

ZRE173..VN

BLACK,TRIM2#

 1
72830-02J50A0

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 1
72868B - COVER, CENTER ARMREST HINGE
72868-02200A1

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 1
Common parts
90105-08372
90105-T0196
90109-06023
90119-08B13
90119-T0318
90183-08005
90206-10018
90206-12064
91551-80630
93530-55012
Linked diagrams
7104

(1310- )

Click highlighted areas on diagram

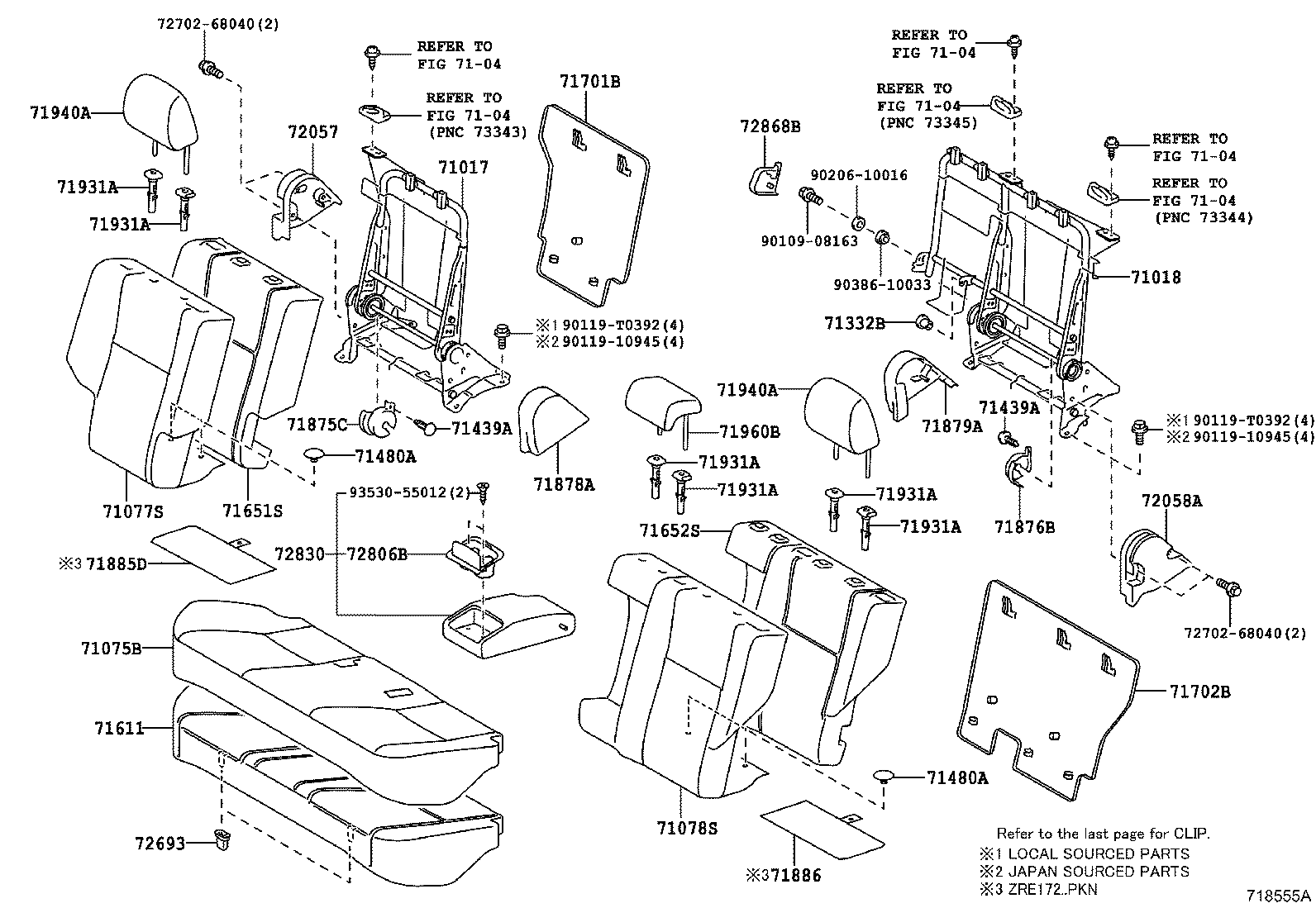

RECLINING SEAT

diagram 71017 71018 7104 7104 7104 7104 7104 7104 71075B 71077S 71078S 71332B 71439A 71439A 71480A 71480A 71611 71651S 71652S 71701B 71702B 71875C 71876B 71878A 71879A 71885D 71886 71931A 71931A 71931A 71931A 71931A 71931A 71940A 71940A 71960B 72057 72058A 72693 7270268040 7270268040 72806B 72830 72868B 9010908163 9011910945 9011910945 90119T0392 90119T0392 9020610016 9038610033 9353055012
Part # Description Qty Price
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-02660

ZRE172,173..(18E,20V)..VN

 1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-02430

ZRE172,173..(18E,20V)..VN

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-02U51A4

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 1
71075-02U51C2

ZRE173..VN

BLACK,TRIM2#

 1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-0Z091C6

ZRE173..VN

BLACK,TRIM2#

 1
71077-0Z091A8

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-02S11A9

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 1
71078-02S11C7

ZRE173..VN

BLACK,TRIM2#

 1
71611 - PAD, REAR SEAT CUSHION
71503-02330

ZRE172,173..(18E,20V)..VN

 1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-02590

ZRE172,173..(18E,20V)..VN

 1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-02540

ZRE172,173..(18E,20V)..VN

 1
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931A - SUPPORT, REAR SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 3
71940A - HEADREST ASSY, REAR SEAT
71940-02L51C3

ZRE173..VN

BLACK,TRIM2#

 2
71940-02L51A4

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-02L51C3

ZRE173..VN

BLACK,TRIM2#

 2
71940-02L51A4

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
71960B - HEADREST ASSY, REAR SEAT, CENTER
71960-02E81A4

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 1
71960-02E81C3

ZRE173..VN

BLACK,TRIM2#

 1
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-02J50C0

ZRE173..VN

BLACK,TRIM2#

 1
72830-02J50A0

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 1
72868B - COVER, CENTER ARMREST HINGE
72868-02200A1

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 1
Common parts
72702-68040
90109-08163
90119-10945
90119-T0392
90206-10016
90386-10033
93530-55012
Linked diagrams
7104

(1310- )

Click highlighted areas on diagram

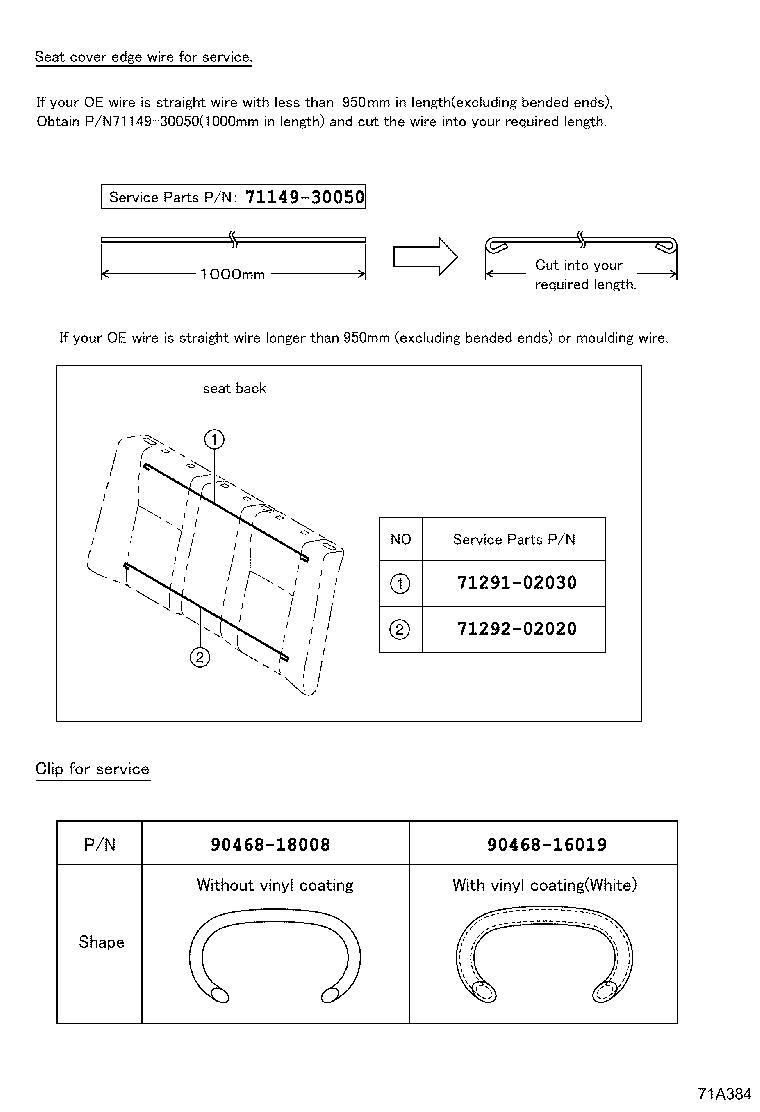

SEAT COVER EDGE WIRE & CLIP

diagram 7114930050 7129102030 7129202020 9046816019 9046818008
Part # Description Qty Price
Common parts
71149-30050
71291-02030
71292-02020
90468-16019
90468-18008
