ZRE173L-GEXVKH (2017)

Toyota Corolla/Altis

Production Sep 2017 - Jul 2020
Engine 3ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1310- )

Click highlighted areas on diagram

LH(POWER SEAT)

diagram 7104 7104 7104 71072S 71074S 71512S 71537H 71538B 71552S 71587B 71587B 71620S 71640S 71812D 71849 71862 71868A 71873 71874 71910A 71931 71931 72138D 72158 73920A 8202 8202 8401 8401 8401 8401 8401 9011910601 9011910601 9011910921 9011910921 9011910921 90119T0001 90119T0001 90119T0001 9016740044 9016740044 9016740044 9417060600 9418560600
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0ZC90A0

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 1
71072-0ZC90C0

ZRE173..VN

LOW GRADE PACKAGE,BLACK,TRIM2#

 1
71072-0ZC70C0

ZRE173..VN

BLACK,TRIM2#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0ZL80C0

ZRE173..VN

BLACK,TRIM2#

 1
71074-0ZM00C0

ZRE173..VN

LOW GRADE PACKAGE,BLACK,TRIM2#

 1
71074-0ZM00A0

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-02590

ZRE173..VN

LOW GRADE PACKAGE

 1
71512-02680

ZRE173..VN

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-02A80

ZRE173..VN

 1
71552-02A60

ZRE173..VN

LOW GRADE PACKAGE

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-02420

ZRE173..VN

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-02830

ZRE173..VN

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-02870C0

ZRE173..VN

BLACK,TRIM0#,2#

 1
71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
71868-02060C0

ZRE173..VN

BLACK,TRIM0#,2#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-02N41C4

ZRE173..VN

BLACK,TRIM2#

 2
71910-02M51C4

ZRE173..VN

LOW GRADE PACKAGE,BLACK,TRIM2#

 2
71910-02M51A5

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
Common parts
90119-10601
90119-10921
90119-T0001
90167-40044
94170-60600
94185-60600
Linked diagrams
7104
8202
8401

ILLUST NO. 2 OF 2(1310- )

Click highlighted areas on diagram

RH(POWER SEAT)

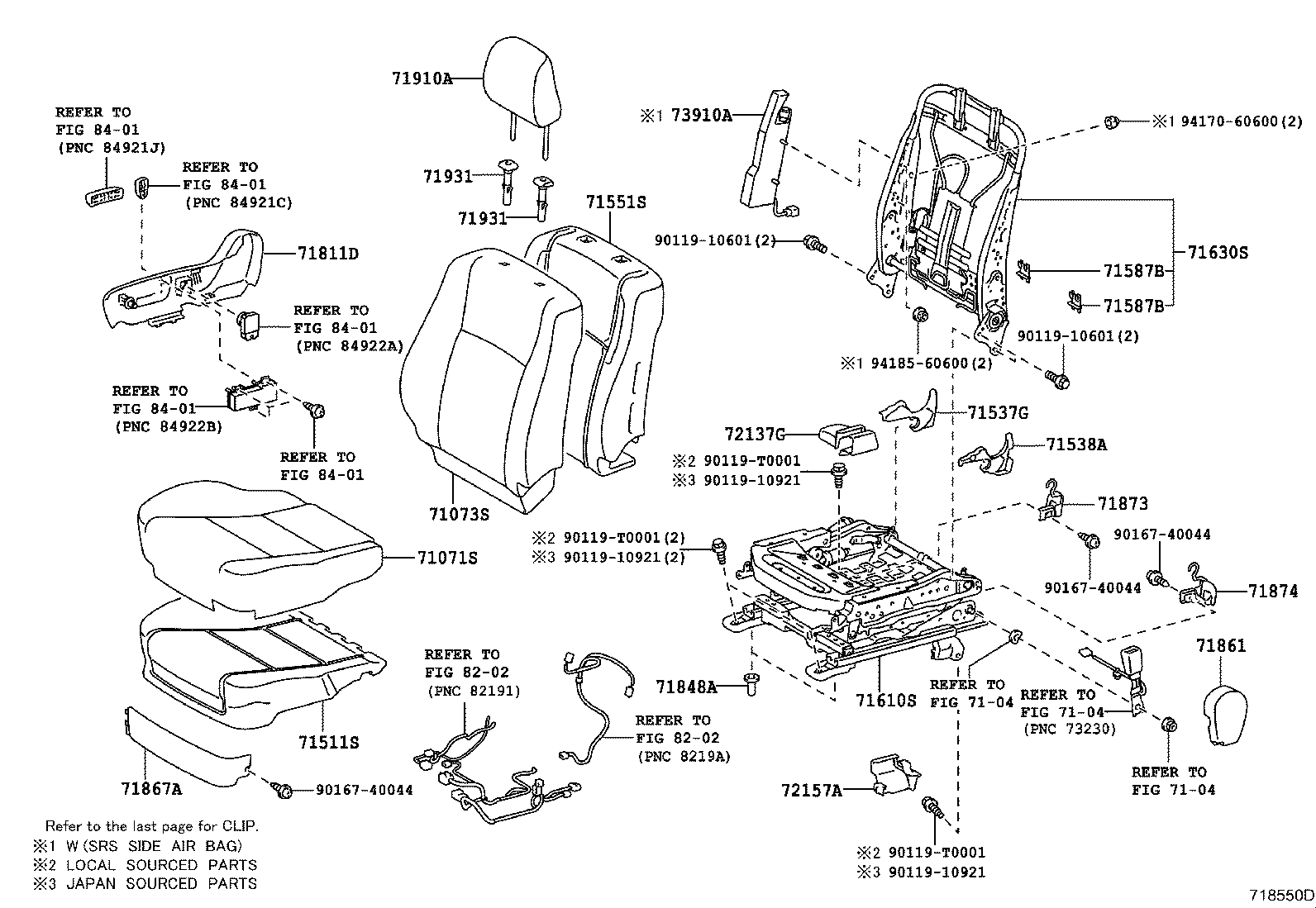

diagram 7104 7104 7104 71071S 71073S 71511S 71537G 71538A 71551S 71587B 71587B 71610S 71630S 71811D 71848A 71861 71867A 71873 71874 71910A 71931 71931 72137G 72157A 73910A 8202 8202 8401 8401 8401 8401 8401 9011910601 9011910601 9011910921 9011910921 9011910921 90119T0001 90119T0001 90119T0001 9016740044 9016740044 9016740044 9417060600 9418560600
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0ZN10A0

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 1
71071-0ZN10C0

ZRE173..VN

LOW GRADE PACKAGE,BLACK,TRIM2#

 1
71071-0ZM90C0

ZRE173..VN

BLACK,TRIM2#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0ZM90C0

ZRE173..VN

LOW GRADE PACKAGE,BLACK,TRIM2#

 1
71073-0ZM70C0

ZRE173..VN

BLACK,TRIM2#

 1
71073-0ZM90A0

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-02280

ZRE173..VN

 1
71501-02290

ZRE173..VN

LOW GRADE PACKAGE

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-02C70

ZRE173..VN

 1
71551-02C30

ZRE173..VN

LOW GRADE PACKAGE

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-02320

ZRE172,173..(18E,20V)..VN

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-02860

ZRE172,173..(18E,20V)..VN

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-02N41C4

ZRE173..VN

BLACK,TRIM2#

 2
71910-02M51C4

ZRE173..VN

LOW GRADE PACKAGE,BLACK,TRIM2#

 2
71910-02M51A5

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
Common parts
90119-10601
90119-10921
90119-T0001
90167-40044
94170-60600
94185-60600
Linked diagrams
7104
8202
8401

ILLUST NO. 1 OF 2(1310- )

Click highlighted areas on diagram

LH(MANUAL SEAT)

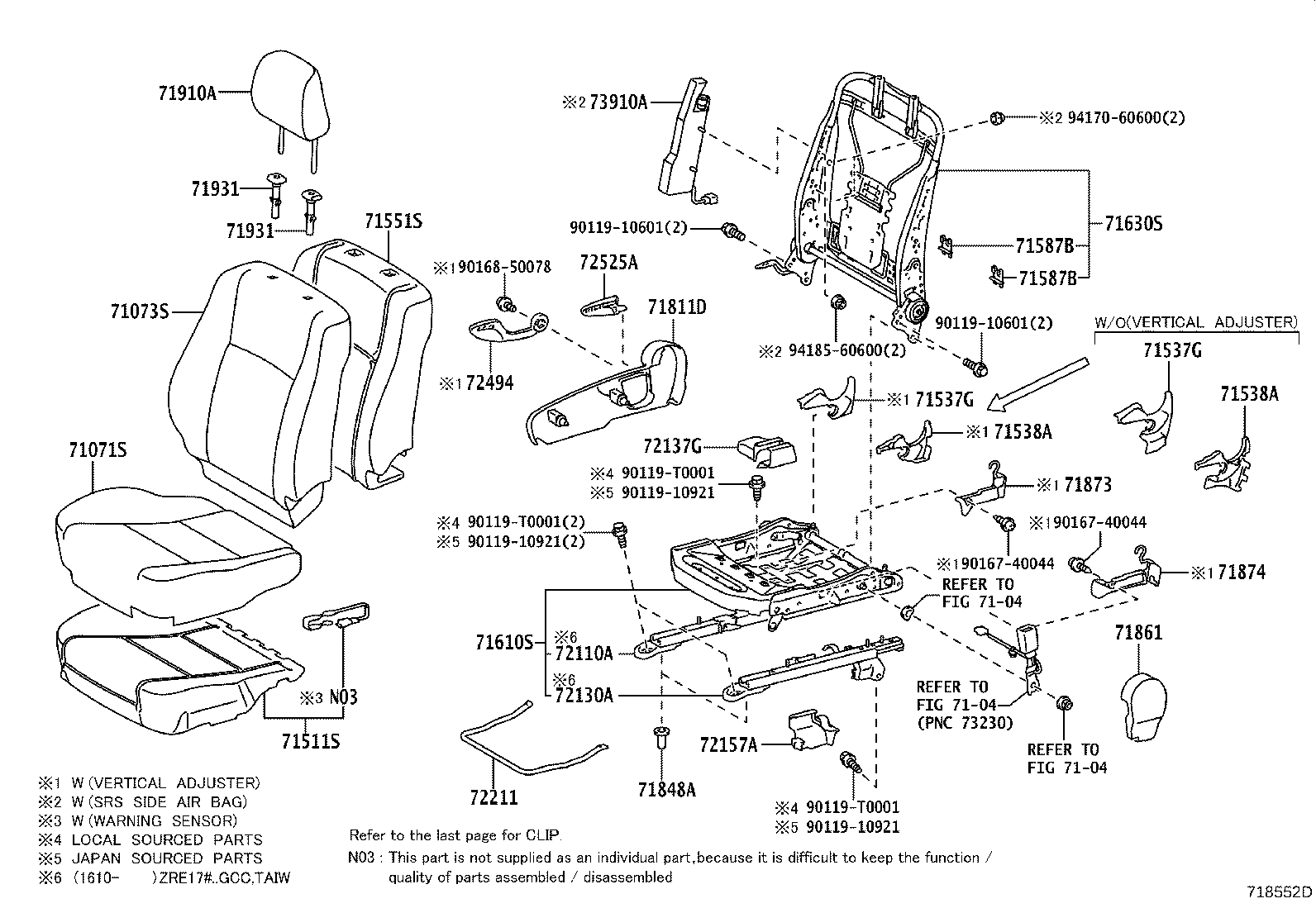

diagram 7104 7104 7104 71072S 71074S 71512S 71537H 71537H 71538B 71538B 71552S 71587B 71587B 71620S 71640S 71812D 71849 71862 71873 71874 71910A 71931 71931 72120 72138D 72140A 72158 72211 72495 72526A 73920A 9011910601 9011910601 9011910921 9011910921 9011910921 90119T0001 90119T0001 90119T0001 9016740044 9016740044 9016850078 9417060600 9418560600
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0ZC90A0

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 1
71072-0ZC90C0

ZRE173..VN

LOW GRADE PACKAGE,BLACK,TRIM2#

 1
71072-0ZC70C0

ZRE173..VN

BLACK,TRIM2#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0ZL80C0

ZRE173..VN

BLACK,TRIM2#

 1
71074-0ZM00C0

ZRE173..VN

LOW GRADE PACKAGE,BLACK,TRIM2#

 1
71074-0ZM00A0

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-02590

ZRE173..VN

LOW GRADE PACKAGE

 1
71512-02680

ZRE173..VN

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-02A80

ZRE173..VN

 1
71552-02A60

ZRE173..VN

LOW GRADE PACKAGE

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-02420

ZRE173..VN

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-02830

ZRE173..VN

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-02870C0

ZRE173..VN

BLACK,TRIM0#,2#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-02N41C4

ZRE173..VN

BLACK,TRIM2#

 2
71910-02M51C4

ZRE173..VN

LOW GRADE PACKAGE,BLACK,TRIM2#

 2
71910-02M51A5

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-0D290

ZRE173..VN

 1
Common parts
90119-10601
90119-10921
90119-T0001
90167-40044
90168-50078
94170-60600
94185-60600
Linked diagrams
7104

ILLUST NO. 2 OF 2(1310- )

Click highlighted areas on diagram

RH(MANUAL SEAT)

diagram 7104 7104 7104 71071S 71073S 71511S 71537G 71537G 71538A 71538A 71551S 71587B 71587B 71610S 71630S 71811D 71848A 71861 71873 71874 71910A 71931 71931 72110A 72130A 72137G 72157A 72211 72494 72525A 73910A 9011910601 9011910601 9011910921 9011910921 9011910921 90119T0001 90119T0001 90119T0001 9016740044 9016740044 9016850078 9417060600 9418560600
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0ZN10A0

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 1
71071-0ZN10C0

ZRE173..VN

LOW GRADE PACKAGE,BLACK,TRIM2#

 1
71071-0ZM90C0

ZRE173..VN

BLACK,TRIM2#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0ZM90C0

ZRE173..VN

LOW GRADE PACKAGE,BLACK,TRIM2#

 1
71073-0ZM70C0

ZRE173..VN

BLACK,TRIM2#

 1
71073-0ZM90A0

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-02280

ZRE173..VN

 1
71501-02290

ZRE173..VN

LOW GRADE PACKAGE

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-02C70

ZRE173..VN

 1
71551-02C30

ZRE173..VN

LOW GRADE PACKAGE

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-02320

ZRE172,173..(18E,20V)..VN

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-02860

ZRE172,173..(18E,20V)..VN

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-02N41C4

ZRE173..VN

BLACK,TRIM2#

 2
71910-02M51C4

ZRE173..VN

LOW GRADE PACKAGE,BLACK,TRIM2#

 2
71910-02M51A5

ZRE173..VN

LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-02370A3

ZRE173..VN

W(LOCK)&W(BUTTON),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
71931-02130A3

ZRE173..VN

W/O(LOCK),LOW GRADE PACKAGE,FLAXEN,TRIM0#

 2
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-0D290

ZRE173..VN

 1
Common parts
90119-10601
90119-10921
90119-T0001
90167-40044
90168-50078
94170-60600
94185-60600
Linked diagrams
7104

(1310- )

Click highlighted areas on diagram

SEAT COVER EDGE WIRE & CLIP

diagram 7114930050 9046816019 9046818008
Part # Description Qty Price
Common parts
71149-30050
90468-16019
90468-18008
