ZRE173L-GEXVKH (2017)

Toyota Corolla/Altis

Production Sep 2017 - Jul 2020
Engine 3ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )

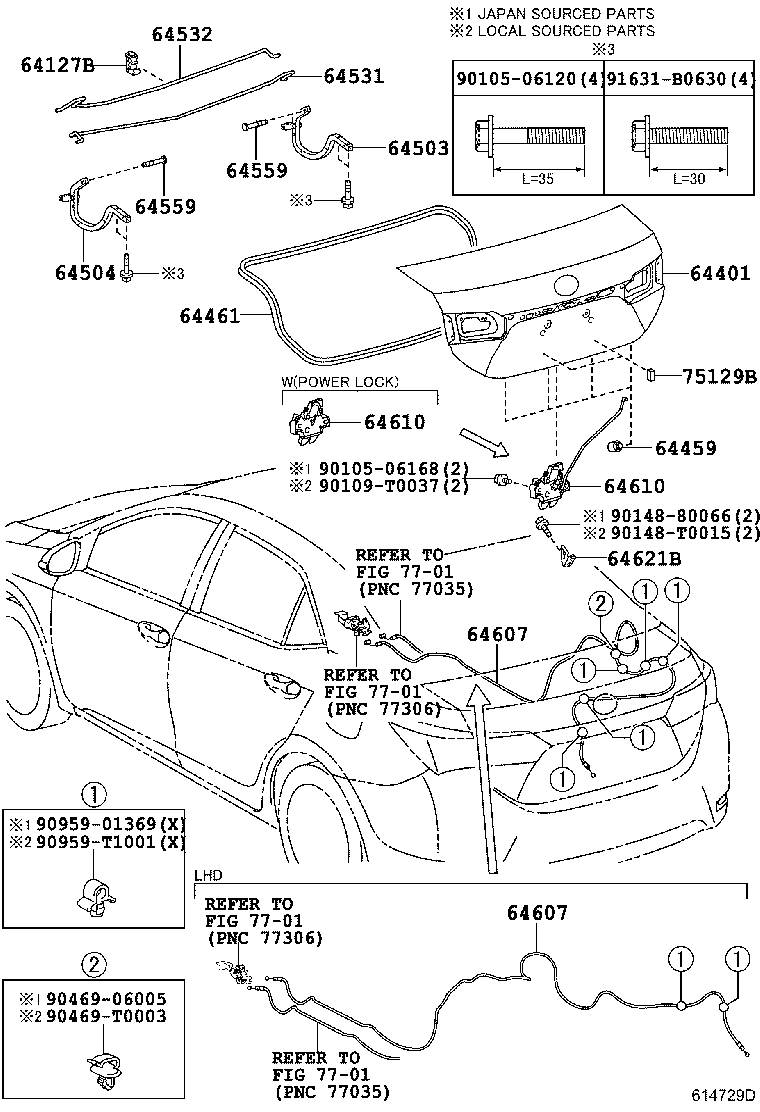

Click highlighted areas on diagram

diagram 64127B 64401 64459 64461 64503 64504 64531 64532 64559 64559 64607 64607 64610 64610 64621B 75129B 7701 7701 7701 7701 9010506120 9010506168 90109T0037 9014880066 90148T0015 9046906005 90469T0003 9095901369 90959T1001 91631B0630
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-02B71

ZRE173..VN

LOW GRADE PACKAGE

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-02312

ZRE173..VN

LOW GRADE PACKAGE

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-02312

ZRE173..VN

LOW GRADE PACKAGE

 1
Common parts
90105-06120
90105-06168
90109-T0037
90148-80066
90148-T0015
90469-06005
90469-T0003
90959-01369
90959-T1001
91631-B0630
Linked diagrams
7701
