ZRE173L-GEXVKH (2017)

Toyota Corolla/Altis

Production Sep 2017 - Jul 2020
Engine 3ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1310- )

Click highlighted areas on diagram

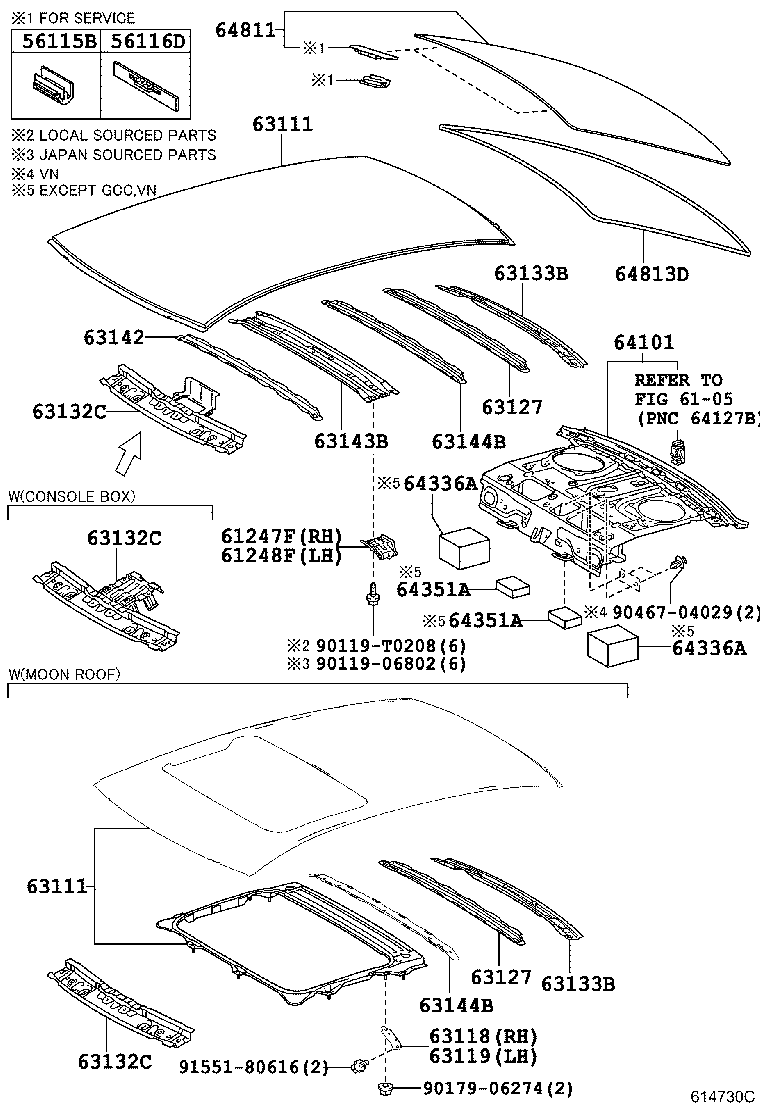

ROOF PANEL

diagram 56115B 56116D 6105 61247F 61248F 63111 63111 63118 63119 63127 63127 63132C 63132C 63132C 63133B 63133B 63142 63143B 63144B 63144B 64101 64336A 64336A 64351A 64351A 64811 64813D 9011906802 90119T0208 9017906274 9046704029 9155180616
Part # Description Qty Price
Common parts
90119-06802
90119-T0208
90179-06274
90467-04029
91551-80616
Linked diagrams
6105

ILLUST NO. 2 OF 2(1310- )

Click highlighted areas on diagram

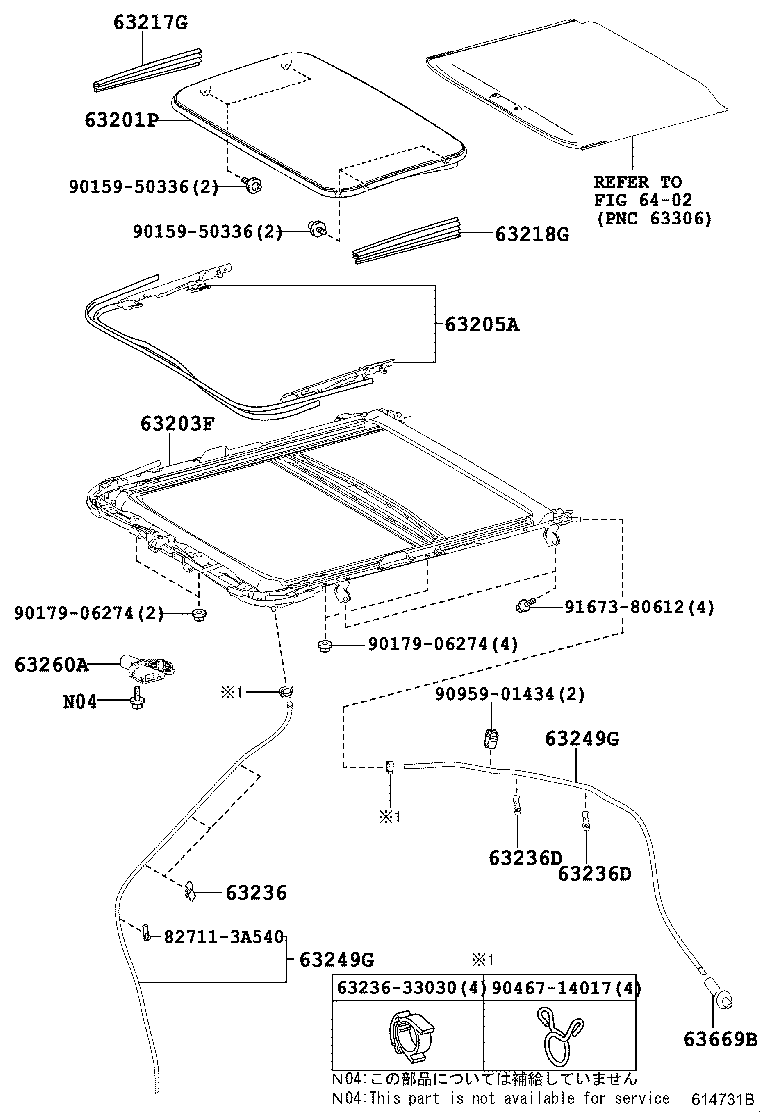

SLIDING ROOF

diagram 63201P 63203F 63205A 63217G 63218G 63236 6323633030 63236D 63236D 63249G 63249G 63260A 63669B 6402 827113A540 9015950336 9015950336 9017906274 9017906274 9046714017 9095901434 9167380612
Part # Description Qty Price
Common parts
63236-33030
82711-3A540
90159-50336
90179-06274
90467-14017
90959-01434
91673-80612
Linked diagrams
6402
