ZRE173L-GEXVKH (2017)

Toyota Corolla/Altis

Production Sep 2017 - Jul 2020
Engine 3ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )LHD

Click highlighted areas on diagram

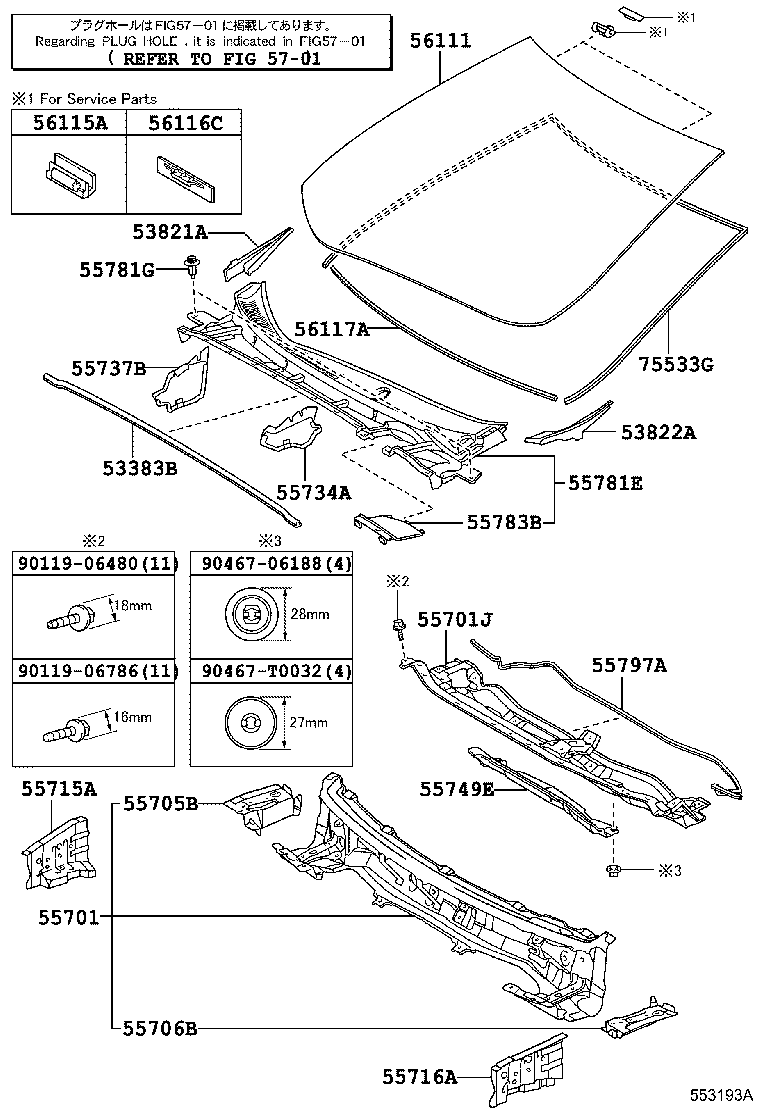

diagram 53383B 53821A 53822A 55701 55701J 55705B 55706B 55715A 55716A 55734A 55737B 55749E 55781E 55781G 55783B 55797A 56111 56115A 56116C 56117A 5701 75533G 9011906480 9011906786 9046706188 90467T0032
Part # Description Qty Price
53821A - PROTECTOR, FRONT SIDE PANEL, NO.1 RH
53805-02050

ZRE172,173..18E,20V

 1
53822A - PROTECTOR, FRONT SIDE PANEL, NO.1 LH
53806-02050

ZRE172,173..18E,20V

 1
56111 - GLASS, WINDSHIELD
56101-02979

ZRE173..VN

LOW GRADE PACKAGE

 1
56101-02974

ZRE173..VN

 1
Common parts
90119-06480
90119-06786
90467-06188
90467-T0032
Linked diagrams
5701
