ZRE173L-GEXVKH (2017)

Toyota Corolla/Altis

Production Sep 2017 - Jul 2020
Engine 3ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

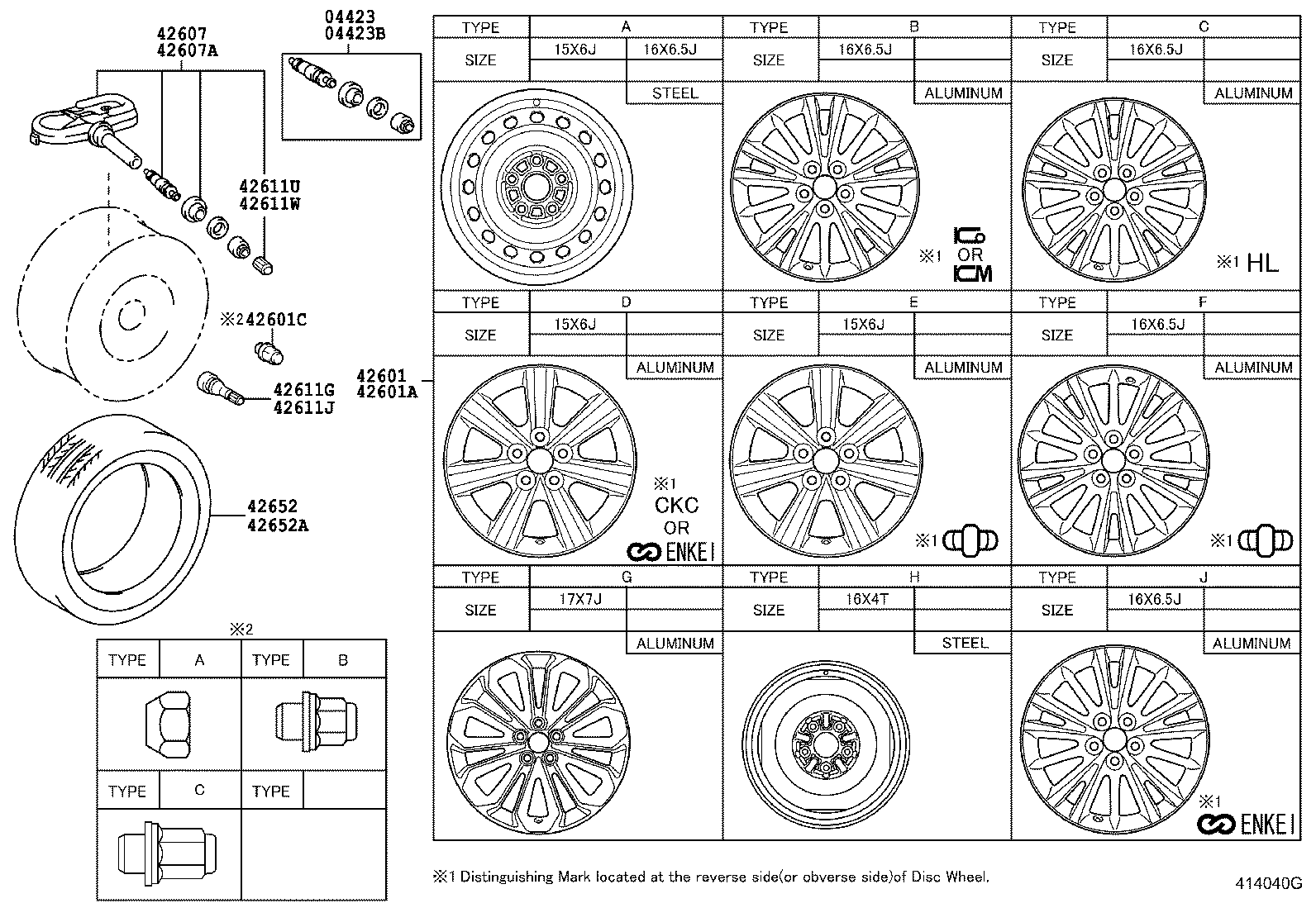

ILLUST NO. 1 OF 4(1310- )

Click highlighted areas on diagram

DISC WHEEL

diagram 04423 04423B 42601 42601A 42601C 42607 42607A 42611G 42611J 42611U 42611W 42652 42652A
Part # Description Qty Price
42601 - WHEEL, DISC
42611-02N90

ZRE173..VN

17X7J, #,TYPE M:REFER ILLUST.

 4
42611-02G41

ZRE173..VN

16X6.5J, #,LOW GRADE PACKAGE,TYPE J:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-02G41

ZRE173..VN

16X6.5J, #,LOW GRADE PACKAGE,TYPE J:REFER ILLUST.

 1
42611-02N90

ZRE173..VN

17X7J, #,TYPE M:REFER ILLUST.

 1

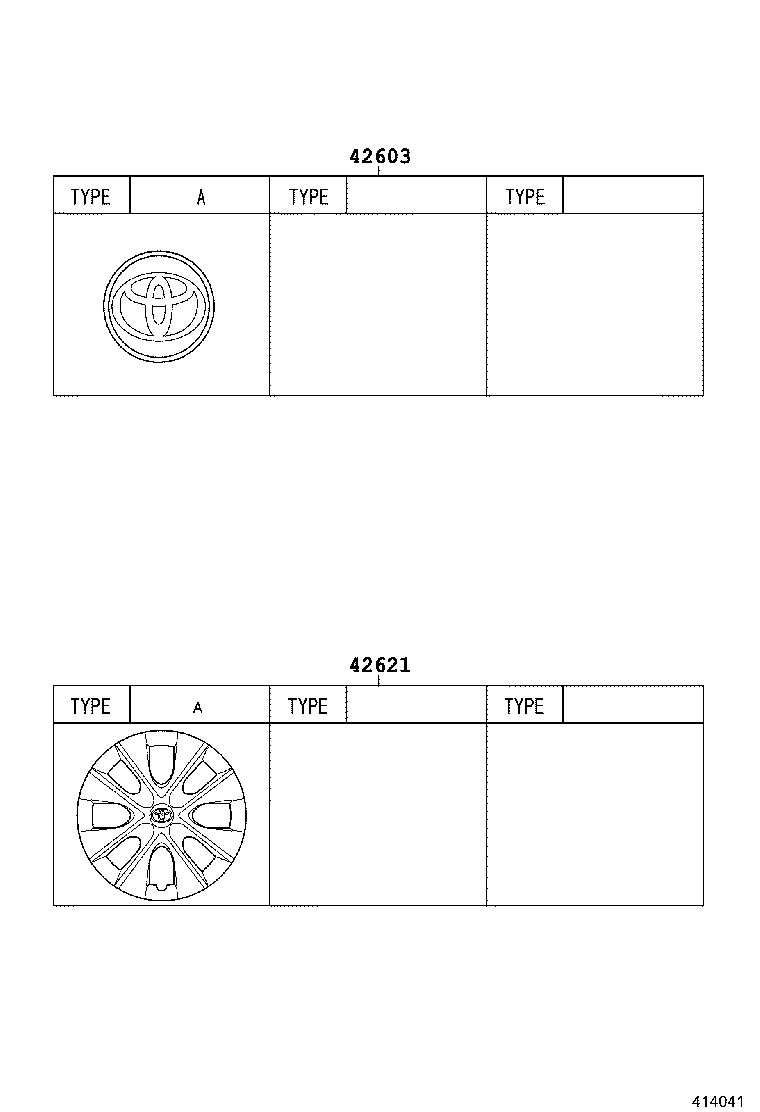

ILLUST NO. 3 OF 4(1310- )

Click highlighted areas on diagram

WHEEL HUB ORNAMENT & WHEEL CAP

diagram 42603 42621
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-0D070

ZRE173..VN

*ALU,LOW GRADE PACKAGE&TIRE & DISC WHEEL-205/55R16 ALUMINUM,TYPE A:REFER ILLUST.

 4
42603-0D200

ZRE173..VN

*ALU,TYPE A:REFER ILLUST.

 4

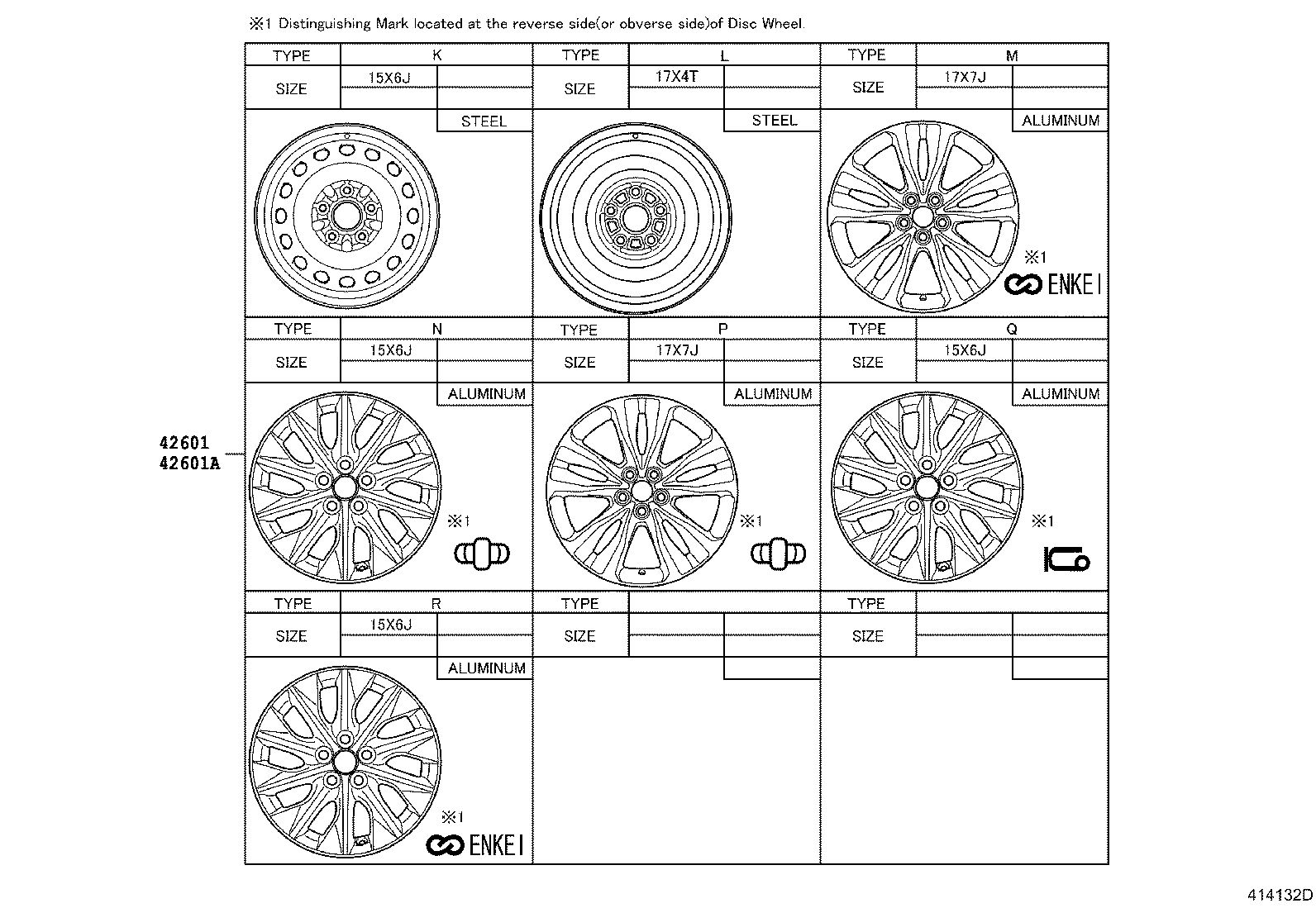

ILLUST NO. 2 OF 4(1310- )

Click highlighted areas on diagram

DISC WHEEL

diagram 42601 42601A
Part # Description Qty Price
42601 - WHEEL, DISC
42611-02N90

ZRE173..VN

17X7J, #,TYPE M:REFER ILLUST.

 4
42611-02G41

ZRE173..VN

16X6.5J, #,LOW GRADE PACKAGE,TYPE J:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-02G41

ZRE173..VN

16X6.5J, #,LOW GRADE PACKAGE,TYPE J:REFER ILLUST.

 1
42611-02N90

ZRE173..VN

17X7J, #,TYPE M:REFER ILLUST.

 1
