ZRE173L-GEXVKH (2017)

Toyota Corolla/Altis

Production Sep 2017 - Jul 2020
Engine 3ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE

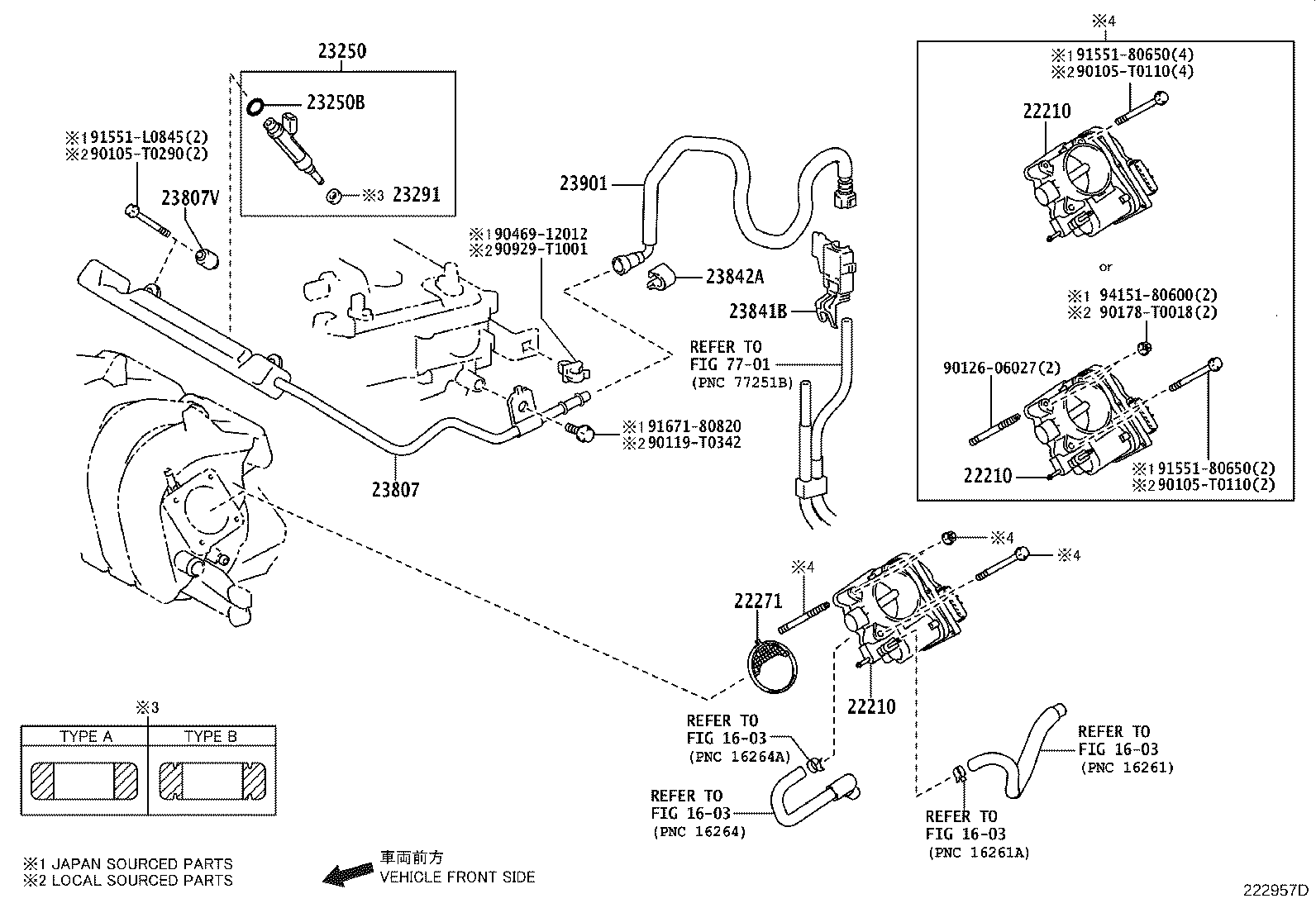

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 22210 22210 22210 22271 23250 23250B 23291 23807 23807V 23841B 23842A 23901 7701 90105T0110 90105T0110 90105T0290 90119T0342 9012606027 90178T0018 9046912012 90929T1001 9155180650 9155180650 91551L0845 9167180820 9415180600
Part # Description Qty Price
22271 - GASKET, THROTTLE BODY
22271-0T060

2ZRFE,3ZRFE..ZRE172,173..(18E,20V)..VN

(L)

 1
Common parts
90105-T0110
90105-T0290
90119-T0342
90126-06027
90178-T0018
90469-12012
90929-T1001
91551-80650
91551-L0845
91671-80820
94151-80600
Linked diagrams
1603
7701
