ZRE173L-GEXVKH (2017)

Toyota Corolla/Altis

Production Sep 2017 - Jul 2020
Engine 3ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )2ZR#,3ZRFE

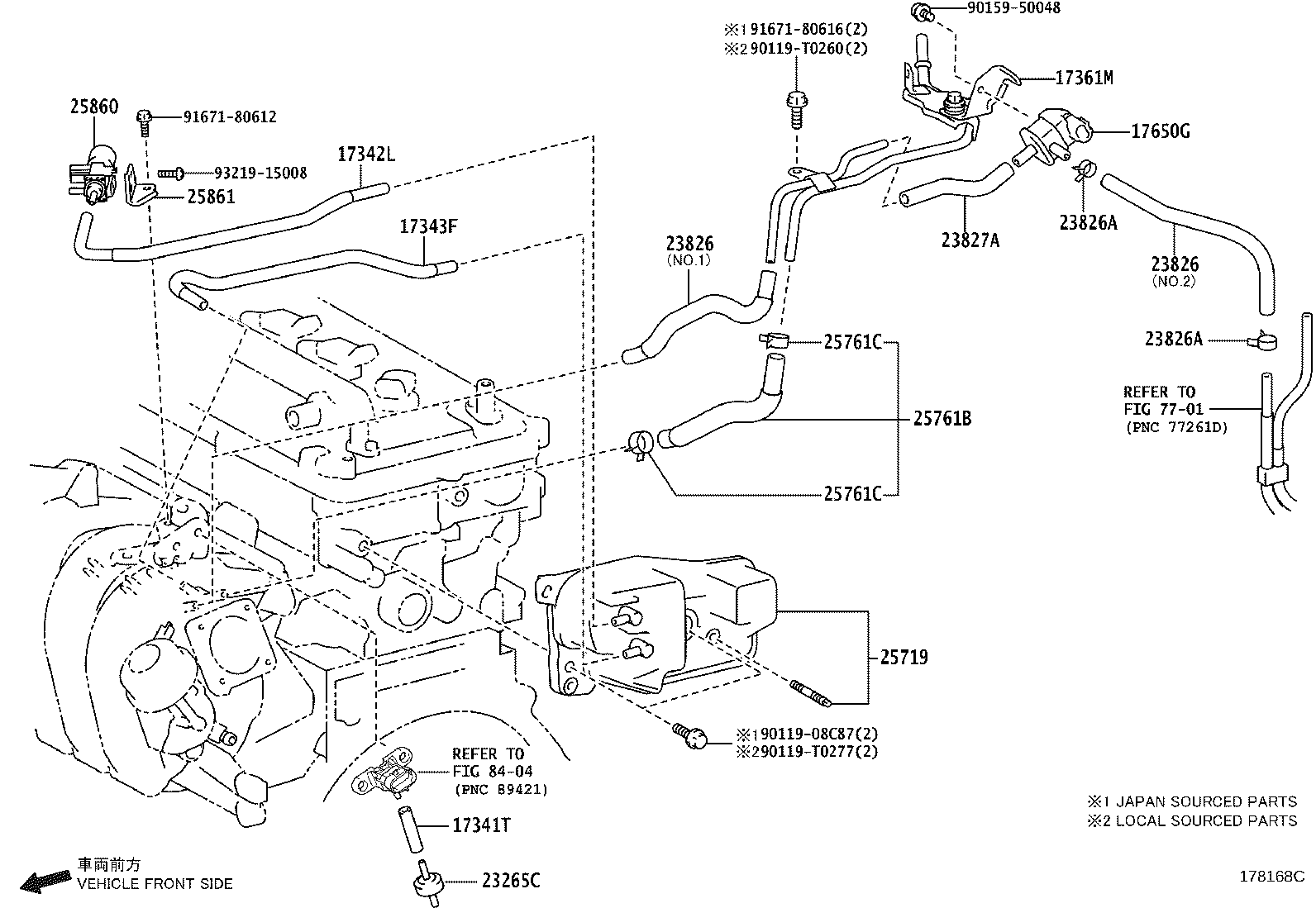

Click highlighted areas on diagram

diagram 17341T 17342L 17343F 17361M 17650G 23265C 23826 23826 23826A 23826A 23827A 25719 25761B 25761C 25761C 25860 25861 7701 8404 9011908C87 90119T0260 90119T0277 9015950048 9167180612 9167180616 9321915008
Part # Description Qty Price
17342L - HOSE, AIR, NO.2
17342-37060

2ZRFE,3ZRFE..ZRE172,173..(18E,20V)..VN

(J)

 1
17342-0T060

2ZRFE,3ZRFE..ZRE172,173..(18E,20V)..VN

(L)

 1
17343F - HOSE, AIR, NO.3
17343-0T010

2ZRFE,3ZRFE..ZRE172,173..(18E,20V)..VN

(L)

 1
17343-37040

2ZRFE,3ZRFE..ZRE172,173..(18E,20V)..VN

(J)

 1
Common parts
90119-08C87
90119-T0260
90119-T0277
90159-50048
91671-80612
91671-80616
93219-15008
Linked diagrams
7701
8404
