ZRE173L-GEXNKV (2016)
Toyota Corolla/Altis

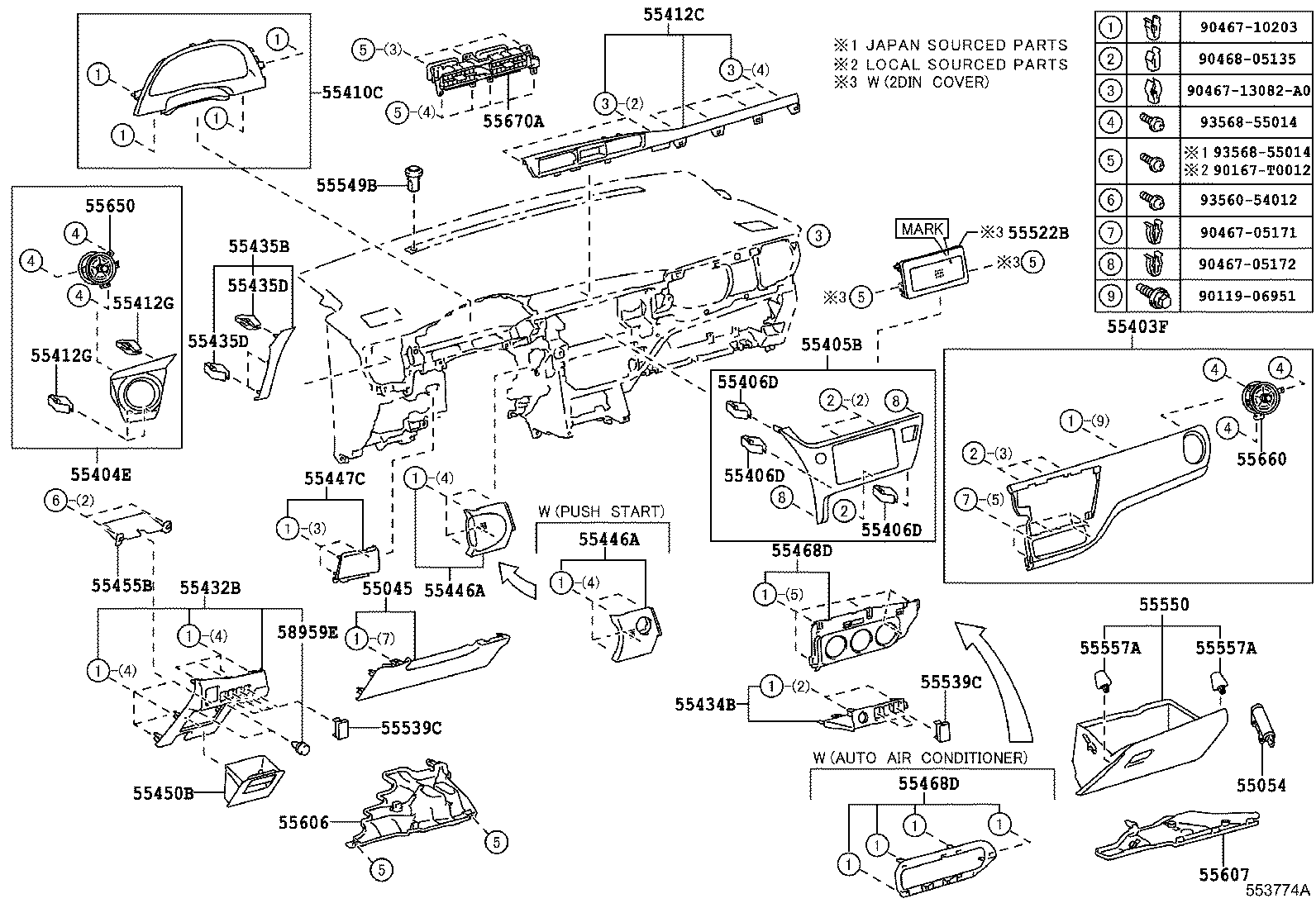

ILLUST NO. 2 OF 2(1610- )GCC,TAIW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-02430C0 |
ZRE171,173..GLI..GCC BLACK,TRIM0#,1#,2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-12030 |
ZRE17#..GCC,TAIW |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-02370A0 |
ZRE173..GLI UP GRADE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 55403-02370B0 |
ZRE173..GLI UP GRADE PACKAGE,GRAY,TRIM1# |
1 | ||
| 55403-02400A1 |
ZRE171,173..GCC FLAXEN,TRIM0# |
1 | ||
| 55403-02400B1 |
ZRE171,173..GCC GRAY,TRIM1# |
1 | ||
| 55403-02370B1 |
ZRE173..GLI UP GRADE PACKAGE,GRAY,TRIM1# |
1 | ||
| 55403-02370A1 |
ZRE173..GLI UP GRADE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 55403-02400A2 |
ZRE171,173..GCC FLAXEN,TRIM0# |
1 | ||
| 55403-02400A4 |
ZRE171,173..GCC FLAXEN,TRIM0# |
1 | ||
| 55403-02400C3 |
ZRE171,173..GLI..GCC BLACK/RED M.M.,TRIM2# |
1 | ||
| 55403-02400B2 |
ZRE171,173..GCC BLACK,TRIM1# |
1 | ||
| 55403-02370B2 |
ZRE173..GLI UP GRADE PACKAGE,GRAY,TRIM1# |
1 | ||
| 55403-02400B4 |
ZRE171,173..GCC BLACK,TRIM1# |
1 | ||
| 55403-02370A2 |
ZRE173..GLI UP GRADE PACKAGE,FLAXEN,TRIM0# |
1 | ||
| 55403-02400C4 |
ZRE171,173..GLI..GCC BLACK/RED M.M.,TRIM2# |
1 | ||
| 55404E - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, UPR | ||||
| 55404-02560A0 |
ZRE172..TAIW..(E,G);ZRE171,173..(16V,GLI,XLI)..(GCC,PHL) FLAXEN,TRIM0# |
1 | ||
| 55404-02560C0 |
ZRE172..TAIW;ZRE171,173..(16V,20V,GLI)..(GCC,PHL) BLACK,TRIM2# |
1 | ||
| 55404-02560B0 |
ZRE171,173..GCC GRAY,TRIM1# |
1 | ||
| 55404-02560C1 |
ZRE172..G;ZRE171,173..GLI..GCC BLACK/SILVER,TRIM21 |
1 | ||
| 55404-02560A1 |
ZRE172..TAIW..(E,G);ZRE171,173..(16V,GLI,XLI)..(GCC,PHL) FLAXEN,TRIM0# |
1 | ||
| 55404-02560B1 |
ZRE171,173..GCC GRAY,TRIM1# |
1 | ||
| 55404-02560C2 |
ZRE172..G;ZRE171,173..GLI..GCC BLACK/RED M.M.,TRIM21 |
1 | ||
| 55404-02560C4 |
ZRE171,173..GLI..GCC BLACK/RED M.M.,TRIM2# |
1 | ||
| 55404-02560B3 |
ZRE171,173..GCC GRAY,TRIM1# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-02B60 |
ZRE173..GCC;ZRE171..GLI..GCC AUDIO-AM/FM & CD & USB & *BT & 6SPEAKER |
1 | ||
| 55405-02B60 |
ZRE171,173..GLI..GCC UAE SPEC&X PACKAGE(REAR EMBLEM "X")&AUDIO-AM/FM & CD & USB & *BT & 6SPEAKER |
1 | ||
| 55405-02B60 |
ZRE171,173..GLI..GCC AUDIO-*DA & 6SPEAKER |
1 | ||
| 55405-02B60 |
ZRE171,173..GLI..GCC UAE SPEC&X PACKAGE(REAR EMBLEM "X")&AUDIO-*DA & 6SPEAKER |
1 | ||
| 55405-02B80 |
ZRE171,173..GLI..GCC UAE SPEC&X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 55405-02G20 |
ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X")&AUDIO-*DA & 6SPEAKER |
1 | ||
| 55405-02G20 |
ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X")&AUDIO-AM/FM & CD & USB & *BT & 6SPEAKER |
1 | ||
| 55405-02G30 |
ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 55405-02B80 |
ZRE171,173..GCC;ZRE172..CVT..VN |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-13082A0 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH MELLOW WHITE |
3 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-13082A0 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH MELLOW WHITE |
3 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-13082A0 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH MELLOW WHITE |
3 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-02590 |
ZRE172..LHD..CVT;ZRE171,173..LHD..(GCC,GEN,PHL) |
1 | ||
| 55412G - CLIP(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL) | ||||
| 90467-13082A0 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH MELLOW WHITE |
4 | ||
| 55412G - CLIP(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL) | ||||
| 90467-13082A0 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH MELLOW WHITE |
4 | ||
| 55435D - CLIP, METER HOOD CLUSTER | ||||
| 90467-13082A0 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH MELLOW WHITE |
3 | ||
| 55435D - CLIP, METER HOOD CLUSTER | ||||
| 90467-13082A0 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH MELLOW WHITE |
3 | ||
| 55468D - RETAINER, INSTRUMENT PANEL SAFETY PAD, CENTER | ||||
| 55468-02070 |
ZRE173..GLI UP GRADE PACKAGE |
1 | ||
| 55468D - RETAINER, INSTRUMENT PANEL SAFETY PAD, CENTER | ||||
| 55468-02070 |
ZRE173..GLI UP GRADE PACKAGE |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-0K010 |
ZRE173..GCC;ZRE171..GLI..GCC AUDIO-AM/FM & CD & USB & *BT & 6SPEAKER,MARK=55522-0K010 |
1 | ||
| 55522-52020 |
ZRE173..GCC;ZRE171..GLI..GCC AUDIO-AM/FM & CD & USB & *BT & 6SPEAKER |
1 | ||
| 55522-52020 |
ZRE172..18E..VN;ZRE172..CVT..(IDN,MA,VN);ZRE171,173..GCC,MA,SGP,VN MARK=55522-52020 |
1 | ||
| 55522-52020 |
ZRE172..CVT..(IDN,MA);ZRE171,173..GCC,MA,SGP |
1 | ||
| 55522-52020 |
ZRE171,173..GLI..GCC AUDIO-*DA & 6SPEAKER |
1 | ||
| 55522-0K010 |
ZRE171,173..GLI..GCC AUDIO-*DA & 6SPEAKER,MARK=55522-0K010 |
1 | ||
| 55522-0K010 |
ZRE171,173..GCC,MA,SGP;ZRE172..CVT..(IDN,MA,VN) MARK=55522-0K010 |
1 | ||
| 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55549-42020 |
ZRE172..PKN;ZRE173..GLI UP GRADE PACKAGE |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-02190 |
ZRE172..LHD..CVT;ZRE171,173..LHD..(GCC,GEN,PHL) DRIVER SIDE |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-02210 |
ZRE171..LHD..4FC;ZRE172..TAIW..(E,G);ZRE171,173..(16V,20V,GLI)..(GCC,PHL) PASSENGER SIDE |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55680-02180C3 |
ZRE171,173..GCC SILVER,TRIM0#,1# |
1 | ||
| 55680-02180C4 |
ZRE171,173..GLI..GCC BLACK/RED M.M.,TRIM2# |
1 | ||
| 55680-02180C5 |
ZRE171,173..GCC SILVER,TRIM0#,1# |
1 | ||
| 55680-02180C6 |
ZRE171,173..GLI..GCC BLACK/RED M.M.,TRIM2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55680-02120C1 |
ZRE171,173..GLI..GCC BLACK,TRIM2# |
1 | ||
| 55680-02120C4 |
ZRE171,173..GLI..GCC BLACK/RED M.M.,TRIM2# |
1 | ||
| 55680-02120C3 |
ZRE171,173..GCC BLACK/SILVER,TRIM0#,1# |
1 | ||
| 55680-02120C0 |
ZRE171,173..GCC BLACK,TRIM0#,1# |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH |
2 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90167-T0012 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-10203 | ||||
| 90467-13082A0 | ||||
| 90468-05135 | ||||
| 93560-54012 | ||||
| 93568-55014 | ||||
