ZRE173L-GEFDKV (2013)

Toyota Corolla/Altis

Production Oct 2013 - Nov 2015
Engine 3ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )ZRE173..4FC,6F

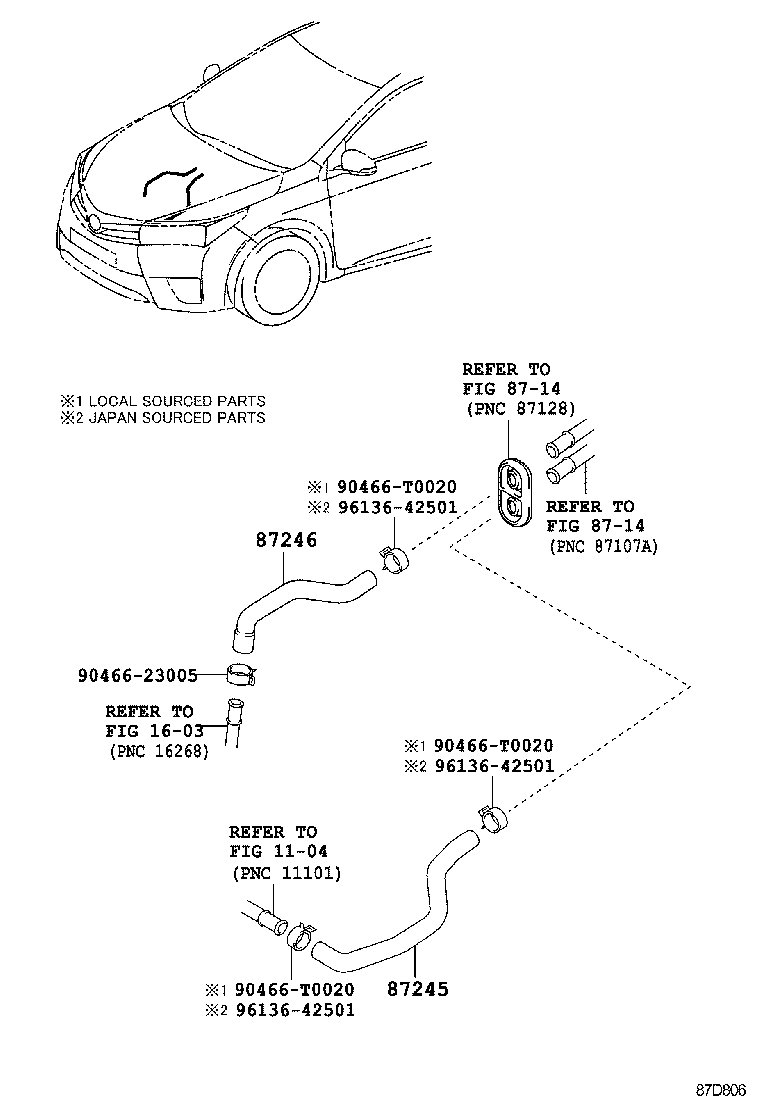

Click highlighted areas on diagram

diagram 1104 1603 8714 8714 87245 87246 9046623005 90466T0020 90466T0020 90466T0020 9613642501 9613642501 9613642501
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-02F50

ZRE173..6F

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-02F60

ZRE173..6F

 1
Common parts
90466-23005
90466-T0020
96136-42501
Linked diagrams
1104
1603
8714
