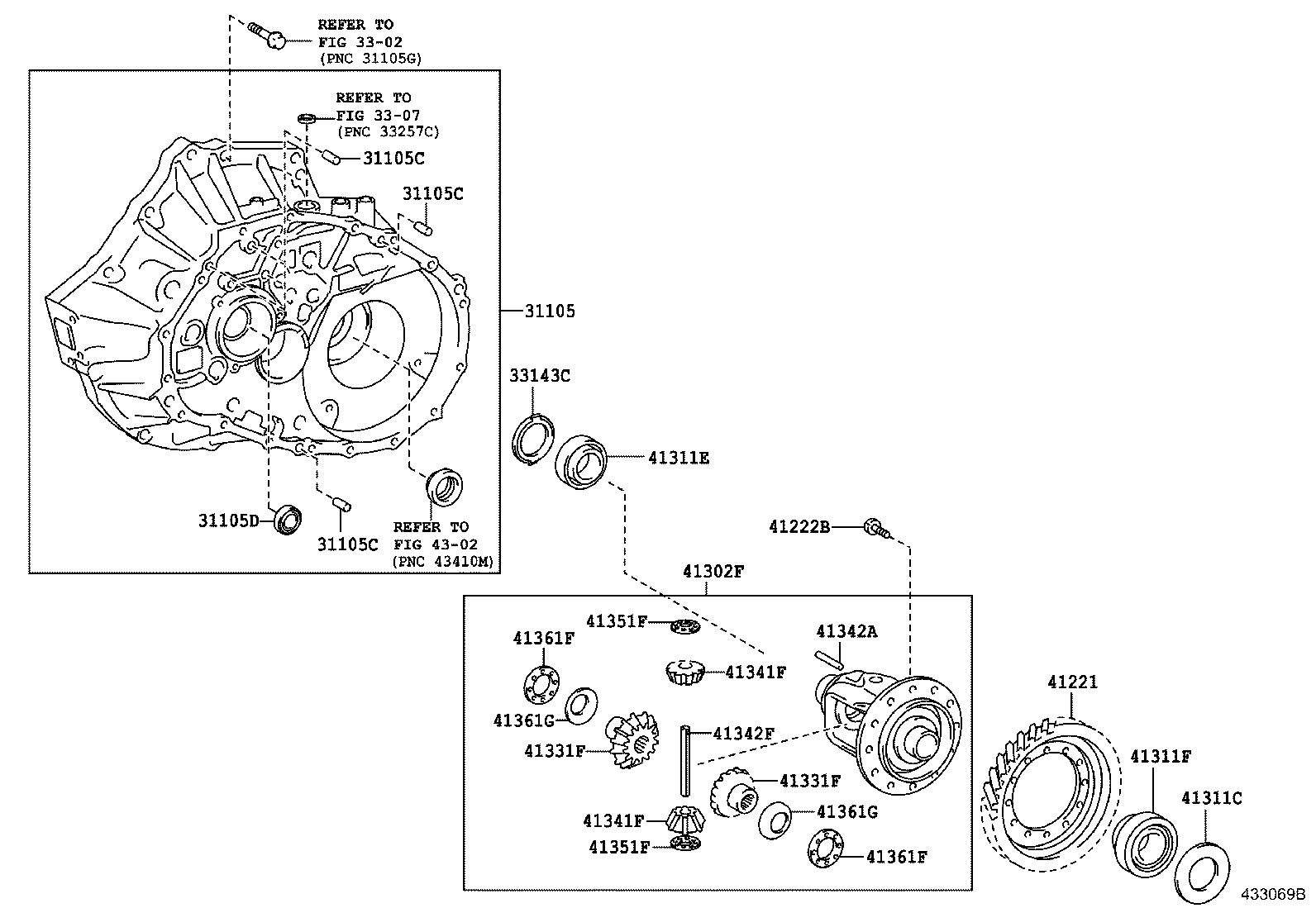

ZRE173L-GEFDKV (2013)
Toyota Corolla/Altis
(1310- )ZRE173..6F
EB60
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105 - CASE SUB-ASSY, TRANSAXLE(MTM) | ||||
| 31105-20101 |
ZRE173..6F |
1 | ||
| 31105C - PIN, STRAIGHT(FOR TRANSAXLE CASE) | ||||
| 90250-08054 |
ZRE173..6F |
5 | ||
| 31105C - PIN, STRAIGHT(FOR TRANSAXLE CASE) | ||||
| 90250-08054 |
ZRE173..6F |
5 | ||
| 31105C - PIN, STRAIGHT(FOR TRANSAXLE CASE) | ||||
| 90250-08054 |
ZRE173..6F |
5 | ||
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-27010 |
ZRE173..6F |
1 | ||
| 33143C - BAFFLE, FRONT DIFFERENTIAL OIL | ||||
| 33143-20060 |
ZRE173..6F |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-20490 |
ZRE173..6F |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-12319 |
ZRE173..6F |
12 | ||
| 41302F - CASE SUB-ASSY, FRONT DIFFERENTIAL | ||||
| 41301-21070 |
ZRE173..6F |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-61099 |
ZRE173..6F T=2.25,MARK E |
1 | ||
| 90564-61095 |
ZRE173..6F T=2.05,MARK A |
1 | ||
| 90564-61097 |
ZRE173..6F T=2.15,MARK C |
1 | ||
| 90564-61103 |
ZRE173..6F T=2.45,MARK J |
1 | ||
| 90564-61106 |
ZRE173..6F T=2.60,MARK M |
1 | ||
| 90564-61096 |
ZRE173..6F T=2.10,MARK B |
1 | ||
| 90564-61107 |
ZRE173..6F T=2.65,MARK N |
1 | ||
| 90564-61101 |
ZRE173..6F T=2.35,MARK G |
1 | ||
| 90564-61100 |
ZRE173..6F T=2.30,MARK F |
1 | ||
| 90564-61104 |
ZRE173..6F T=2.50,MARK K |
1 | ||
| 90564-61105 |
ZRE173..6F T=2.55,MARK L |
1 | ||
| 90564-61108 |
ZRE173..6F T=2.70,MARK P |
1 | ||
| 90564-61110 |
ZRE173..6F T=2.80,MARK R |
1 | ||
| 90564-61111 |
ZRE173..6F T=2.85,MARK S |
1 | ||
| 90564-61098 |
ZRE173..6F T=2.20,MARK D |
1 | ||
| 90564-61102 |
ZRE173..6F T=2.40,MARK H |
1 | ||
| 90564-61109 |
ZRE173..6F T=2.75,MARK Q |
1 | ||
| 90564-61112 |
ZRE173..6F T=2.90,MARK T |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-57028 |
ZRE173..6F |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-57028 |
ZRE173..6F |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-21020 |
ZRE173..6F |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-21020 |
ZRE173..6F |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-21010 |
ZRE173..6F |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-21010 |
ZRE173..6F |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
ZRE173..6F;ZRE171..6F..GLI |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-28010 |
ZRE173..6F |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
ZRE173..6F |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
ZRE173..6F |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-28250 |
ZRE173..6F T=1.2,MARK 3 |
2 | ||
| 41361-28230 |
ZRE173..6F T=1.0,MARK 1 |
2 | ||
| 41361-28240 |
ZRE173..6F T=1.1,MARK 2 |
2 | ||
| 41361-28260 |
ZRE173..6F T=1.3,MARK 4 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-28250 |
ZRE173..6F T=1.2,MARK 3 |
2 | ||
| 41361-28230 |
ZRE173..6F T=1.0,MARK 1 |
2 | ||
| 41361-28240 |
ZRE173..6F T=1.1,MARK 2 |
2 | ||
| 41361-28260 |
ZRE173..6F T=1.3,MARK 4 |
2 | ||
| 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA | ||||
| 90208-40003 |
ZRE173..6F |
2 | ||
| 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA | ||||
| 90208-40003 |
ZRE173..6F |
2 | ||
| Linked diagrams | ||||
| 3302 | ||||
| 3307 | ||||
| 4302 | ||||
(1507- )ZRE171..CVT..HTWC..PHL,SGP ; (1507-)ZRE171..CVT..CNG,HTWCF,HTWVM ; (
K313
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-20490 |
ZRE173..6F |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-20490 |
ZRE173..6F |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-12319 |
ZRE173..6F |
12 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-12319 |
ZRE173..6F |
12 | ||
| 41302F - CASE SUB-ASSY, FRONT DIFFERENTIAL | ||||
| 41301-21070 |
ZRE173..6F |
1 | ||
| 41302F - CASE SUB-ASSY, FRONT DIFFERENTIAL | ||||
| 41301-21070 |
ZRE173..6F |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-61099 |
ZRE173..6F T=2.25,MARK E |
1 | ||
| 90564-61095 |
ZRE173..6F T=2.05,MARK A |
1 | ||
| 90564-61097 |
ZRE173..6F T=2.15,MARK C |
1 | ||
| 90564-61103 |
ZRE173..6F T=2.45,MARK J |
1 | ||
| 90564-61106 |
ZRE173..6F T=2.60,MARK M |
1 | ||
| 90564-61096 |
ZRE173..6F T=2.10,MARK B |
1 | ||
| 90564-61107 |
ZRE173..6F T=2.65,MARK N |
1 | ||
| 90564-61101 |
ZRE173..6F T=2.35,MARK G |
1 | ||
| 90564-61100 |
ZRE173..6F T=2.30,MARK F |
1 | ||
| 90564-61104 |
ZRE173..6F T=2.50,MARK K |
1 | ||
| 90564-61105 |
ZRE173..6F T=2.55,MARK L |
1 | ||
| 90564-61108 |
ZRE173..6F T=2.70,MARK P |
1 | ||
| 90564-61110 |
ZRE173..6F T=2.80,MARK R |
1 | ||
| 90564-61111 |
ZRE173..6F T=2.85,MARK S |
1 | ||
| 90564-61098 |
ZRE173..6F T=2.20,MARK D |
1 | ||
| 90564-61102 |
ZRE173..6F T=2.40,MARK H |
1 | ||
| 90564-61109 |
ZRE173..6F T=2.75,MARK Q |
1 | ||
| 90564-61112 |
ZRE173..6F T=2.90,MARK T |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-57028 |
ZRE173..6F |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-57028 |
ZRE173..6F |
1 | ||
| Linked diagrams | ||||
| 3401 | ||||
| 4302 | ||||
