ZRE173L-GEFDKV (2013)

Toyota Corolla/Altis

Production Oct 2013 - Nov 2015
Engine 3ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )ZRE173..6F

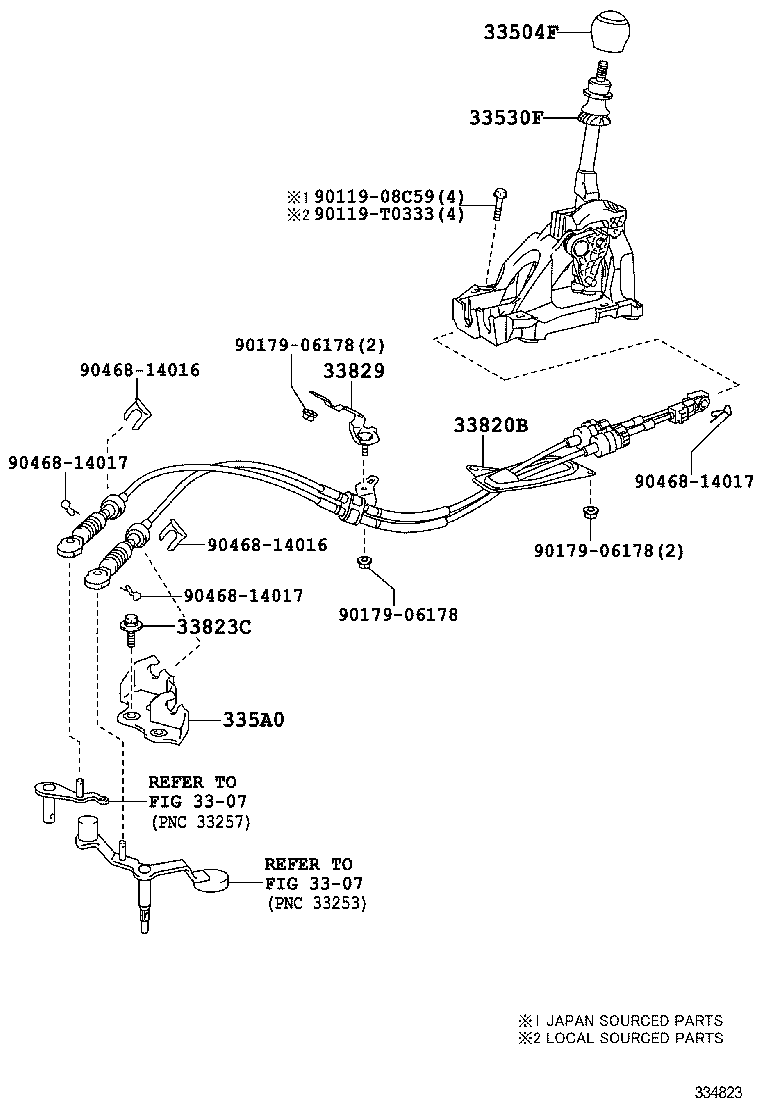

Click highlighted areas on diagram

diagram 3307 3307 33504F 33530F 335A0 33820B 33823C 33829 9011908C59 90119T0333 9017906178 9017906178 9017906178 9046814016 9046814016 9046814017 9046814017 9046814017
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-02350C0

ZRE173..6F

BLACK & MD.SILVER,TRIM0#,1#

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-02310

ZRE173..6F;ZRE171..6F..GLI

 1
335A0 - BRACKET ASSY, CONTROL CABLE
335A0-12030

ZRE173..6F

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-12E90

ZRE173..6F

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-08C60

ZRE173..6F;ZRE171..6F..GLI

 3
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-02290

ZRE173..6F;ZRE171..6F..GLI

 1
Common parts
90119-08C59
90119-T0333
90179-06178
90468-14016
90468-14017
Linked diagrams
3307
