ZRE173L-GEFDKV (2013)

Toyota Corolla/Altis

Production Oct 2013 - Nov 2015
Engine 3ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )ZRE173..6F

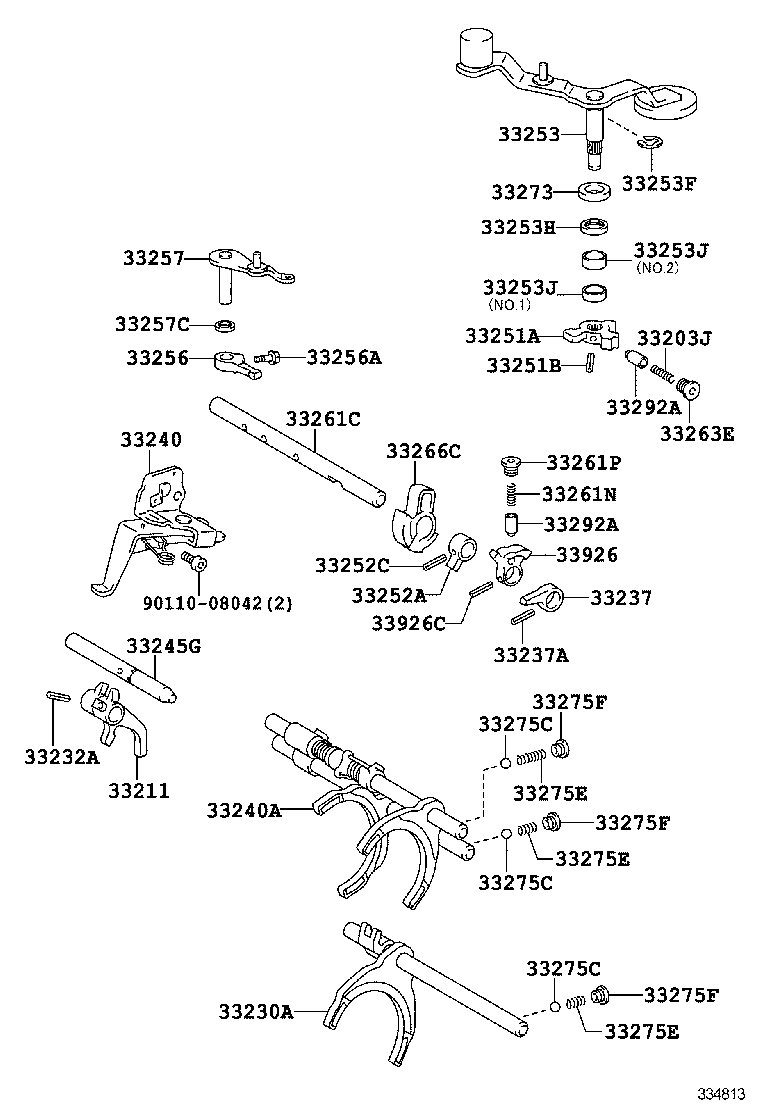

Click highlighted areas on diagram

EB60

diagram 33203J 33211 33230A 33232A 33237 33237A 33240 33240A 33245G 33251A 33251B 33252A 33252C 33253 33253F 33253H 33253J 33253J 33256 33256A 33257 33257C 33261C 33261N 33261P 33263E 33266C 33273 33275C 33275C 33275C 33275E 33275E 33275E 33275F 33275F 33275F 33292A 33292A 33926 33926C 9011008042
Part # Description Qty Price
33203J - SPRING(FOR SHIFT LEVER SHAFT BALL)
90501-12221

ZRE173..6F

 1
33211 - FORK, REVERSE SHIFT
33211-20050

ZRE173..6F

 1
33230A - SHAFT ASSY, GEAR SHIFT FORK, NO.1
33230-20060

ZRE173..6F

 1
33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
90254-05001

ZRE173..6F

 1
33237 - HEAD, RELEASE
33237-20010

ZRE173..6F

 1
33237A - PIN, SLOTTED SPRING (FOR RELEASE HEAD)
90254-05001

ZRE173..6F

 1
33240 - BRACKET ASSY, REVERSE SHIFT ARM
33240-20050

ZRE173..6F

 1
33240A - SHAFT ASSY, GEAR SHIFT FORK, NO.2
33240-20080

ZRE173..6F

 1
33245G - SHAFT, GEAR SHIFT FORK, NO.4
33245-20030

ZRE173..6F

 1
33251A - LEVER, SHIFT, INNER NO.1
33251-42020

ZRE173..6F

 1
33251-20130

ZRE173..6F

 1
33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
90254-05011

ZRE173..6F;ZRE171..6F..GLI

L=28.0

 1
33252A - LEVER, SHIFT, INNER NO.2
33252-20070

ZRE173..6F

 1
33252C - PIN, SLOTTED SPRING(FOR SHIFT LEVER INN NO.2)
90254-05001

ZRE173..6F;ZRE171..6F..GLI

 1
33253 - LEVER, SHIFT OUTER, NO.1
33253-12030

ZRE173..6F

 1
33253F - RING, E(FOR SHIFT OUTER LEVER)
90523-15003

ZRE173..6F;ZRE171..6F..GLI

 1
33253H - SEAL, OIL(FOR SHIFT OUTER LEVER)
90310-18003

ZRE173..6F;ZRE171..6F..GLI

 1
33253J - BUSH(FOR SHIFT OUTER LEVER)
90384-18018

ZRE173..6F

NO.2:REFER ILLUST.

 1
90384-14008

ZRE173..6F

NO.1:REFER ILLUST.

 1
33253J - BUSH(FOR SHIFT OUTER LEVER)
90384-18018

ZRE173..6F

NO.2:REFER ILLUST.

 1
90384-14008

ZRE173..6F

NO.1:REFER ILLUST.

 1
33256 - LEVER, SELECT INNER
33256-20040

ZRE173..6F

 1
33256A - BOLT, SET (FOR SELECT INNER LEVER)
90105-08079

ZRE173..6F

 1
33257 - LEVER, SELECT OUTER
33257-12030

ZRE173..6F

 1
33257C - SEAL, OIL(FOR OUTER SELECT LEVER)
90310-15005

ZRE173..6F;ZRE171..6F..GLI

 1
33261C - SHAFT, SHIFT & SELECT LEVER
33261-20150

ZRE173..6F

 1
33261N - SPRING, COMPRESSION(FOR SHIFT & SELECT LEVER SHAFT)
90501-11107

ZRE173..6F

 1
33261P - PLUG, STRAIGHT SCREW W/HEAD(FOR SHIFT & SELECT LEVER SH
90341-16013

ZRE173..6F;ZRE171..6F..GLI

 1
33263E - PLUG (FOR SHIFT LEVER SHAFT)
90341-16013

ZRE173..6F

 1
33266C - PLATE, SHIFT INTER LOCK
33266-20070

ZRE173..6F

 1
33273 - WASHER, SHIFT LEVER SHAFT HOUSING, NO.1
90560-18017

ZRE173..6F

 1
33275C - BALL (FOR SHIFT DETENT)
90360-10003

ZRE173..6F;ZRE171..6F..GLI

 3
33275C - BALL (FOR SHIFT DETENT)
90360-10003

ZRE173..6F;ZRE171..6F..GLI

 3
33275C - BALL (FOR SHIFT DETENT)
90360-10003

ZRE173..6F;ZRE171..6F..GLI

 3
33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-13087

ZRE173..6F

 3
33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-13087

ZRE173..6F

 3
33275E - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-13087

ZRE173..6F

 3
33275F - PLUG (FOR SHIFT DETENT BALL)
90341-12004

ZRE173..6F;ZRE171..6F..GLI

 3
33275F - PLUG (FOR SHIFT DETENT BALL)
90341-12004

ZRE173..6F;ZRE171..6F..GLI

 3
33275F - PLUG (FOR SHIFT DETENT BALL)
90341-12004

ZRE173..6F;ZRE171..6F..GLI

 3
33292A - PIN, LOCK BALL
33292-20010

ZRE173..6F

 2
33292A - PIN, LOCK BALL
33292-20010

ZRE173..6F

 2
33926 - LEVER, SHIFT INNER, FRONT
33926-20021

ZRE173..6F

 1
33926-20020

ZRE173..6F

 1
33926C - PIN, SLOTTED SPRING(FOR SHIFT INNER LEVER)
90254-05001

ZRE173..6F;ZRE171..6F..GLI

 1
Common parts
90110-08042
