ZRE173L-GEFDKV (2013)

Toyota Corolla/Altis

Production Oct 2013 - Nov 2015
Engine 3ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )ZRE173..6F

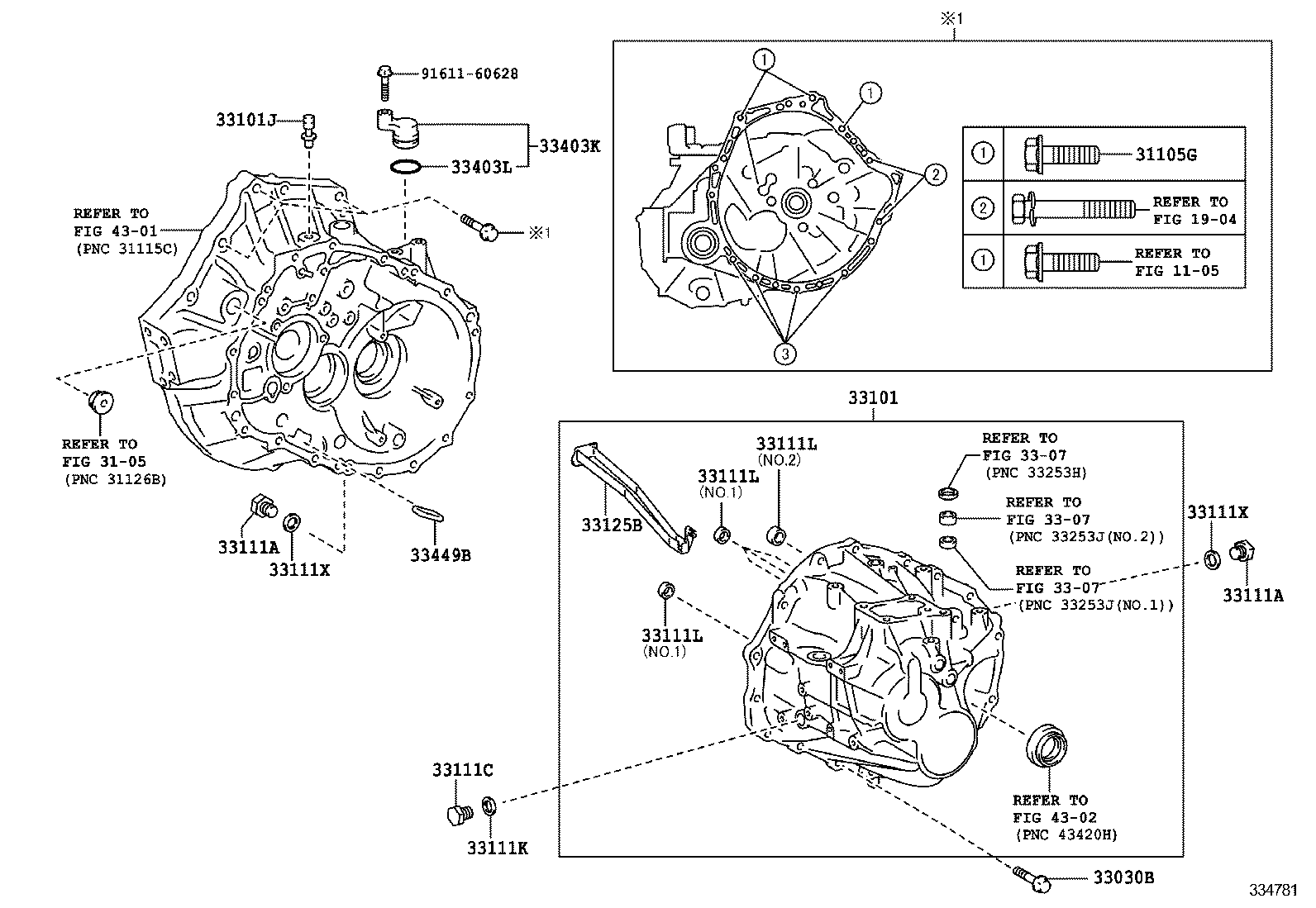

Click highlighted areas on diagram

EB60

diagram 1105 1904 3105 31105G 33030B 3307 3307 3307 33101 33101J 33111A 33111A 33111C 33111K 33111L 33111L 33111L 33111X 33111X 33125B 33403K 33403L 33449B 4301 4302 9161160628
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91512-61045

ZRE173..6F

*10-1.25PX45-30

 3
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
91551-10840

ZRE173..6F

*8-1.25PX40-22

 17
33101 - CASE SUB-ASSY, MANUAL TRANSMISSION
33101-42050

ZRE173..6F

 1
33101-20100

ZRE173..6F

 1
33101J - PLUG, BREATHER
90930-03085

ZRE173..6F

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006

ZRE173..6F

 2
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006

ZRE173..6F

 2
33111C - PLUG(FOR TRANSMISSION CASE)
90341-18033

ZRE173..6F

OD=24

 1
33111K - GASKET(FOR TRANSMISSION CASE)
12157-10010

ZRE173..6F;ZRE171..6F..GLI

 1
33111L - BUSH, BIMETAL FORMED(FOR TRANSMISSION CASE)
90384-16005

ZRE173..6F

NO.2:REFER ILLUST.

 1
90384-14008

ZRE173..6F

NO.1:REFER ILLUST.

 4
33111L - BUSH, BIMETAL FORMED(FOR TRANSMISSION CASE)
90384-16005

ZRE173..6F

NO.2:REFER ILLUST.

 1
90384-14008

ZRE173..6F

NO.1:REFER ILLUST.

 4
33111L - BUSH, BIMETAL FORMED(FOR TRANSMISSION CASE)
90384-16005

ZRE173..6F

NO.2:REFER ILLUST.

 1
90384-14008

ZRE173..6F

NO.1:REFER ILLUST.

 4
33111X - GASKET, TRANSMISSION CASE PLUG
12157-10010

ZRE173..6F

 2
33111X - GASKET, TRANSMISSION CASE PLUG
12157-10010

ZRE173..6F

 2
33125B - RECEIVER, MANUAL TRANSMISSION CASE
33125-20020

ZRE173..6F

 1
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-20230

ZRE173..6F

 1
33403L - RING, O
96711-24018

ZRE173..6F

 1
33449B - MAGNET, TRANSMISSION
33449-60010

ZRE173..6F

 1
