ZRE173L-GEFDKV (2013)

Toyota Corolla/Altis

Production Oct 2013 - Nov 2015
Engine 3ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )ZRE173..6F

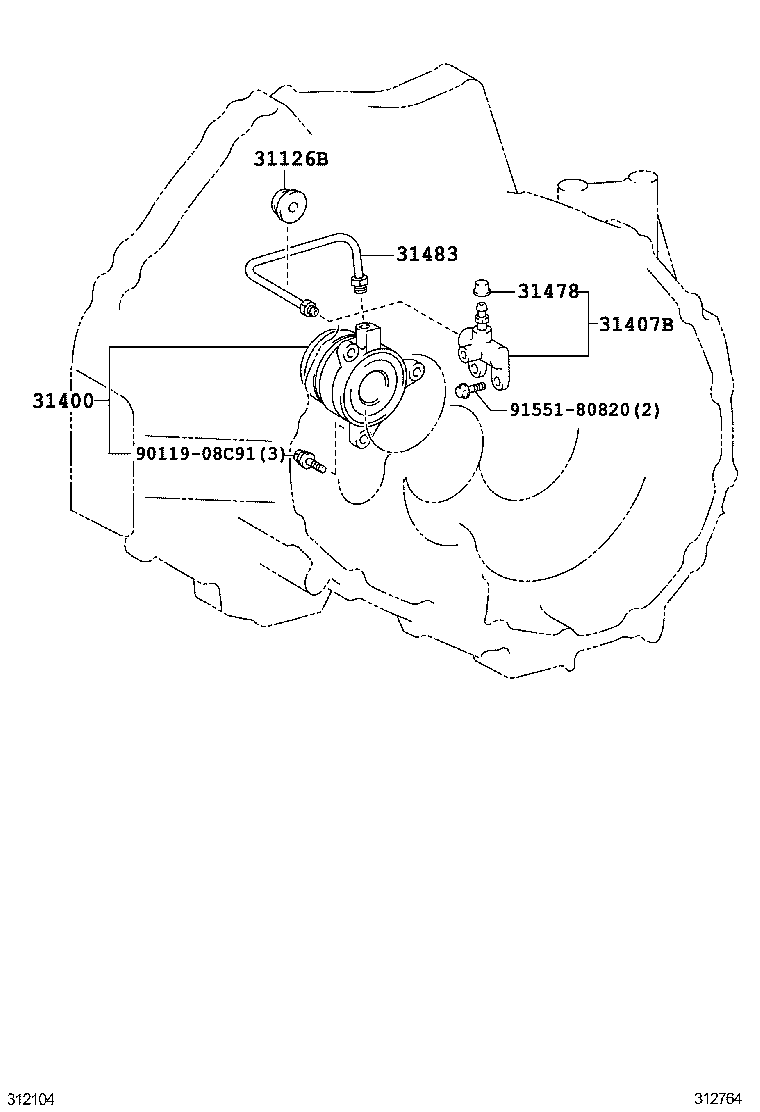

Click highlighted areas on diagram

diagram 31126B 31400 31407B 31478 31483 9011908C91 9155180820
Part # Description Qty Price
31126B - BOOT, CLUTCH TUBE
31126-20090

ZRE173..6F;ZRE171..6F..GLI

 1
31400 - CYLINDER ASSY, CLUTCH RELEASE W/BEARING
31400-39006

ZRE173..6F

 1
31407B - BLEEDER SUB-ASSY, CLUTCH RELEASE
31407-20011

ZRE173..6F

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

ZRE173..6F;ZRE171..6F..GLI

 1
31483 - TUBE, BLEEDER CLUTCH RELEASE
31482-20610

ZRE173..6F

 1
Common parts
90119-08C91
91551-80820
