ZRE173L-GEFDKV (2013)

Toyota Corolla/Altis

Production Oct 2013 - Nov 2015
Engine 3ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

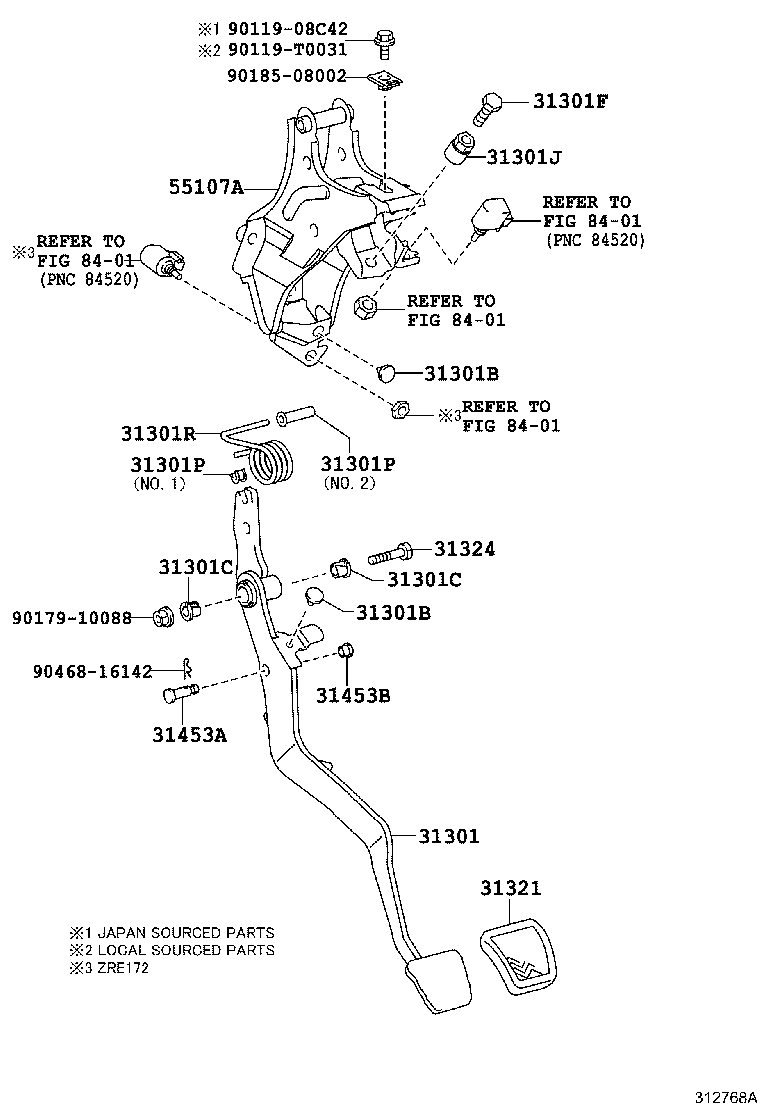

ILLUST NO. 1 OF 2(1310- )ZRE172,173,ZZE172..LHD..MTM

Click highlighted areas on diagram

diagram 31301 31301B 31301B 31301C 31301C 31301F 31301J 31301P 31301P 31301R 31321 31324 31453A 31453B 55107A 8401 8401 8401 8401 9011908C42 90119T0031 9017910088 9018508002 9046816142
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-02490

ZRE173..6F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

ZRE173..6F;ZRE171..6F..GLI

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

ZRE173..6F;ZRE171..6F..GLI

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ZRE173..6F;ZRE171..6F..GLI

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ZRE173..6F;ZRE171..6F..GLI

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10055

ZRE173..6F;ZRE171..6F..GLI

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
46441-12020

ZRE173..6F;ZRE171..6F..GLI

 1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90389-05019

ZRE173..6F

NO.2:REFER ILLUST.

 1
90386-05017

ZRE173..6F

NO.1:REFER ILLUST.

 1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90389-05019

ZRE173..6F

NO.2:REFER ILLUST.

 1
90386-05017

ZRE173..6F

NO.1:REFER ILLUST.

 1
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
90949-03138

ZRE173..6F

 1
31321 - PAD, CLUTCH PEDAL
31321-02060

ZRE173..6F;ZRE171..6F..GLI

 1
31324 - SHAFT, CLUTCH PEDAL
90109-10174

ZRE173..6F;ZRE171..6F..GLI

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08256

ZRE173..6F;ZRE171..6F..GLI

L=36.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

ZRE173..6F;ZRE171..6F..GLI

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-02410

ZRE173..6F

 1
Common parts
90119-08C42
90119-T0031
90179-10088
90185-08002
90468-16142
Linked diagrams
8401

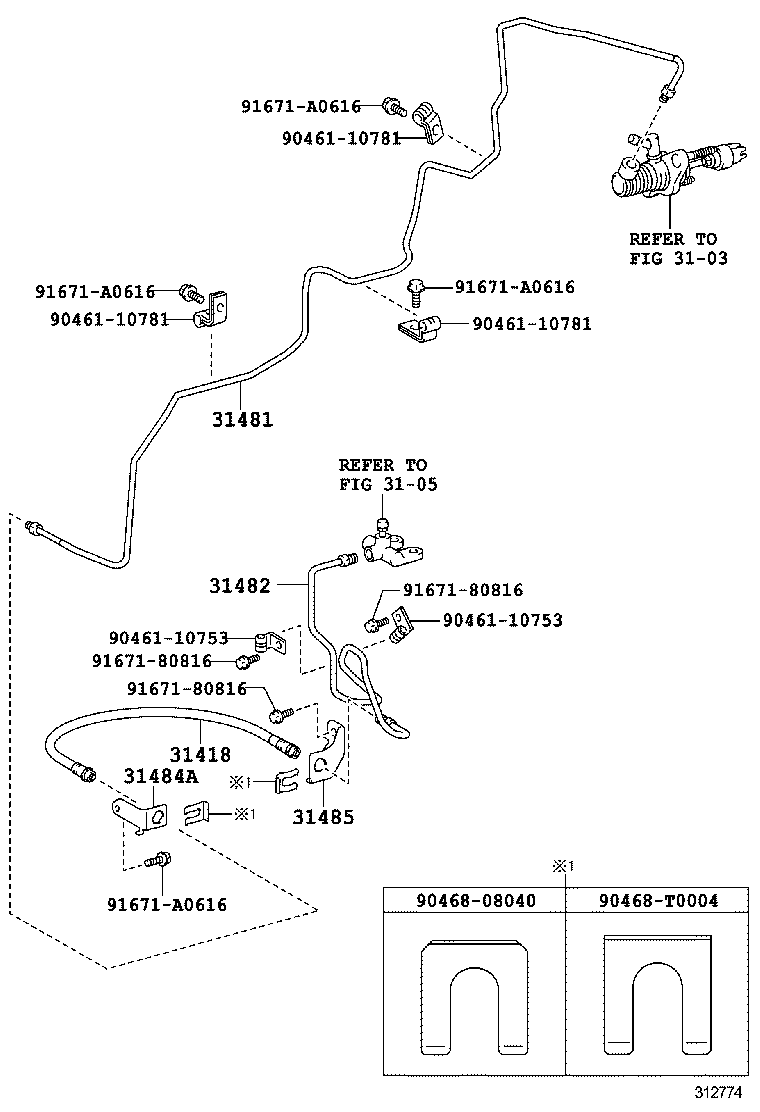

ILLUST NO. 2 OF 2(1310- )ZRE173..6F

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31482 31484A 31485 9046110753 9046110753 9046110781 9046110781 9046110781 9046808040 90468T0004 9167180816 9167180816 9167180816 91671A0616 91671A0616 91671A0616 91671A0616
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-T2039

ZRE173..6F;ZRE171..6F..GLI

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-02550

ZRE173..6F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-02470

ZRE173..6F

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-02330

ZRE173..6F;ZRE171..6F..GLI

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-02310

ZRE173..6F

 1
Common parts
90461-10753
90461-10781
90468-08040
90468-T0004
91671-80816
91671-A0616
Linked diagrams
3103
3105
