ZRE172R-GEXGKX (2017)

Toyota Corolla/Altis

Production Mar 2017 - Jun 2019
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1709- )GLI..GCC ; (1709- )ZRE172..G

Click highlighted areas on diagram

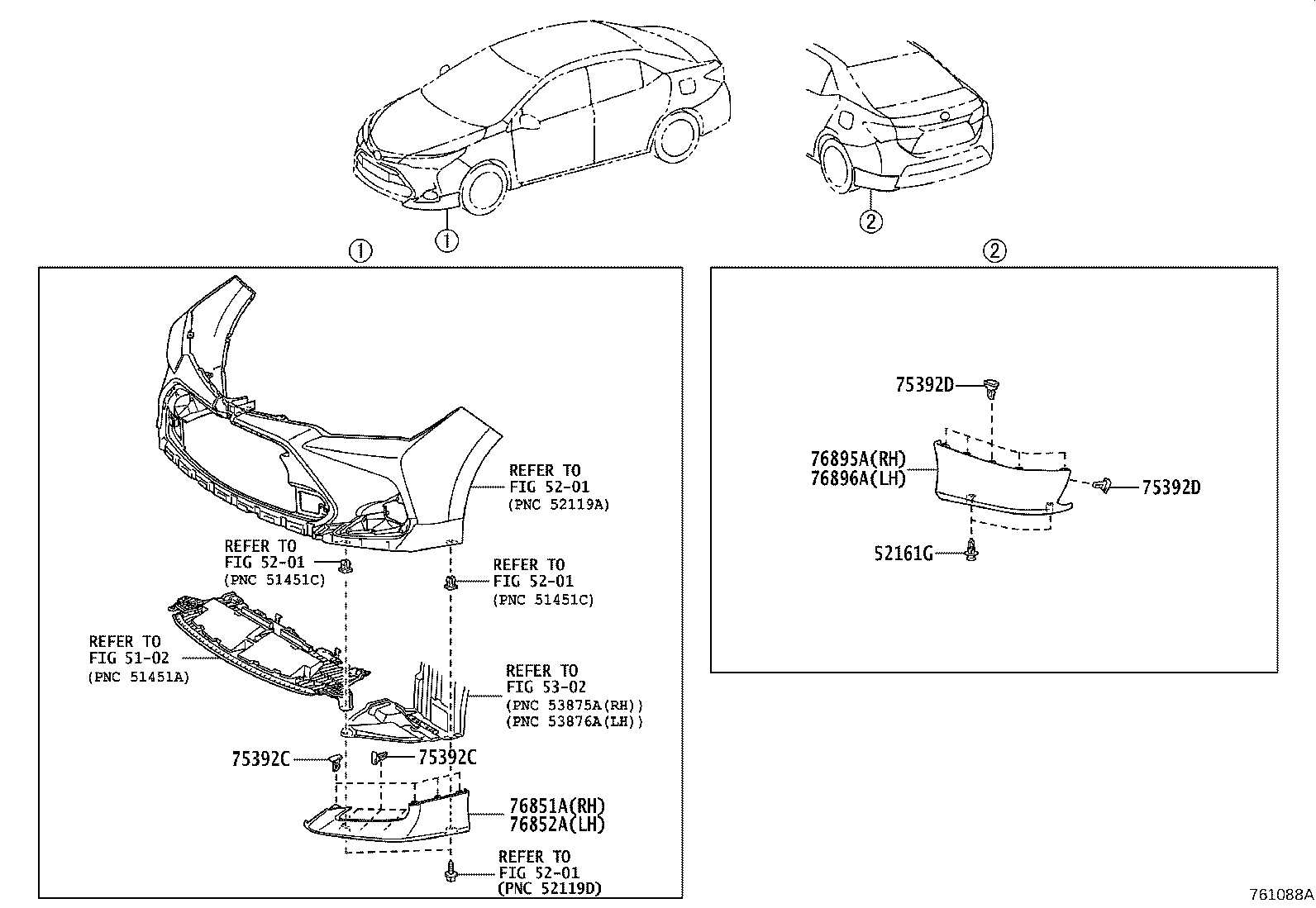

X PACKAGE,FRONT & REAR

diagram 5102 5201 5201 5201 5201 52161G 5302 75392C 75392C 75392D 75392D 76851A 76852A 76895A 76896A
Part # Description Qty Price
52161G - PIECE, REAR BUMPER
52161-0K060

ZRE172..G

X PACKAGE(LOW)

 4
52161-0K060

ZRE172..G;ZRE171,173..GLI..GCC

X PACKAGE(REAR EMBLEM "X")

 4
75392C - RETAINER, OUTSIDE MOULDING
75392-0K010

ZRE172..G

X PACKAGE(LOW),(L)

 14
75392-35220

ZRE172..G

X PACKAGE(LOW),(J)

 14
75392-0K010

ZRE172..G

X PACKAGE(REAR EMBLEM "X"),(L)

 14
75392-35220

ZRE172..G

X PACKAGE(REAR EMBLEM "X"),(J)

 14
75392C - RETAINER, OUTSIDE MOULDING
75392-0K010

ZRE172..G

X PACKAGE(LOW),(L)

 14
75392-35220

ZRE172..G

X PACKAGE(LOW),(J)

 14
75392-0K010

ZRE172..G

X PACKAGE(REAR EMBLEM "X"),(L)

 14
75392-35220

ZRE172..G

X PACKAGE(REAR EMBLEM "X"),(J)

 14
75392D - RETAINER, OUTSIDE MOULDING
75392-0K010

ZRE172..G;ZRE171,173..GLI..GCC

X PACKAGE(REAR EMBLEM "X"),(L)

 12
75392-35220

ZRE172..G;ZRE171,173..GLI..GCC

X PACKAGE(REAR EMBLEM "X"),(J)

 12
75392-35220

ZRE172..G

X PACKAGE(LOW),(J)

 12
75392-0K010

ZRE172..G

X PACKAGE(LOW),(L)

 12
75392D - RETAINER, OUTSIDE MOULDING
75392-0K010

ZRE172..G;ZRE171,173..GLI..GCC

X PACKAGE(REAR EMBLEM "X"),(L)

 12
75392-35220

ZRE172..G;ZRE171,173..GLI..GCC

X PACKAGE(REAR EMBLEM "X"),(J)

 12
75392-35220

ZRE172..G

X PACKAGE(LOW),(J)

 12
75392-0K010

ZRE172..G

X PACKAGE(LOW),(L)

 12
76851A - COVER, FRONT SPOILER, RH
76851-02916

ZRE172..G;ZRE171,173..GLI..GCC

X PACKAGE(REAR EMBLEM "X")

 1
76851-02916

ZRE172..G

X PACKAGE(LOW)

 1
76852A - COVER, FRONT SPOILER, LH
76852-02915

ZRE172..G;ZRE171,173..GLI..GCC

X PACKAGE(REAR EMBLEM "X")

 1
76852-02915

ZRE172..G

X PACKAGE(LOW)

 1
76895A - SPOILER, REAR BUMPER, RH
76895-02919

ZRE172..G

X PACKAGE(LOW)

 1
76895-02919

ZRE172..G;ZRE171,173..GLI..GCC

X PACKAGE(REAR EMBLEM "X")

 1
76896A - SPOILER, REAR BUMPER, LH
76896-02916

ZRE172..G

X PACKAGE(LOW)

 1
76896-02916

ZRE172..G;ZRE171,173..GLI..GCC

X PACKAGE(REAR EMBLEM "X")

 1
Linked diagrams
5102
5201
5302
