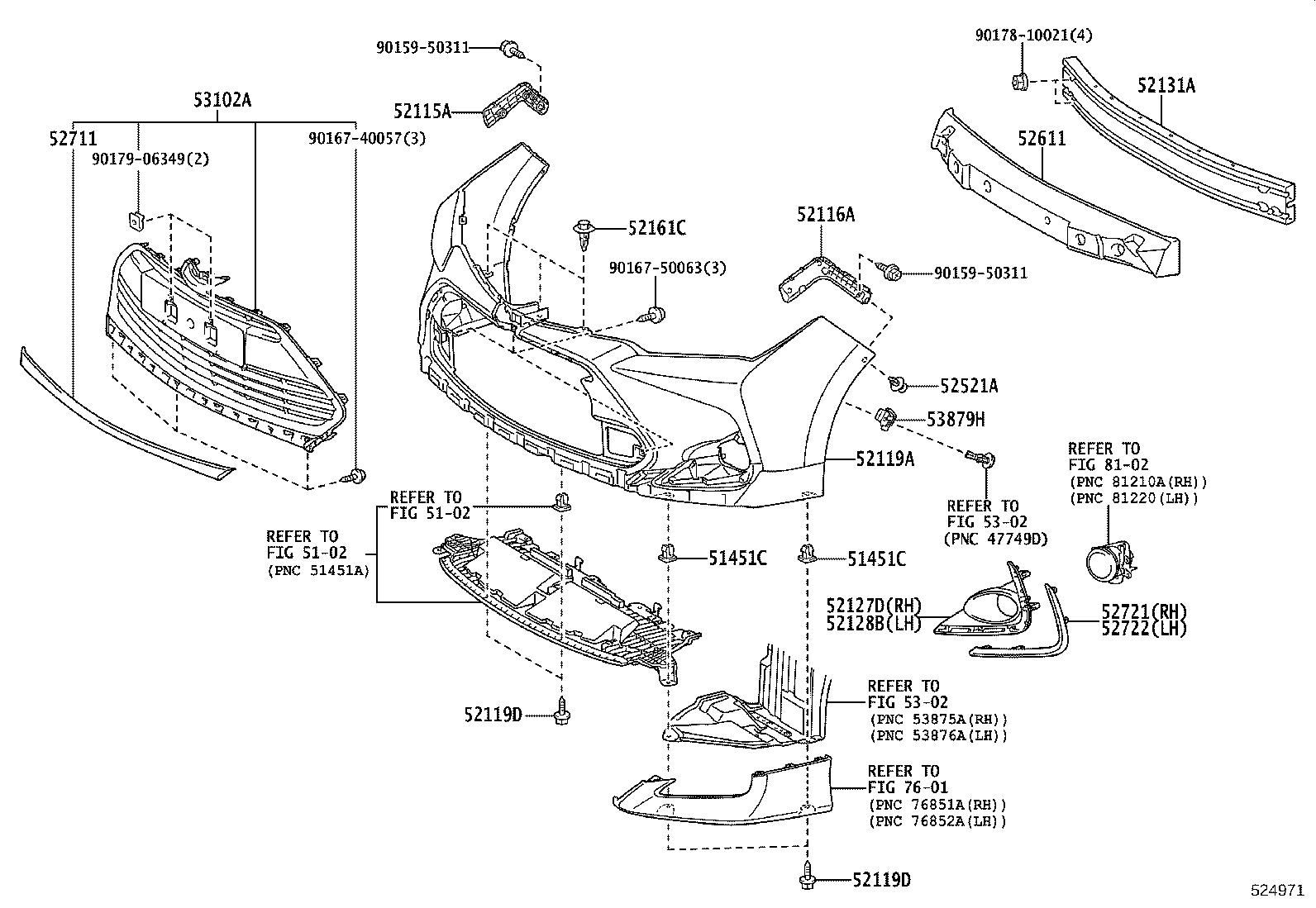

ZRE172R-GEFNKP (2017)
Toyota Corolla/Altis
(1709- )GLI..GCC ; (1709- )ZRE172..G
X PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451C - GROMMET(FOR ENGINE UNDER COVER) | ||||
| 90189-06193 |
ZRE17#..N |
4 | ||
| 51451C - GROMMET(FOR ENGINE UNDER COVER) | ||||
| 90189-06193 |
ZRE17#..N |
4 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-F2906 |
ZRE172..G;ZRE171,173..GLI..GCC PAINT REQ.,X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 52119-F2906 |
ZRE172..G PAINT REQ.,X PACKAGE(LOW) |
1 | ||
| 52119-0Z981 |
NZE170,ZRE171,172..PKN |
1 | ||
| 52119-F2933 |
ZRE17#..N |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60488 |
ZRE173..VN;ZRE171,173..(4FC,6F)..(GCC,PKN);NDE170,NZE170,ZRE172,ZZE172..GEN,IND,PKN,TAIW |
6 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60488 |
ZRE173..VN;ZRE171,173..(4FC,6F)..(GCC,PKN);NDE170,NZE170,ZRE172,ZZE172..GEN,IND,PKN,TAIW |
6 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-02570 |
ZRE172..G X PACKAGE(LOW) |
1 | ||
| 52127-02610 |
ZRE172..N |
1 | ||
| 52127-02570 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-02560 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 52128-02560 |
ZRE172..G X PACKAGE(LOW) |
1 | ||
| 52128-02610 |
ZRE172..N |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NZE170,ZRE171,172..PKN |
3 | ||
| 52521A - CLIP(FOR FRONT BUMPER RETAINER) | ||||
| 90467-05170 |
ZRE172..G X PACKAGE(LOW) |
2 | ||
| 90467-05170 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-02600 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 52611-02600 |
ZRE172..G X PACKAGE(LOW) |
1 | ||
| 52611-02450 |
ZRE171,172..N |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-02270 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 52711-02270 |
ZRE172..G X PACKAGE(LOW) |
1 | ||
| 52711-02270 |
ZRE17#..N PLATED |
1 | ||
| 52721 - MOULDING, FRONT BUMPER EXTENSION, RH | ||||
| 52721-02010 |
ZRE17#..N |
1 | ||
| 52721-02010 |
ZRE172..G X PACKAGE(LOW) |
1 | ||
| 52721-02010 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 52722 - MOULDING, FRONT BUMPER EXTENSION, LH | ||||
| 52722-02010 |
ZRE17#..N |
1 | ||
| 52722-02010 |
ZRE172..G X PACKAGE(LOW) |
1 | ||
| 52722-02010 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 53102A - GRILLE SUB-ASSY, RADIATOR, LWR | ||||
| 53102-02390 |
ZRE172..G X PACKAGE(LOW) |
1 | ||
| 53102-02480 |
ZRE17#..N |
1 | ||
| 53102-02390 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-58010 |
ZRE172..N |
2 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90178-10021 | ||||
| 90179-06349 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 7601 | ||||
| 8102 | ||||
(2008- )VN ; (2012- )N
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451C - GROMMET(FOR ENGINE UNDER COVER) | ||||
| 90189-06193 |
ZRE17#..N |
4 | ||
| 51451C - GROMMET(FOR ENGINE UNDER COVER) | ||||
| 90189-06193 |
ZRE17#..N |
4 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-F2906 |
ZRE172..G;ZRE171,173..GLI..GCC PAINT REQ.,X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 52119-F2906 |
ZRE172..G PAINT REQ.,X PACKAGE(LOW) |
1 | ||
| 52119-0Z981 |
NZE170,ZRE171,172..PKN |
1 | ||
| 52119-F2933 |
ZRE17#..N |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60488 |
ZRE173..VN;ZRE171,173..(4FC,6F)..(GCC,PKN);NDE170,NZE170,ZRE172,ZZE172..GEN,IND,PKN,TAIW |
6 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60488 |
ZRE173..VN;ZRE171,173..(4FC,6F)..(GCC,PKN);NDE170,NZE170,ZRE172,ZZE172..GEN,IND,PKN,TAIW |
6 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-02570 |
ZRE172..G X PACKAGE(LOW) |
1 | ||
| 52127-02610 |
ZRE172..N |
1 | ||
| 52127-02570 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-02560 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 52128-02560 |
ZRE172..G X PACKAGE(LOW) |
1 | ||
| 52128-02610 |
ZRE172..N |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
NZE170,ZRE171,172..PKN |
3 | ||
| 52521A - CLIP(FOR FRONT BUMPER RETAINER) | ||||
| 90467-05170 |
ZRE172..G X PACKAGE(LOW) |
2 | ||
| 90467-05170 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-02600 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 52611-02600 |
ZRE172..G X PACKAGE(LOW) |
1 | ||
| 52611-02450 |
ZRE171,172..N |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-02270 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 52711-02270 |
ZRE172..G X PACKAGE(LOW) |
1 | ||
| 52711-02270 |
ZRE17#..N PLATED |
1 | ||
| 52721 - MOULDING, FRONT BUMPER EXTENSION, RH | ||||
| 52721-02010 |
ZRE17#..N |
1 | ||
| 52721-02010 |
ZRE172..G X PACKAGE(LOW) |
1 | ||
| 52721-02010 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 52722 - MOULDING, FRONT BUMPER EXTENSION, LH | ||||
| 52722-02010 |
ZRE17#..N |
1 | ||
| 52722-02010 |
ZRE172..G X PACKAGE(LOW) |
1 | ||
| 52722-02010 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 53102A - GRILLE SUB-ASSY, RADIATOR, LWR | ||||
| 53102-02390 |
ZRE172..G X PACKAGE(LOW) |
1 | ||
| 53102-02480 |
ZRE17#..N |
1 | ||
| 53102-02390 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-58010 |
ZRE172..N |
2 | ||
| Common parts | ||||
| 90159-50311 | ||||
| 90167-40057 | ||||
| 90167-50063 | ||||
| 90178-10021 | ||||
| 90179-06349 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 7601 | ||||
| 8102 | ||||
