ZRE172R-GEFNKD (2013)

Toyota Corolla/Altis

Production Dec 2013 - Oct 2016
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN

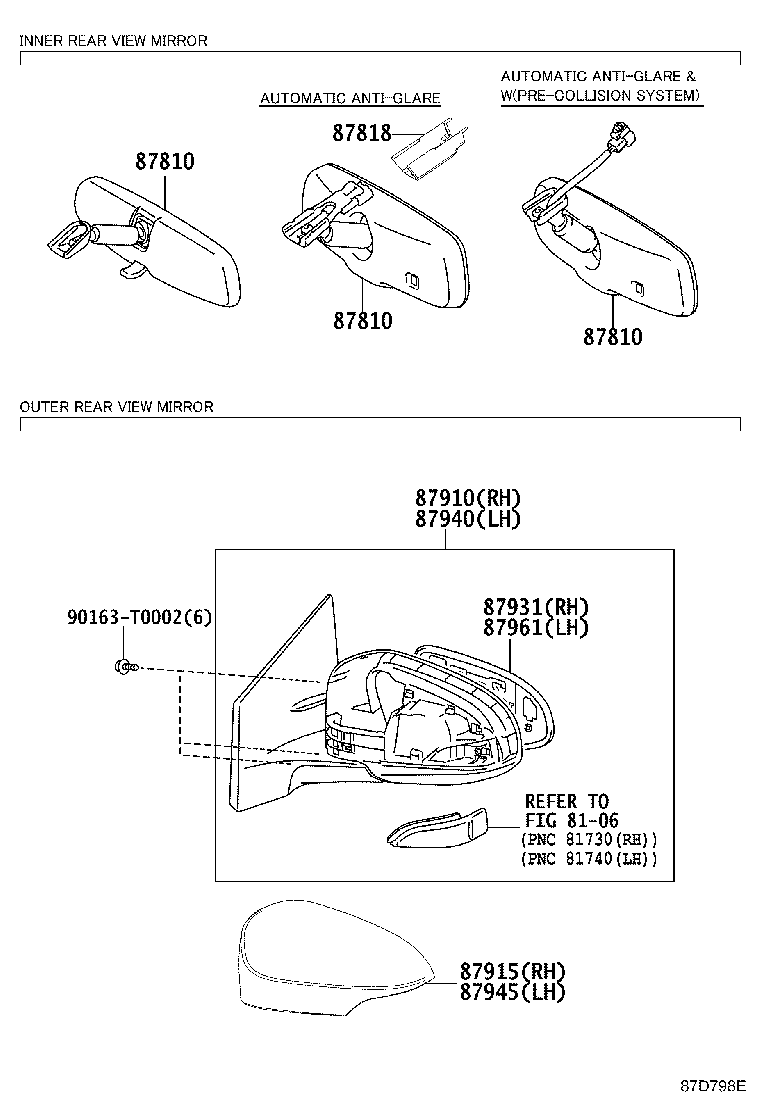

Click highlighted areas on diagram

diagram 8106 87810 87810 87810 87818 87910 87915 87931 87940 87945 87961 90163T0002
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-06041

ZRE171..16J..HTWCF;ZRE172..ARL..(D,N);ZRE171,173..GEN,PHL;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..RHD..(18E,18G,20G)

 1
87810-0W810

ZRE171,172..RHD..(E,G);ZRE172,173..RHD..(18V,20V)

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-06041

ZRE171..16J..HTWCF;ZRE172..ARL..(D,N);ZRE171,173..GEN,PHL;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..RHD..(18E,18G,20G)

 1
87810-0W810

ZRE171,172..RHD..(E,G);ZRE172,173..RHD..(18V,20V)

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-06041

ZRE171..16J..HTWCF;ZRE172..ARL..(D,N);ZRE171,173..GEN,PHL;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..RHD..(18E,18G,20G)

 1
87810-0W810

ZRE171,172..RHD..(E,G);ZRE172,173..RHD..(18V,20V)

 1
87818 - COVER, INNER RR VIEW MIRROR
87818-0W070

ZRE171,172..RHD..(E,G);ZRE172,173..RHD..(18GS,18V,20V)

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-02J20

ZRE171..GLI..GEN;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH;ZRE171..RHD..(CVT,MTM)..(GEN,SGP)

NO PAINT REQ.

 1
87915 - COVER, OUTER MIRROR, RH
87915-06910

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

PAINT REQ.

 1
87931 - OUTER MIRROR, RH
87931-0D750

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-02G60

ZRE171..GLI..GEN;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH;ZRE171..RHD..(CVT,MTM)..(GEN,SGP)

NO PAINT REQ.

 1
87945 - COVER, OUTER MIRROR, LH
87945-06910

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

PAINT REQ.

 1
87961 - MIRROR OUTER, LH
87961-0D740

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
Common parts
90163-T0002
Linked diagrams
8106
