ZRE172R-GEFGKX (2014)
Toyota Corolla/Altis
(1405- )IND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

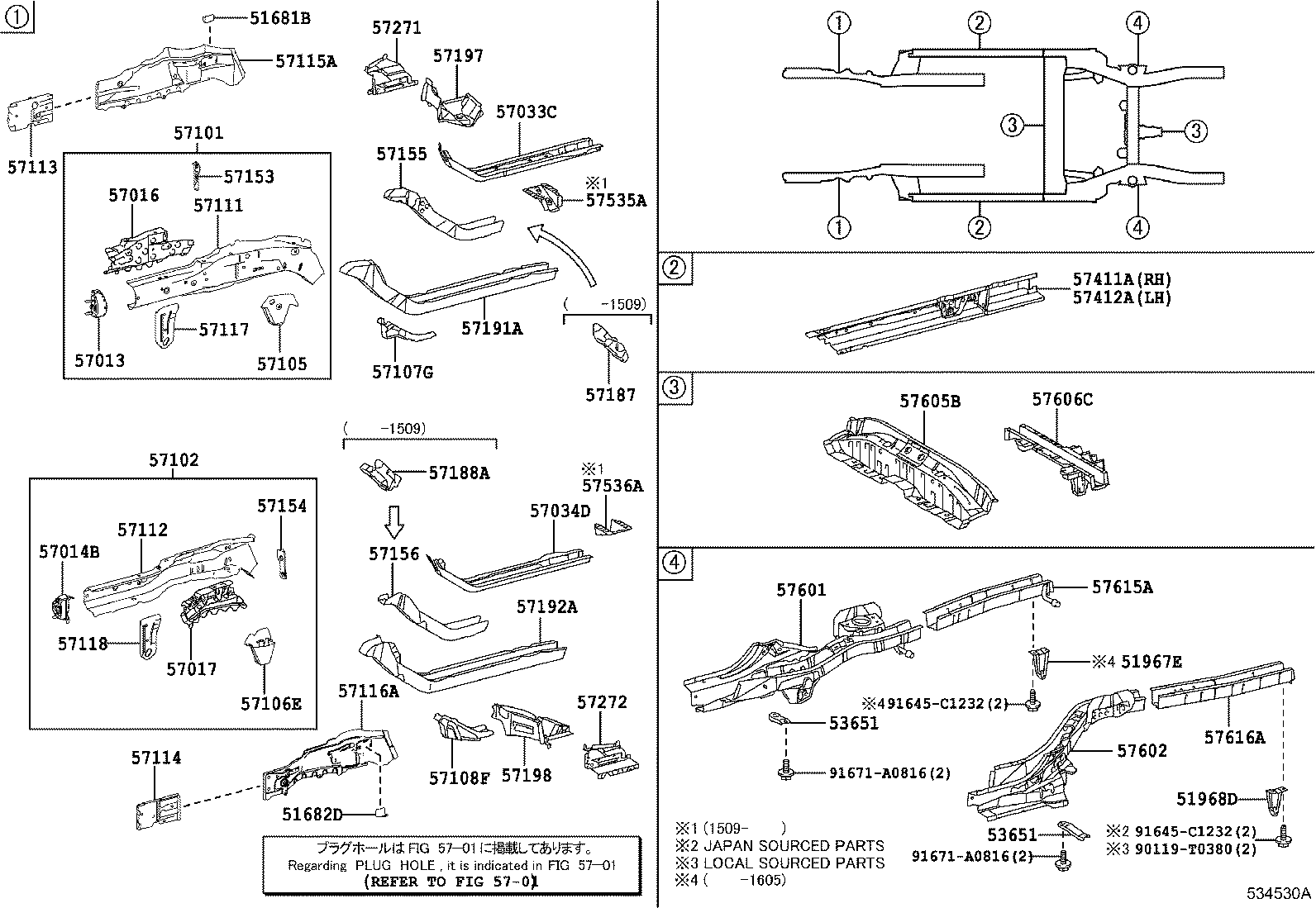

| 51681B - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH | ||||
| 51681-32050 |
ZRE172..CVT..VN;NDE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,SGP,TAIW,TH |
1 | ||
| 51681-32050 |
NDE170,ZRE172..IND |
1 | ||
| 51682D - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH | ||||
| 51682-32040 |
NDE170,ZRE172..IND |
1 | ||
| 51682-32040 |
ZRE172..CVT..VN;NDE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,SGP,TAIW,TH |
1 | ||
| 51967E - HOOK, TRANSPORT, REAR RH | ||||
| 51967-12300 |
NDE170,ZRE172..IND |
1 | ||
| 51968D - HOOK, TRANSPORT, REAR LH | ||||
| 51968-02060 |
NDE170,ZRE172..IND |
1 | ||
| 53651 - BRACE, REAR FLOOR SIDE MEMBER | ||||
| 53651-02080 |
NDE170,ZRE172..IND |
2 | ||
| 53651-02080 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
2 | ||
| 53651 - BRACE, REAR FLOOR SIDE MEMBER | ||||
| 53651-02080 |
NDE170,ZRE172..IND |
2 | ||
| 53651-02080 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
2 | ||
| 57013 - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57013-02170 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH |
1 | ||
| 57014B - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57014-02160 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH |
1 | ||
| 57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57016-02120 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH |
1 | ||
| 57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57017-02110 |
NDE170,ZRE172..IND |
1 | ||
| 57033C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH | ||||
| 57033-02110 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH |
1 | ||
| 57034D - REINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH | ||||
| 57034-02120 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-02920 |
NDE170,ZRE172..IND |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-02934 |
NDE170,ZRE172..IND |
1 | ||
| 57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57105-12140 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 57105-12140 |
NDE170,ZRE172..IND |
1 | ||
| 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57106-12130 |
NDE170,ZRE172..IND |
1 | ||
| 57106-12130 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 57107G - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA | ||||
| 57107-12110 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 57107-12110 |
NDE170,ZRE172..IND |
1 | ||
| 57108F - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA | ||||
| 57108-12130 |
NDE170,ZRE172..IND |
1 | ||
| 57108-12130 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-02160 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 57111-02160 |
NDE170,ZRE172..IND |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-02160 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-02110 |
NDE170,ZRE172..IND |
1 | ||
| 57113-02110 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-02110 |
NDE170,ZRE172..IND |
1 | ||
| 57114-02110 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-12080 |
NDE170,ZRE172..IND |
1 | ||
| 57115-12080 |
NDE170,NZE170,ZRE17#..GCC,IND,PKN,TAIW |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-12080 |
NDE170,ZRE172..IND |
1 | ||
| 57116-12080 |
NDE170,NZE170,ZRE17#..GCC,IND,PKN,TAIW |
1 | ||
| 57117 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH | ||||
| 57117-12130 |
NDE170,ZRE172..IND |
1 | ||
| 57117-12130 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 57118 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH | ||||
| 57118-12130 |
NDE170,ZRE172..IND |
1 | ||
| 57118-12130 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57153-32030 |
ZRE172..CVT..VN;NDE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,SGP,TAIW,TH |
1 | ||
| 57153-32030 |
NDE170,ZRE172..IND |
1 | ||
| 57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57154-32030 |
NDE170,ZRE172..IND |
1 | ||
| 57154-32030 |
ZRE172..CVT..VN;NDE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,SGP,TAIW,TH |
1 | ||
| 57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH | ||||
| 57155-02040 |
NDE170,ZRE172..IND |
1 | ||
| 57155-02040 |
ZRE172..CVT..VN;NDE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,SGP,TH |
1 | ||
| 57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH | ||||
| 57156-02060 |
ZRE172..CVT..VN;NDE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,SGP,TH |
1 | ||
| 57156-02060 |
NDE170,ZRE172..IND |
1 | ||
| 57187 - PLATE, FRONT SIDE MEMBER, NO.6 RH | ||||
| 57187-12020 |
NDE170,ZRE172..IND |
1 | ||
| 57188A - PLATE, FRONT SIDE MEMBER, NO.6 LH | ||||
| 57188-12020 |
NDE170,ZRE172..IND |
1 | ||
| 57191A - MEMBER, FRONT SIDE, INNER REAR RH | ||||
| 57191-13010 |
NDE170,ZRE172..IND |
1 | ||
| 57191-13010 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-13010 |
NDE170,ZRE172..IND |
1 | ||
| 57192-13010 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-02100 |
NDE170,ZRE172..IND |
1 | ||
| 57197-02100 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-02100 |
NDE170,ZRE172..IND |
1 | ||
| 57198-02100 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 57271 - EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH | ||||
| 57271-02100 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH |
1 | ||
| 57272 - EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH | ||||
| 57272-02100 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-02260 |
NDE170,ZRE172..IND |
1 | ||
| 57401-02330 |
NDE170,ZRE172..IND |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-02260 |
NDE170,ZRE172..IND |
1 | ||
| 57402-02331 |
NDE170,ZRE172..IND |
1 | ||
| 57535A - BRACE, FRONT FLOOR, RH | ||||
| 57535-02030 |
NDE170,ZRE172..IND |
1 | ||
| 57535-02030 |
ZRE172..CVT..VN;NDE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,SGP,TH |
1 | ||
| 57536A - BRACE, FRONT FLOOR, LH | ||||
| 57536-02030 |
ZRE172..CVT..VN;NDE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,SGP,TH |
1 | ||
| 57536-02030 |
NDE170,ZRE172..IND |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-02938 |
NDE170,ZRE172..IND |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-02939 |
NDE170,ZRE172..IND |
1 | ||
| 57602-02940 |
NDE170,ZRE172..IND |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-02200 |
ZRE172..CVT..VN;NDE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,SGP,TH |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-02230 |
NDE170,ZRE172..IND |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-02922 |
NDE170,ZRE172..IND |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-02921 |
NDE170,ZRE172..IND |
1 | ||
| Common parts | ||||
| 90119-T0380 | ||||
| 91645-C1232 | ||||
| 91671-A0816 | ||||
| Linked diagrams | ||||
| 5701 | ||||
