ZRE172R-GEFDKX (2014)

Toyota Corolla/Altis

Production May 2014 - Feb 2017
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )IND

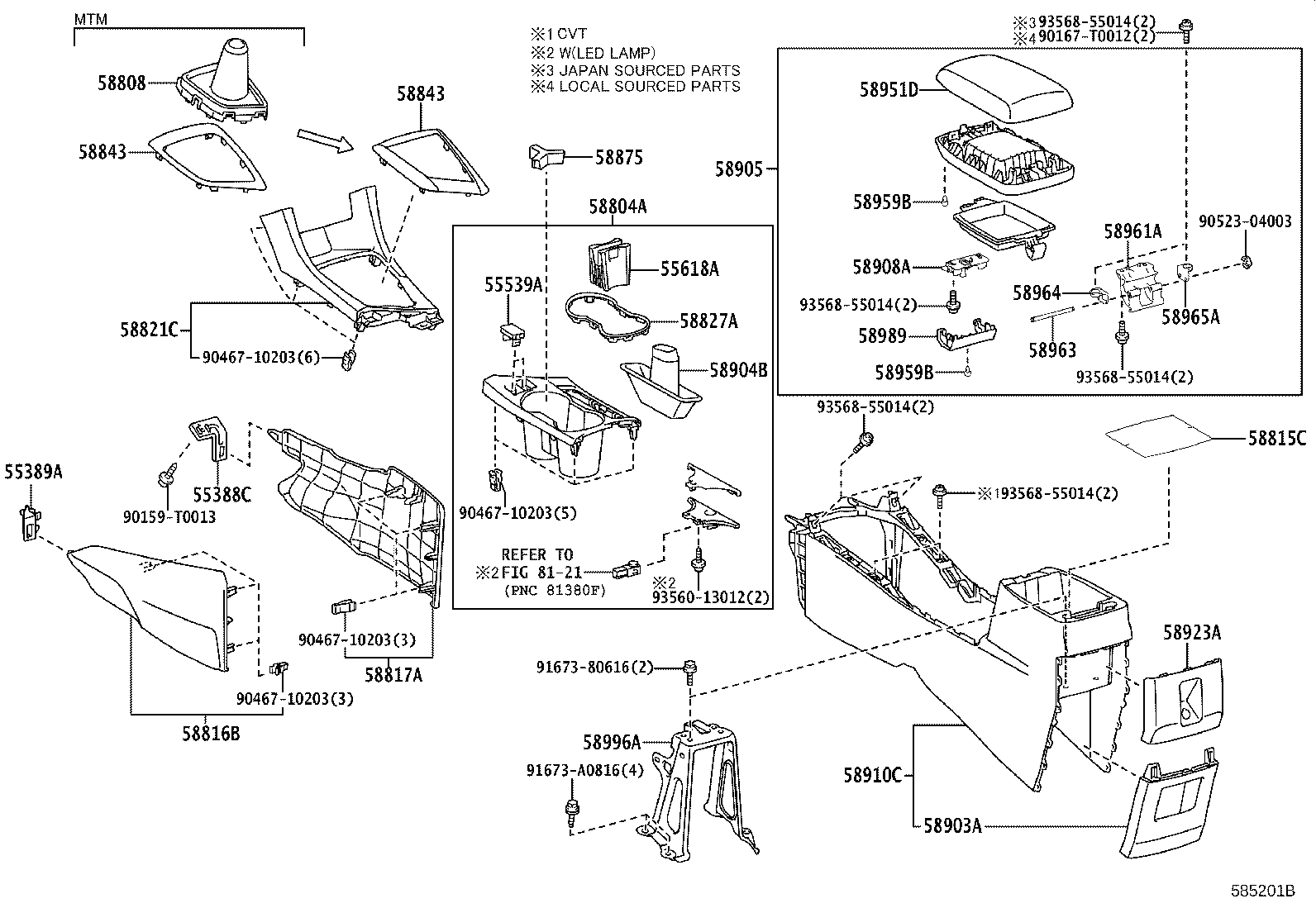

Click highlighted areas on diagram

diagram 55388C 55389A 55539A 55618A 58804A 58808 58815C 58816B 58817A 58821C 58827A 58843 58843 58875 58903A 58904B 58905 58908A 58910C 58923A 58951D 58959B 58959B 58961A 58963 58964 58965A 58989 58996A 8121 90159T0013 90167T0012 9046710203 9046710203 9046710203 9046710203 9052304003 9167380616 91673A0816 9356013012 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55388C - BRACKET, CONSOLE MOUNTING, RH
55389-02060

NDE170,NZE170,ZRE17#..RHD

 1
55389A - BRACKET, CONSOLE MOUNTING, LH
55388-02080

NDE170,NZE170,ZRE17#..RHD

 1
55539A - COVER, SPARE SWITCH HOLE
55539-0D090C0

ZRE171..6F..N;ZRE171..(ATM,CVT)..(PKN,TH);NDE170,NZE170,ZRE172..RHD..(18G,18V,G,GL,GLI,J,VL,XLI)..(DCR,HTWC)

BLACK,TRIM0#

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-02310C0

ZRE172..G

UP GRADE PACKAGE,BLACK,TRIM0#,2#

 1
58804-02311C0

ZRE172..G

UP GRADE PACKAGE,BLACK,TRIM0#,2#

 1
58804-02311C0

ZRE172..G

UP GRADE PACKAGE,BLACK,TRIM0#,2#

 1
58804-02331C0

ZRE172..J

BLACK,TRIM0#

 1
58804-02351C0

NDE170,ZRE172..G,GL,VL

BLACK,TRIM0#

 1
58804-02331C0

ZRE172..J

BLACK,TRIM0#

 1
58804-02351C0

NDE170,ZRE172..G,GL,VL

BLACK,TRIM0#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-02410C0

NDE170,ZRE172..6F..IND

BLACK,TRIM0#

 1
58815C - CARPET, CONSOLE BOX
58815-02310

ZRE172..CVT..VN;NDE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,SGP,TH

 1
58816B - INSERT, CONSOLE BOX
58816-02250C0

NDE170,ZRE172..IND

BLACK,TRIM0#

 1
58817A - INSERT, CONSOLE BOX, FRONT NO.2
58817-02250C0

NDE170,ZRE172..IND

BLACK,TRIM0#

 1
58821C - PANEL, CONSOLE, UPPER
58821-02810C0

NDE170,ZRE172..IND

BLACK,TRIM0#

 1
58843 - BEZEL, SHIFTING HOLE
58843-02610

ZRE172..G

UP GRADE PACKAGE&X PACKAGE(REAR EMBLEM "X")

 1
58843-02640

NDE170,ZRE172..6F..IND

 1
58843-02610

ZRE172..G

LOW GRADE PACKAGE&X PACKAGE(REAR EMBLEM "X")

 1
58843 - BEZEL, SHIFTING HOLE
58843-02610

ZRE172..G

UP GRADE PACKAGE&X PACKAGE(REAR EMBLEM "X")

 1
58843-02640

NDE170,ZRE172..6F..IND

 1
58843-02610

ZRE172..G

LOW GRADE PACKAGE&X PACKAGE(REAR EMBLEM "X")

 1
58875 - SPACER, CONSOLE BOX
58875-02010

NDE170,NZE170,ZRE17#..IND,PKN,VN

 1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-02050C0

NDE170,ZRE172..IND

BLACK,TRIM0#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-02120

ZRE172..CVT..VN;NDE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,SGP,TH

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-02510C0

NDE170,ZRE172..IND

BLACK,TRIM0#

 1
58923A - PANEL, CONSOLE REAR END
58904-02330C0

NDE170,ZRE172..IND

BLACK,TRIM0#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
90541-03078

NDE170,ZRE172..IND

 3
90541-03078

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

 3
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
90541-03078

NDE170,ZRE172..IND

 3
90541-03078

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH

 3
58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE
58961-02140

ZRE172..CVT..VN;NDE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,SGP,TH

 1
58963 - SHAFT, CONSOLE COMPARTMENT DOOR HINGE
58963-02060

ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-02210

ZRE172..CVT..VN;NDE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,SGP,TH

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-02220

ZRE172..CVT..VN;NDE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,SGP,TH

 1
58989 - PANEL, CONSOLE COMPARTMENT DOOR
58989-02160

ZRE172..CVT..VN;NDE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,SGP,TH

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-02150

ZRE172..6F..(IDN,IND,PKN);ZRE172..CVT..(IDN,IND,MA,PKN,TH,VN);NDE170,NZE170,ZRE171,173..GEN,IND,MA,PHL,PKN,SGP,TH

 1
Common parts
90159-T0013
90167-T0012
90467-10203
90523-04003
91673-80616
91673-A0816
93560-13012
93568-55014
Linked diagrams
8121
