ZRE172L-GEXGKH (2014)

Toyota Corolla/Altis

Production Sep 2014 - Sep 2017
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1310- )ZRE172..CVT ; (1310- )ZRE173..MA,PHL ; (1310- )ZRE171..CVT..CNG,HT

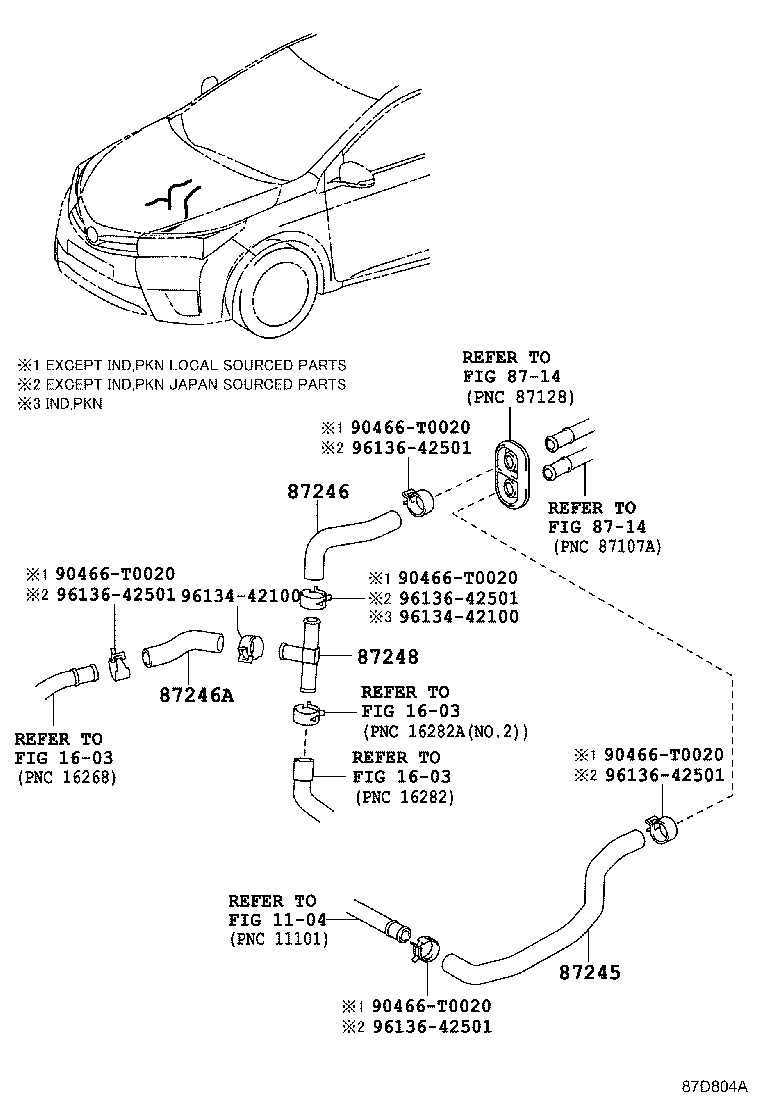

Click highlighted areas on diagram

diagram 1104 1603 1603 1603 8714 8714 87245 87246 87246A 87248 90466T0020 90466T0020 90466T0020 90466T0020 90466T0020 9613442100 9613442100 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-02J90

ZRE172..CVT..VN;ZRE171,172..ARL,GEN,SGP

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-02M11

ZRE171,172..CVT..(ARL,SGP,VN)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-02M00

ZRE172..CVT..VN

 1
87248 - PIPE SUB-ASSY, WATER
87248-12300

ZRE171,172..CVT..(ARL,GCC,IND,PKN,SGP,TAIW,VN)

 1
87248-12300

ZRE172..CVT..VN

 1
Common parts
90466-T0020
96134-42100
96136-42501
Linked diagrams
1104
1603
8714
