ZRE172L-GEXGKH (2014)

Toyota Corolla/Altis

Production Sep 2014 - Sep 2017
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

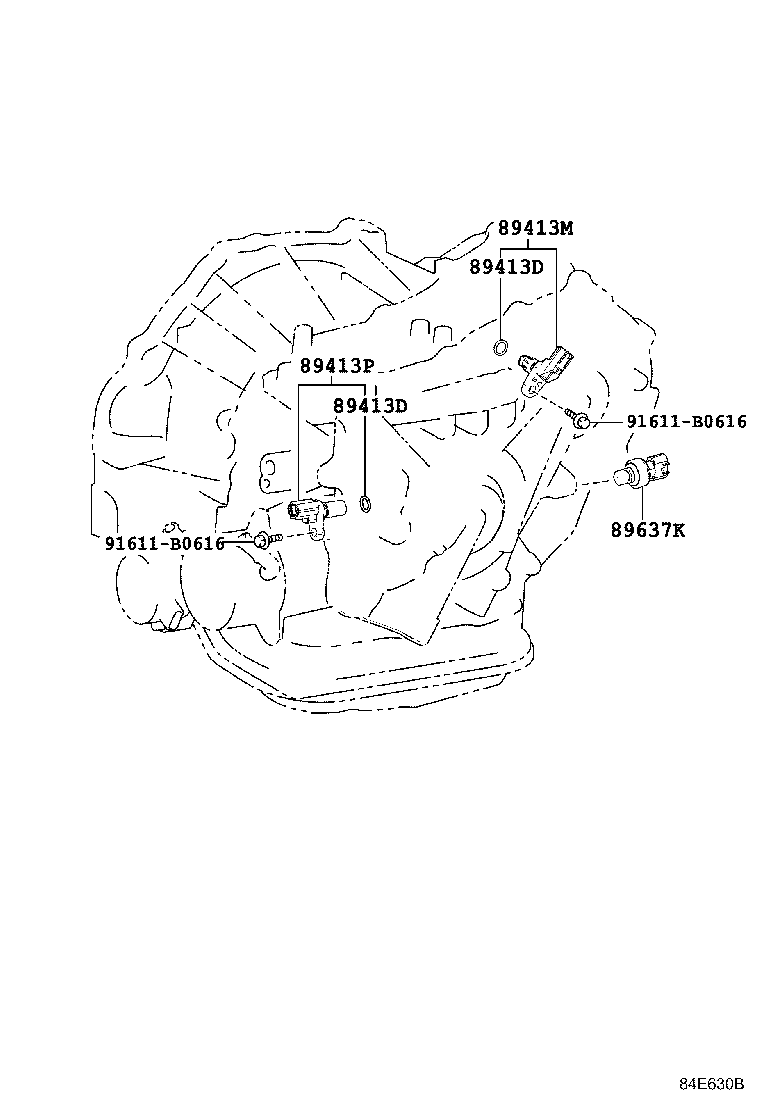

(1310-1507)ZRE171,172..CVT ; (1507- )ZRE171,172..CVT..HTWC..ARL,GCC,TH

Click highlighted areas on diagram

K313

diagram 89413D 89413D 89413M 89413P 89637K 91611B0616 91611B0616
Part # Description Qty Price
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

ZRE173..4FC;ZRE171,172..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,MA,PHL,PKN,SGP,TAIW,TH,VN)

 2
90301-11008

ZRE171,172..CVT

 2
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

ZRE173..4FC;ZRE171,172..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,MA,PHL,PKN,SGP,TAIW,TH,VN)

 2
90301-11008

ZRE171,172..CVT

 2
89413M - SENSOR, TRANSMISSION REVOLUTION, (NOUT)
89413-12020

ZRE171,172..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN)

 1
89413-12020

ZRE171,172..CVT

 1
89413P - SENSOR, TRANSMISSION REVOLUTION, (NIN)
89413-60020

ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN)

 1
89637K - SENSOR, OIL PRESSURE
89637-63010

ZRE17#..CVT

 1
89637-63010

ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN)

 1
Common parts
91611-B0616

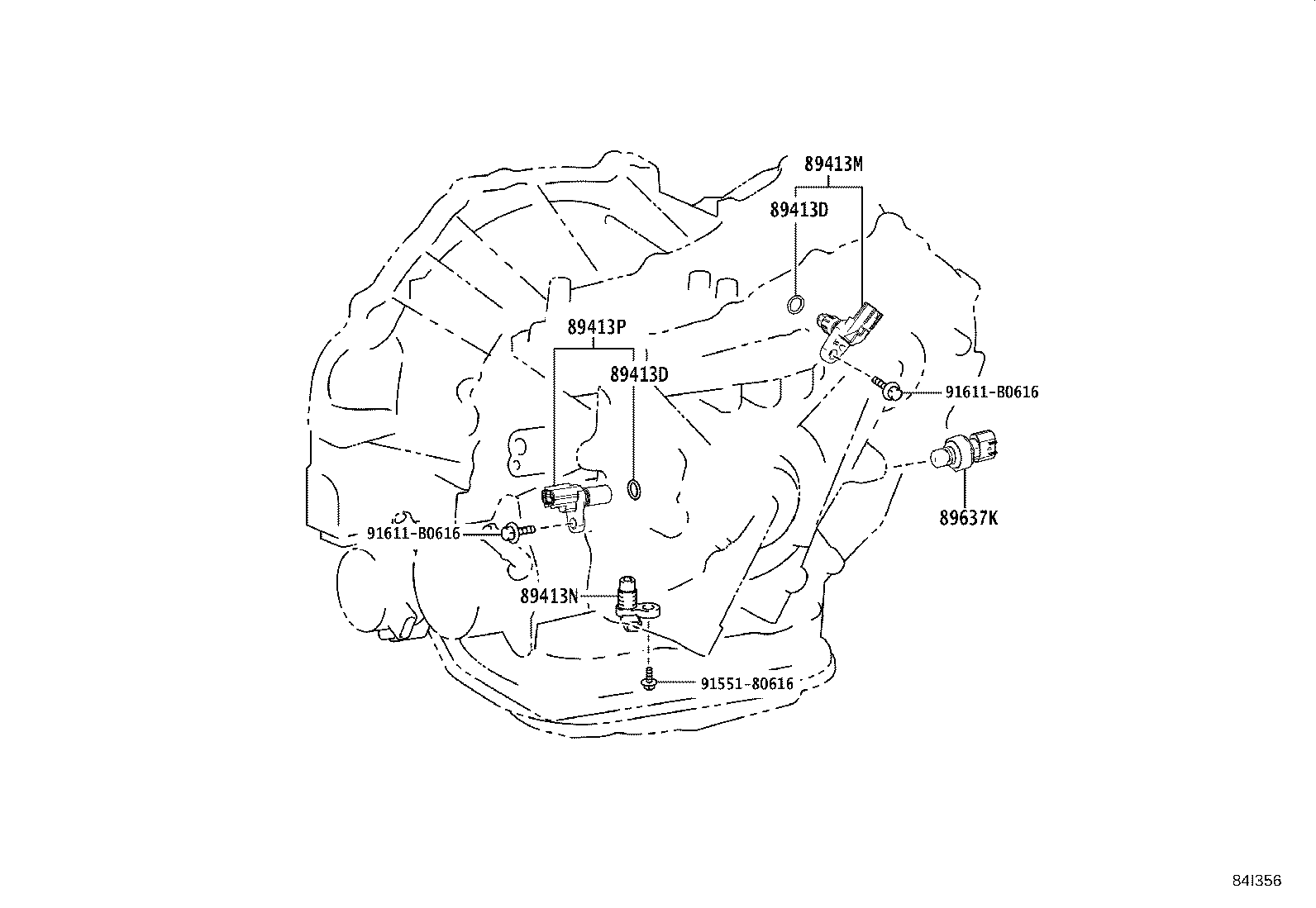

(1507- )ZRE172..CVT ; (1507- )ZRE171..CVT..CNG,HTWCF,HTWVM ; (1507- )ZRE17

Click highlighted areas on diagram

K313

diagram 89413D 89413D 89413M 89413N 89413P 89637K 9155180616 91611B0616 91611B0616
Part # Description Qty Price
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

ZRE173..4FC;ZRE171,172..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,MA,PHL,PKN,SGP,TAIW,TH,VN)

 2
90301-11008

ZRE171,172..CVT

 2
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

ZRE173..4FC;ZRE171,172..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,MA,PHL,PKN,SGP,TAIW,TH,VN)

 2
90301-11008

ZRE171,172..CVT

 2
89413M - SENSOR, TRANSMISSION REVOLUTION, (NOUT)
89413-12020

ZRE171,172..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN)

 1
89413-12020

ZRE171,172..CVT

 1
89413N - SENSOR, TRANSMISSION REVOLUTION, (NT)
89413-50020

ZRE171,172..CVT..(IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN)

 1
89413-50020

ZRE171..CVT..(CNG,HTWCF);ZRE171..CVT..HTWC..(PHL,SGP);ZRE172..CVT..(IDN,IND,MA,PKN,TAIW,TH,VN)

 1
89413P - SENSOR, TRANSMISSION REVOLUTION, (NIN)
89413-60020

ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN)

 1
89637K - SENSOR, OIL PRESSURE
89637-63010

ZRE17#..CVT

 1
89637-63010

ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN)

 1
Common parts
91551-80616
91611-B0616
