ZRE172L-GEXGKH (2014)
Toyota Corolla/Altis
ILLUST NO. 7 OF 9(1310- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
NDE170,ZRE172..G,J |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-06610 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 84140-02A30 |
ZRE172..G UP GRADE PACKAGE&X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 84140-06630 |
ZRE172..N;ZRE172..RHD..(18G,18GS) |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-06610 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 84140-02A30 |
ZRE172..G UP GRADE PACKAGE&X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 84140-06630 |
ZRE172..N;ZRE172..RHD..(18G,18GS) |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-02520 |
ZRE172..G |
1 | ||
| 84250-02530 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 84250-02530 |
ZRE172..G |
1 | ||
| 84250-02800 |
ZRE172..G;ZRE171,173..GLI..GCC |
1 | ||
| 84250-02A50 |
NDE170,ZRE172..G,GL,VL |
1 | ||
| 84250-02780 |
ZRE172..VN |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-02010 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 84306-06200 |
ZRE172..G |
1 | ||
| 84308-02010 |
ZRE172..G |
1 | ||
| 84308-02010 |
ZRE171..6F..GCC;ZRE172..CVT..(18G,VL);ZRE172..ARL,IDN,MA,TAIW,TH;ZRE171,172..(4FC,6F)..(16G,GL,GLI);ZRE171,173..CVT..(GCC,MA,PHL,SGP,TH) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-02010 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 84306-06200 |
ZRE172..G |
1 | ||
| 84308-02010 |
ZRE172..G |
1 | ||
| 84308-02010 |
ZRE171..6F..GCC;ZRE172..CVT..(18G,VL);ZRE172..ARL,IDN,MA,TAIW,TH;ZRE171,172..(4FC,6F)..(16G,GL,GLI);ZRE171,173..CVT..(GCC,MA,PHL,SGP,TH) |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-02110 |
ZRE172..G |
1 | ||
| 84307-02110 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 84307-02110 |
ZRE171..6F..GCC;ZRE172..CVT..(18G,VL);ZRE172..ARL,IDN,MA,TAIW,TH;ZRE171,172..(4FC,6F)..(16G,GL,GLI);ZRE171,173..CVT..(GCC,MA,PHL,SGP,TH) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-0K020 |
NDE170,ZRE172..G,J |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-02810 |
NDE170,ZRE172..G |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-02810 |
NDE170,ZRE172..G |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-0D010 |
ZRE172..CVT..VN |
1 | ||
| 85432-0D010 |
ZRE172..CVT..G |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-02010 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 8924B-02010 |
ZRE172..GL;ZRE17#..ARL,GCC,IDN,MA,PHL,SGP,TAIW,TH;ZRE171,172..(ATM,CVT)..(18G,GLI,VL)..(GEN,IND,VN) |
1 | ||
| 8924B-02010 |
ZRE172..G |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-T0007 | ||||
| 90168-40113 | ||||
| 90168-40129 | ||||
| 90168-T0004 | ||||
| Linked diagrams | ||||
| 6712 | ||||
ILLUST NO. 8 OF 9(1310- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-02110C0 |
ZRE172..CVT..VN BLACK,TRIM0#,2# |
1 | ||
| 84921-60180C0 |
ZRE172..G UP GRADE PACKAGE,BLACK,TRIM0#,2# |
1 | ||
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-02110C0 |
ZRE172..CVT..VN BLACK,TRIM0#,2# |
1 | ||
| 84921-60180C0 |
ZRE172..G UP GRADE PACKAGE,BLACK,TRIM0#,2# |
1 | ||
| 84921K - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-60160C0 |
ZRE172..G UP GRADE PACKAGE,BLACK,TRIM0#,2# |
1 | ||
| 84921-02070C0 |
ZRE172..CVT..VN BLACK,TRIM0#,2# |
1 | ||
| 84921K - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-60160C0 |
ZRE172..G UP GRADE PACKAGE,BLACK,TRIM0#,2# |
1 | ||
| 84921-02070C0 |
ZRE172..CVT..VN BLACK,TRIM0#,2# |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-60090C0 |
ZRE172..G UP GRADE PACKAGE,BLACK,TRIM0#,2# |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-60090C0 |
ZRE172..G UP GRADE PACKAGE,BLACK,TRIM0#,2# |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-60090C0 |
ZRE172..G UP GRADE PACKAGE,BLACK,TRIM0#,2# |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-06140 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 84922-06140 |
ZRE173..PHL;ZRE172..CVT..(18G,18V)..(TH,VN) |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-06140 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 84922-06140 |
ZRE173..PHL;ZRE172..CVT..(18G,18V)..(TH,VN) |
1 | ||
| Common parts | ||||
| 93560-14010 | ||||
ILLUST NO. 9 OF 9(1310- )
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-02180 |
ZRE172..CVT..VN;ZRE17#..ARL,GEN,IDN,MA,PHL,PKN,SGP |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-02180 |
ZRE172..CVT..VN;ZRE17#..ARL,GEN,IDN,MA,PHL,PKN,SGP |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-02070 |
ZRE172..CVT..VN;NZE170,ZRE17#..ARL,GEN,IDN,MA,PHL,PKN,SGP,TH |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-02070 |
ZRE172..CVT..VN;NZE170,ZRE17#..ARL,GEN,IDN,MA,PHL,PKN,SGP,TH |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-02070 |
ZRE172..CVT..VN;NZE170,ZRE17#..ARL,GEN,IDN,MA,PHL,PKN,SGP,TH |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-02070 |
ZRE172..CVT..VN;NZE170,ZRE17#..ARL,GEN,IDN,MA,PHL,PKN,SGP,TH |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-06050 |
NZE170..GLI;ZRE172..CVT..VN;ZRE17#..ARL,GEN,IDN,MA,PHL,PKN,SGP,TH |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-06050 |
NZE170..GLI;ZRE172..CVT..VN;ZRE17#..ARL,GEN,IDN,MA,PHL,PKN,SGP,TH |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-06050 |
NZE170..GLI;ZRE172..CVT..VN;ZRE17#..ARL,GEN,IDN,MA,PHL,PKN,SGP,TH |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-06050 |
NZE170..GLI;ZRE172..CVT..VN;ZRE17#..ARL,GEN,IDN,MA,PHL,PKN,SGP,TH |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-02360 |
ZRE172..CVT..VN;ZRE171,173..LHD..(GEN,PHL) |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-02360 |
ZRE172..CVT..VN;ZRE171,173..LHD..(GEN,PHL) |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90164-T0005 | ||||
| 90166-70001 | ||||

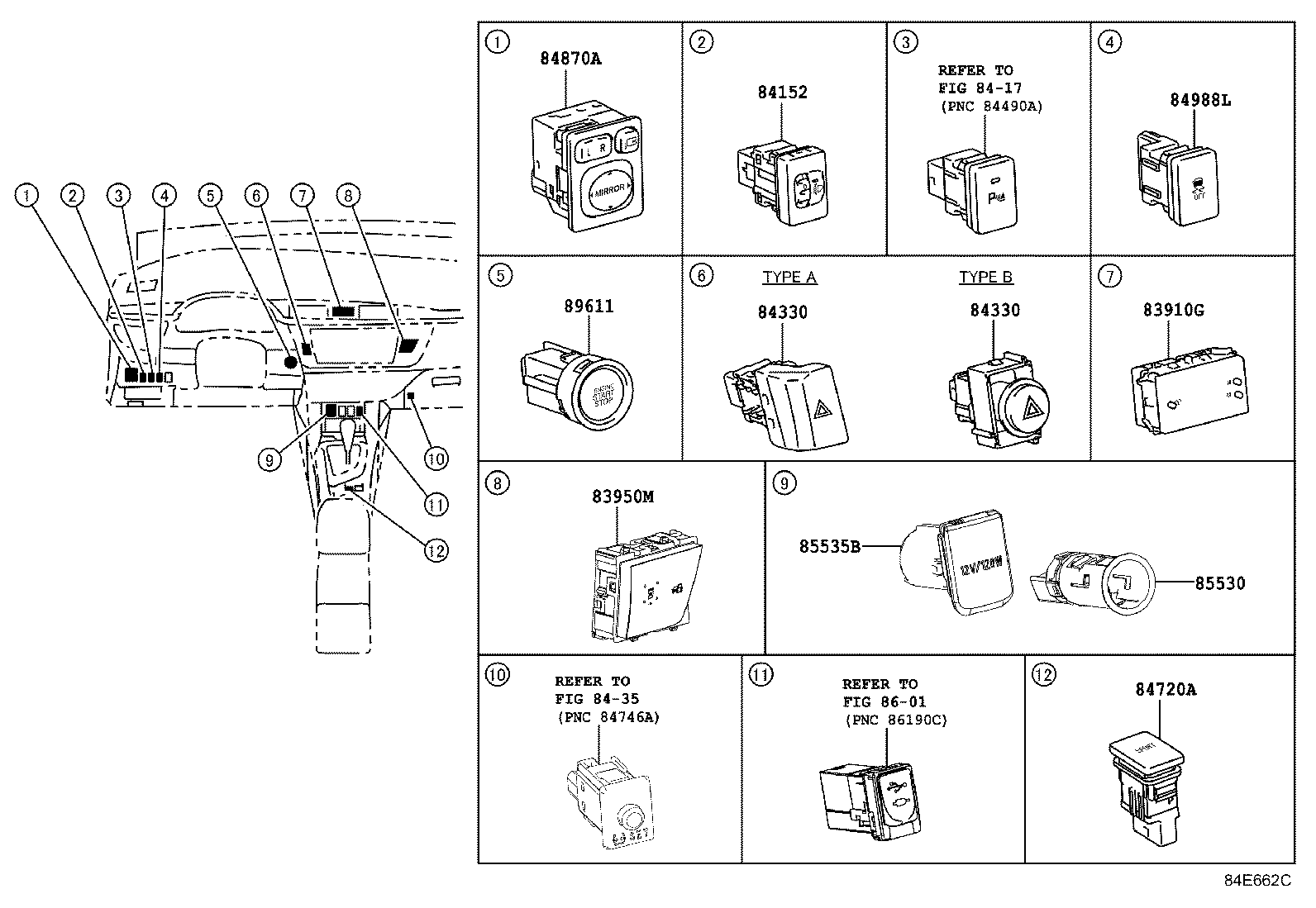

ILLUST NO. 6 OF 9(1310- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-02170 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH |
1 | ||
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-02440 |
ZRE172..CVT..VN;ZRE171..(CVT,MTM)..(16G,XLI)..(GEN,PHL) |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-02090 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 84152-02091 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 84152-02111 |
NDE170,ZRE172..G,J |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02231 |
ZRE172,173..VN TYPE A:REFER ILLUST. |
1 | ||
| 84332-02330 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH TYPE B:REFER ILLUST. |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02231 |
ZRE172,173..VN TYPE A:REFER ILLUST. |
1 | ||
| 84332-02330 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH TYPE B:REFER ILLUST. |
1 | ||
| 84720A - SWITCH ASSY, PATTERN SELECT, NO.1 | ||||
| 84720-02091 |
ZRE172..CVT;ZRE173..GCC,MA,PHL |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-02050 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 84988-02050 |
ZRE172..G |
1 | ||
| 84988-02051 |
ZRE172..G |
1 | ||
| 84988-02051 |
ZRE172..GL;ZRE17#..ARL,GCC,IDN,MA,PHL,SGP,TAIW,TH;ZRE171,172..(ATM,CVT)..(18G,GLI,VL)..(GEN,IND,VN) |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ZRE173..20G;ZRE172..CVT..(PKN,VN);NZE170,ZRE171,172..(ATM,MTM)..PKN |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-02120 |
ZRE172..CVT..VN;NZE170,ZRE17#..ARL,GEN,IDN,MA,PHL,PKN,SGP,TH |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42010 |
ZRE172..G;ZRE173..20V,GLI;ZRE171,172..(ARL,SGP)..(E,G,N);ZRE171..LHD..(ATM,CVT)..(16V,XLI)..(GEN,PHL);ZRE171,172..(18G,18GS,18V,GLI)..(GCC,IDN,TH) |
1 | ||
| 89611-42011 |
ZRE172..G;ZRE172..IDN,MA;ZRE171,172..(ARL,SGP)..(E,G,N);ZRE171..LHD..(ATM,CVT)..(16V,XLI)..(GEN,PHL);ZRE172,173..(18GS,18V,20G,20V)..(MA,PHL,TH,VN) |
1 | ||
| 89611-42012 |
ZRE172..G;ZRE171,173..GLI..GCC |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
| 8435 | ||||
| 8601 | ||||
ILLUST NO. 1 OF 9(1310- )ZRE17#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ZRE172,173..VN DENSO |
1 | ||
| 83530-60020 |
ZRE172,173..VN YAZAKI |
1 | ||
| 83530-12060 |
ZRE172..CVT..VN;ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 89429F - SENSOR, TEMPERATURE | ||||
| 89429-12010 |
ZRE172..CVT..VN;ZRE171,172..(CVT,MTM)..(HTWC,HTWCF)..(ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,TAIW,TH) |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-02420 |
ZRE172,173..VN |
1 | ||
| 89465-12B90 |
ZRE172..CVT..VN;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH;ZRE171,173..GCC,GEN,MA,PHL,PKN,SGP |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-52060 |
ZRE172..CVT..VN;ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 89467-52060 |
ZRE172,173..VN |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZRE172,173..VN |
1 | ||
| 89615-20090 |
ZRE172..CVT..VN;NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| Common parts | ||||
| 82715-12L60 | ||||
| 82715-12Q50 | ||||
| 82715-42710 | ||||
| 90105-T0178 | ||||
| 90179-06219 | ||||
| 90182-T0006 | ||||
| 90430-12221 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||

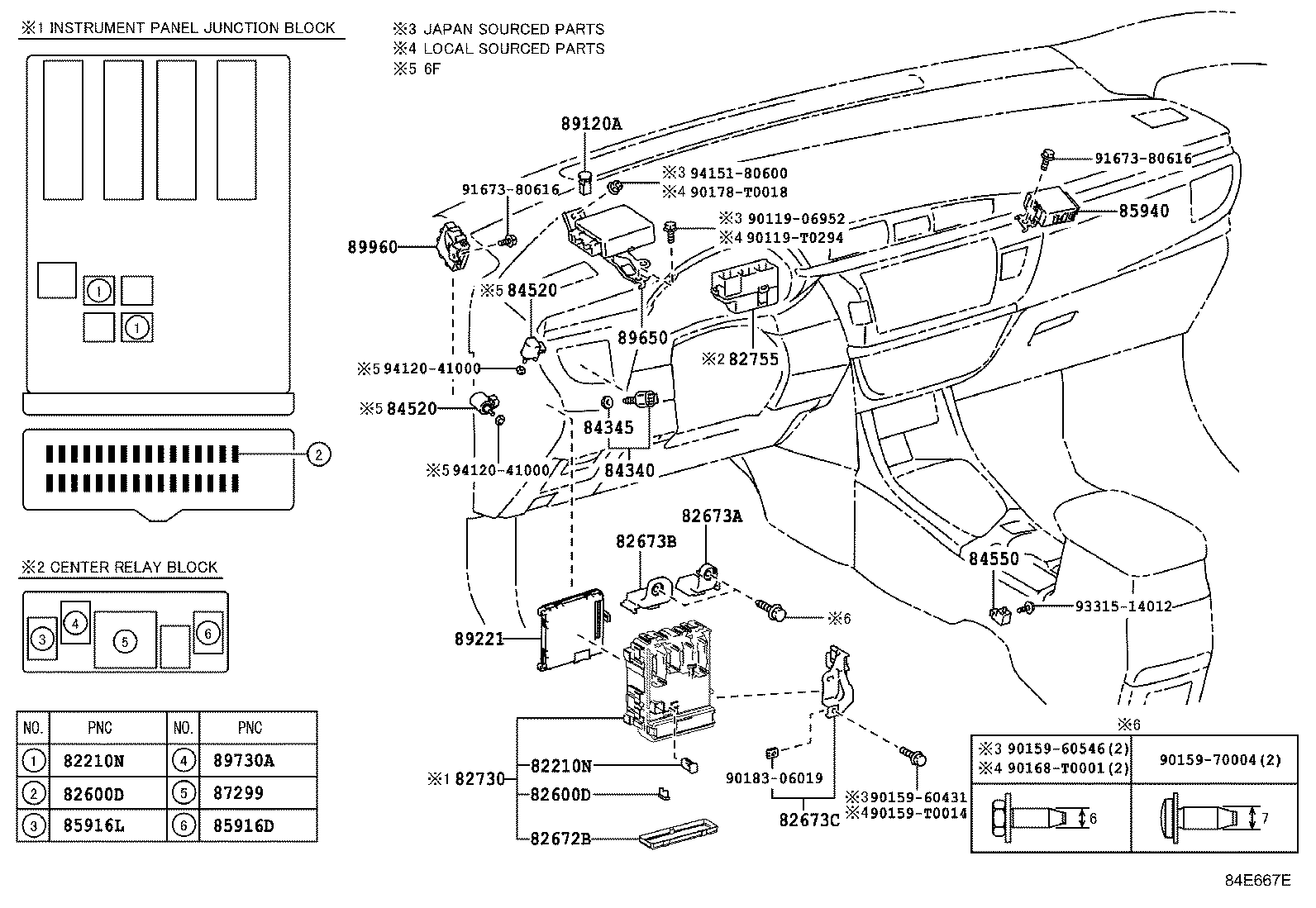

ILLUST NO. 5 OF 9(1310- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08306 |
ZRE172,173..VN 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08306 |
ZRE172,173..VN 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
ZRE172,173..VN 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ZRE172,173..VN 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
ZRE172,173..VN 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ZRE172,173..VN 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ZRE172,173..VN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
ZRE172,173..VN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH 25A,MINI FUSE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
ZRE172,173..VN 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ZRE172,173..VN 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
ZRE172,173..VN 25A,MINI FUSE |
1 | ||
| 90982-09020 |
ZRE172,173..VN 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ZRE172,173..VN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
ZRE172,173..VN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH 5A,MINI FUSE,TAN |
1 | ||
| 90982-09024 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH 25A,MINI FUSE |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-12600 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 82672-12530 |
ZRE172,173..VN |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-02110 |
ZRE172..LHD..CVT;ZRE171,173..LHD..(GCC,GEN,PHL) |
1 | ||
| 82673-02110 |
ZRE172,173..VN |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-02120 |
ZRE172..LHD..CVT;ZRE171,173..LHD..(GCC,GEN,PHL) |
1 | ||
| 82673-02120 |
ZRE172,173..VN |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-02130 |
ZRE172,173..VN |
1 | ||
| 82673-02130 |
ZRE172..LHD..CVT;ZRE171,173..LHD..(GCC,GEN,PHL) |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-12N70 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 82730-12L50 |
ZRE171..16J..HTWCF;ZRE171..6F..XLI..GCC;ZRE171..GEN,PHL,PKN,SGP;ZRE171..CVT..(CNG,HTWCF);NDE170,NZE170,ZRE172,173..ARL,IDN,IND,MA,PHL,PKN,TAIW,TH,VN |
1 | ||
| 82730-12L51 |
ZRE172,173..VN |
1 | ||
| 82755 - BLOCK, CENTER RELAY | ||||
| 82755-02040 |
ZRE172..LHD..CVT;ZRE17#..LHD..(16G,16V,18E,20V,GLI,XLI) |
1 | ||
| 82755-02040 |
ZRE172,173..VN |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09210 |
ZRE173..20G;ZRE172..ARL..(D,N);ZRE172..6F..(IDN,PKN);ZRE172..CVT..(IDN,MA,PKN,TH,VN);NZE170,ZRE171,173..GEN,PHL,PKN,SGP,TH |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0K010 |
ZRE173..PHL;ZRE172,173..CVT..(18G,20G);NZE170,ZRE171,172..ARL,GEN,IDN,MA,PHL,PKN,SGP,TH |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
ZRE172,173..VN |
1 | ||
| 84550-33010 |
ZRE172..LHD..CVT;ZRE171,173..LHD..(GCC,GEN,PHL) |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-T2001 |
ZRE172..MA,PKN;ZRE172..ARL..(E,N);ZRE172..CVT..(18G,18GS,18V);ZRE17#..(16G,16V,18G,20G,20V,GLI)..(GEN,IDN,MA,PHL) |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-12010 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89221-12840 |
ZRE172..G UP GRADE PACKAGE&X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 89221-12840 |
ZRE172..G LOW GRADE PACKAGE&X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 89221-12860 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 89221-12840 |
ZRE172..G |
1 | ||
| 89221-12A61 |
ZRE172..CVT..G |
1 | ||
| 89221-12790 |
ZRE172..CVT..VN |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-02831 |
ZRE172,173..VN |
1 | ||
| 89650-02B90 |
ZRE172..CVT..VN;ZRE171,173..LHD..(GEN,PHL) |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-T2001 |
ZRE172..ARL..E;NDE170,ZRE173..IND,PHL;ZRE171,172..CVT..(IDN,IND,PHL,SGP,TH,VN);ZRE171,172..6F..(16G,18G,G,GL,J)..(IDN,IND,PHL) |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-12490 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 89960-12490 |
ZRE172..G;ZRE173..GLI UP GRADE PACKAGE |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 90119-T0294 | ||||
| 90159-60431 | ||||
| 90159-60546 | ||||
| 90159-70004 | ||||
| 90159-T0014 | ||||
| 90168-T0001 | ||||
| 90178-T0018 | ||||
| 90183-06019 | ||||
| 91673-80616 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
ILLUST NO. 3 OF 9(1310- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-12010 |
ZRE172..VN |
1 | ||
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-12010 |
ZRE172..VN |
1 | ||
| Common parts | ||||
| 90068-00040 | ||||
| 93315-14010 | ||||

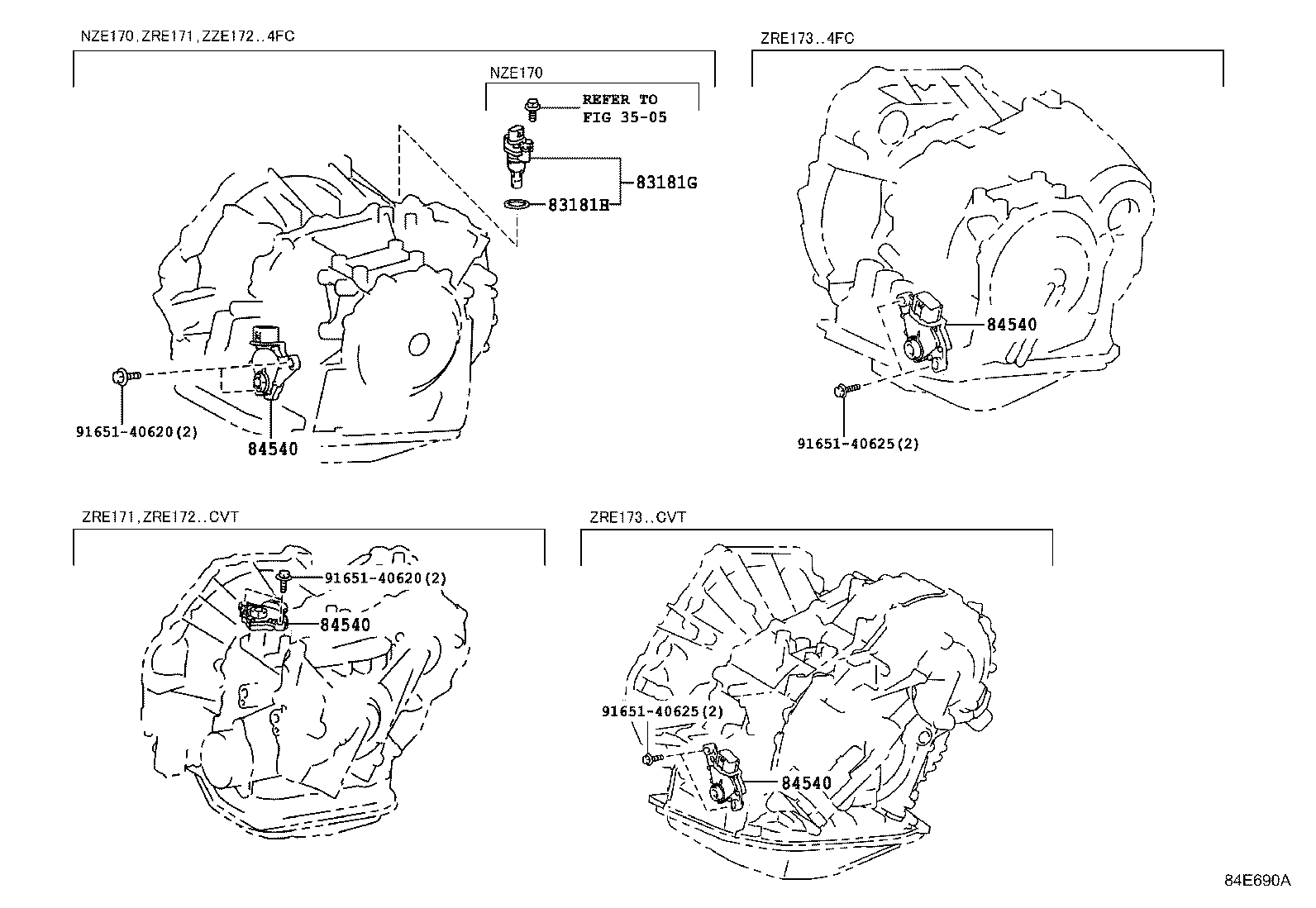

ILLUST NO. 2 OF 9(1310- )ATM,CVT
TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
ZRE171,172..CVT;ZRE173..GCC,MA,PHL |
1 | ||
| 84540-52070 |
ZRE172,173..CVT..VN |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
ZRE171,172..CVT;ZRE173..GCC,MA,PHL |
1 | ||
| 84540-52070 |
ZRE172,173..CVT..VN |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
ZRE171,172..CVT;ZRE173..GCC,MA,PHL |
1 | ||
| 84540-52070 |
ZRE172,173..CVT..VN |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
ZRE171,172..CVT;ZRE173..GCC,MA,PHL |
1 | ||
| 84540-52070 |
ZRE172,173..CVT..VN |
1 | ||
| Common parts | ||||
| 91651-40620 | ||||
| 91651-40625 | ||||
| Linked diagrams | ||||
| 3505 | ||||
ILLUST NO. 4 OF 9(1310- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-0L010 |
1ZRFE..ZRE171..6F..XLI..GCC;1ZRFE..ZRE171..GEN,PHL,PKN,SGP;1NDTV,2NZFE,1ZRF,1ZRFBE,2ZRFE,3ZRFE..NDE170,NZE170,ZRE17#..ARL,IDN,IND,MA,PHL,PKN,TAIW,TH,VN |
1 | ||
| 28300-0L011 |
2ZRFE,3ZRFE..ZRE172,173..VN |
1 | ||
| 28300-0L011 |
2ZRFE..ZRE172..CVT..VN;1NDTV,2NZFE,1ZR#,2ZR#,3ZRFE..NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2ZRFE,3ZRFE..ZRE172,173..VN (J) |
1 | ||
| 90987-T2001 |
2ZRFE,3ZRFE..ZRE172,173..VN (L) |
1 | ||
| 90987-T2001 |
2ZRFE..ZRE172..CVT..VN;1NDTV,2NZFE,1ZR#,2ZR#,3ZRFE..NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH (L) |
1 | ||
| 90987-02027 |
2ZRFE..ZRE172..CVT..VN;1NDTV,2NZFE,1ZR#,2ZR#,3ZRFE..NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH (J) |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08294 |
ZRE172,173..VN 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08295 |
ZRE172,173..VN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08305 |
ZRE172,173..VN 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08295 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08296 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08294 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08274 |
ZRE172,173..VN 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08305 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08274 |
ZRE172..CVT..VN;ZRE172..18E..VN;NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08296 |
ZRE172,173..VN 50A,TERM.:FEMALE,RED |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
ZRE172,173..VN 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
ZRE172,173..VN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
ZRE172,173..VN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09025 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH 30A,MINI FUSE,GRN |
1 | ||
| 90982-09020 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
ZRE172,173..VN 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ZRE172,173..VN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH 25A,MINI FUSE |
1 | ||
| 90982-09024 |
ZRE172,173..VN 25A,MINI FUSE |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ZRE171,172..LHD..(CVT,MTM)..(GEN,PHL,VN) |
1 | ||
| 82616-58010 |
ZRE171,172..(CVT,MTM)..(16E,16G,16J,16V,18G,XLI)..HTWC..(GEN,PHL,TH,VN) |
1 | ||
| 82616-58010 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH |
1 | ||
| 82616-58010 |
ZRE172..VN |
1 | ||
| 82642B - RELAY, DAY TIME RUNNING LIGHT, NO.1 | ||||
| 90987-02027 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12330 |
ZRE171,172..LHD..(CVT,MTM)..(GEN,PHL,VN) |
1 | ||
| 82661-12330 |
ZRE172..VN |
1 | ||
| 82661-12330 |
ZRE171,172..(CVT,MTM)..(16E,16G,16J,16V,18G,XLI)..HTWC..(GEN,PHL,TH,VN) |
1 | ||
| 82661-12330 |
ZRE172..18E..VN;NDE170,ZRE171,173..CVT,MTM;ZRE172..ARL,IDN,IND,MA,TAIW,TH;ZRE171,172..(ATM,CVT)..(GEN,VN) |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-02390 |
ZRE172,173..VN |
1 | ||
| 82662-02B90 |
ZRE172..CVT..VN;NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-12140 |
ZRE171,172..LHD..(CVT,MTM)..(GEN,PHL,VN) |
1 | ||
| 82663-12140 |
ZRE172..18E..VN;NDE170,ZRE171,173..CVT,MTM;ZRE172..ARL,IDN,IND,MA,TAIW,TH;ZRE171,172..(ATM,CVT)..(GEN,VN) |
1 | ||
| 82663-12140 |
ZRE171,172..(CVT,MTM)..(16E,16G,16J,16V,18G,XLI)..HTWC..(GEN,PHL,TH,VN) |
1 | ||
| 82663-12140 |
ZRE172..VN |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12120 |
ZRE171,172..LHD..(CVT,MTM)..(GEN,PHL,VN) |
1 | ||
| 82741-12120 |
ZRE172..VN |
1 | ||
| 82741-12120 |
ZRE171,172..(CVT,MTM)..(16E,16G,16J,16V,18G,XLI)..HTWC..(GEN,PHL,TH,VN) |
1 | ||
| 82741-12120 |
ZRE172..18E..VN;NDE170,ZRE171,173..CVT,MTM;ZRE172..ARL,IDN,IND,MA,TAIW,TH;ZRE171,172..(ATM,CVT)..(GEN,VN) |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90080-87009 |
ZRE172,173..VN (L) |
1 | ||
| 90080-87009 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH (L) |
1 | ||
| 90987-04004 |
ZRE171..16J..HTWCF;ZRE172..6F..(G,GL);ZRE172..6F..(ARL,IDN);ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,IND,MA,TH,VN);NDE170,ZRE171,173..GEN,IND,MA,PHL,SGP,VN (J) |
1 | ||
| 90987-04004 |
NDE170,ZRE173;ZRE172..ARL..E;ZRE171..6F..GCC;ZRE171..LHD..4FC;ZRE172..CVT..(18G,18GS,18V,G,VL);ZRE171,172..(4FC,6F)..(16G,G,GL,GLI);ZRE171,172..CVT..(GCC,MA,PHL,SGP,TAIW) (J) |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-T2002 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-T2002 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-T2001 |
ZRE171..PHL,SGP,TH;ZRE172..CVT..(IDN,IND,MA,VN);NDE170,NZE170,ZRE172..RHD..(ATM,MTM)..(18G,G,GL,GLI,J,XLI) |
1 | ||
| 90987-T2001 |
ZRE172,173..VN (L) |
1 | ||
| 90987-02027 |
ZRE172,173..VN (J) |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-T2001 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH |
1 | ||
| Common parts | ||||
| 90119-T0260 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8405 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
