ZRE172L-GEXGKH (2014)
Toyota Corolla/Altis
ILLUST NO. 1 OF11(1310- )LHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82115-0ZM60 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 82116-0ZA50 |
ZRE172..G |
1 | ||
| 82115-0ZM61 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 82111-F2860 |
ZRE172..G X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 82116-0ZA51 |
ZRE172..G LOW GRADE PACKAGE&X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 82116-0ZA51 |
ZRE172..G |
1 | ||
| 82116-0ZA51 |
ZRE172..G UP GRADE PACKAGE&X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 82115-0ZN81 |
ZRE172..CVT..G |
1 | ||
| 82115-0ZM81 |
ZRE172..CVT..VN |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-12270 |
ZRE171,172..LHD..(CVT,MTM)..(GEN,PHL,VN) |
1 | ||
| 82815-12270 |
ZRE171,172..LHD..(CVT,MTM)..(GEN,PHL,VN) |
1 | ||
| 82815-12270 |
ZRE172..LHD..CVT;ZRE17#..LHD..(16E,16G,16V,18E,20V,GLI,XLI) |
1 | ||
| 82815-12270 |
ZRE172..VN |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-02040 |
ZRE171,172..LHD..(CVT,MTM)..(GEN,PHL,VN) |
1 | ||
| 82815-02040 |
ZRE172..LHD..CVT;ZRE17#..LHD..(16E,16G,16V,18E,20V,GLI,XLI) |
1 | ||
| 82815-02040 |
ZRE171,172..LHD..(CVT,MTM)..(GEN,PHL,VN) |
1 | ||
| 82815-02040 |
ZRE172..VN |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-12250 |
ZRE171,172..LHD..(CVT,MTM)..(GEN,PHL,VN) |
1 | ||
| 82815-12250 |
ZRE171,172..(CVT,MTM)..(16E,16G,16J,16V,18G,XLI)..HTWC..(GEN,PHL,TH,VN) |
1 | ||
| 82815-12250 |
ZRE172..VN |
1 | ||
| 82815-12250 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-12D70 |
ZRE171,172..LHD..(CVT,MTM)..(GEN,PHL,VN) |
1 | ||
| 82817-12D70 |
ZRE172..VN |
1 | ||
| 82817-12D70 |
ZRE171,172..LHD..(CVT,MTM)..(GEN,PHL,VN) |
1 | ||
| 82817-12D70 |
ZRE172..LHD..CVT;ZRE17#..LHD..(16E,16G,16V,18E,20V,GLI,XLI) |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-12D50 |
ZRE171,172..LHD..(CVT,MTM)..(GEN,PHL,VN) |
1 | ||
| 82817-12D50 |
ZRE171,172..(CVT,MTM)..(16E,16G,16J,16V,18G,XLI)..HTWC..(GEN,PHL,TH,VN) |
1 | ||
| 82817-12D50 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH |
1 | ||
| 82817-12D50 |
ZRE172..VN |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-02100 |
ZRE171,172..LHD..(CVT,MTM)..(GEN,PHL,VN) |
1 | ||
| 82817-02100 |
ZRE171,172..LHD..(CVT,MTM)..(GEN,PHL,VN) |
1 | ||
| 82817-02100 |
ZRE172..LHD..CVT;ZRE17#..LHD..(16E,16G,16V,18E,20V,GLI,XLI) |
1 | ||
| 82817-02100 |
ZRE172..VN |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-12860 |
ZRE171,172..(CVT,MTM)..(16E,16G,16J,16V,18G,XLI)..HTWC..(GEN,PHL,TH,VN) |
1 | ||
| 82817-12860 |
ZRE171,172..LHD..(CVT,MTM)..(GEN,PHL,VN) |
1 | ||
| 82817-12860 |
ZRE172..VN |
1 | ||
| 82817-12860 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-T0130 | ||||
| 90119-T0260 | ||||
| 90178-T0018 | ||||
| 90467-06147 | ||||
| 91671-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||

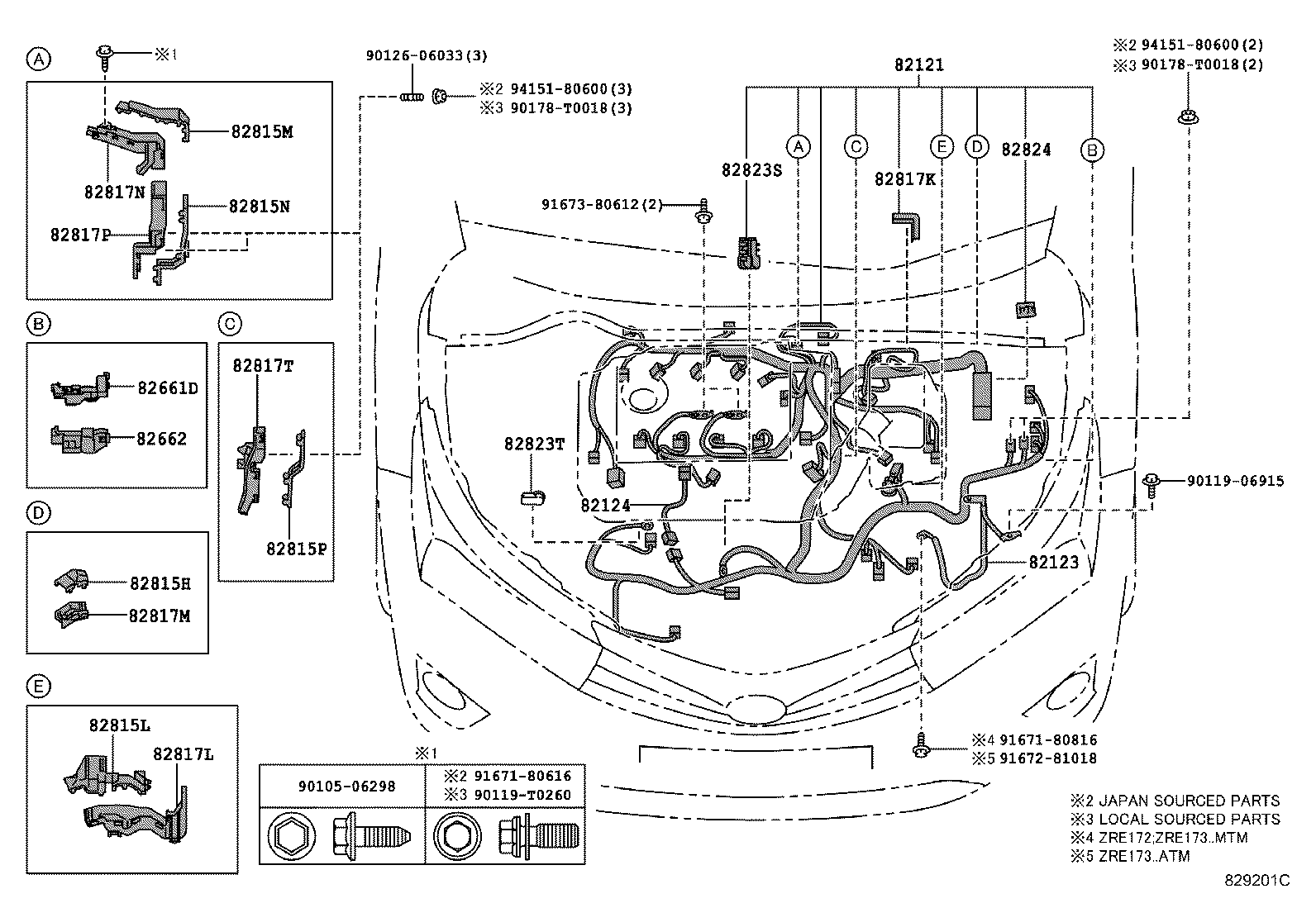

ILLUST NO. 2 OF11(1310- )ZRE172 ; (1310- )ZRE173..4FC,6F
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-0Z770 |
ZRE172..CVT..VN |
1 | ||
| 82121-0ZF70 |
ZRE172..CVT..(ARL,IDN,IND,MA,TAIW,VN) |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-02790 |
ZRE172..CVT..VN |
1 | ||
| 82123-02D00 |
ZRE171,172..CVT..(ARL,GCC,IDN,IND,MA,PHL,SGP,TAIW,TH,VN) |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-02120 |
ZRE172,173..VN |
1 | ||
| 82124-02120 |
ZRE172..CVT..VN;ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-12300 |
ZRE172,173..VN |
1 | ||
| 82661-12300 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 82662 - COVER, RELAY BLOCK, UPPER | ||||
| 82662-12260 |
ZRE172,173..VN |
1 | ||
| 82662-12260 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,TAIW,TH |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-12180 |
ZRE172..VN |
1 | ||
| 82815-12180 |
ZRE172..CVT..VN;ZRE171,172..(HTWC,HTWCF,HTWVM)..(ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH) |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-12360 |
ZRE172,173..VN |
1 | ||
| 82815-12360 |
ZRE172..CVT..VN;ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-12510 |
ZRE172..CVT..VN;ZRE172,173..ARL,GCC,IDN,IND,MA,PHL,PKN,TAIW,TH |
1 | ||
| 82815-12510 |
ZRE172,173..VN |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-12520 |
ZRE172..VN |
1 | ||
| 82815-12520 |
ZRE172..CVT..VN;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-12530 |
ZRE172,173..VN |
1 | ||
| 82815-12530 |
ZRE172..CVT..VN;ZRE172,173..ARL,GCC,IDN,IND,MA,PHL,PKN,TAIW,TH |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-12860 |
ZRE172..CVT..VN;NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 82817-12860 |
ZRE172,173..VN |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-12G40 |
ZRE172,173..VN |
1 | ||
| 82817-12G40 |
ZRE172..CVT..VN;ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-12B60 |
ZRE172..VN |
1 | ||
| 82817-12B60 |
ZRE172..CVT..VN;ZRE171,172..(HTWC,HTWCF,HTWVM)..(ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH) |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-12K80 |
ZRE172,173..VN |
1 | ||
| 82817-12K80 |
ZRE172..CVT..VN;ZRE172,173..ARL,GCC,IDN,IND,MA,PHL,PKN,TAIW,TH |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-12K90 |
ZRE172..VN |
1 | ||
| 82817-12K90 |
ZRE172..CVT..VN;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-12L00 |
ZRE172,173..VN |
1 | ||
| 82817-12L00 |
ZRE172..CVT..VN;ZRE172,173..ARL,GCC,IDN,IND,MA,PHL,PKN,TAIW,TH |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12110 |
ZRE172..CVT..VN;NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 82823-12110 |
ZRE172,173..VN |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
1 | ||
| 82823-22050 |
ZRE172,173..VN |
1 | ||
| Common parts | ||||
| 90105-06298 | ||||
| 90119-06915 | ||||
| 90119-T0260 | ||||
| 90126-06033 | ||||
| 90178-T0018 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91672-81018 | ||||
| 91673-80612 | ||||
| 94151-80600 | ||||
ILLUST NO. 3 OF11(1310- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82117-0ZC81 |
ZRE172..G |
1 | ||
| 82117-0ZC71 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 82117-0ZC82 |
ZRE172..G |
1 | ||
| 82117-0ZC31 |
ZRE172..CVT..VN |
1 | ||
| 82117-0ZC72 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 82117-0ZC83 |
ZRE172..G |
1 | ||
| 82138-0ZY80 |
ZRE172..G X PACKAGE(REAR EMBLEM "X")&AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 82138-0ZY90 |
ZRE172..G UP GRADE PACKAGE&X PACKAGE(REAR EMBLEM "X")&AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 82138-0ZY70 |
ZRE172..G UP GRADE PACKAGE&X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 82145-0ZL72 |
ZRE172..CVT..G |
1 | ||
| 82117-0ZC32 |
ZRE172..CVT..VN |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-02770 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 82142-02760 |
ZRE172..G UP GRADE PACKAGE&X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 82142-02D90 |
ZRE172..G UP GRADE PACKAGE&X PACKAGE(REAR EMBLEM "X")&AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 82142-02D90 |
ZRE172..G X PACKAGE(REAR EMBLEM "X")&AUDIO-RADIO LESS & 6SPEAKER |
1 | ||
| 82142-02591 |
ZRE172..CVT..VN |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-02430 |
ZRE172,173..VN |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
ZRE172,173..VN |
2 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
ZRE172,173..VN |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-02510 |
ZRE172,173..VN |
1 | ||
| 82666-02510 |
ZRE172..ARL..D;NDE170,NZE170,ZRE173;ZRE172..6F..(IDN,PKN);ZRE171..(16G,16V)..PHL;ZRE172..6F..(18E,G,GL,J);ZRE171..GCC,GEN,PKN,SGP,TH;ZRE172..CVT..(IDN,IND,MA,PKN,TAIW,TH,VN) |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-02520 |
ZRE172,173..VN |
1 | ||
| 82666-02520 |
ZRE172..ARL..D;NDE170,NZE170,ZRE173;ZRE172..6F..(IDN,PKN);ZRE171..(16G,16V)..PHL;ZRE172..6F..(18E,G,GL,J);ZRE171..GCC,GEN,PKN,SGP,TH;ZRE172..CVT..(IDN,IND,MA,PKN,TAIW,TH,VN) |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-02380 |
ZRE172..LHD..CVT;ZRE17#..LHD..(16G,16V,18E,20V,GLI,XLI) |
1 | ||
| 82666-02380 |
ZRE172,173..VN |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-02400 |
ZRE172..LHD..CVT;ZRE17#..LHD..(16G,16V,18E,20V,GLI,XLI) |
1 | ||
| 82666-02400 |
ZRE172,173..VN |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-02630 |
ZRE172,173..VN |
1 | ||
| 82666-02630 |
ZRE172..ARL..D;NDE170,NZE170,ZRE173;ZRE172..6F..(IDN,PKN);ZRE171..(16G,16V)..PHL;ZRE172..6F..(18E,G,GL,J);ZRE171..GCC,GEN,PKN,SGP,TH;ZRE172..CVT..(IDN,IND,MA,PKN,TAIW,TH,VN) |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-02330 |
ZRE172,173..VN |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-T0130 | ||||
| 90159-60546 | ||||
| 90159-70004 | ||||
| 90168-T0001 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF11(1310- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-0ZB40 |
ZRE172..G |
1 | ||
| 82151-0ZB10 |
ZRE172,173..VN |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-0ZA10 |
ZRE172..G |
1 | ||
| 82152-0Z880 |
ZRE172..VN |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-02E40 |
ZRE172..CVT..VN;ZRE17#..ARL,GCC,GEN,IDN,MA,PHL,SGP,TAIW,TH |
1 | ||
| 82153-02C20 |
ZRE172,173..VN |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-02A60 |
ZRE172,173..VN |
1 | ||
| 82154-02C60 |
ZRE172..CVT..VN;ZRE17#..ARL,GCC,GEN,IDN,MA,PHL,SGP,TAIW,TH |
1 | ||
ILLUST NO. 5 OF11(1310- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82199-02440 |
ZRE172..G;ZRE171..LHD..(ATM,CVT)..(16V,XLI)..(GEN,PHL) |
1 | ||
| 82199-02J30 |
ZRE172..G |
1 | ||
| 82161-0ZW70 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 82199-02J90 |
ZRE172..G UP GRADE PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82199-02K20 |
ZRE172..G TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82199-02K60 |
ZRE172..G |
1 | ||
| 82199-0Z250 |
ZRE172..G X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 82199-0Z250 |
ZRE172..G UP GRADE PACKAGE&X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 82199-0Z260 |
ZRE172..G X PACKAGE(REAR EMBLEM "X")&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82199-0Z260 |
ZRE172..G UP GRADE PACKAGE&X PACKAGE(REAR EMBLEM "X")&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82161-0ZW00 |
ZRE172..CVT..VN |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-0Z450 |
ZRE172..G |
1 | ||
| 82171-0Z620 |
ZRE172..G |
1 | ||
| 82171-0Z450 |
ZRE172..G MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 82171-0Z620 |
ZRE172..VN |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-02050 |
ZRE172..VN |
1 | ||
| 82182-02050 |
NDE170,ZRE172..G,GL,VL |
1 | ||
| 82182-02130 |
ZRE172..ARL..D;ZRE172..CVT..(IND,TAIW,VN);NDE170,ZRE171,172..RHD..(4FC,6F)..(18G,G,GL,GLI) |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-02310 |
ZRE172..CVT..VN;NDE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,SGP,TAIW,TH |
1 | ||
| 82187-02240 |
ZRE172,173..VN |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-02490 |
ZRE172..18E..VN;NDE170,NZE170,ZRE173;ZRE171,172..(ATM,CVT)..(GEN,VN);ZRE171,172..(CVT,MTM)..(ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH) |
1 | ||
| 82666-02490 |
ZRE172,173..VN |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-02500 |
ZRE172,173..VN |
1 | ||
| 82666-02500 |
ZRE172..18E..VN;NDE170,NZE170,ZRE173;ZRE171,172..(ATM,CVT)..(GEN,VN);ZRE171,172..(CVT,MTM)..(ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH) |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-02J70 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH |
1 | ||
| 82817-02J70 |
ZRE172,173..VN |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-02J80 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH |
1 | ||
| 82817-02J80 |
ZRE172,173..VN |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-02K20 |
ZRE172..18E..VN;NDE170,NZE170,ZRE173;ZRE171,172..(ATM,CVT)..(GEN,VN);ZRE171,172..(CVT,MTM)..(ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH) |
1 | ||
| 82817-02K20 |
ZRE172,173..VN |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-52710 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 82817-52710 |
ZRE172..G UP GRADE PACKAGE&TIRE INFLATION PRESSURE WARNING-WITH |
1 | ||
| 82817-52710 |
ZRE172..G;ZRE173..GLI UP GRADE PACKAGE |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-T0130 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8417 | ||||
| 8601 | ||||
ILLUST NO. 6 OF11(1310- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-02160 |
ZRE173..PHL;ZRE172..CVT..(18G,18V)..(TH,VN) |
1 | ||
| 82192-02190 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-02100 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 8219B-02070 |
ZRE173..PHL;ZRE172..CVT..(18G,18V)..(TH,VN) |
1 | ||
ILLUST NO. 8 OF11(1310- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E350 | ||||
| 82711-2B660 | ||||
| 82715-02F90 | ||||
| 82715-02M00 | ||||
| 82715-0DV90 | ||||
| 82715-12870 | ||||
| 82715-12890 | ||||
| 82715-12B50 | ||||
| 82715-12B70 | ||||
| 82715-12B80 | ||||
| 82715-12C70 | ||||
| 82715-12E30 | ||||
| 82715-12G10 | ||||
| 82715-12K00 | ||||
| 82715-12M20 | ||||
| 82715-12N80 | ||||
| 82715-12Q30 | ||||
| 82715-12Q41 | ||||
| 82715-28L90 | ||||
| 82715-47170 | ||||
| 82715-52110 | ||||
| 82715-52140 | ||||
| 82715-52C90 | ||||
| 82715-52S30 | ||||
| 82715-52U00 | ||||
| 90119-06915 | ||||
| 90119-T0136 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||
| 91672-81018 | ||||
| 91673-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
ILLUST NO. 7 OF11(1310- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-02F20 | ||||
| 82715-02K20 | ||||
| 82715-02K30 | ||||
| 82715-02K40 | ||||
| 82715-02K50 | ||||
| 82715-02L40 | ||||
| 82715-02S20 | ||||
| 82715-05240 | ||||
| 82715-12420 | ||||
| 82715-12870 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12A90 | ||||
| 82715-12B00 | ||||
| 82715-12B11 | ||||
| 82715-12B20 | ||||
| 82715-12F20 | ||||
| 82715-12F30 | ||||
| 82715-12G20 | ||||
| 82715-12K70 | ||||
| 82715-12L50 | ||||
| 82715-12N40 | ||||
| 82715-12R10 | ||||
| 82715-20B70 | ||||
| 82715-20C20 | ||||
| 82715-28K50 | ||||
| 82715-32390 | ||||
| 82715-42560 | ||||
| 82715-42800 | ||||
| 82715-52C50 | ||||
| 82715-52C60 | ||||
| 82715-52C80 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-68050 | ||||
| 82715-6A460 | ||||
| 82729-20070 | ||||
| 82729-20150 | ||||
| 90105-08391 | ||||
| 90105-T0066 | ||||
| 90119-T0134 | ||||
| 90119-T0237 | ||||
| 90119-T0260 | ||||
| 90119-T0342 | ||||
| 91551-80612 | ||||
| 91621-40814 | ||||
| 91621-B0816 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91672-81018 | ||||
| 91673-80612 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1701 | ||||
ILLUST NO. 9 OF11(1310- )
CONNECTOR 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10795 | ||||
| 90980-10825 | ||||
| 90980-10860 | ||||
| 90980-10897 | ||||
| 90980-10942 | ||||
| 90980-10981 | ||||
| 90980-11019 | ||||
| 90980-11020 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11194 | ||||
| 90980-11659 | ||||
ILLUST NO.10 OF11(1310- )
CONNECTOR 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52440 | ||||
| 90980-10619 | ||||
| 90980-10786 | ||||
| 90980-10795 | ||||
| 90980-10825 | ||||
| 90980-10906 | ||||
| 90980-10908 | ||||
| 90980-10942 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11246 | ||||
| 90980-12686 | ||||
| 90980-12B01 | ||||
ILLUST NO.11 OF11(1310- )
CONNECTOR 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11070 | ||||
| 90980-12382 | ||||
| 90980-12490 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12699 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
