ZRE172L-GEXGKH (2014)
Toyota Corolla/Altis

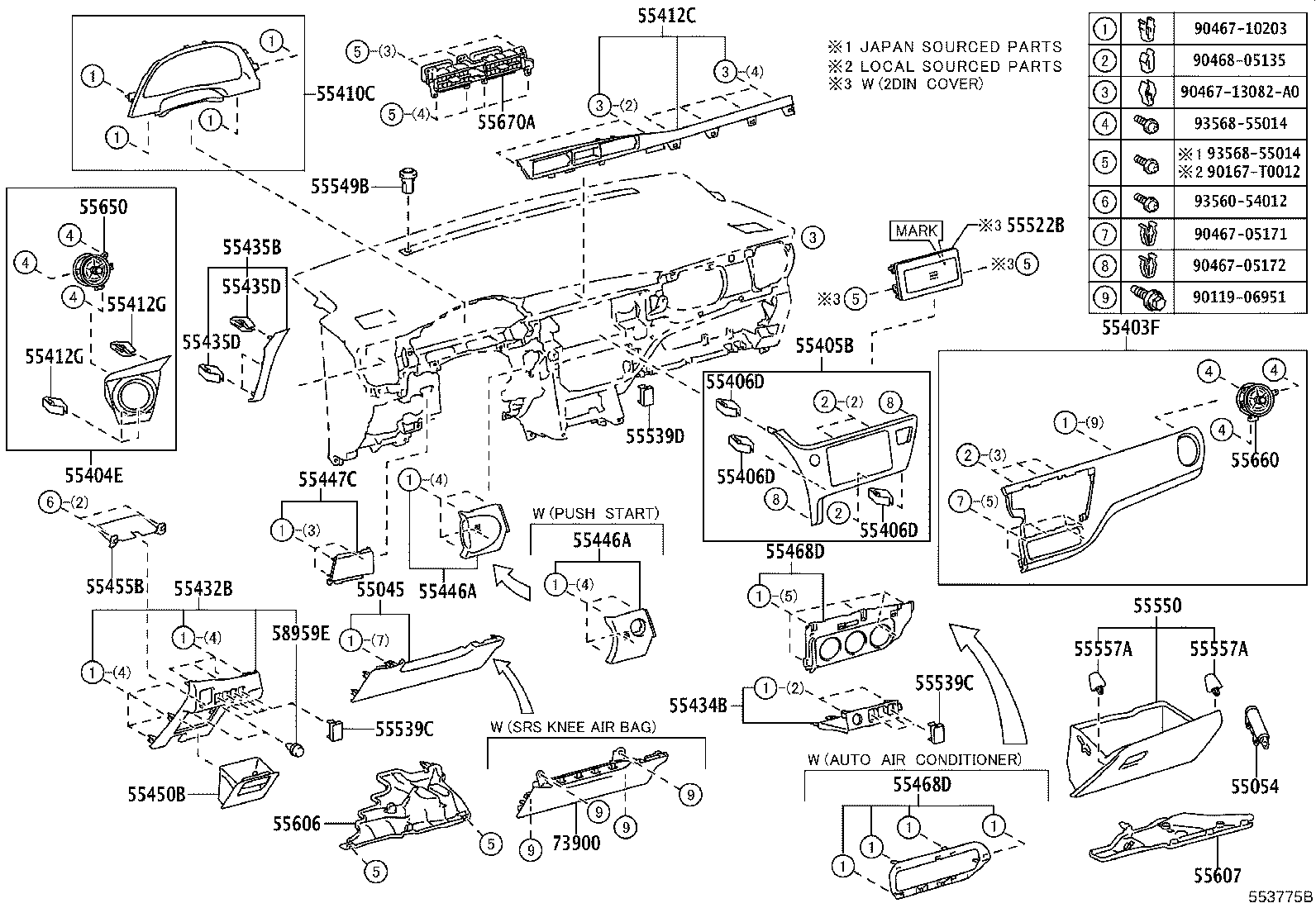

ILLUST NO. 2 OF 2(1611- )ZRE172..CVT..VN ; (1611- )LHD..16E,16G,16V,18E,20V,XLI..GEN,PHL,VN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-02430C0 |
ZRE172..CVT..VN BLACK,TRIM0#,2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-02040 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-02370C0 |
ZRE172..G;ZRE173..PHL BLACK,TRIM2# |
1 | ||
| 55403-02370A0 |
ZRE172..G FLAXEN,TRIM0# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-02710E0 |
ZRE172..G DARK BROWN/BLACK,TRIM01,2# |
1 | ||
| 55405-02611E0 |
ZRE172..CVT..VN DARK BROWN/BLACK,TRIM2# |
1 | ||
| 55405-02611E1 |
ZRE172..CVT..VN DARK BROWN/IVORY,TRIM0# |
1 | ||
| 55405-02B80 |
ZRE171,173..GCC;ZRE172..CVT..VN |
1 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-13082A0 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH MELLOW WHITE |
3 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-13082A0 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH MELLOW WHITE |
3 | ||
| 55406D - CLIP(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-13082A0 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH MELLOW WHITE |
3 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-02180C0 |
ZRE172..CVT..VN BLACK,TRIM0#,2# |
1 | ||
| 55410-02480C0 |
ZRE172..CVT..VN;ZRE172..TAIW..(E,G);ZRE171..(16G,16V)..PHL BLACK,TRIM0#,2# |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-02320 |
ZRE172,173..VN |
1 | ||
| 55412-02590 |
ZRE172..LHD..CVT;ZRE171,173..LHD..(GCC,GEN,PHL) |
1 | ||
| 55412G - CLIP(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL) | ||||
| 90467-13082A0 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH MELLOW WHITE |
4 | ||
| 55412G - CLIP(FOR INSTRUMENT CENTER CLUSTER FINISH PANEL) | ||||
| 90467-13082A0 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH MELLOW WHITE |
4 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-02520C0 |
ZRE172..CVT..VN;ZRE172..TAIW..(E,G);ZRE171,173..(16G,16V,20V)..PHL BLACK,TRIM0#,2# |
1 | ||
| 55432-02521C0 |
ZRE172..CVT..VN;ZRE172..TAIW..(E,G);ZRE171..(16G,16V)..PHL BLACK,TRIM0#,2# |
1 | ||
| 55432-02521C0 |
ZRE172..CVT..VN BLACK,TRIM0#,2# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-02270C0 |
ZRE172..CVT..VN BLACK,TRIM0#,2# |
1 | ||
| 55434-02270C0 |
ZRE172..CVT..VN;ZRE172..TAIW..(E,G);ZRE171..(16G,16V)..PHL BLACK,TRIM0#,2# |
1 | ||
| 55435B - CLUSTER, METER HOOD, NO.1 | ||||
| 55435-02610C0 |
ZRE172,173..CVT..VN;ZRE172..TAIW..(E,G);ZRE171..(16G,16V)..PHL BLACK,TRIM0#,2# |
1 | ||
| 55435D - CLIP, METER HOOD CLUSTER | ||||
| 90467-13082A0 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH MELLOW WHITE |
3 | ||
| 55435D - CLIP, METER HOOD CLUSTER | ||||
| 90467-13082A0 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH MELLOW WHITE |
3 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02420C0 |
ZRE172..G BLACK,TRIM0#,2# |
1 | ||
| 55446-02410C0 |
ZRE172..CVT..VN BLACK,TRIM0#,2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-02420C0 |
ZRE172..G BLACK,TRIM0#,2# |
1 | ||
| 55446-02410C0 |
ZRE172..CVT..VN BLACK,TRIM0#,2# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-02160C0 |
ZRE172..CVT..VN BLACK,TRIM0#,2# |
1 | ||
| 55447-02160C0 |
ZRE172,173..CVT..VN;ZRE172..TAIW..(E,G);ZRE171..(16G,16V)..PHL BLACK,TRIM0#,2# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-02180C0 |
ZRE172,173..CVT..VN;ZRE172..TAIW..(E,G);ZRE171..(16G,16V)..PHL BLACK,TRIM0#,2# |
1 | ||
| 55450-02180C0 |
ZRE172..CVT..VN BLACK,TRIM0#,2# |
1 | ||
| 55455B - COIN BOX | ||||
| 55455-02180C0 |
ZRE172..CVT..VN BLACK,TRIM0#,2# |
1 | ||
| 55455-02180C0 |
ZRE172..CVT..VN;ZRE172..TAIW..(E,G);ZRE171..(16G,16V)..PHL BLACK,TRIM0#,2# |
1 | ||
| 55468D - RETAINER, INSTRUMENT PANEL SAFETY PAD, CENTER | ||||
| 55468-02070 |
ZRE171,173..LHD..(16G,16V,20V);ZRE171,172..LHD..(ATM,CVT)..(GEN,TAIW,VN) |
1 | ||
| 55468D - RETAINER, INSTRUMENT PANEL SAFETY PAD, CENTER | ||||
| 55468-02070 |
ZRE171,173..LHD..(16G,16V,20V);ZRE171,172..LHD..(ATM,CVT)..(GEN,TAIW,VN) |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
ZRE172,173..VN |
1 | ||
| 55522-0K010 |
ZRE171,173..GCC,MA,SGP;ZRE172..CVT..(IDN,MA,VN) MARK=55522-0K010 |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D090C0 |
ZRE172..CVT..VN BLACK,TRIM0#,2# |
1 | ||
| 55539-0D090C0 |
ZRE171..6F..16G;ZRE171..CVT..(PHL,SGP);ZRE172..(PKN,TAIW)..(E,G,N);ZRE172..CVT..(18E,18G)..(TH,VN) BLACK,TRIM0#,2# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D090C0 |
ZRE172..CVT..VN BLACK,TRIM0#,2# |
1 | ||
| 55539-0D090C0 |
ZRE171..6F..16G;ZRE171..CVT..(PHL,SGP);ZRE172..(PKN,TAIW)..(E,G,N);ZRE172..CVT..(18E,18G)..(TH,VN) BLACK,TRIM0#,2# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-33160C0 |
ZRE172..CVT..VN BLACK,TRIM0#,2# |
1 | ||
| 55539-33160C0 |
ZRE172..CVT..VN;ZRE171..(16G,16V)..PHL BLACK,TRIM0#,2# |
1 | ||
| 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55549-42020 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 55549-42020 |
ZRE172..CVT..VN |
1 | ||
| 55549-42020 |
NDE170,ZRE172..G |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-02450C0 |
ZRE172..CVT..VN BLACK,TRIM0#,2# |
1 | ||
| 55550-02450C0 |
ZRE172..CVT..VN;ZRE172..TAIW..(E,G);ZRE171..(16G,16V)..PHL BLACK,TRIM0#,2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ZRE172,173..VN |
2 | ||
| 55557-60050 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
2 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
ZRE172,173..VN |
2 | ||
| 55557-60050 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-02190 |
ZRE172,173..VN DRIVER SIDE |
1 | ||
| 55606-02190 |
ZRE172..LHD..CVT;ZRE171,173..LHD..(GCC,GEN,PHL) DRIVER SIDE |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-02210 |
ZRE172..G PASSENGER SIDE |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-02610C0 |
ZRE172,173..CVT..VN BLACK,TRIM2# |
1 | ||
| 55680-02180C3 |
ZRE172..G SILVER,TRIM0#,2# |
1 | ||
| 55650-02610A0 |
ZRE172..CVT..VN IVORY,TRIM0# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55680-02120C0 |
ZRE172..G BLACK,TRIM0#,2# |
1 | ||
| 55660-02290C0 |
ZRE172,173..CVT..VN BLACK,TRIM2# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-02430 |
ZRE172,173..VN |
1 | ||
| 55670-02630 |
ZRE172..CVT..VN;ZRE171..LHD..(16E,16G,XLI)..(GEN,PHL) |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ZRE172,173..VN |
2 | ||
| 58959-60060 |
ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173;ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH |
2 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-02180C0 |
ZRE172..CVT..VN;ZRE171..(16G,16V)..PHL BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90167-T0012 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-10203 | ||||
| 90467-13082A0 | ||||
| 90468-05135 | ||||
| 93560-54012 | ||||
| 93568-55014 | ||||
