ZRE172L-GEXGKH (2014)
Toyota Corolla/Altis

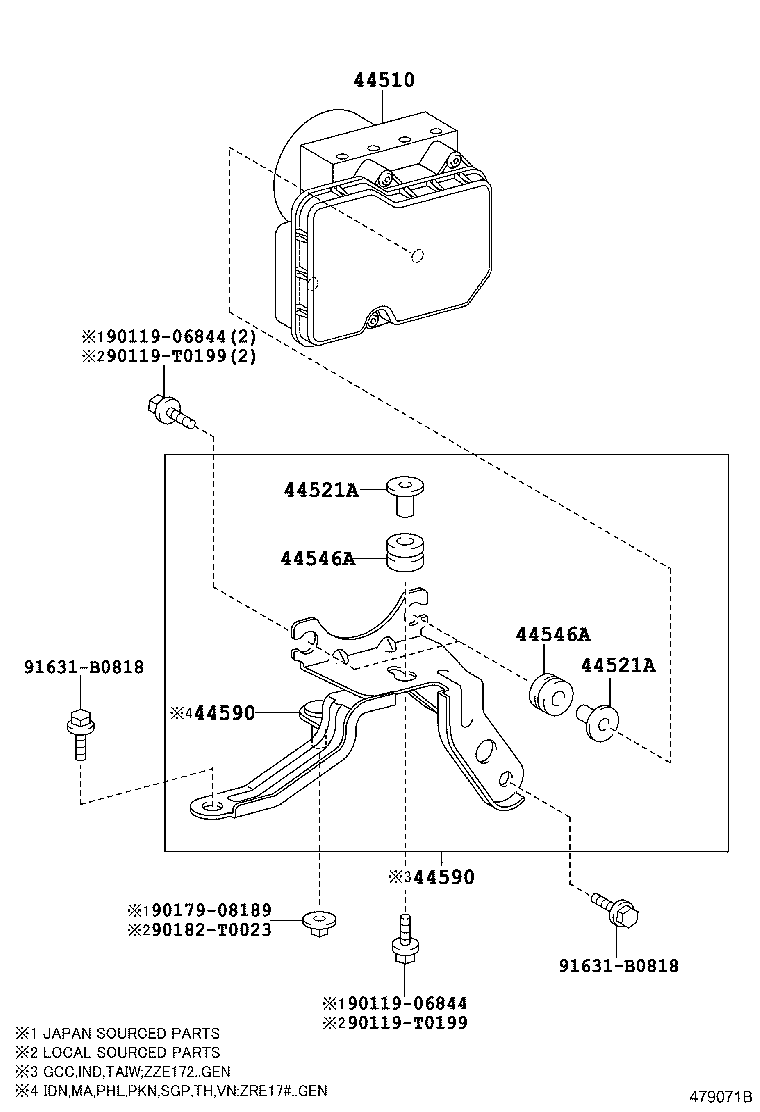

ILLUST NO. 2 OF 2(1310- )18G..VN ; (1310- )ZRE172..ARL,IDN,IND,MA,PKN,TAIW,TH ; (1310- )NDE
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-02A00 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 44050-02790 |
ZRE172..G |
1 | ||
| 44050-02A00 |
ZRE172..G |
1 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-0D010 |
ZRE172..ARL,PKN;ZRE172..CVT..(18E,18G,18GS,18V,G);NDE170,ZRE171,173..GEN,IND,MA,PHL,PKN,SGP,TH;NZE170,ZRE172..RHD..(ATM,MTM)..(18G,G,GLI,J) |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-0D010 |
ZRE172..ARL,PKN;ZRE172..CVT..(18E,18G,18GS,18V,G);NDE170,ZRE171,173..GEN,IND,MA,PHL,PKN,SGP,TH;NZE170,ZRE172..RHD..(ATM,MTM)..(18G,G,GLI,J) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44547-02050 |
ZRE172..ARL,PKN;ZRE172..CVT..(18E,18G,18GS,18V,G);NDE170,ZRE171,173..GEN,IND,MA,PHL,PKN,SGP,TH;NZE170,ZRE172..RHD..(ATM,MTM)..(18G,G,GLI,J) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44547-02050 |
ZRE172..ARL,PKN;ZRE172..CVT..(18E,18G,18GS,18V,G);NDE170,ZRE171,173..GEN,IND,MA,PHL,PKN,SGP,TH;NZE170,ZRE172..RHD..(ATM,MTM)..(18G,G,GLI,J) |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-02240 |
ZRE172..G |
1 | ||
| 44590-12190 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 44590-12190 |
ZRE172..G |
1 | ||
| 44590-02350 |
ZRE17#..ARL,IDN,MA,PHL,SGP,TH;ZRE171,172..(ATM,CVT)..(18G,GLI)..(GEN,VN) |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-02240 |
ZRE172..G |
1 | ||
| 44590-12190 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 44590-12190 |
ZRE172..G |
1 | ||
| 44590-02350 |
ZRE17#..ARL,IDN,MA,PHL,SGP,TH;ZRE171,172..(ATM,CVT)..(18G,GLI)..(GEN,VN) |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 90119-T0199 | ||||
| 90179-08189 | ||||
| 90182-T0023 | ||||
| 91631-B0818 | ||||
ILLUST NO. 2 OF 2(1310- )
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-02A00 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 44050-02790 |
ZRE172..G |
1 | ||
| 44050-02A00 |
ZRE172..G |
1 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-0D010 |
ZRE172..ARL,PKN;ZRE172..CVT..(18E,18G,18GS,18V,G);NDE170,ZRE171,173..GEN,IND,MA,PHL,PKN,SGP,TH;NZE170,ZRE172..RHD..(ATM,MTM)..(18G,G,GLI,J) |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-0D010 |
ZRE172..ARL,PKN;ZRE172..CVT..(18E,18G,18GS,18V,G);NDE170,ZRE171,173..GEN,IND,MA,PHL,PKN,SGP,TH;NZE170,ZRE172..RHD..(ATM,MTM)..(18G,G,GLI,J) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44547-02050 |
ZRE172..ARL,PKN;ZRE172..CVT..(18E,18G,18GS,18V,G);NDE170,ZRE171,173..GEN,IND,MA,PHL,PKN,SGP,TH;NZE170,ZRE172..RHD..(ATM,MTM)..(18G,G,GLI,J) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44547-02050 |
ZRE172..ARL,PKN;ZRE172..CVT..(18E,18G,18GS,18V,G);NDE170,ZRE171,173..GEN,IND,MA,PHL,PKN,SGP,TH;NZE170,ZRE172..RHD..(ATM,MTM)..(18G,G,GLI,J) |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-02240 |
ZRE172..G |
1 | ||
| 44590-12190 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 44590-12190 |
ZRE172..G |
1 | ||
| 44590-02350 |
ZRE17#..ARL,IDN,MA,PHL,SGP,TH;ZRE171,172..(ATM,CVT)..(18G,GLI)..(GEN,VN) |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 90119-T0199 | ||||
| 90179-08189 | ||||
| 90182-T0023 | ||||
| 91631-B0818 | ||||

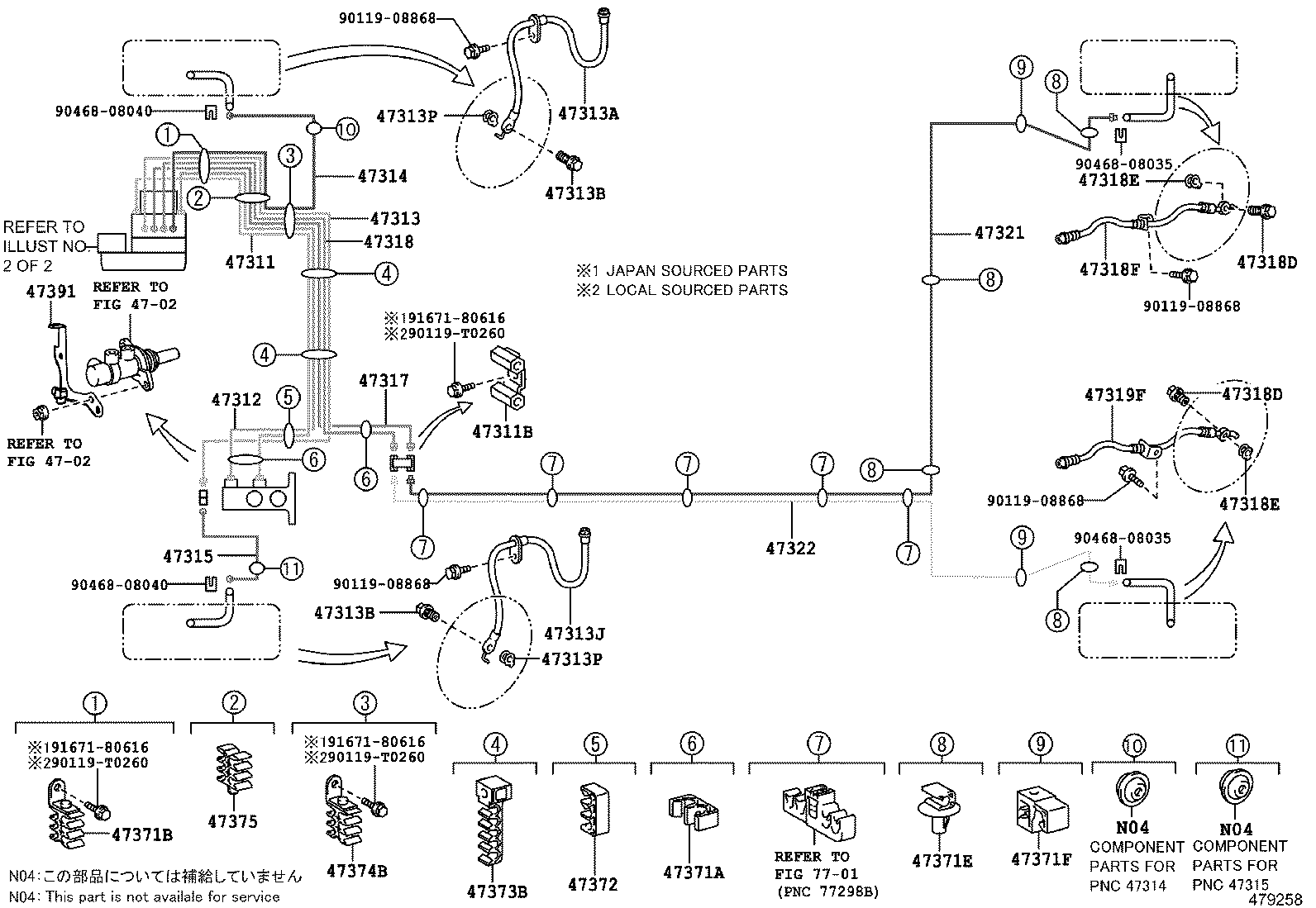

ILLUST NO. 1 OF 2(1310- )LHD
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-02A40 |
ZRE172..G |
1 | ||
| 47311-02A50 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 47311-02A50 |
ZRE172..G |
1 | ||
| 47311-02B02 |
ZRE171,173..PHL;ZRE172..CVT..VN |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
NDE170;ZRE172..G,J |
1 | ||
| 90412-10260 |
ZRE172,173..VN |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-02810 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 47312-02810 |
ZRE172..G |
1 | ||
| 47312-02870 |
ZRE172..G |
1 | ||
| 47312-02801 |
ZRE171,173..PHL;ZRE172..CVT..VN |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-02B50 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 47313-02B50 |
ZRE172..G |
1 | ||
| 47313-02B40 |
ZRE172..G |
1 | ||
| 47313-02B31 |
ZRE171,173..PHL;ZRE172..CVT..VN |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-T2090 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRE172,173..VN |
2 | ||
| 90401-10058 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRE172,173..VN |
2 | ||
| 90401-10058 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-T2091 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
ZRE172,173..VN |
2 | ||
| 47389-50021 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
ZRE172,173..VN |
2 | ||
| 47389-50021 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-02A60 |
ZRE172..G |
1 | ||
| 47314-02A50 |
ZRE172..G |
1 | ||
| 47314-02A60 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 47314-02A40 |
ZRE171,173..PHL;ZRE172..CVT..VN |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-02290 |
ZRE172..CVT..VN;ZRE171,173..LHD..(GEN,PHL) |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-02A00 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 47317-02890 |
ZRE172..G |
1 | ||
| 47317-02A00 |
ZRE172..G |
1 | ||
| 47317-02880 |
ZRE171,173..PHL;ZRE172..CVT..VN |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-02A10 |
ZRE172..G |
1 | ||
| 47318-02A20 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 47318-02A20 |
ZRE172..G |
1 | ||
| 47318-02A00 |
ZRE171,173..PHL;ZRE172..CVT..VN |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRE172,173..VN |
2 | ||
| 90401-10058 |
ZRE171..16V;ZRE172..CVT;ZRE172..6F..(ARL,IND,PKN);ZRE171..GCC,GEN,PKN,SGP,TH;NDE170,NZE170,ZRE173..GCC,IND,MA,PHL,PKN |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRE172,173..VN |
2 | ||
| 90401-10058 |
ZRE171..16V;ZRE172..CVT;ZRE172..6F..(ARL,IND,PKN);ZRE171..GCC,GEN,PKN,SGP,TH;NDE170,NZE170,ZRE173..GCC,IND,MA,PHL,PKN |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
ZRE171..16V;ZRE172..CVT;ZRE172..6F..(ARL,IND,PKN);ZRE171..GCC,GEN,PKN,SGP,TH;NDE170,NZE170,ZRE173..GCC,IND,MA,PHL,PKN |
2 | ||
| 47389-50021 |
ZRE172,173..VN |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
ZRE171..16V;ZRE172..CVT;ZRE172..6F..(ARL,IND,PKN);ZRE171..GCC,GEN,PKN,SGP,TH;NDE170,NZE170,ZRE173..GCC,IND,MA,PHL,PKN |
2 | ||
| 47389-50021 |
ZRE172,173..VN |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-T2087 |
ZRE171..GEN,PKN,SGP,TH;ZRE172..6F..(ARL,IND,PKN);ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TH,VN);NDE170,NZE170,ZRE171,173..(16V,20G,20V,G,GL,GLI,XLI)..(IND,MA,PHL,PKN) |
1 | ||
| 90947-T2087 |
ZRE172,173..VN |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-T2088 |
ZRE172,173..VN |
1 | ||
| 90947-T2088 |
ZRE171..GEN,PKN,SGP,TH;ZRE172..6F..(ARL,IND,PKN);ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TH,VN);NDE170,NZE170,ZRE171,173..(16V,20G,20V,G,GL,GLI,XLI)..(IND,MA,PHL,PKN) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-02490 |
ZRE172,173..VN |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-02490 |
ZRE172,173..VN |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00920 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 90464-00920 |
ZRE172..G |
1 | ||
| 90464-00904 |
ZRE172..G |
2 | ||
| 90464-00904 |
ZRE172..VN |
2 | ||
| 90464-00920 |
ZRE172..LHD..CVT;ZRE171,173..GCC,PHL |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-04053 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 90949-04053 |
ZRE172..G |
1 | ||
| 47371-12240 |
ZRE172..G |
1 | ||
| 47371-12240 |
ZRE172..VN |
1 | ||
| 90949-04053 |
ZRE172..LHD..CVT;ZRE171,173..GCC,PHL |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90464-00904 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 90464-00904 |
ZRE172..G |
1 | ||
| 90464-00904 |
ZRE172..GL;ZRE17#..ARL,GCC,IDN,MA,PHL,SGP,TAIW,TH;ZRE171,172..(ATM,CVT)..(18G,GLI,VL)..(GEN,IND,VN) |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01D17 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
4 | ||
| 90949-01D17 |
ZRE172,173..VN |
4 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01C82 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
2 | ||
| 90949-01C82 |
ZRE172,173..VN |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00914 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 90464-00857 |
ZRE172..G |
1 | ||
| 90464-00914 |
ZRE172..G |
1 | ||
| 90464-00857 |
ZRE172..VN |
1 | ||
| 90464-00914 |
ZRE172..LHD..CVT;ZRE171,173..GCC,PHL |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D73 |
ZRE172..G UP GRADE PACKAGE |
2 | ||
| 90949-01D28 |
ZRE172..G |
2 | ||
| 90949-01D73 |
ZRE172..G |
2 | ||
| 90949-01D28 |
ZRE172..VN |
2 | ||
| 90949-01D73 |
ZRE171..GCC,PHL;ZRE172..LHD..CVT |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-04054 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 90949-04050 |
ZRE172..G |
1 | ||
| 90949-04054 |
ZRE172..G |
1 | ||
| 90949-04050 |
ZRE172..VN |
1 | ||
| 90949-04054 |
ZRE172..LHD..CVT;ZRE171,173..GCC,PHL |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01D33 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 90949-01D33 |
ZRE172..G |
1 | ||
| 90949-01C51 |
ZRE172..G |
1 | ||
| 90949-01D33 |
ZRE172..LHD..CVT;ZRE171,173..GCC,PHL |
1 | ||
| 90949-01C51 |
ZRE172..VN |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-12051 |
ZRE172,173..VN |
1 | ||
| 47391-12051 |
ZRE172..LHD..CVT;ZRE171,173..LHD..(GCC,GEN,PHL) |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-T0260 | ||||
| 90119-T0319 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 90468-T0004 | ||||
| 91671-80616 | ||||
| 91671-A0616 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
ILLUST NO. 1 OF 2(1409- )18G,20V..VN
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-02A40 |
ZRE172..G |
1 | ||
| 47311-02A50 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 47311-02A50 |
ZRE172..G |
1 | ||
| 47311-02B02 |
ZRE171,173..PHL;ZRE172..CVT..VN |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
NDE170;ZRE172..G,J |
1 | ||
| 90412-10260 |
ZRE172,173..VN |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-02810 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 47312-02810 |
ZRE172..G |
1 | ||
| 47312-02870 |
ZRE172..G |
1 | ||
| 47312-02801 |
ZRE171,173..PHL;ZRE172..CVT..VN |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-02B50 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 47313-02B50 |
ZRE172..G |
1 | ||
| 47313-02B40 |
ZRE172..G |
1 | ||
| 47313-02B31 |
ZRE171,173..PHL;ZRE172..CVT..VN |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-T2090 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRE172,173..VN |
2 | ||
| 90401-10058 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRE172,173..VN |
2 | ||
| 90401-10058 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-T2091 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
ZRE172,173..VN |
2 | ||
| 47389-50021 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
ZRE172,173..VN |
2 | ||
| 47389-50021 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-02A60 |
ZRE172..G |
1 | ||
| 47314-02A50 |
ZRE172..G |
1 | ||
| 47314-02A60 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 47314-02A40 |
ZRE171,173..PHL;ZRE172..CVT..VN |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-02290 |
ZRE172..CVT..VN;ZRE171,173..LHD..(GEN,PHL) |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-02A00 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 47317-02890 |
ZRE172..G |
1 | ||
| 47317-02A00 |
ZRE172..G |
1 | ||
| 47317-02880 |
ZRE171,173..PHL;ZRE172..CVT..VN |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-02A10 |
ZRE172..G |
1 | ||
| 47318-02A20 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 47318-02A20 |
ZRE172..G |
1 | ||
| 47318-02A00 |
ZRE171,173..PHL;ZRE172..CVT..VN |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRE172,173..VN |
2 | ||
| 90401-10058 |
ZRE171..16V;ZRE172..CVT;ZRE172..6F..(ARL,IND,PKN);ZRE171..GCC,GEN,PKN,SGP,TH;NDE170,NZE170,ZRE173..GCC,IND,MA,PHL,PKN |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRE172,173..VN |
2 | ||
| 90401-10058 |
ZRE171..16V;ZRE172..CVT;ZRE172..6F..(ARL,IND,PKN);ZRE171..GCC,GEN,PKN,SGP,TH;NDE170,NZE170,ZRE173..GCC,IND,MA,PHL,PKN |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
ZRE171..16V;ZRE172..CVT;ZRE172..6F..(ARL,IND,PKN);ZRE171..GCC,GEN,PKN,SGP,TH;NDE170,NZE170,ZRE173..GCC,IND,MA,PHL,PKN |
2 | ||
| 47389-50021 |
ZRE172,173..VN |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
ZRE171..16V;ZRE172..CVT;ZRE172..6F..(ARL,IND,PKN);ZRE171..GCC,GEN,PKN,SGP,TH;NDE170,NZE170,ZRE173..GCC,IND,MA,PHL,PKN |
2 | ||
| 47389-50021 |
ZRE172,173..VN |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-T2087 |
ZRE171..GEN,PKN,SGP,TH;ZRE172..6F..(ARL,IND,PKN);ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TH,VN);NDE170,NZE170,ZRE171,173..(16V,20G,20V,G,GL,GLI,XLI)..(IND,MA,PHL,PKN) |
1 | ||
| 90947-T2087 |
ZRE172,173..VN |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-T2088 |
ZRE172,173..VN |
1 | ||
| 90947-T2088 |
ZRE171..GEN,PKN,SGP,TH;ZRE172..6F..(ARL,IND,PKN);ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TH,VN);NDE170,NZE170,ZRE171,173..(16V,20G,20V,G,GL,GLI,XLI)..(IND,MA,PHL,PKN) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-02490 |
ZRE172,173..VN |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-02490 |
ZRE172,173..VN |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00920 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 90464-00920 |
ZRE172..G |
1 | ||
| 90464-00904 |
ZRE172..G |
2 | ||
| 90464-00904 |
ZRE172..VN |
2 | ||
| 90464-00920 |
ZRE172..LHD..CVT;ZRE171,173..GCC,PHL |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-04053 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 90949-04053 |
ZRE172..G |
1 | ||
| 47371-12240 |
ZRE172..G |
1 | ||
| 47371-12240 |
ZRE172..VN |
1 | ||
| 90949-04053 |
ZRE172..LHD..CVT;ZRE171,173..GCC,PHL |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01D17 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
4 | ||
| 90949-01D17 |
ZRE172,173..VN |
4 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01C82 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
2 | ||
| 90949-01C82 |
ZRE172,173..VN |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00914 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 90464-00857 |
ZRE172..G |
1 | ||
| 90464-00914 |
ZRE172..G |
1 | ||
| 90464-00857 |
ZRE172..VN |
1 | ||
| 90464-00914 |
ZRE172..LHD..CVT;ZRE171,173..GCC,PHL |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D73 |
ZRE172..G UP GRADE PACKAGE |
2 | ||
| 90949-01D28 |
ZRE172..G |
2 | ||
| 90949-01D73 |
ZRE172..G |
2 | ||
| 90949-01D28 |
ZRE172..VN |
2 | ||
| 90949-01D73 |
ZRE171..GCC,PHL;ZRE172..LHD..CVT |
2 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-04054 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 90949-04050 |
ZRE172..G |
1 | ||
| 90949-04054 |
ZRE172..G |
1 | ||
| 90949-04050 |
ZRE172..VN |
1 | ||
| 90949-04054 |
ZRE172..LHD..CVT;ZRE171,173..GCC,PHL |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01D33 |
ZRE172..G UP GRADE PACKAGE |
1 | ||
| 90949-01D33 |
ZRE172..G |
1 | ||
| 90949-01C51 |
ZRE172..G |
1 | ||
| 90949-01D33 |
ZRE172..LHD..CVT;ZRE171,173..GCC,PHL |
1 | ||
| 90949-01C51 |
ZRE172..VN |
1 | ||
| 47391 - WAY, BRAKE TUBE | ||||
| 47391-12051 |
ZRE172,173..VN |
1 | ||
| 47391-12051 |
ZRE172..LHD..CVT;ZRE171,173..LHD..(GCC,GEN,PHL) |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-T0260 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
