ZRE172L-GEXGKH (2014)
Toyota Corolla/Altis
(1310- )ZRE172..CVT ; (1310- )ZRE172..6F..ARL,IND,PKN ; (1310- )NDE170,NZE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-12150 |
ZRE172,173..VN MARK AK NS254 |
1 | ||
| 04466-12150 |
ZRE171..16V;ZRE172..6F..(D,N);ZRE171..GCC,GEN,PKN,SGP,TH;NZE170,ZRE173..GCC,MA,PHL,PKN;ZRE172..CVT..(ARL,IDN,MA,PKN,TAIW,TH,VN) MARK AK NS254 |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-12260 |
ZRE172,173..VN |
1 | ||
| 04479-12260 |
ZRE171..16V;ZRE172..6F..(D,N);ZRE171..GCC,GEN,PKN,SGP,TH;NZE170,ZRE173..GCC,MA,PHL,PKN;ZRE172..CVT..(ARL,IDN,MA,PKN,TAIW,TH,VN) |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-12100 |
ZRE172,173..VN |
1 | ||
| 04946-12100 |
ZRE171..16V;ZRE172..6F..(D,N);ZRE171..GCC,GEN,PKN,SGP,TH;NZE170,ZRE173..GCC,MA,PHL,PKN;ZRE172..CVT..(ARL,IDN,MA,PKN,TAIW,TH,VN) |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-12060 |
ZRE172,173..VN |
1 | ||
| 04948-12060 |
ZRE171..16V;ZRE172..6F..(D,N);ZRE171..GCC,GEN,PKN,SGP,TH;NZE170,ZRE173..GCC,MA,PHL,PKN;ZRE172..CVT..(ARL,IDN,MA,PKN,TAIW,TH,VN) |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-52010 |
ZRE172,173..VN |
2 | ||
| 31478-52010 |
ZRE171..16V;ZRE172..6F..(D,N);ZRE171..GCC,GEN,PKN,SGP,TH;NZE170,ZRE173..GCC,MA,PHL,PKN;ZRE172..CVT..(ARL,IDN,MA,PKN,TAIW,TH,VN) |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47847-52050 |
ZRE172,173..VN |
2 | ||
| 47847-52050 |
ZRE171..16V;ZRE172..6F..(D,N);ZRE171..GCC,GEN,PKN,SGP,TH;NZE170,ZRE173..GCC,MA,PHL,PKN;ZRE172..CVT..(ARL,IDN,MA,PKN,TAIW,TH,VN) |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 91552-C1035 |
ZRE172,173..VN *10-1.25PX35-26 |
4 | ||
| 91552-C1035 |
ZRE171..16V;ZRE172..CVT;ZRE172..6F..(ARL,IND,PKN);ZRE171..GCC,GEN,PKN,SGP,TH;NDE170,NZE170,ZRE173..GCC,IND,MA,PHL,PKN *10-1.25PX35-26 |
4 | ||
| 47803 - COVER SUB-ASSY, DISC BRAKE DUST, REAR RH | ||||
| 47803-02040 |
ZRE171..GEN,SGP,TH;ZRE172..6F..(ARL,IND);ZRE172..CVT..(ARL,IDN,IND,MA,TH,VN);NDE170,ZRE171,173..(16V,20G,20V,G,GL)..(IND,MA,PHL) |
1 | ||
| 47804 - COVER SUB-ASSY, DISC BRAKE DUST, REAR LH | ||||
| 47804-02040 |
ZRE171..GEN,SGP,TH;ZRE172..6F..(ARL,IND);ZRE172..CVT..(ARL,IDN,IND,MA,TH,VN);NDE170,ZRE171,173..(16V,20G,20V,G,GL)..(IND,MA,PHL) |
1 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90015-AA102 |
ZRE172,173..VN |
4 | ||
| 90015-AA102 |
ZRE171..16V;ZRE172..6F..(D,N);ZRE171..GCC,GEN,PKN,SGP,TH;NZE170,ZRE173..GCC,MA,PHL,PKN;ZRE172..CVT..(ARL,IDN,MA,PKN,TAIW,TH,VN) |
4 | ||
| 47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-12150 |
ZRE171..16V;ZRE172..6F..(D,N);ZRE171..GCC,GEN,PKN,SGP,TH;NZE170,ZRE173..GCC,MA,PHL,PKN;ZRE172..CVT..(ARL,IDN,MA,PKN,TAIW,TH,VN) |
1 | ||
| 47821-12150 |
ZRE172,173..VN |
1 | ||
| 47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47821-12150 |
ZRE172,173..VN |
1 | ||
| 47821-12150 |
ZRE171..16V;ZRE172..6F..(D,N);ZRE171..GCC,GEN,PKN,SGP,TH;NZE170,ZRE173..GCC,MA,PHL,PKN;ZRE172..CVT..(ARL,IDN,MA,PKN,TAIW,TH,VN) |
1 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47830-12260 |
ZRE172,173..VN |
1 | ||
| 47830-12260 |
ZRE171..16V;ZRE172..6F..(D,N);ZRE171..GCC,GEN,PKN,SGP,TH;NZE170,ZRE173..GCC,MA,PHL,PKN;ZRE172..CVT..(ARL,IDN,MA,PKN,TAIW,TH,VN) |
1 | ||
| 47831 - PISTON, REAR DISC BRAKE | ||||
| 47831-52050 |
ZRE172,173..VN |
2 | ||
| 47831-52050 |
ZRE171..16V;ZRE172..6F..(D,N);ZRE171..GCC,GEN,PKN,SGP,TH;NZE170,ZRE173..GCC,MA,PHL,PKN;ZRE172..CVT..(ARL,IDN,MA,PKN,TAIW,TH,VN) |
2 | ||
| 47835 - PIN, REAR DISC BRAKE PAD GUIDE | ||||
| 47835-12150 |
ZRE172,173..VN |
4 | ||
| 47835-12150 |
ZRE171..16V;ZRE172..6F..(D,N);ZRE171..GCC,GEN,PKN,SGP,TH;NZE170,ZRE173..GCC,MA,PHL,PKN;ZRE172..CVT..(ARL,IDN,MA,PKN,TAIW,TH,VN) |
4 | ||
| 47835 - PIN, REAR DISC BRAKE PAD GUIDE | ||||
| 47835-12150 |
ZRE172,173..VN |
4 | ||
| 47835-12150 |
ZRE171..16V;ZRE172..6F..(D,N);ZRE171..GCC,GEN,PKN,SGP,TH;NZE170,ZRE173..GCC,MA,PHL,PKN;ZRE172..CVT..(ARL,IDN,MA,PKN,TAIW,TH,VN) |
4 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-12260 |
ZRE171..16V;ZRE172..6F..(D,N);ZRE171..GCC,GEN,PKN,SGP,TH;NZE170,ZRE173..GCC,MA,PHL,PKN;ZRE172..CVT..(ARL,IDN,MA,PKN,TAIW,TH,VN) |
1 | ||
| 47850-12260 |
ZRE172,173..VN |
1 | ||
| 47875R - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-12150 |
ZRE172,173..VN |
4 | ||
| 47875-12150 |
ZRE171..16V;ZRE172..6F..(D,N);ZRE171..GCC,GEN,PKN,SGP,TH;NZE170,ZRE173..GCC,MA,PHL,PKN;ZRE172..CVT..(ARL,IDN,MA,PKN,TAIW,TH,VN) |
4 | ||
| 47875R - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-12150 |
ZRE172,173..VN |
4 | ||
| 47875-12150 |
ZRE171..16V;ZRE172..6F..(D,N);ZRE171..GCC,GEN,PKN,SGP,TH;NZE170,ZRE173..GCC,MA,PHL,PKN;ZRE172..CVT..(ARL,IDN,MA,PKN,TAIW,TH,VN) |
4 | ||

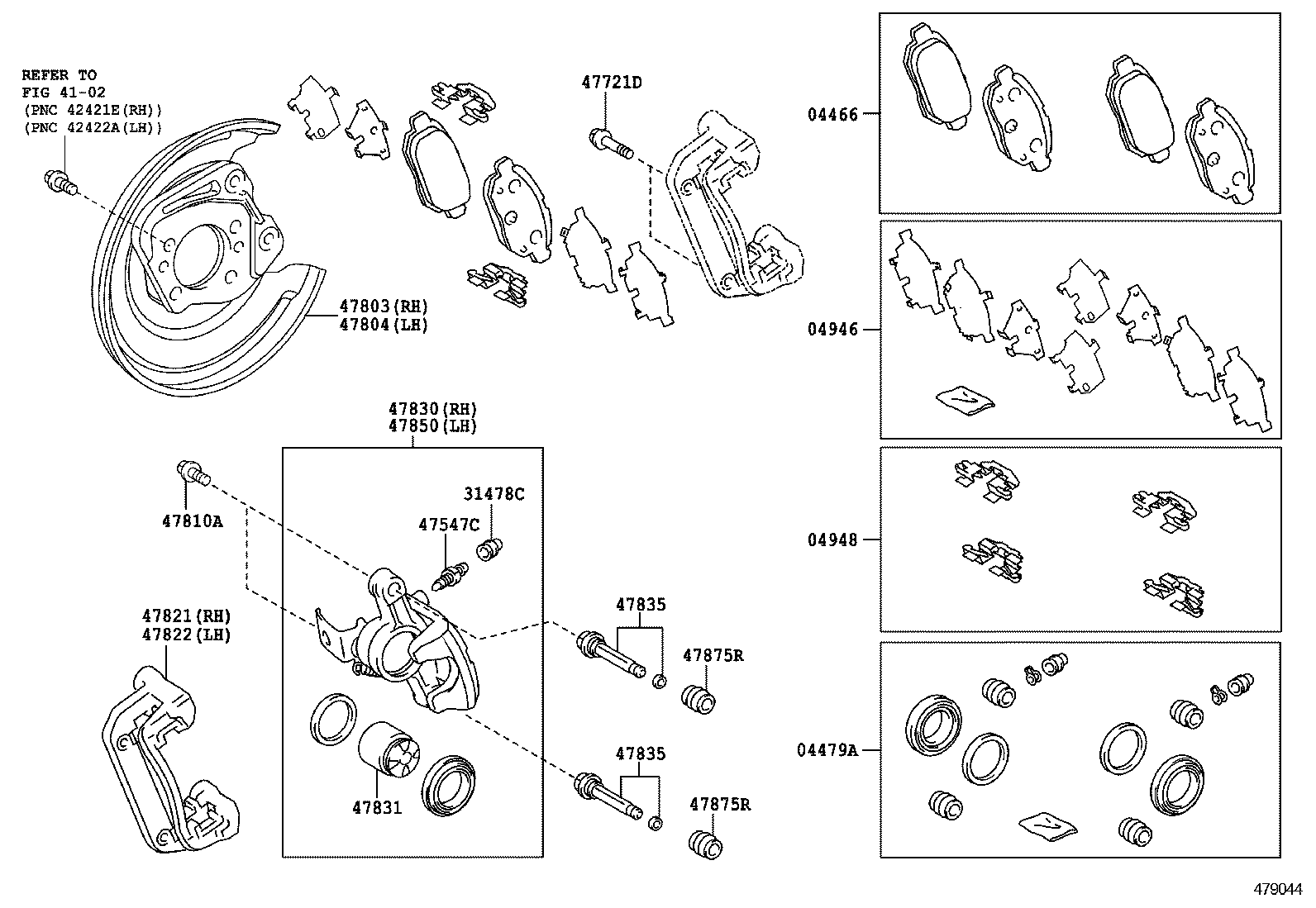

| Linked diagrams | ||||
| 4102 | ||||
