ZRE172L-GEXGKH (2014)

Toyota Corolla/Altis

Production Sep 2014 - Sep 2017
Engine 2ZRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1310- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price

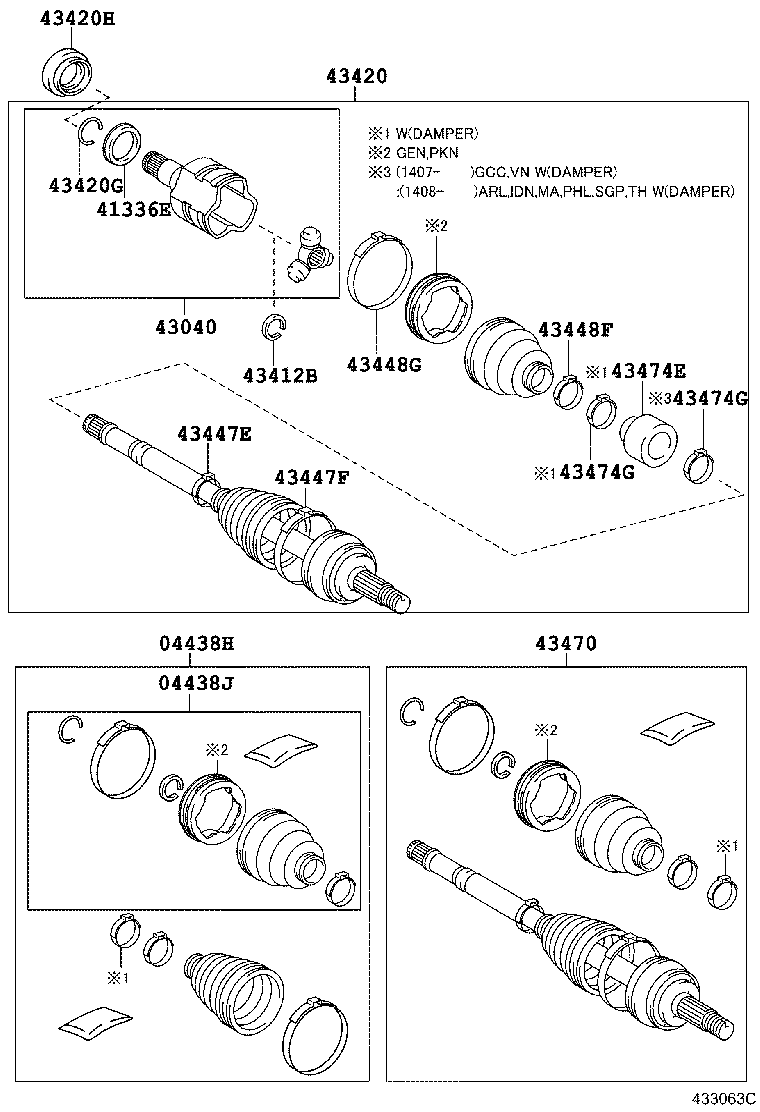

ILLUST NO. 2 OF 3(1310- )NZE170,ZRE171,172..ARL,GCC,GEN,IDN,MA,PHL,PKN,SGP,TH,VN

Click highlighted areas on diagram

LH

diagram 04438H 04438J 41336E 43040 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448G 43470 43474E 43474G 43474G
Part # Description Qty Price
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-42201

ZRE172..CVT..VN

 1
04438-42201

ZRE171..6F..GCC;ZRE171,172..CVT..(ARL,GCC,IDN,MA,PHL,SGP,TH,VN)

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-12060

ZRE172..VN

 1
41336-12060

ZRE172..CVT..VN;ZRE171,172..(CVT,MTM)..(ARL,GCC,GEN,IDN,MA,PHL,PKN,SGP,TH)

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
90520-22005

ZRE172..VN

 1
90520-22005

NZE170;ZRE172..CVT..VN;ZRE171,172..ARL,GCC,GEN,IDN,MA,PHL,SGP,TH

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-27005

ZRE172..VN

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-35068

ZRE172..CVT..VN

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12190

ZRE172..VN

 1
42345-12190

NZE170;ZRE172..CVT..VN;ZRE171,172..ARL,GCC,GEN,IDN,MA,PHL,SGP,TH

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12180

ZRE172..VN

 1
42345-12180

NZE170;ZRE172..CVT..VN;ZRE171,172..ARL,GCC,GEN,IDN,MA,PHL,SGP,TH

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01078

ZRE172..VN

 1
90949-01078

NZE170;ZRE172..CVT..VN;ZRE171,172..ARL,GCC,GEN,IDN,MA,PHL,SGP,TH

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160

ZRE172..VN

 1
42345-12160

ZRE172..CVT..VN;NZE170,ZRE173..RHD..(20G,GLI,XLI);ZRE171,172..ARL,GCC,GEN,IDN,MA,PHL,SGP,TH

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-12090

ZRE173..MA,PHL;ZRE171,172..CVT..(ARL,GCC,IDN,MA,PHL,PKN,SGP,TH,VN)

 2
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-12090

ZRE173..MA,PHL;ZRE171,172..CVT..(ARL,GCC,IDN,MA,PHL,PKN,SGP,TH,VN)

 2
