ZRE172L-GEXGKH (2014)
Toyota Corolla/Altis

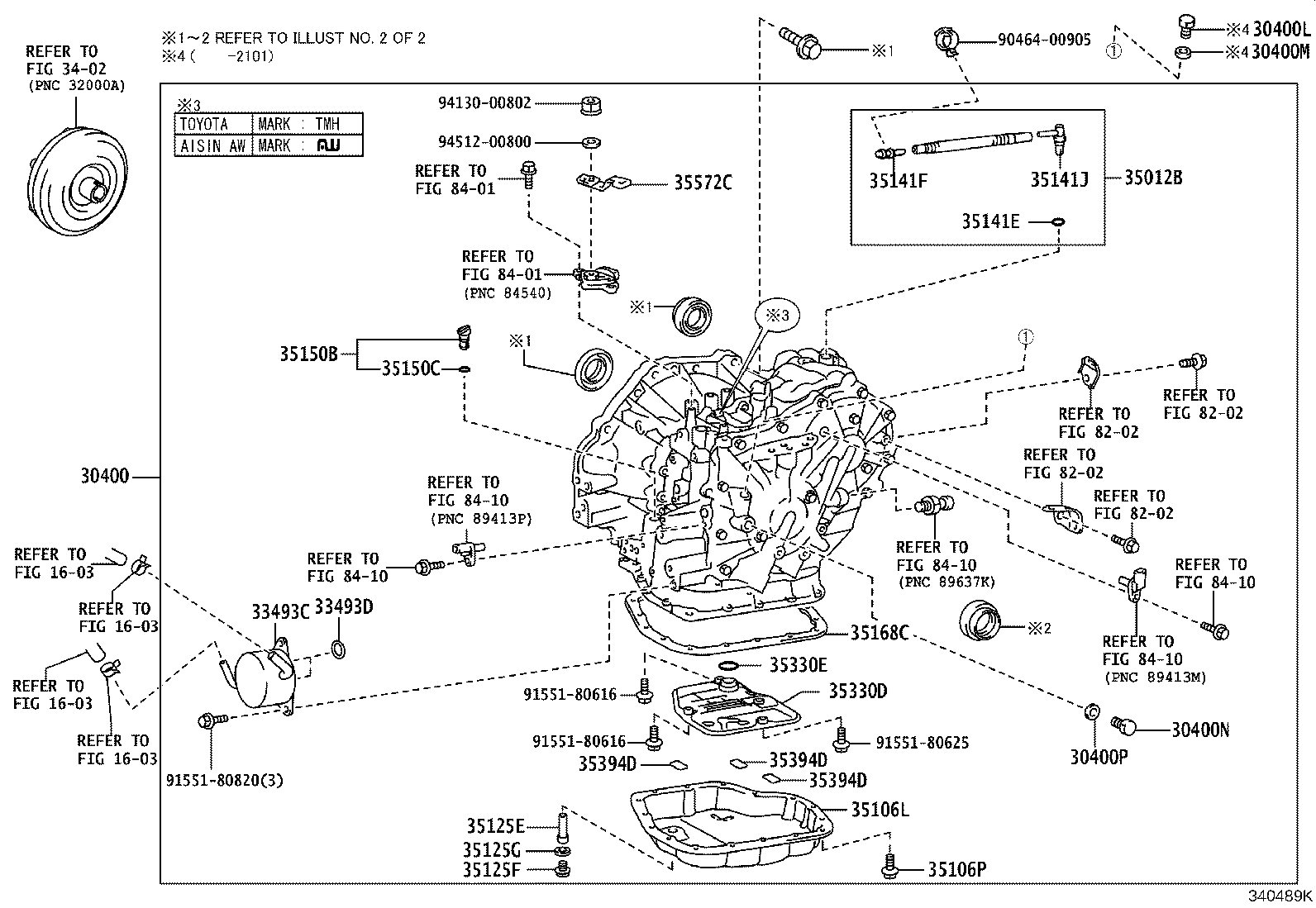

ILLUST NO. 1 OF 2(1310-1507)ZRE171,172..CVT ; (1507- )ZRE171,172..CVT..HTWC..ARL,GCC,TH
K313
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE | ||||
| 30400-12190 |
ZRE171..G;ZRE172..CVT;ZRE171..CVT..16G..PHL;ZRE171..CVT..(16E,16V) K313,AISIN AW:REF.ILLUST |
1 | ||
| 30400-12480 |
ZRE172..CVT;ZRE171..CVT..(CNG,HTWCF);ZRE171..CVT..HTWC..(PHL,SGP) K313,TOYOTA:REFER TO ILL. |
1 | ||
| 30400-12480 |
ZRE171,172..CVT..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) K313 |
1 | ||
| 30400L - PLUG , FILLER(CVT) | ||||
| 90341-12025 |
ZRE171,172..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
1 | ||
| 30400M - GASKET , FILLER PLUG(CVT) | ||||
| 90430-12221 |
ZRE171,172..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
1 | ||
| 30400N - PLUG, REFILL(CVT) | ||||
| 90341-18077 |
ZRE171,172..CVT;ZRE173..GCC,MA,PHL |
1 | ||
| 90341-18077 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
1 | ||
| 30400P - GASKET, REFILL PLUG(CVT) | ||||
| 90430-18008 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
1 | ||
| 90430-18008 |
ZRE171,172..CVT;ZRE173..GCC,MA,PHL |
1 | ||
| 33493C - COOLER, TRANSMISSION OIL | ||||
| 33493-52010 |
ZRE171,172..CVT AISIN AW:REF.ILLUST |
1 | ||
| 33493-52040 |
ZRE172..CVT;ZRE171..CVT..(CNG,HTWCF);ZRE171..CVT..HTWC..(PHL,SGP) TOYOTA:REFER TO ILL. |
1 | ||
| 33493-52040 |
ZRE171,172..CVT..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
1 | ||
| 33493D - RING, O (FOR TRANSMISSION OIL COOLER) | ||||
| 90301-20012 |
ZRE172..CVT..(PKN,VN) |
2 | ||
| 90301-20012 |
ZRE172..CVT;ZRE171..CVT..(CNG,HTWCF);ZRE171..CVT..HTWC..(PHL,SGP) |
2 | ||
| 35012B - HOSE SUB-ASSY, TRANSMISSION BREATHER | ||||
| 35012-12100 |
ZRE171..G;ZRE172..CVT;ZRE171..CVT..16G..PHL;ZRE171..CVT..(16E,16V) AISIN AW:REF.ILLUST |
1 | ||
| 35012-12110 |
ZRE171,172..CVT |
1 | ||
| 35012-12110 |
ZRE172..CVT;ZRE171..CVT..(CNG,HTWCF);ZRE171..CVT..HTWC..(PHL,SGP) TOYOTA:REFER TO ILL. |
1 | ||
| 35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT) | ||||
| 35106-12200 |
ZRE171,172..CVT |
1 | ||
| 35106-12210 |
ZRE171..G;ZRE172..CVT;ZRE171..CVT..16G..PHL;ZRE171..CVT..(16E,16V) AISIN AW:REF.ILLUST |
1 | ||
| 35106-12200 |
ZRE172..CVT;ZRE171..CVT..(CNG,HTWCF);ZRE171..CVT..HTWC..(PHL,SGP) TOYOTA:REFER TO ILL. |
1 | ||
| 35106P - BOLT(FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
ZRE171,172..CVT |
16 | ||
| 90119-06173 |
ZRE171,172..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
16 | ||
| 35125E - TUBE, OVERFLOW(CVT) | ||||
| 35125-12440 |
ZRE171,172..CVT |
1 | ||
| 35125-12480 |
ZRE171..G;ZRE172..CVT;ZRE171..CVT..16G..PHL;ZRE171..CVT..(16E,16V) AISIN AW:REF.ILLUST |
1 | ||
| 35125-12440 |
ZRE172..CVT;ZRE171..CVT..(CNG,HTWCF);ZRE171..CVT..HTWC..(PHL,SGP) TOYOTA:REFER TO ILL. |
1 | ||
| 35125F - PLUG, OVERFLOW(CVT) | ||||
| 90341-12034 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
1 | ||
| 90341-12034 |
ZRE171,172..CVT;ZRE173..GCC,MA,PHL |
1 | ||
| 35125G - GASKET, OVERFLOW PLUG(CVT) | ||||
| 90430-12008 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
1 | ||
| 90430-12008 |
ZRE171,172..CVT;ZRE173..GCC,MA,PHL |
1 | ||
| 35141E - RING, O(FOR BREATHER PLUG) | ||||
| 90301-06005 |
ZRE171,172..CVT..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
1 | ||
| 90301-06021 |
ZRE171,172..CVT;ZRE173..GCC,MA,PHL |
1 | ||
| 90301-06021 |
ZRE171,172..CVT..(CNG,HTWC,HTWCF) |
1 | ||
| 35141F - PLUG, BREATHER, NO.1(CVT) | ||||
| 90930-03216 |
ZRE171,172..CVT |
1 | ||
| 90930-03216 |
ZRE171..CVT..(CNG,HTWCF);ZRE171..CVT..HTWC..(PHL,SGP);ZRE172..CVT..(ARL,IDN,MA,PKN,TAIW,TH,VN) TOYOTA:REFER TO ILL. |
1 | ||
| 90930-03216 |
ZRE171..G;ZRE172..CVT;ZRE171..CVT..16G..PHL;ZRE171..CVT..(16E,16V) AISIN AW:REF.ILLUST |
1 | ||
| 35141J - PLUG, BREATHER, NO.2(CVT) | ||||
| 90930-03191 |
ZRE171..G;ZRE172..CVT;ZRE171..CVT..16G..PHL;ZRE171..CVT..(16E,16V) AISIN AW:REF.ILLUST |
1 | ||
| 90930-03191 |
ZRE171..CVT..(CNG,HTWCF);ZRE171..CVT..HTWC..(PHL,SGP);ZRE172..CVT..(ARL,IDN,MA,PKN,TAIW,TH,VN) TOYOTA:REFER TO ILL. |
1 | ||
| 90930-03191 |
ZRE171,172..CVT |
1 | ||
| 35150B - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-48010 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
1 | ||
| 35150-48010 |
ZRE171,172..CVT;ZRE173..GCC,MA,PHL |
1 | ||
| 35150C - RING, O (FOR TRANSMISSION CASE PLUG) | ||||
| 90301-09173 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
1 | ||
| 90301-09173 |
ZRE171,172..CVT;ZRE173..GCC,MA,PHL |
1 | ||
| 35168C - GASKET, TRANSAXLE OIL PAN(CVT) | ||||
| 35168-12091 |
ZRE171,172..CVT |
1 | ||
| 35330D - STRAINER ASSY, OIL | ||||
| 35330-12050 |
ZRE171..G;ZRE172..CVT;ZRE171..CVT..16G..PHL;ZRE171..CVT..(16E,16V) AISIN AW:REF.ILLUST |
1 | ||
| 35330-12050 |
ZRE172..CVT;ZRE171..CVT..(CNG,HTWCF);ZRE171..CVT..HTWC..(PHL,SGP) |
1 | ||
| 35330-12050 |
ZRE171,172..CVT |
1 | ||
| 35330E - RING, O (FOR OIL STRAINER) | ||||
| 90301-22014 |
ZRE172..CVT;ZRE171..CVT..(PHL,SGP);ZRE171..CVT..(CNG,HTWCF) |
1 | ||
| 90301-22019 |
ZRE171,172..CVT |
1 | ||
| 90301-22019 |
ZRE171,172..CVT..(CNG,HTWC,HTWCF) |
1 | ||
| 90301-22014 |
ZRE171..G;ZRE172..CVT;ZRE171..CVT..16G..PHL;ZRE171..CVT..(16E,16V) AISIN AW:REF.ILLUST |
1 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
3 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
3 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
ZRE17#..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH,VN) |
3 | ||
| 35572C - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-12160 |
ZRE171,172..CVT |
1 | ||
| 35572-12160 |
ZRE172..CVT;ZRE171..CVT..(CNG,HTWCF);ZRE171..CVT..HTWC..(PHL,SGP) TOYOTA:REFER TO ILL. |
1 | ||
| 35572-12170 |
ZRE171..G;ZRE172..CVT;ZRE171..CVT..16G..PHL;ZRE171..CVT..(16E,16V) AISIN AW:REF.ILLUST |
1 | ||
| Common parts | ||||
| 90464-00905 | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 91551-80820 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 3402 | ||||
| 8202 | ||||
| 8401 | ||||
| 8410 | ||||

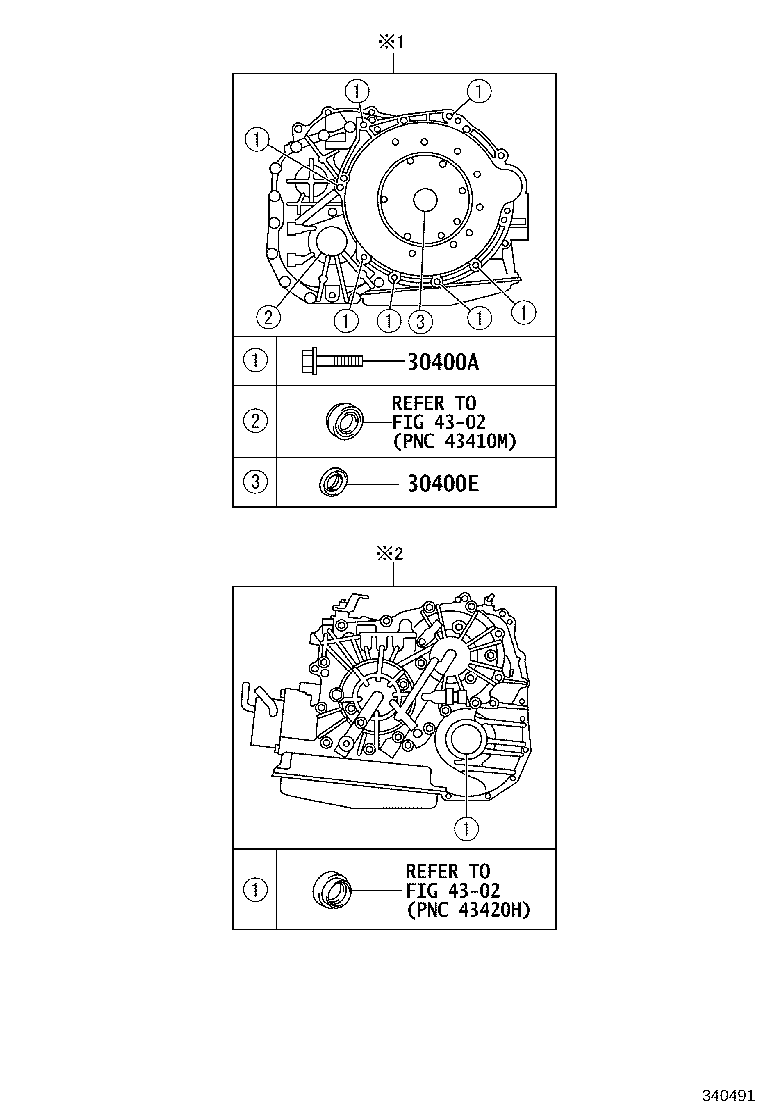

ILLUST NO. 2 OF 2(1310-1507)ZRE171,172..CVT ; (1507- )ZRE171,172..CVT..HTWC..ARL,GCC,TH
K313
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400A - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 91612-61045 |
ZRE171,172..CVT (J) |
7 | ||
| 90119-T0225 |
ZRE171,172..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,MA,PHL,PKN,SGP,TAIW,TH,VN) (L) |
7 | ||
| 91612-61045 |
ZRE171,172..CVT..(CNG,HTWC,HTWCF)..(ARL,IDN,MA,PHL,PKN,SGP,TAIW,TH,VN) (J) |
7 | ||
| 90119-T0225 |
ZRE171,172..CVT (L) |
7 | ||
| 30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP) | ||||
| 90311-45027 |
ZRE171..G;ZRE172..CVT;ZRE171..CVT..16G..PHL;ZRE171..CVT..(16E,16V) AISIN AW:REF.ILLUST |
1 | ||
| 90311-45027 |
ZRE171,172..CVT;ZRE173..GCC,MA,PHL |
1 | ||
| 90311-45027 |
ZRE171..HTWC..G;ZRE171..CVT..16G..PHL;ZRE171..CVT..(16E,16V);ZRE172..CVT..(IDN,IND,MA,PKN,TAIW,TH,VN) |
1 | ||
| Linked diagrams | ||||
| 4302 | ||||
