ZRE172L-GEXGKH (2014)
Toyota Corolla/Altis
(1310-1610)ZRE171,172..LHD..CVT ; (1610- )ZRE171,172..CVT..PHL,VN

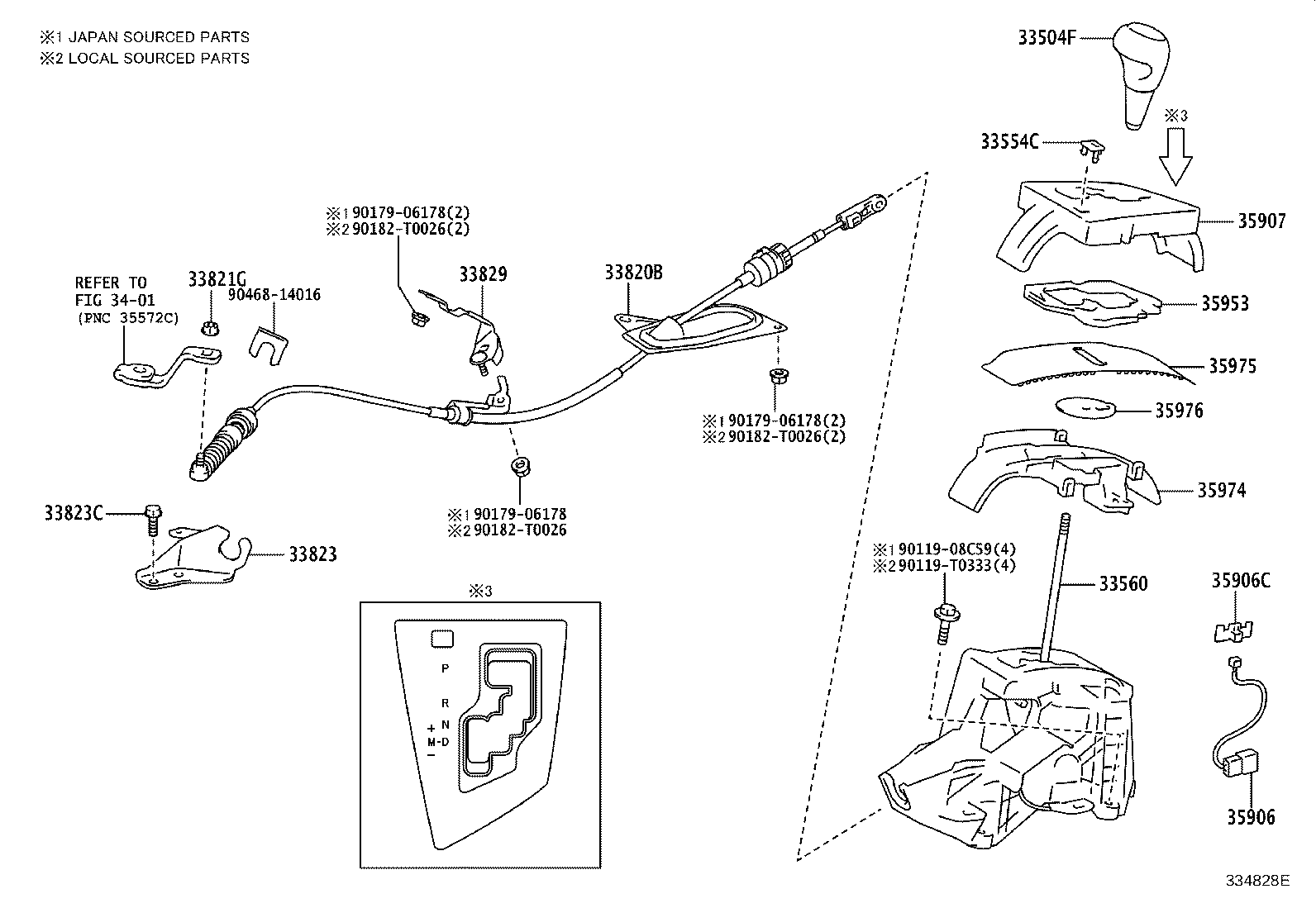

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-02470C0 |
ZRE172..G BLACK & MD.SILVER,TRIM0#,2# |
1 | ||
| 33504-02450C0 |
ZRE172..G BLACK & MD.SILVER,TRIM0#,2# |
1 | ||
| 33504-02440C0 |
ZRE172..G LOW GRADE PACKAGE,BLACK,TRIM0#,2# |
1 | ||
| 33504-02680C0 |
ZRE171,172..CVT..(PHL,SGP,VN) BLACK/SILVER,TRIM0#,2# |
1 | ||
| 33554C - COVER, SHIFT LOCK RELEASE BUTTON | ||||
| 33554-02120 |
ZRE172..LHD..CVT;ZRE171,173..LHD..(ATM,CVT)..(GCC,GEN,PHL) |
1 | ||
| 33554-02120 |
ZRE172,173..CVT..VN |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-02260 |
ZRE172,173..CVT..VN |
1 | ||
| 33560-02260 |
ZRE172..LHD..CVT;ZRE171,173..CVT..(GCC,PHL) |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-02790 |
ZRE171,172..CVT..(ARL,IDN,IND,MA,PHL,PKN,SGP,TH,VN) |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-08040 |
ZRE173..GCC,MA,PHL;NZE170,ZRE171,172..ATM,CVT |
1 | ||
| 90179-08040 |
ZRE172..CVT..VN |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-02220 |
ZRE171,172..CVT..(ARL,IDN,IND,MA,PHL,PKN,SGP,TH,VN) |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 90119-T0102 |
ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TH,VN);ZRE171,173..(ATM,CVT)..(GEN,MA,PHL,PKN,SGP,TH) (L) |
2 | ||
| 90119-08079 |
ZRE173..GCC,MA,PHL;ZRE171,172..(ATM,CVT)..(ARL,GEN,IDN,IND,MA,PHL,PKN,SGP,TH,VN) (J) |
2 | ||
| 33829 - SUPPORT, TRANSMISSION CONTROL CABLE | ||||
| 33829-02100 |
NZE170..5F;ZRE171,172..CVT..(ARL,IDN,IND,MA,PHL,PKN,SGP,TH,VN) |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-02170 |
ZRE172,173..CVT..VN |
1 | ||
| 35906-02170 |
ZRE172..CVT..VN;ZRE171,173..CVT..PHL |
1 | ||
| 35906C - CHIP, INDICATOR LAMP | ||||
| 35906-49005 |
ZRE172,173..CVT..VN |
1 | ||
| 35906-49005 |
ZRE172..CVT..VN;ZRE171,173..LHD..(ATM,CVT)..(GEN,PHL) |
1 | ||
| 35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT) | ||||
| 35907-02310 |
ZRE172,173..CVT..VN |
1 | ||
| 35907-02310 |
ZRE172..CVT..VN;ZRE171,173..CVT..PHL |
1 | ||
| 35953 - GUIDE, POSITION INDICATOR LIGHT | ||||
| 35953-02090 |
ZRE172,173..CVT..VN |
1 | ||
| 35953-02090 |
ZRE172..CVT..VN;ZRE171,173..LHD..(ATM,CVT)..(GEN,PHL) |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-02150 |
ZRE172..CVT..VN;ZRE171,173..LHD..(ATM,CVT)..(GEN,PHL) |
1 | ||
| 35974-02150 |
ZRE172,173..CVT..VN |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-02130 |
ZRE172..CVT..VN;ZRE171,173..LHD..(ATM,CVT)..(GEN,PHL) |
1 | ||
| 35975-02130 |
ZRE172,173..CVT..VN |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-02110 |
ZRE172,173..CVT..VN |
1 | ||
| 35976-02110 |
ZRE172..CVT..VN;ZRE171,173..LHD..(ATM,CVT)..(GEN,PHL) |
1 | ||
| Common parts | ||||
| 90119-08C59 | ||||
| 90119-T0333 | ||||
| 90179-06178 | ||||
| 90182-T0026 | ||||
| 90468-14016 | ||||
| Linked diagrams | ||||
| 3401 | ||||
