ZRE172L-GEXGKH (2014)
Toyota Corolla/Altis

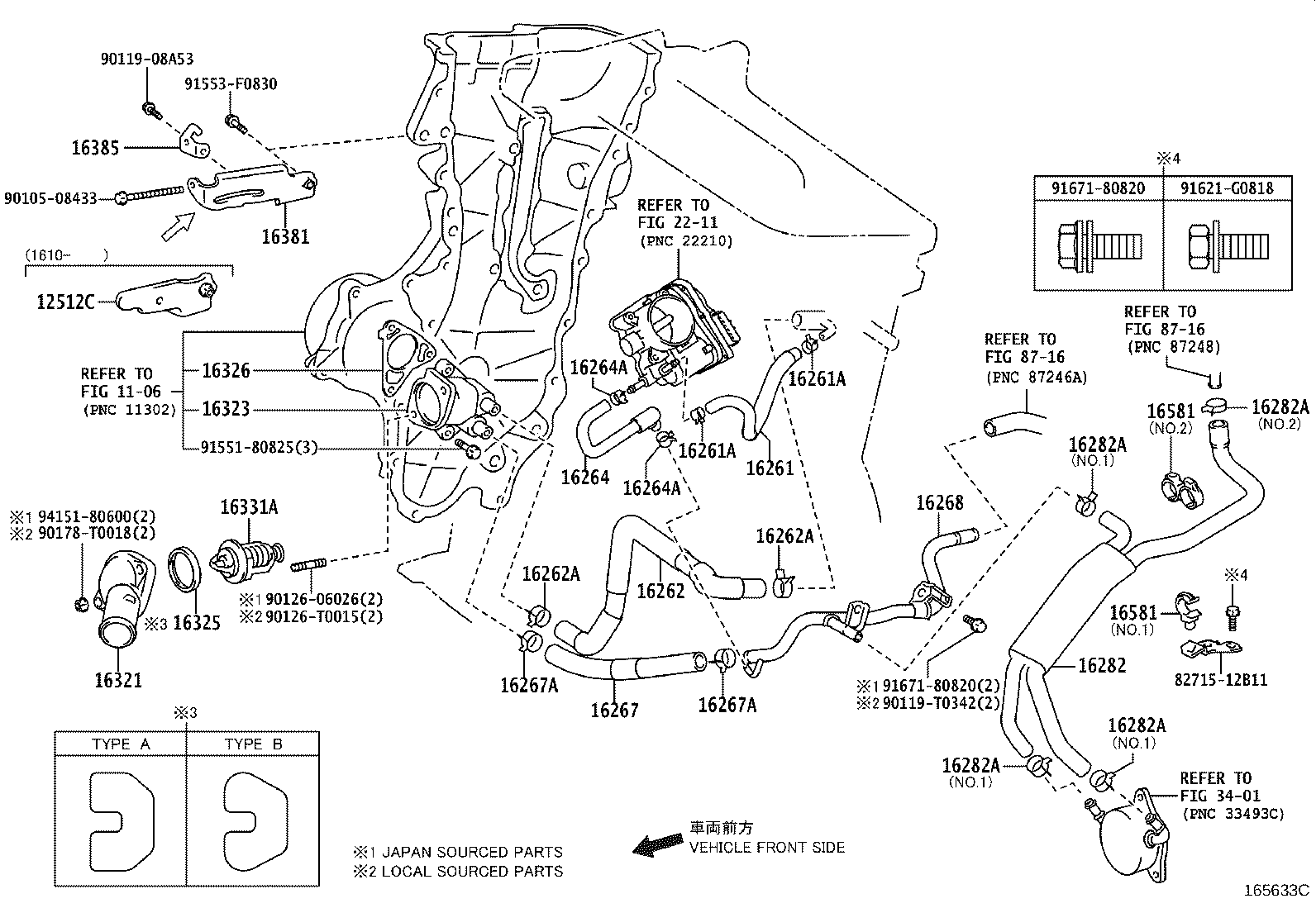

ILLUST NO. 2 OF 2(1310- )2ZRFE..CVT..ARL,IND,PKN,TAIW,VN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12512C - BRACKET, ALTERNATOR, NO.2 | ||||
| 12512-37010 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,TAIW,TH |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0T121 |
2ZRFE..ZRE172..CVT..VN;2ZR#,3ZRFE..ZRE172,173..ARL,GCC,IDN,IND,MA,PHL,TAIW,TH (L) |
1 | ||
| 16261-37052 |
2ZRFE,3ZRFE..ZRE172,173..VN (J) |
1 | ||
| 16261-0T121 |
2ZRFE,3ZRFE..ZRE172,173..VN (L) |
1 | ||
| 16261-37052 |
2ZRFE..ZRE172..CVT..VN;1ZRFAE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH (J) |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2ZRFE,3ZRFE..ZRE172,173..VN (J) |
2 | ||
| 96137-41501 |
2ZRFE,3ZRFE..ZRE172,173..VN |
2 | ||
| 90466-T0059 |
2ZRFE,3ZRFE..ZRE172,173..VN (L) |
2 | ||
| 96137-41501 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH (J) |
2 | ||
| 90466-T0059 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH (L) |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2ZRFE,3ZRFE..ZRE172,173..VN (J) |
2 | ||
| 96137-41501 |
2ZRFE,3ZRFE..ZRE172,173..VN |
2 | ||
| 90466-T0059 |
2ZRFE,3ZRFE..ZRE172,173..VN (L) |
2 | ||
| 96137-41501 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH (J) |
2 | ||
| 90466-T0059 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH (L) |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-37010 |
2ZRFE,3ZRFE..ZRE172,173..VN (J) |
1 | ||
| 16262-0T020 |
2ZRFE,3ZRFE..ZRE172,173..VN (L) |
1 | ||
| 16262-0T020 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH (L) |
1 | ||
| 16262-37010 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,TAIW,TH (J) |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,TAIW,TH (J) |
2 | ||
| 90466-T0020 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH (L) |
2 | ||
| 90466-T0020 |
2ZRFE,3ZRFE..ZRE172,173..VN (L) |
2 | ||
| 96136-42501 |
2ZRFE,3ZRFE..ZRE172,173..VN (J) |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 96136-42501 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,TAIW,TH (J) |
2 | ||
| 90466-T0020 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH (L) |
2 | ||
| 90466-T0020 |
2ZRFE,3ZRFE..ZRE172,173..VN (L) |
2 | ||
| 96136-42501 |
2ZRFE,3ZRFE..ZRE172,173..VN (J) |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-37042 |
2ZRFE,3ZRFE..ZRE172,173..VN (J) |
1 | ||
| 16264-0T081 |
2ZRFE,3ZRFE..ZRE172,173..VN (L) |
1 | ||
| 16264-0T081 |
2ZRFE..ZRE172..CVT..VN;2ZR#,3ZRFE..ZRE172,173..ARL,GCC,IDN,IND,MA,PHL,TAIW,TH (L) |
1 | ||
| 16264-37042 |
2ZRFE..ZRE172..CVT..VN;1ZRFAE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH (J) |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0059 |
2ZRFE,3ZRFE..ZRE172,173..VN (L) |
2 | ||
| 96137-41501 |
2ZRFE,3ZRFE..ZRE172,173..VN (J) |
2 | ||
| 96137-41501 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH (J) |
2 | ||
| 90466-T0059 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH (L) |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-T0059 |
2ZRFE,3ZRFE..ZRE172,173..VN (L) |
2 | ||
| 96137-41501 |
2ZRFE,3ZRFE..ZRE172,173..VN (J) |
2 | ||
| 96137-41501 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH (J) |
2 | ||
| 90466-T0059 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH (L) |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-37010 |
2ZRFE..ZRE172..VN (J) |
1 | ||
| 16267-37010 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#..ZRE171,172..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,TAIW,TH (J) |
1 | ||
| 16267-0T040 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#..ZRE171,172..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH (L) |
1 | ||
| 16267-0T040 |
2ZRFE..ZRE172..VN (L) |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-T0020 |
2ZRFE..ZRE172..VN (L) |
2 | ||
| 96136-42501 |
2ZRFE..ZRE172..VN (J) |
2 | ||
| 90466-T0020 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#..ZRE171,172..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH (L) |
2 | ||
| 96136-42501 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#..ZRE171,172..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,TAIW,TH (J) |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90466-T0020 |
2ZRFE..ZRE172..VN (L) |
2 | ||
| 96136-42501 |
2ZRFE..ZRE172..VN (J) |
2 | ||
| 90466-T0020 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#..ZRE171,172..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH (L) |
2 | ||
| 96136-42501 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#..ZRE171,172..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,TAIW,TH (J) |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-37021 |
2ZRFE..ZRE172..CVT..VN |
1 | ||
| 16268-0T130 |
2ZRFE..ZRE172..CVT..VN (L) |
1 | ||
| 16268-37021 |
2ZRFE..ZRE172..CVT..VN (J) |
1 | ||
| 16268-0T130 |
1ZRF,1ZRFE,2ZRFE..ZRE171,172..CVT..(ARL,GCC,IND,TAIW,TH,VN) (L) |
1 | ||
| 16268-37021 |
1ZRF,1ZRFE,2ZRFE..ZRE171,172..CVT..(ARL,GCC,IND,TAIW,TH,VN) (J) |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16260-37010 |
1ZRFAE,1ZRFE,2ZRFE..ZRE171,172..CVT..(ARL,GCC,IND,PKN,SGP,TAIW,VN) |
1 | ||
| 16260-37010 |
2ZRFE..ZRE172..CVT..VN |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96134-41900 |
2ZRFE..ZRE172..CVT..VN NO.1 |
3 | ||
| 90466-T0020 |
2ZRFE..ZRE172..CVT..VN (L),NO.2 |
1 | ||
| 96136-42501 |
2ZRFE..ZRE172..CVT..VN (J),NO.2 |
1 | ||
| 90466-T0020 |
1ZRFAE,1ZRFE,2ZRFE..ZRE171,172..CVT..(ARL,GCC,IND,PKN,SGP,TAIW,VN) (L),NO.2 |
1 | ||
| 96134-41900 |
1ZRF,1ZRFAE,1ZRFE,2ZRFE..ZRE171,172..CVT..(ARL,GCC,IND,PKN,SGP,TAIW,TH,VN) NO.1 |
3 | ||
| 96136-42501 |
1ZRFAE,1ZRFE,2ZRFE..ZRE171,172..CVT..(ARL,GCC,IND,PKN,SGP,TAIW,VN) (J),NO.2 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96134-41900 |
2ZRFE..ZRE172..CVT..VN NO.1 |
3 | ||
| 90466-T0020 |
2ZRFE..ZRE172..CVT..VN (L),NO.2 |
1 | ||
| 96136-42501 |
2ZRFE..ZRE172..CVT..VN (J),NO.2 |
1 | ||
| 90466-T0020 |
1ZRFAE,1ZRFE,2ZRFE..ZRE171,172..CVT..(ARL,GCC,IND,PKN,SGP,TAIW,VN) (L),NO.2 |
1 | ||
| 96134-41900 |
1ZRF,1ZRFAE,1ZRFE,2ZRFE..ZRE171,172..CVT..(ARL,GCC,IND,PKN,SGP,TAIW,TH,VN) NO.1 |
3 | ||
| 96136-42501 |
1ZRFAE,1ZRFE,2ZRFE..ZRE171,172..CVT..(ARL,GCC,IND,PKN,SGP,TAIW,VN) (J),NO.2 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96134-41900 |
2ZRFE..ZRE172..CVT..VN NO.1 |
3 | ||
| 90466-T0020 |
2ZRFE..ZRE172..CVT..VN (L),NO.2 |
1 | ||
| 96136-42501 |
2ZRFE..ZRE172..CVT..VN (J),NO.2 |
1 | ||
| 90466-T0020 |
1ZRFAE,1ZRFE,2ZRFE..ZRE171,172..CVT..(ARL,GCC,IND,PKN,SGP,TAIW,VN) (L),NO.2 |
1 | ||
| 96134-41900 |
1ZRF,1ZRFAE,1ZRFE,2ZRFE..ZRE171,172..CVT..(ARL,GCC,IND,PKN,SGP,TAIW,TH,VN) NO.1 |
3 | ||
| 96136-42501 |
1ZRFAE,1ZRFE,2ZRFE..ZRE171,172..CVT..(ARL,GCC,IND,PKN,SGP,TAIW,VN) (J),NO.2 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96134-41900 |
2ZRFE..ZRE172..CVT..VN NO.1 |
3 | ||
| 90466-T0020 |
2ZRFE..ZRE172..CVT..VN (L),NO.2 |
1 | ||
| 96136-42501 |
2ZRFE..ZRE172..CVT..VN (J),NO.2 |
1 | ||
| 90466-T0020 |
1ZRFAE,1ZRFE,2ZRFE..ZRE171,172..CVT..(ARL,GCC,IND,PKN,SGP,TAIW,VN) (L),NO.2 |
1 | ||
| 96134-41900 |
1ZRF,1ZRFAE,1ZRFE,2ZRFE..ZRE171,172..CVT..(ARL,GCC,IND,PKN,SGP,TAIW,TH,VN) NO.1 |
3 | ||
| 96136-42501 |
1ZRFAE,1ZRFE,2ZRFE..ZRE171,172..CVT..(ARL,GCC,IND,PKN,SGP,TAIW,VN) (J),NO.2 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-37010 |
2ZRFE,3ZRFE..ZRE172,173..VN |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-37021 |
2ZRFE..ZRE172..VN (J),*264 |
1 | ||
| 16323-0T060 |
2ZRFE..ZRE172..VN (L),*264 |
1 | ||
| 16323-37040 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH (J) |
1 | ||
| 16323-0T100 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH MADE IN THAILAND |
1 | ||
| 16323-0T090 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH MADE IN EUROPE |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-0H020 |
2ZRFE,3ZRFE..ZRE172,173..VN TYPE B:REFER ILLUST. |
1 | ||
| 16325-0H020 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH TYPE B:REFER ILLUST. |
1 | ||
| 16325-28010 |
2ZRFE..ZRE172..CVT..VN;1ZR#,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH TYPE A:REFER ILLUST. |
1 | ||
| 16325-28010 |
2ZRFE,3ZRFE..ZRE172,173..VN TYPE A:REFER ILLUST. |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-37010 |
2ZRFE,3ZRFE..ZRE172,173..VN |
1 | ||
| 16326-37030 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,TAIW,TH |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03144 |
2ZRFE,3ZRFE..ZRE172,173..VN *WAX 82-95,*264,KUZEH |
1 | ||
| 90916-03145 |
2ZRFE,3ZRFE..ZRE172,173..VN *WAX 82-95,*264,FUJISEIKO |
1 | ||
| 90916-03151 |
2ZRFE..ZRE172..CVT..VN;1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,TAIW,TH FUJISEIKO |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-37030 |
2ZRFE..ZRE172..VN |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-37010 |
2ZRFE,3ZRFE..ZRE172,173..VN |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-21030 |
1ZRFAE,3ZRFE..ZRE171,173..GCC,MA,PHL,SGP;1ZRFE,2ZRFE..ZRE171,172..CVT..(ARL,GCC,IND,PKN,TAIW,VN) NO.1 |
1 | ||
| 16581-21030 |
2ZRFE,3ZRFE..ZRE172,173..CVT..VN NO.1 |
1 | ||
| 16581-37110 |
2ZRFE..ZRE172..CVT..VN NO.2 |
1 | ||
| 16581-37110 |
1ZRFAE,1ZRFE,2ZRFE..ZRE171,172..CVT..(ARL,GCC,IND,PKN,SGP,TAIW,VN) NO.2 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-21030 |
1ZRFAE,3ZRFE..ZRE171,173..GCC,MA,PHL,SGP;1ZRFE,2ZRFE..ZRE171,172..CVT..(ARL,GCC,IND,PKN,TAIW,VN) NO.1 |
1 | ||
| 16581-21030 |
2ZRFE,3ZRFE..ZRE172,173..CVT..VN NO.1 |
1 | ||
| 16581-37110 |
2ZRFE..ZRE172..CVT..VN NO.2 |
1 | ||
| 16581-37110 |
1ZRFAE,1ZRFE,2ZRFE..ZRE171,172..CVT..(ARL,GCC,IND,PKN,SGP,TAIW,VN) NO.2 |
1 | ||
| Common parts | ||||
| 82715-12B11 | ||||
| 90105-08433 | ||||
| 90119-08A53 | ||||
| 90119-T0342 | ||||
| 90126-06026 | ||||
| 90126-T0015 | ||||
| 90178-T0018 | ||||
| 91551-80825 | ||||
| 91553-F0830 | ||||
| 91621-G0818 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 2211 | ||||
| 3401 | ||||
| 8716 | ||||
