ZRE172L-GEXGKH (2014)
Toyota Corolla/Altis
(1310- )1ZR#,2ZR#..CVT ; (1310- )2ZRFE..18E..VN

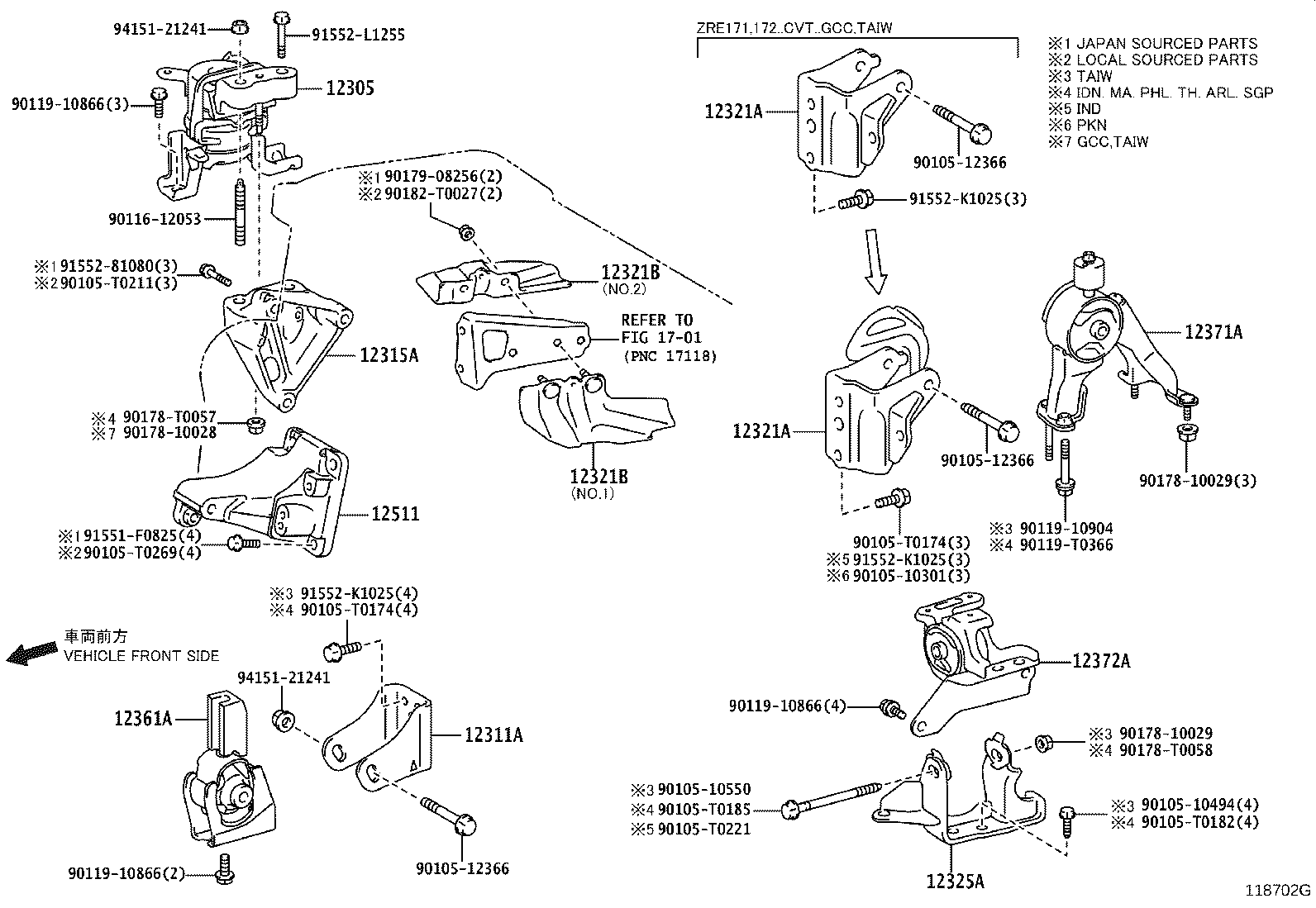

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-0T200 |
2ZRFE..ZRE172..CVT..VN;1ZR#,2ZR#..ZRE171,172..ARL,GEN,IDN,MA,PHL,PKN,SGP,TH |
1 | ||
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-0T200 |
1ZR#,2ZR#..ZRE171,172..CVT..(ARL,IDN,IND,MA,PHL,SGP,TH,VN) |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-37030 |
3ZRFE..ZRE173;1ZR#,2ZRFE..ZRE171,172..ARL,GEN,IDN,IND,MA,PHL,SGP,TH,VN |
1 | ||
| 12315-0T030 |
2ZRFE,3ZRFE..ZRE172,173..VN (L) |
1 | ||
| 12315-0T030 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH (L) |
1 | ||
| 12315-37030 |
2ZRFE,3ZRFE..ZRE172,173..VN (J) |
1 | ||
| 12315-37030 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH (J) |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-0T450 |
1ZR#,2ZR#..ZRE171,172..CVT..(ARL,IDN,IND,MA,PHL,SGP,TH,VN) |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-0T450 |
1ZR#,2ZR#..ZRE171,172..CVT..(ARL,IDN,IND,MA,PHL,SGP,TH,VN) |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43498-12051 |
2ZRFE..ZRE172..VN NO.2 |
1 | ||
| 43409-12060 |
2ZRFE..ZRE172..VN NO.1 |
1 | ||
| 43409-02031 |
2ZRFE..ZRE172..VN NO.1 |
1 | ||
| 43498-02061 |
2ZRFE..ZRE172..VN NO.2 |
1 | ||
| 43498-02061 |
2ZRFE..ZRE172..CVT..VN;1ZR#,2ZR#..ZRE171,172..ARL,GEN,IDN,MA,PHL,SGP,TH NO.2 |
1 | ||
| 43409-02031 |
2ZRFE..ZRE172..CVT..VN;1ZR#,2ZR#..ZRE171,172..ARL,GEN,IDN,MA,PHL,SGP,TH NO.1 |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43498-12051 |
2ZRFE..ZRE172..VN NO.2 |
1 | ||
| 43409-12060 |
2ZRFE..ZRE172..VN NO.1 |
1 | ||
| 43409-02031 |
2ZRFE..ZRE172..VN NO.1 |
1 | ||
| 43498-02061 |
2ZRFE..ZRE172..VN NO.2 |
1 | ||
| 43498-02061 |
2ZRFE..ZRE172..CVT..VN;1ZR#,2ZR#..ZRE171,172..ARL,GEN,IDN,MA,PHL,SGP,TH NO.2 |
1 | ||
| 43409-02031 |
2ZRFE..ZRE172..CVT..VN;1ZR#,2ZR#..ZRE171,172..ARL,GEN,IDN,MA,PHL,SGP,TH NO.1 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-0T250 |
1ZR#,2ZR#..ZRE171,172..CVT..(ARL,IDN,IND,MA,PHL,PKN,SGP,TH,VN) |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-0D220 |
1ZR#,2ZRFE..ZRE171,172..CVT..(IDN,IND,MA,PHL,PKN,SGP,TH,VN) |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-0T330 |
1ZR#,2ZR#..ZRE171,172..CVT..(ARL,IDN,IND,MA,PHL,PKN,SGP,TH,VN) |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0T211 |
1ZR#,2ZR#..ZRE171,172..CVT..(ARL,IDN,IND,MA,PHL,PKN,SGP,TH,VN) |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12501-0T020 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH (L) |
1 | ||
| 12511-0T050 |
2ZRFE,3ZRFE..ZRE172,173..VN (L) |
1 | ||
| 12511-37010 |
2ZRFE,3ZRFE..ZRE172,173..VN (J) |
1 | ||
| 12501-37020 |
2ZRFE..ZRE172..CVT..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,TAIW,TH (J) |
1 | ||
| Common parts | ||||
| 90105-10301 | ||||
| 90105-10494 | ||||
| 90105-10550 | ||||
| 90105-12366 | ||||
| 90105-T0174 | ||||
| 90105-T0182 | ||||
| 90105-T0185 | ||||
| 90105-T0211 | ||||
| 90105-T0221 | ||||
| 90105-T0269 | ||||
| 90116-12053 | ||||
| 90119-10866 | ||||
| 90119-10904 | ||||
| 90119-T0366 | ||||
| 90178-10028 | ||||
| 90178-10029 | ||||
| 90178-T0057 | ||||
| 90178-T0058 | ||||
| 90179-08256 | ||||
| 90182-T0027 | ||||
| 91551-F0825 | ||||
| 91552-81080 | ||||
| 91552-K1025 | ||||
| 91552-L1255 | ||||
| 94151-21241 | ||||
| Linked diagrams | ||||
| 1701 | ||||
