ZRE172L-GEXGKH (2014)

Toyota Corolla/Altis

Production Sep 2014 - Sep 2017

Engine 2ZRFE

Transmission CVT

Displacement 2500cc

Power 168 HP (125 kW)

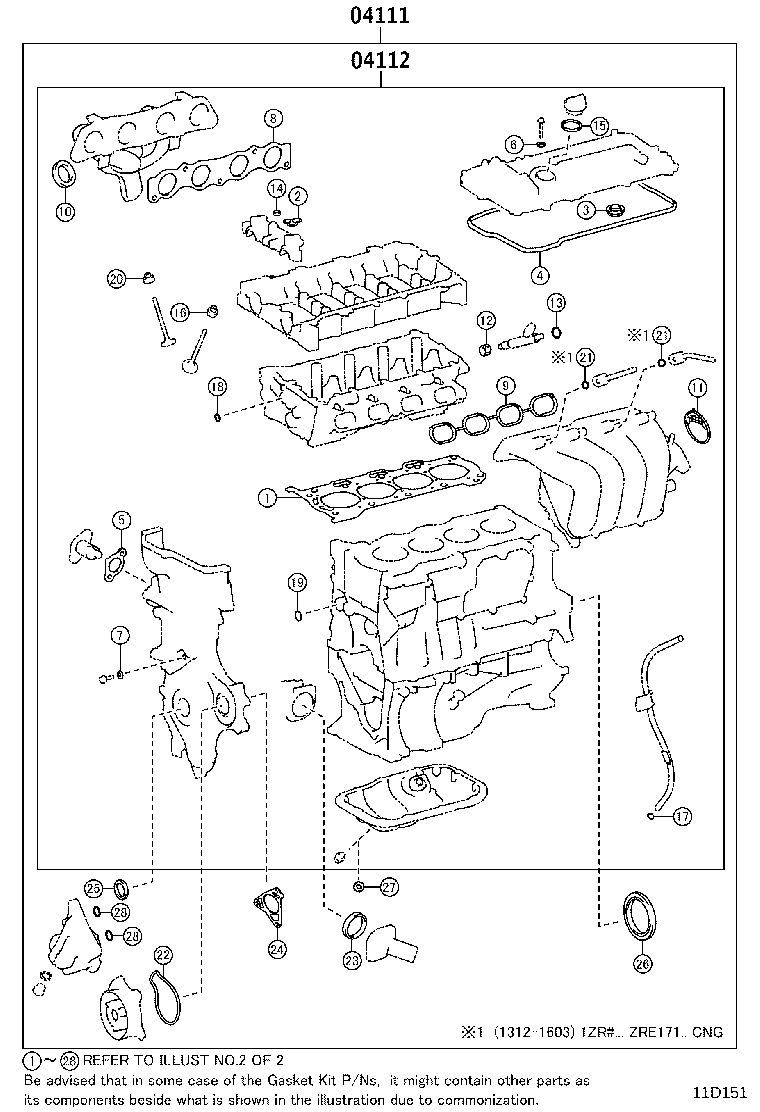

ILLUST NO. 1 OF 2(1310- )1ZRF,1ZRFBE,1ZRFE,2ZR#

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-37096	1ZRFE,2ZRFE..ZRE171,172..HTWC,HTWCF	10/2013 - 02/2015	1
04111-37097	2ZRFE..ZRE172..VN	02/2015 - 09/2017	1
04111-37510	1ZRFE,2ZRFE..ZRE171,172..CVT..(PHL,VN);1ZRFBE,2ZR#..ZRE171,172..ARL,IDN,IND,MA,PKN,TAIW,TH	10/2016 - 12/2999	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-37075	1ZRFE,2ZRFE,3ZRFE..ZRE17#..HTWC,HTWCF	10/2013 - 02/2015	1
04112-37076	2ZRFE..ZRE172..CVT..VN;1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,TAIW,TH	10/2016 - 12/2999	1
04112-37076	2ZRFE,3ZRFE..ZRE172,173..VN	02/2015 - 09/2017	1

ILLUST NO. 2 OF 2(1310- )1ZRF,1ZRFBE,1ZRFE,2ZR#

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-37096	1ZRFE,2ZRFE..ZRE171,172..HTWC,HTWCF	10/2013 - 02/2015	1
04111-37097	2ZRFE..ZRE172..VN	02/2015 - 09/2017	1
04111-37510	1ZRFE,2ZRFE..ZRE171,172..CVT..(PHL,VN);1ZRFBE,2ZR#..ZRE171,172..ARL,IDN,IND,MA,PKN,TAIW,TH	10/2016 - 12/2999	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-37075	1ZRFE,2ZRFE,3ZRFE..ZRE17#..HTWC,HTWCF	10/2013 - 02/2015	1
04112-37076	2ZRFE..ZRE172..CVT..VN;1ZRFBE,1ZRFE,2ZR#,3ZRFE..ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,TAIW,TH	10/2016 - 12/2999	1
04112-37076	2ZRFE,3ZRFE..ZRE172,173..VN	02/2015 - 09/2017	1
