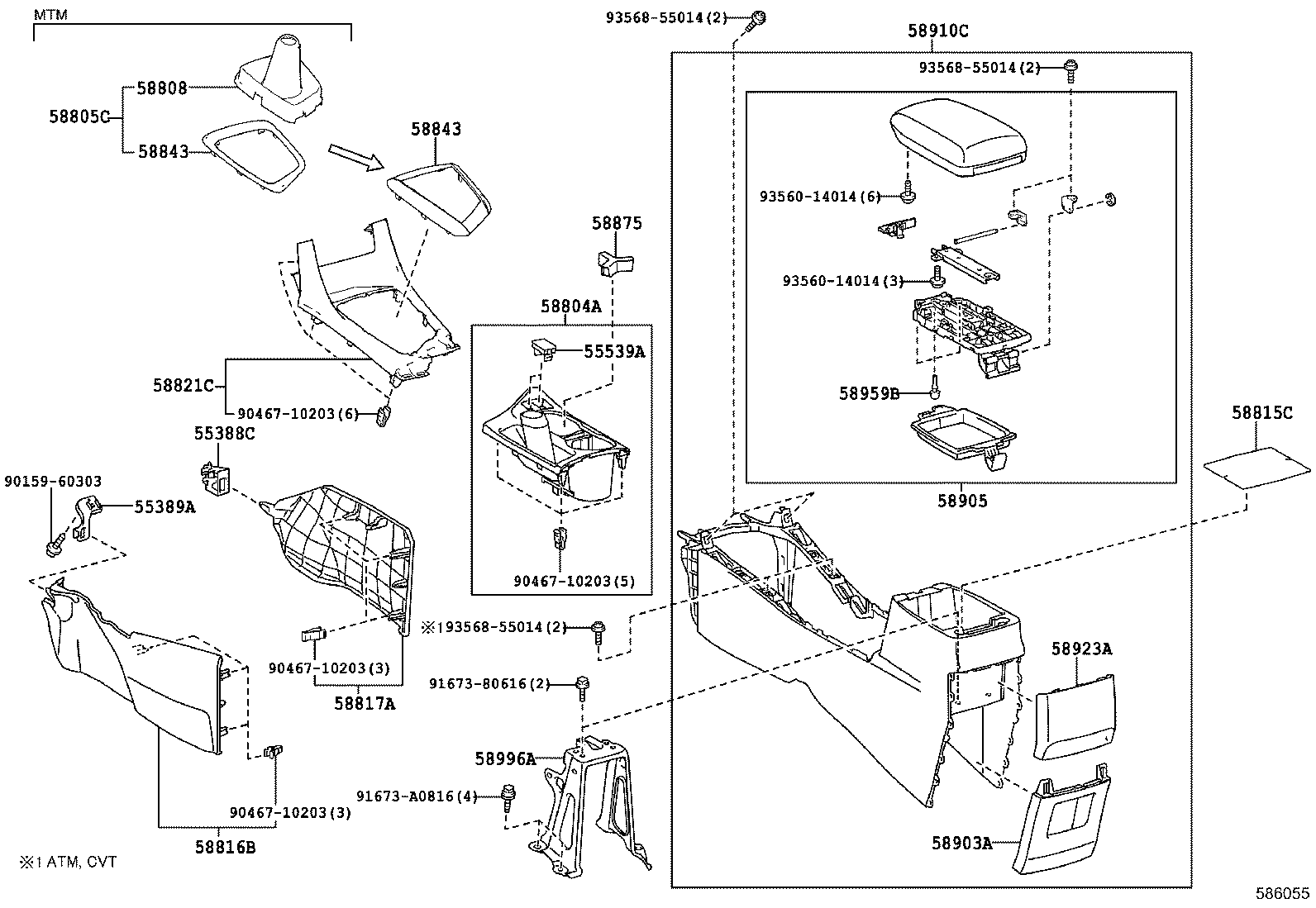

ZRE172L-GEXEKR (2016)
Toyota Corolla/Altis
(1610- )TAIW
W(SLIDE DOOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55388C - BRACKET, CONSOLE MOUNTING, RH | ||||
| 55388-02070 |
ZRE172..LHD..CVT;ZRE171,173..LHD..(GCC,GEN,PHL) |
1 | ||
| 55389A - BRACKET, CONSOLE MOUNTING, LH | ||||
| 55389-02050 |
ZRE172..LHD..CVT;ZRE171,173..LHD..(GCC,GEN,PHL) |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D090C0 |
ZRE172..G X PACKAGE(LOW),BLACK,TRIM2# |
1 | ||
| 55539-0D090C0 |
ZRE172..G X PACKAGE(REAR EMBLEM "X"),BLACK,TRIM2# |
1 | ||
| 55539-0D090C0 |
ZRE171..6F..16G;ZRE171..CVT..(PHL,SGP);ZRE172..(PKN,TAIW)..(E,G,N);ZRE172..CVT..(18E,18G)..(TH,VN) BLACK,TRIM0#,2# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-02630C0 |
ZRE172..TAIW..D BLACK,TRIM2# |
1 | ||
| 58804-02640C0 |
ZRE172..G UP GRADE PACKAGE,BLACK,TRIM0#,2# |
1 | ||
| 58804-02B00C0 |
ZRE172..G X PACKAGE(LOW),BLACK,TRIM2# |
1 | ||
| 58804-02B00C0 |
ZRE172..G X PACKAGE(REAR EMBLEM "X"),BLACK,TRIM2# |
1 | ||
| 58804-02630C0 |
ZRE172..CVT..VN;ZRE172..TAIW..(E,G) BLACK,TRIM0#,2# |
1 | ||
| 58815C - CARPET, CONSOLE BOX | ||||
| 58815-02330 |
ZRE17#..GCC,TAIW |
1 | ||
| 58816B - INSERT, CONSOLE BOX | ||||
| 58816-02230C0 |
ZRE172..CVT..VN;ZRE172..TAIW..(E,G);ZRE171..(16G,16V)..PHL BLACK,TRIM0#,2# |
1 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-02230C0 |
ZRE172..CVT..VN;ZRE172..TAIW..(E,G);ZRE171..(16G,16V)..PHL BLACK,TRIM0#,2# |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-02780C0 |
ZRE172..CVT..VN;ZRE172..TAIW..(E,G);ZRE171..(16G,16V)..PHL BLACK,TRIM0#,2# |
1 | ||
| 58843 - BEZEL, SHIFTING HOLE | ||||
| 58843-02B50 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 58843-02B50 |
ZRE172..G X PACKAGE(LOW) |
1 | ||
| 58843-02A70 |
ZRE172..LHD..CVT;ZRE171,173..LHD..(ATM,CVT)..(GCC,GEN,PHL) |
1 | ||
| 58843 - BEZEL, SHIFTING HOLE | ||||
| 58843-02B50 |
ZRE172..G;ZRE171,173..GLI..GCC X PACKAGE(REAR EMBLEM "X") |
1 | ||
| 58843-02B50 |
ZRE172..G X PACKAGE(LOW) |
1 | ||
| 58843-02A70 |
ZRE172..LHD..CVT;ZRE171,173..LHD..(ATM,CVT)..(GCC,GEN,PHL) |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-02030C0 |
ZRE172..TAIW..D BLACK,TRIM2# |
1 | ||
| 58903-02030C0 |
ZRE172..TAIW..(E,G) BLACK,TRIM0#,2# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-02A40A0 |
ZRE172..TAIW..(E,G) FLAXEN,TRIM0# |
1 | ||
| 58905-02A40C0 |
ZRE172..TAIW BLACK,TRIM2# |
1 | ||
| 58905-02B40C1 |
ZRE172..TAIW..D LOW GRADE PACKAGE,BLACK/BLACK,TRIM2# |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-02530C1 |
ZRE172..TAIW BLACK,TRIM2# |
1 | ||
| 58910-02530C0 |
ZRE172..TAIW..(E,G) FLAXEN,TRIM0# |
1 | ||
| 58910-02620C1 |
ZRE172..TAIW..D LOW GRADE PACKAGE,BLACK/BLACK,TRIM2# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-02210C0 |
ZRE172..TAIW..(E,G) BLACK,TRIM0#,2# |
1 | ||
| 58923-02210C0 |
ZRE172..TAIW..D BLACK,TRIM2# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 90541-03078 |
ZRE172..CVT..VN;NDE170,NZE170,ZRE17#..ARL,GCC,GEN,IDN,IND,MA,PHL,PKN,SGP,TAIW,TH |
3 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-02160 |
ZRE17#..GCC,TAIW |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90467-10203 | ||||
| 91673-80616 | ||||
| 91673-A0816 | ||||
| 93560-14014 | ||||
| 93568-55014 | ||||
