ZRE172L-GEFGKH (2014)

Toyota Corolla/Altis

Production Sep 2014 - Sep 2017
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1310-1609)GCC,TAIW ; (1310-1610)LHD..GEN,PHL ;(1310-1709)VN

Click highlighted areas on diagram

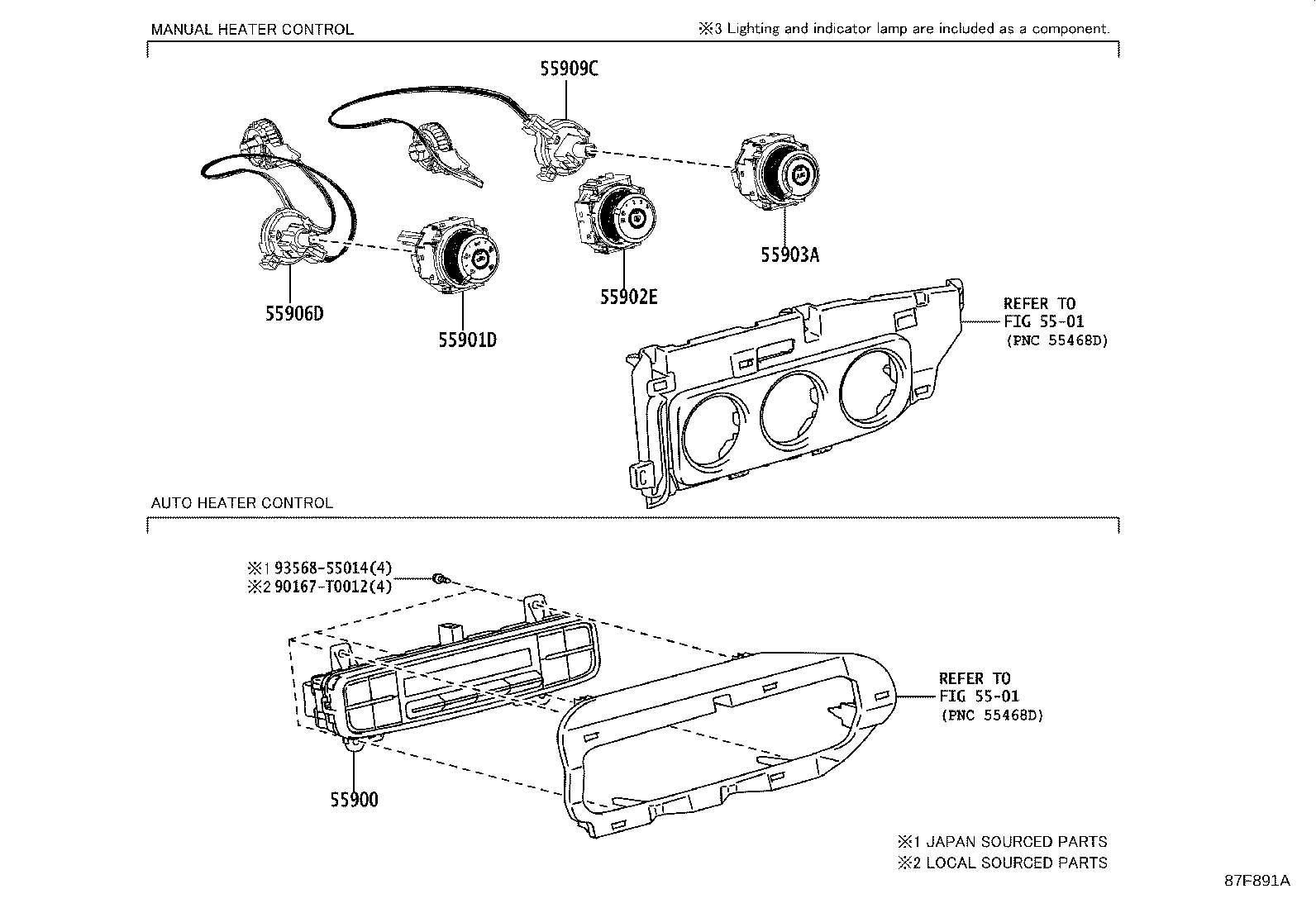

HEATER CONTROL PANEL

diagram 5501 55900 55901D 55902E 55903A 55906D 55909C
Part # Description Qty Price
55906D - CABLE SUB-ASSY, HEATER CONTROL, NO.2
55906-0K010

ZRE172..6F..VN

 1
55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-0K010

ZRE172..6F..VN

 1
Linked diagrams
5501

ILLUST NO. 1 OF 3(1610- )GCC,TAIW ; (1611- )LHD..GEN,PHL ;(1709- )VN

Click highlighted areas on diagram

HEATER CONTROL PANEL

diagram 5501 5501 55900 55901D 55902E 55903A 55906D 55909C 90167T0012 9356855014
Part # Description Qty Price
55906D - CABLE SUB-ASSY, HEATER CONTROL, NO.2
55906-0K010

ZRE172..6F..VN

 1
55909C - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-0K010

ZRE172..6F..VN

 1
Common parts
90167-T0012
93568-55014
Linked diagrams
5501
