ZRE171R-GEXEMT (2013)
Toyota Corolla/Altis

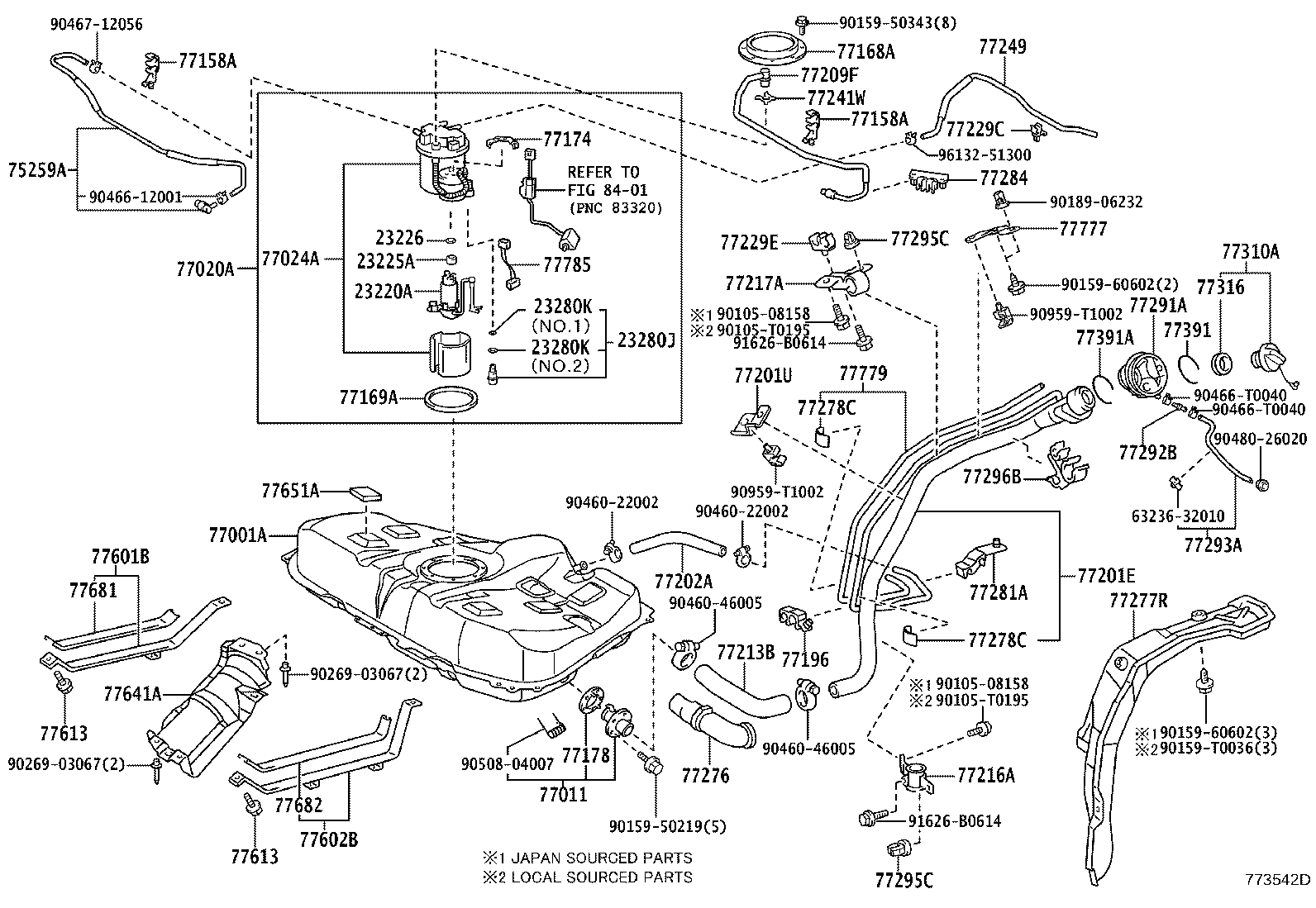

ILLUST NO. 1 OF 4(1312- )CNG
FUEL TANK(GASOLINE TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23220A - PUMP ASSY, FUEL W/FILTER | ||||
| 23220-0T210 |
1ZRF..ZRE171;1ZRFE..ZRE171..HTWC..TH |
1 | ||
| 23220-0T171 |
1ZRF,1ZRFBE,2ZRFE..ZRE171,172..TH |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-0V030 |
1ZRF..ZRE171;1ZRFE..ZRE171..HTWC..TH |
1 | ||
| 23225-0T020 |
1ZRF..ZRE171 |
1 | ||
| 23226 - RING, O(FOR FUEL PUMP) | ||||
| 90301-T0035 |
1ZRF..ZRE171;1ZRFE..ZRE171..HTWC..TH |
1 | ||
| 90301-08019 |
1ZRF..ZRE171 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
1ZRF..ZRE171;1ZRFE..ZRE171..HTWC..TH |
1 | ||
| 23280-37010 |
1ZRF..ZRE171 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
1ZRF..ZRE171;1ZRFE..ZRE171..HTWC..TH NO.1:REFER ILLUST. |
1 | ||
| 90301-15026 |
1ZRF..ZRE171 NO.2:REFER ILLUST. |
1 | ||
| 90301-15024 |
1ZRF..ZRE171;1ZRFE..ZRE171..HTWC..TH NO.2:REFER ILLUST. |
1 | ||
| 90301-04017 |
1ZRF..ZRE171 NO.1:REFER ILLUST. |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
1ZRF..ZRE171;1ZRFE..ZRE171..HTWC..TH NO.1:REFER ILLUST. |
1 | ||
| 90301-15026 |
1ZRF..ZRE171 NO.2:REFER ILLUST. |
1 | ||
| 90301-15024 |
1ZRF..ZRE171;1ZRFE..ZRE171..HTWC..TH NO.2:REFER ILLUST. |
1 | ||
| 90301-04017 |
1ZRF..ZRE171 NO.1:REFER ILLUST. |
1 | ||
| 75259A - HOSE, FUEL | ||||
| 77259-02060 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77001A - TANK SUB-ASSY, FUEL | ||||
| 77001-02420 |
ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77001-02660 |
ZRE171..CNG CNG PACKAGE |
1 | ||
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-02040 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-02680 |
ZRE171..CVT..TH;ZRE171..16J..HTWC |
1 | ||
| 77020-02610 |
ZRE171..CNG |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-02260 |
ZRE171..CVT..TH;ZRE171..16J..HTWC |
1 | ||
| 77024-02250 |
ZRE171..CNG |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-20040 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
2 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-20040 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
2 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52020 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-53010 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-02130 |
ZRE171..CVT..TH;ZRE171..16J..HTWC |
1 | ||
| 77174-02120 |
ZRE171..CNG |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-0A010 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 | ||||
| 77196-12060 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-02420 |
ZRE171..PHL,SGP;ZRE171..16J..HTWCF;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77201U - BRACKET(FOR FUEL TANK INLET PIPE) | ||||
| 77131-02150 |
ZRE171..16E..TH |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 95313-13034 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH L=340 |
1 | ||
| 95313-13034 |
ZRE171..CNG L=340,CNG PACKAGE |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-02200 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-32090 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-02160 |
ZRE171..PHL,SGP;ZRE171..16J..HTWCF;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-02130 |
ZRE171..PHL,SGP;ZRE171..16J..HTWCF;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-12110 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-12100 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-02030 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-12120 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-02220 |
ZRE171..16E..TH |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-02080 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
2 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-02080 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
2 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-12110 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 77289-52100 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-02180 |
ZRE171..16E..TH |
1 | ||
| 77292B - SHIELD, FUEL TANK DRAIN PLUG | ||||
| 77292-02020 |
ZRE171..16E..TH |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-02010 |
ZRE171..16E..TH |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-12070 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
2 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-12070 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
2 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-12070 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-12020 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-06110 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-02020 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-02090 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-02090 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10971 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10971 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
4 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-12160 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-02060 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171,172..CVT..(CNG,HTWCF) |
7 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77616-02050 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH (L) |
1 | ||
| 77616-68010 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH (J) |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-02060 |
NDE170,NZE170,ZRE17# (L) |
1 | ||
| 77681-12070 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH (J) |
1 | ||
| 77777 - BRACKET, FUEL TUBE CLAMP | ||||
| 77777-02010 |
ZRE171..16E..TH |
1 | ||
| 77779 - TUBE, CHARCOAL CANISTER OUTLET | ||||
| 77779-12080 |
ZRE171..PHL,SGP;ZRE171..16J..HTWCF;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-02110 |
ZRE171..CVT..TH;ZRE171..16J..HTWC |
1 | ||
| 77785-02100 |
ZRE171..CNG |
1 | ||
| Common parts | ||||
| 63236-32010 | ||||
| 90105-08158 | ||||
| 90105-T0195 | ||||
| 90159-50219 | ||||
| 90159-50343 | ||||
| 90159-60602 | ||||
| 90159-T0036 | ||||
| 90189-06232 | ||||
| 90269-03067 | ||||
| 90460-22002 | ||||
| 90460-46005 | ||||
| 90466-12001 | ||||
| 90466-T0040 | ||||
| 90467-12056 | ||||
| 90480-26020 | ||||
| 90508-04007 | ||||
| 90959-T1002 | ||||
| 91626-B0614 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 8401 | ||||

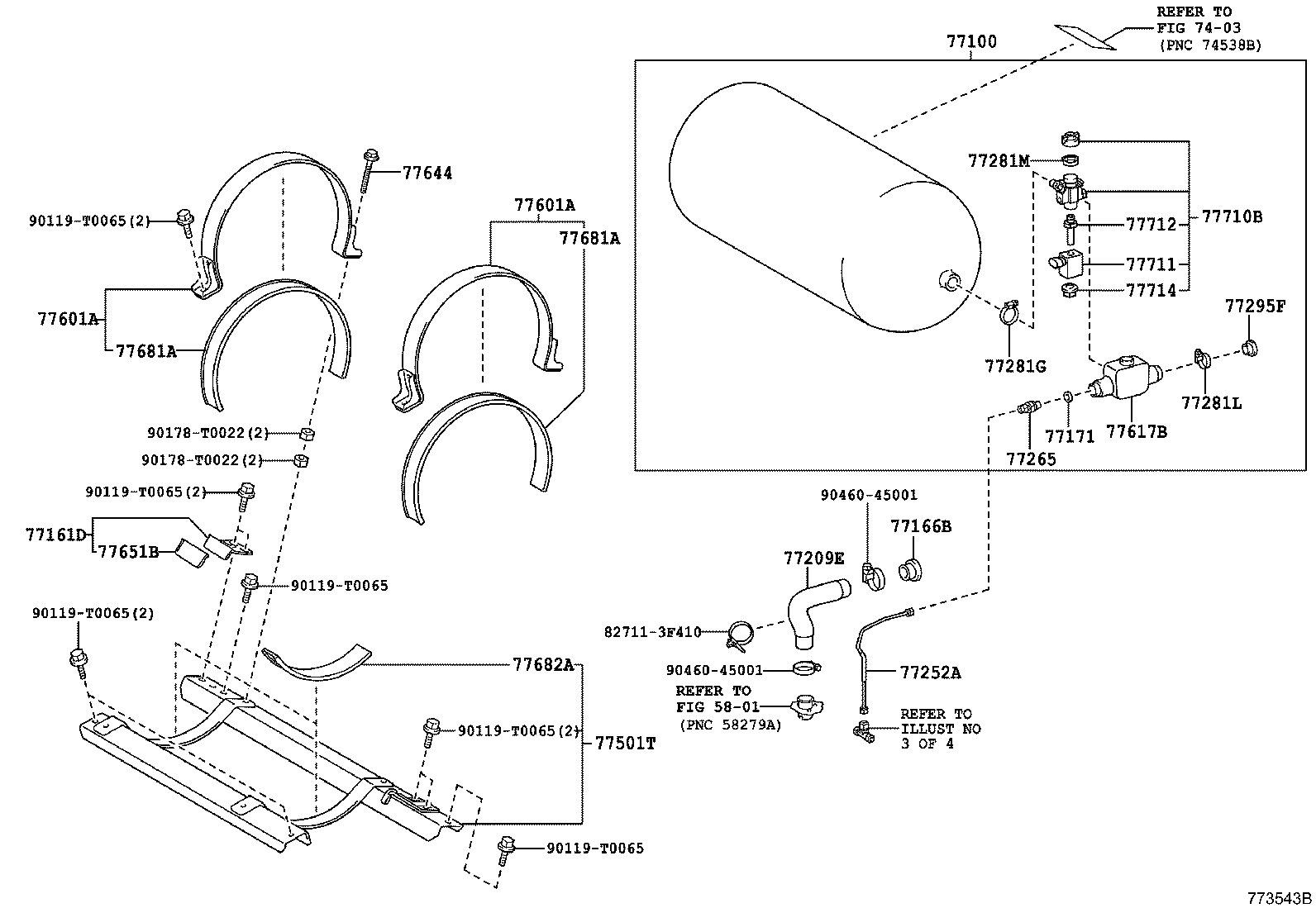

ILLUST NO. 2 OF 4(1312- )CNG
FUEL TANK(CNG TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77100 - TANK ASSY, FUEL | ||||
| 77001-02750 |
ZRE171..16E..TH |
1 | ||
| 77161D - PLATE, FUEL TANK PROTECTOR | ||||
| 77161-02020 |
ZRE171..16E..TH |
1 | ||
| 77166B - SUPPORT, FUEL TANK VENT TUBE, NO.1 | ||||
| 77166-02010 |
ZRE171..16E..TH |
1 | ||
| 77171 - GASKET, FUEL TANK TUBE, NO.1 | ||||
| 77171-02010 |
ZRE171..16E..TH |
1 | ||
| 77209E - HOSE SUB-ASSY, FUEL EMISSION | ||||
| 77209-12300 |
ZRE171..16E..TH |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-02020 |
ZRE171..16E..TH |
1 | ||
| 77265 - CONNECTOR, FUEL MAIN TUBE | ||||
| 77265-02020 |
ZRE171..16E..TH |
1 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-02110 |
ZRE171..16E..TH |
1 | ||
| 77281L - CLAMP, FUEL HOSE | ||||
| 77281-02130 |
ZRE171..16E..TH |
1 | ||
| 77281M - CLAMP, FUEL HOSE | ||||
| 77281-02120 |
ZRE171..16E..TH |
1 | ||
| 77295F - GROMMET, FUEL HOSE | ||||
| 77295-02010 |
ZRE171..16E..TH |
1 | ||
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-02030 |
ZRE171..16E..TH |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-02170 |
ZRE171..16E..TH |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-02170 |
ZRE171..16E..TH |
2 | ||
| 77617B - COVER, FUEL TANK VALVE, REAR | ||||
| 77617-02070 |
ZRE171..16E..TH |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-02010 |
ZRE171..16E..TH |
2 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-02120 |
ZRE171..16E..TH |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-02090 |
ZRE171..16E..TH |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-02090 |
ZRE171..16E..TH |
2 | ||
| 77682A - SEAT, FUEL TANK BAND, NO.2 | ||||
| 77682-02050 |
ZRE171..16E..TH |
2 | ||
| 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN | ||||
| 77710-02011 |
ZRE171..16E..TH |
1 | ||
| 77711 - BODY, FUEL CHANGE COCK | ||||
| 77711-02010 |
ZRE171..16E..TH |
1 | ||
| 77712 - VALVE, FUEL CHANGE COCK | ||||
| 77712-02010 |
ZRE171..16E..TH |
1 | ||
| 77714 - CAP, FUEL CHANGE COCK | ||||
| 77714-02010 |
ZRE171..16E..TH |
1 | ||
| Common parts | ||||
| 82711-3F410 | ||||
| 90119-T0065 | ||||
| 90178-T0022 | ||||
| 90460-45001 | ||||
| Linked diagrams | ||||
| 5801 | ||||
| 7403 | ||||

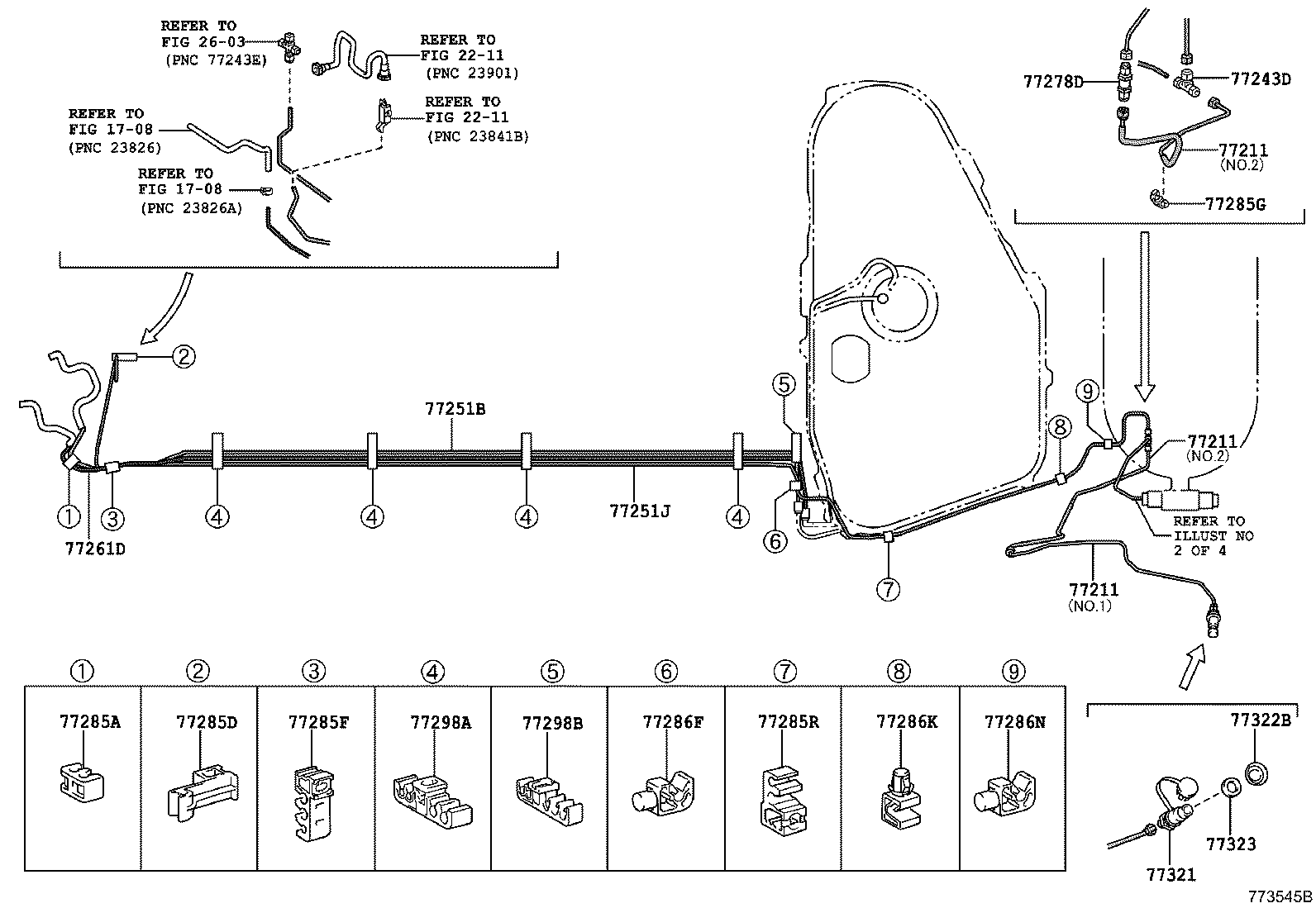

ILLUST NO. 3 OF 4(1312- )CNG
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77211 - PIPE, FUEL TANK INLET | ||||
| 77211-02220 |
ZRE171..16E..TH NO.2:REFER ILLUST. |
1 | ||
| 77211-02230 |
ZRE171..16E..TH NO.1:REFER ILLUST. |
1 | ||
| 77211 - PIPE, FUEL TANK INLET | ||||
| 77211-02220 |
ZRE171..16E..TH NO.2:REFER ILLUST. |
1 | ||
| 77211-02230 |
ZRE171..16E..TH NO.1:REFER ILLUST. |
1 | ||
| 77211 - PIPE, FUEL TANK INLET | ||||
| 77211-02220 |
ZRE171..16E..TH NO.2:REFER ILLUST. |
1 | ||
| 77211-02230 |
ZRE171..16E..TH NO.1:REFER ILLUST. |
1 | ||
| 77243D - JOINT, FUEL TUBE, NO.1 | ||||
| 77243-02040 |
ZRE171..16E..TH |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-02720 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE172..ARL,IDN,MA,TH;ZRE171..CVT..(CNG,HTWCF) |
1 | ||
| 77251J - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-02700 |
ZRE171..16E..TH |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-02520 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE172..ARL,IDN,MA,TH;ZRE171..CVT..(CNG,HTWCF) |
1 | ||
| 77278D - VALVE, CHECK W/BRACKET | ||||
| 77278-02020 |
ZRE171..16E..TH |
1 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-42110 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-02141 |
ZRE171..16E..TH |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-02160 |
ZRE171..16E..TH |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30140 |
ZRE171..16E..TH |
1 | ||
| 77285R - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-02151 |
ZRE171..16E..TH |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-02100 |
ZRE171..16E..TH |
1 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-02020 |
ZRE171..16E..TH |
1 | ||
| 77286N - CLAMP, FUEL TUBE, NO.7 | ||||
| 90959-T1002 |
ZRE171..16E..TH |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-02131 |
ZRE171..16E..TH |
4 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-52070 |
ZRE171..16E..TH |
1 | ||
| 77321 - COUPLER, FUEL INLET | ||||
| 77321-02020 |
ZRE171..16E..TH |
1 | ||
| 77322B - WASHER, FUEL INLET COUPLER, NO.1 | ||||
| 77322-02030 |
ZRE171..16E..TH |
1 | ||
| 77323 - WASHER, FUEL INLET COUPLER, NO.2 | ||||
| 77323-02020 |
ZRE171..16E..TH |
1 | ||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
| 2603 | ||||

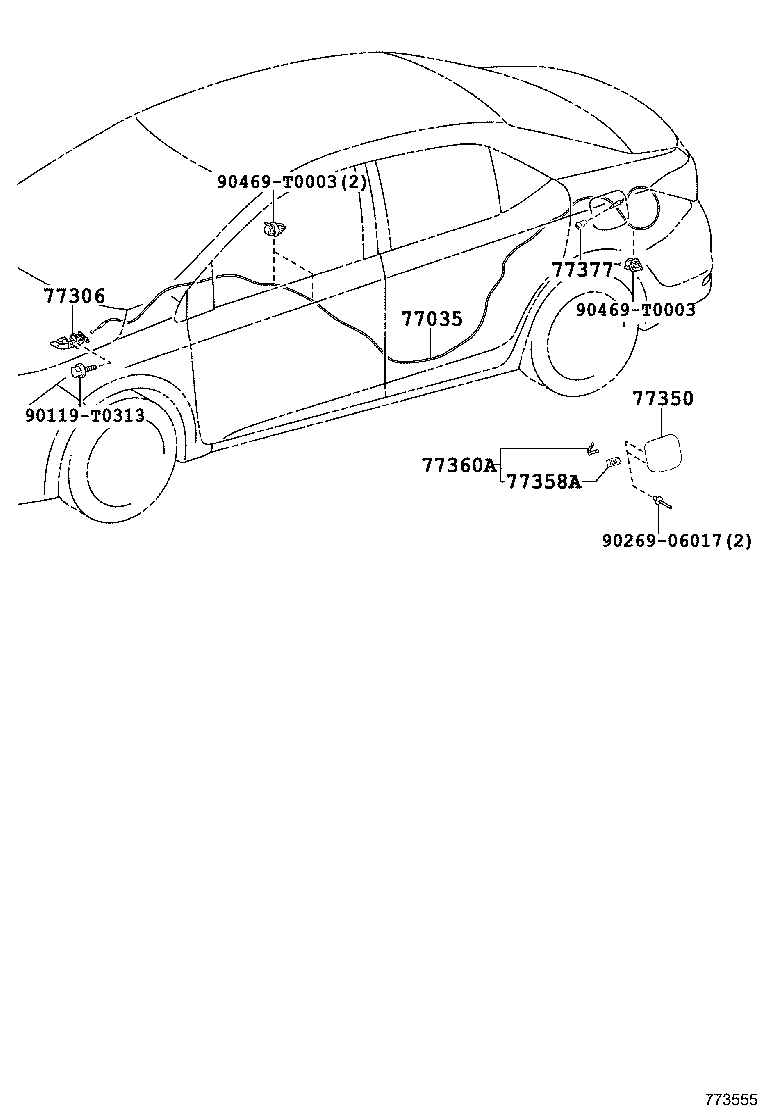

ILLUST NO. 4 OF 4(1312- )CNG
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-02430 |
ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 64606-02040 |
ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-02160 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77358A - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-30060 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77360A - SPRING ASSY, FUEL FILLER OPENING LID | ||||
| 77360-30080 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-06020 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| Common parts | ||||
| 90119-T0313 | ||||
| 90269-06017 | ||||
| 90469-T0003 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
