ZRE171R-GEPNK (2013)

Toyota Corolla/Altis

Production Dec 2013 - Oct 2016
Engine 1ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(1312- )RHD

Click highlighted areas on diagram

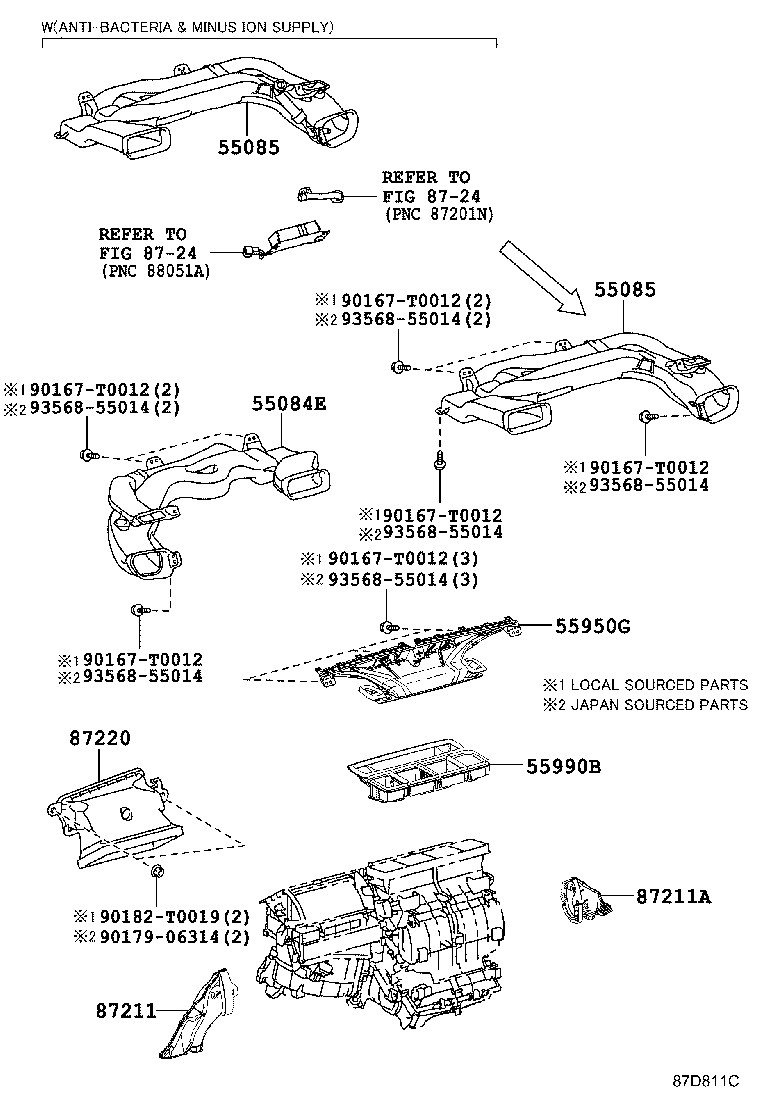

AIR DUCT

diagram 55084E 55085 55085 55950G 55990B 87211 87211A 87220 8724 8724 90167T0012 90167T0012 90167T0012 90167T0012 90167T0012 90167T0012 9017906314 90182T0019 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55086-02280

ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55084-02280

ZRE171..16J..HTWCF;ZRE17#..RHD..(ARL,GEN,IDN,MA,SGP);ZRE171,172..(16E,16G,18E)..(CNG,HTWCF)

 1
55084-02270

ZRE171..G

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55084-02280

ZRE171..16J..HTWCF;ZRE17#..RHD..(ARL,GEN,IDN,MA,SGP);ZRE171,172..(16E,16G,18E)..(CNG,HTWCF)

 1
55084-02270

ZRE171..G

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-02310

ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-02190

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
87211 - DUCT, AIR, NO.1
87211-02350

ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH

 1
87211A - DUCT, AIR, NO.2
87211-02341

ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH

 1
87220 - DUCT ASSY, AIR
87220-02210

ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF)

 1
Common parts
90167-T0012
90179-06314
90182-T0019
93568-55014
Linked diagrams
8724

ILLUST NO. 1 OF 3(1312-1610)RHD..ARL,GEN,IDN,MA,SGP,TH ; (1405-1703)IND ; (1407-1707)PKN

Click highlighted areas on diagram

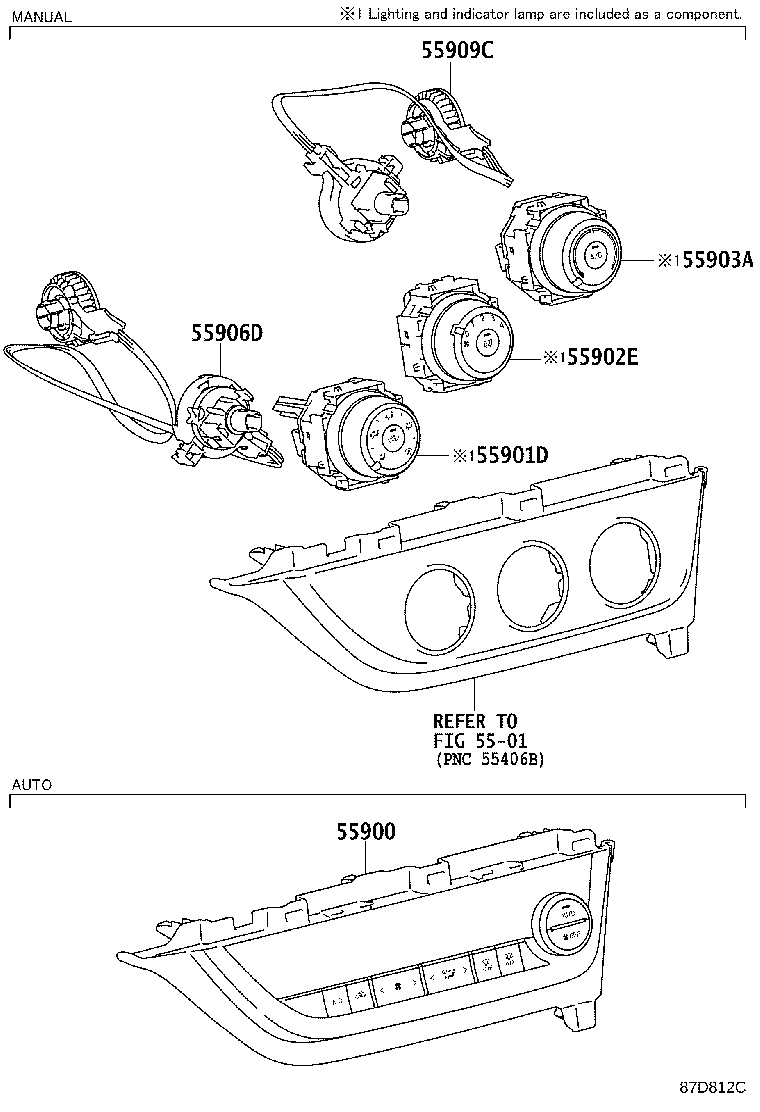

HEATER CONTROL PANEL

diagram 5501 55900 55901D 55902E 55903A 55906D 55909C
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-02550

ZRE172..ARL..E;ZRE171..(GLI,GXLI)..GEN

 1
Linked diagrams
5501
