ZRE171R-GEPNK (2013)

Toyota Corolla/Altis

Production Dec 2013 - Oct 2016
Engine 1ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312-1610)GCC,TAIW ; (1312-1611)ARL,GEN,IDN,MA,PHL,TH ; (1312- )ZRE172..6F..PKN

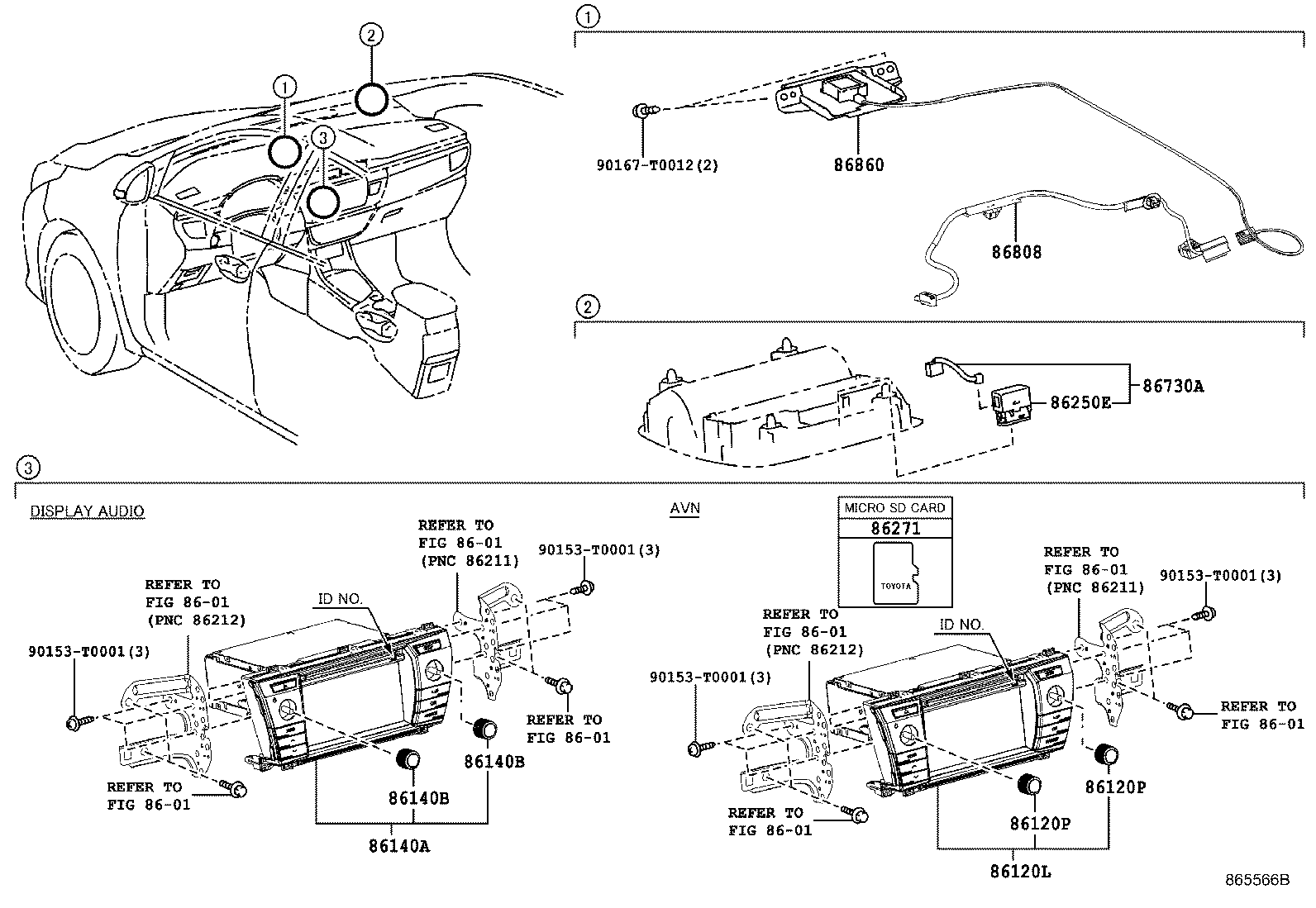

Click highlighted areas on diagram

diagram 8601 8601 8601 8601 8601 8601 8601 8601 86120L 86120P 86120P 86140A 86140B 86140B 86250E 86271 86730A 86808 86860 90153T0001 90153T0001 90153T0001 90153T0001 90167T0012
Part # Description Qty Price
86250E - MICROPHONE ASSY, AMPLIFIER
86250-52020

ZRE172,173..ARL,PHL;ZRE171..(16V,GLI,GXLI)..(GEN,PHL)

 1
86250-52020

ZRE172,173..ARL,PHL;ZRE171..(16V,GLI,GXLI)..(GEN,PHL)

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-47030

ZRE172..ARL;ZRE171..(GLI,GXLI)..GEN

 1
86730-47030

ZRE172..ARL;ZRE171..(GLI,GXLI)..GEN

 1
Common parts
90153-T0001
90167-T0012
Linked diagrams
8601
