ZRE171R-GEPNK (2013)
Toyota Corolla/Altis
ILLUST NO. 6 OF 9(1312- )RHD

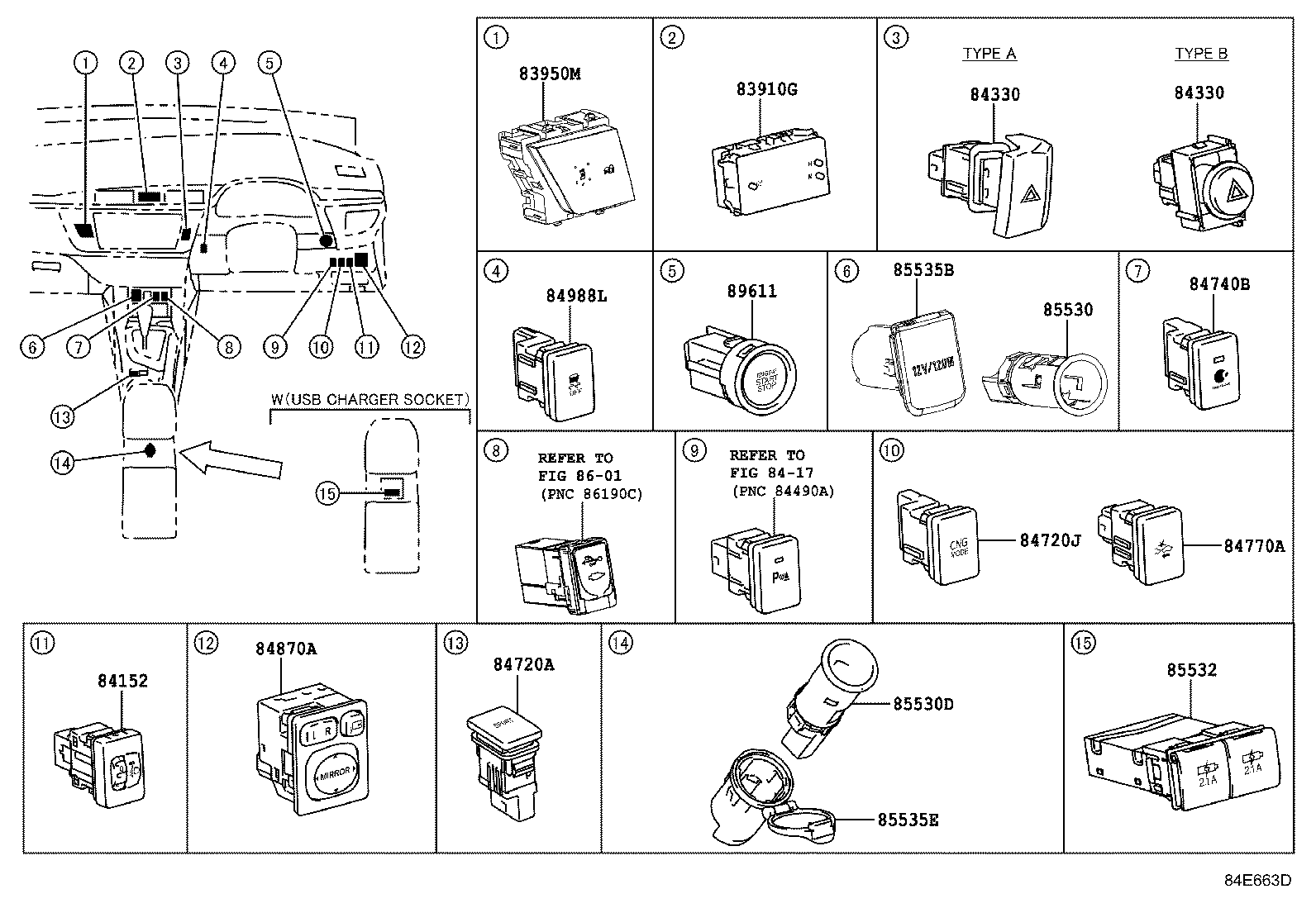

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-02170 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-02320 |
ZRE171..RHD..4FC..GEN JAMAICA SPEC |
1 | ||
| 83950-02320 |
ZRE171..RHD..4FC..GEN CARIBBEAN NATIONS SPEC |
1 | ||
| 83950-02270 |
ZRE172..ARL..D;ZRE172..18G..IDN;ZRE171..RHD..(GEN,SGP);ZRE171,172..CVT..(CNG,HTWCF) |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-02090 |
ZRE172..TAIW..E;ZRE172..(ARL,TAIW)..(D,G,N);ZRE17#..RHD..(18E,20G,GLI,GXLI)..HTWC |
1 | ||
| 84152-02090 |
ZRE171..G LOW GRADE PACKAGE |
1 | ||
| 84152-02091 |
ZRE172..ARL..(D,N);ZRE17#..RHD..(18E,20G,GLI,GXLI)..HTWC |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02241 |
ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH TYPE A:REFER ILLUST. |
1 | ||
| 84332-02240 |
NZE170,ZRE17#..RHD..(ARL,GEN,IDN,MA,PKN,SGP,TH) TYPE A:REFER ILLUST. |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-02241 |
ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH TYPE A:REFER ILLUST. |
1 | ||
| 84332-02240 |
NZE170,ZRE17#..RHD..(ARL,GEN,IDN,MA,PKN,SGP,TH) TYPE A:REFER ILLUST. |
1 | ||
| 84740B - SWITCH ASSY, AIR PURIFIER | ||||
| 84741-02010 |
ZRE171..G;ZRE172..(18GS,18V)..TH ANTI-BACTERIA & MINUS ION SUPPLY-WITH |
1 | ||
| 84741-02011 |
ZRE171..G ANTI-BACTERIA & MINUS ION SUPPLY-WITH |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-0D030 |
ZRE171,172..(16E,16G,18E)..(CNG,HTWCF);ZRE171,173..(20G,20V,GLI)..(GEN,MA,PHL);ZRE171,172..RHD..(CVT,MTM)..(ARL,GEN,IDN,MA,SGP) |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-02050 |
ZRE172..ARL;ZRE17#..(18V,20V,GLI,GXLI)..(GEN,MA,TH,VN) |
1 | ||
| 84988-02051 |
ZRE172..ARL;ZRE171,173..RHD..(20V,GLI,GXLI);ZRE171,172..(16G,16J,18V)..HTWCF |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-02120 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42010 |
ZRE171..G LOW GRADE PACKAGE |
1 | ||
| 89611-42011 |
ZRE171..G LOW GRADE PACKAGE |
1 | ||
| 89611-42012 |
ZRE171..G LOW GRADE PACKAGE |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
| 8601 | ||||
ILLUST NO. 5 OF 9(1312- )RHD

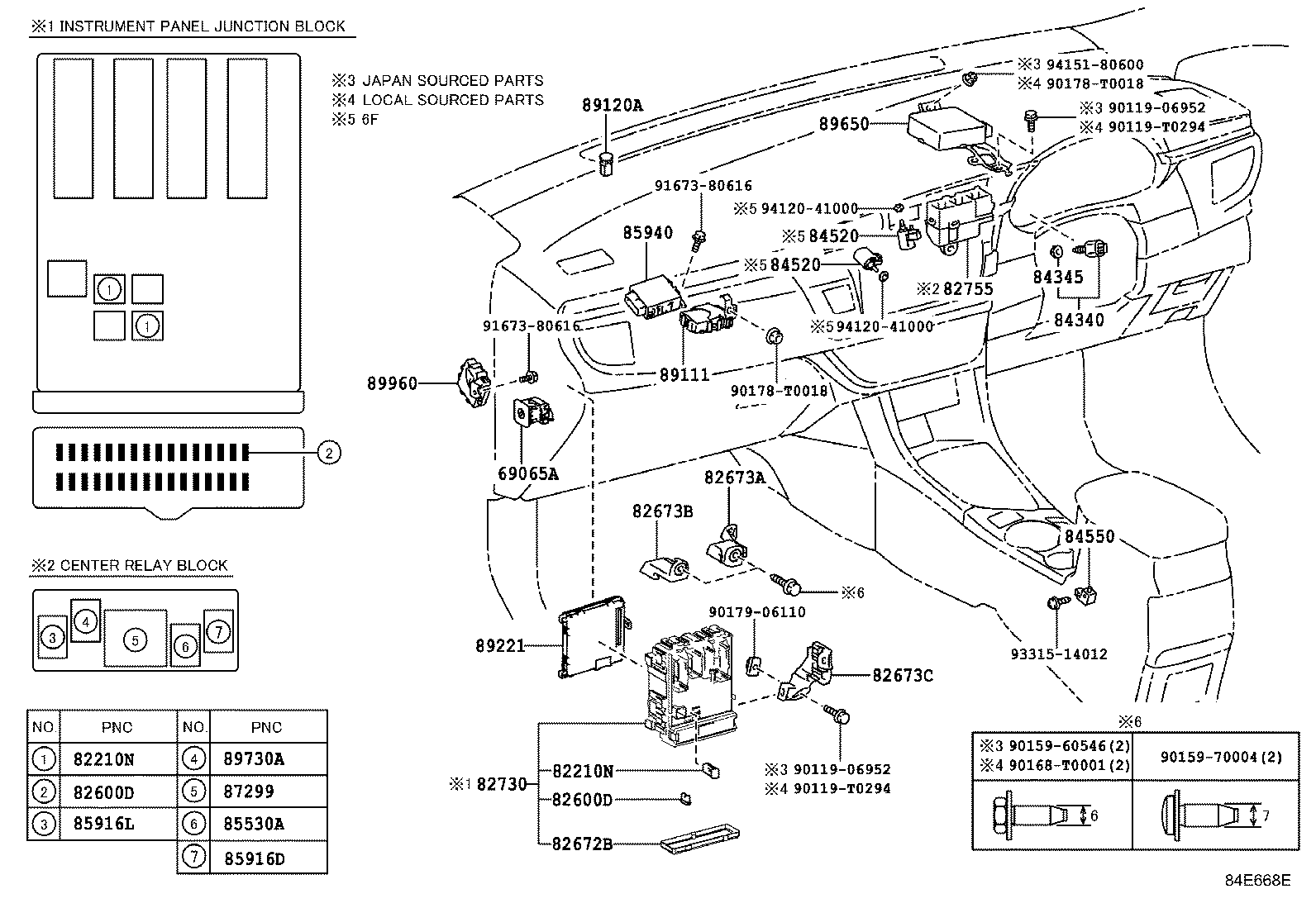

COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-12460 |
ZRE171..RHD..4FC..GEN JAMAICA SPEC |
1 | ||
| 69065-12460 |
ZRE171..RHD..4FC..GEN CARIBBEAN NATIONS SPEC |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH 25A,MINI FUSE |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH 25A,MINI FUSE |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-12530 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-12310 |
ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-12320 |
ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-12330 |
ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-12L51 |
ZRE17#..ARL,GEN,IDN,MA,PHL,SGP,TH |
1 | ||
| 82730-12L50 |
ZRE171..16J..HTWCF;ZRE171..6F..XLI..GCC;ZRE171..GEN,PHL,PKN,SGP;ZRE171..CVT..(CNG,HTWCF);NDE170,NZE170,ZRE172,173..ARL,IDN,IND,MA,PHL,PKN,TAIW,TH,VN |
1 | ||
| 82755 - BLOCK, CENTER RELAY | ||||
| 82755-12030 |
ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-09150 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-0K010 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-02030 |
ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-T2001 |
ZRE172..ARL..(E,N);ZRE172..(18GS,18V)..TH;ZRE17#..(16G,16V,18E,18G,18V,20G,20V,GLI,GXLI)..(GEN,IDN,MA,PHL) |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-12180 |
ZRE172..18V;ZRE171,172..RHD..(E,G);ZRE171,173..LHD..(ATM,CVT)..(16V,20V,XLI)..(GEN,PHL) |
1 | ||
| 85940-12180 |
ZRE171..G LOW GRADE PACKAGE |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-12010 |
ZRE172..ARL..E;ZRE171..LHD..4FC..GEN;ZRE171..RHD..(CVT,MTM)..(GEN,SGP);ZRE17#..(16V,18V,20V,GLI)..(GEN,MA,PHL,TH) |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89221-12A10 |
ZRE171..N;NZE170..GLI |
1 | ||
| 89220-12200 |
ZRE171..(GLI,GXLI)..GEN |
1 | ||
| 89220-12280 |
ZRE171..G |
1 | ||
| 89220-12350 |
ZRE171..G LOW GRADE PACKAGE |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-02840 |
NZE170..GLI;NDE170,ZRE17#..RHD..(GEN,IDN,IND,MA,PKN,SGP) |
1 | ||
| 89650-02841 |
ZRE17#..RHD..(GEN,IDN,MA,SGP) |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-12490 |
ZRE171,172..RHD..(E,G);ZRE172,173..(18V,20V)..(IDN,MA,PHL,TH) |
1 | ||
| 89960-12490 |
ZRE171..G LOW GRADE PACKAGE |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 90119-T0294 | ||||
| 90159-60546 | ||||
| 90159-70004 | ||||
| 90168-T0001 | ||||
| 90178-T0018 | ||||
| 90179-06110 | ||||
| 91673-80616 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
