ZRE171R-GEPNK (2013)

Toyota Corolla/Altis

Production Dec 2013 - Oct 2016
Engine 1ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

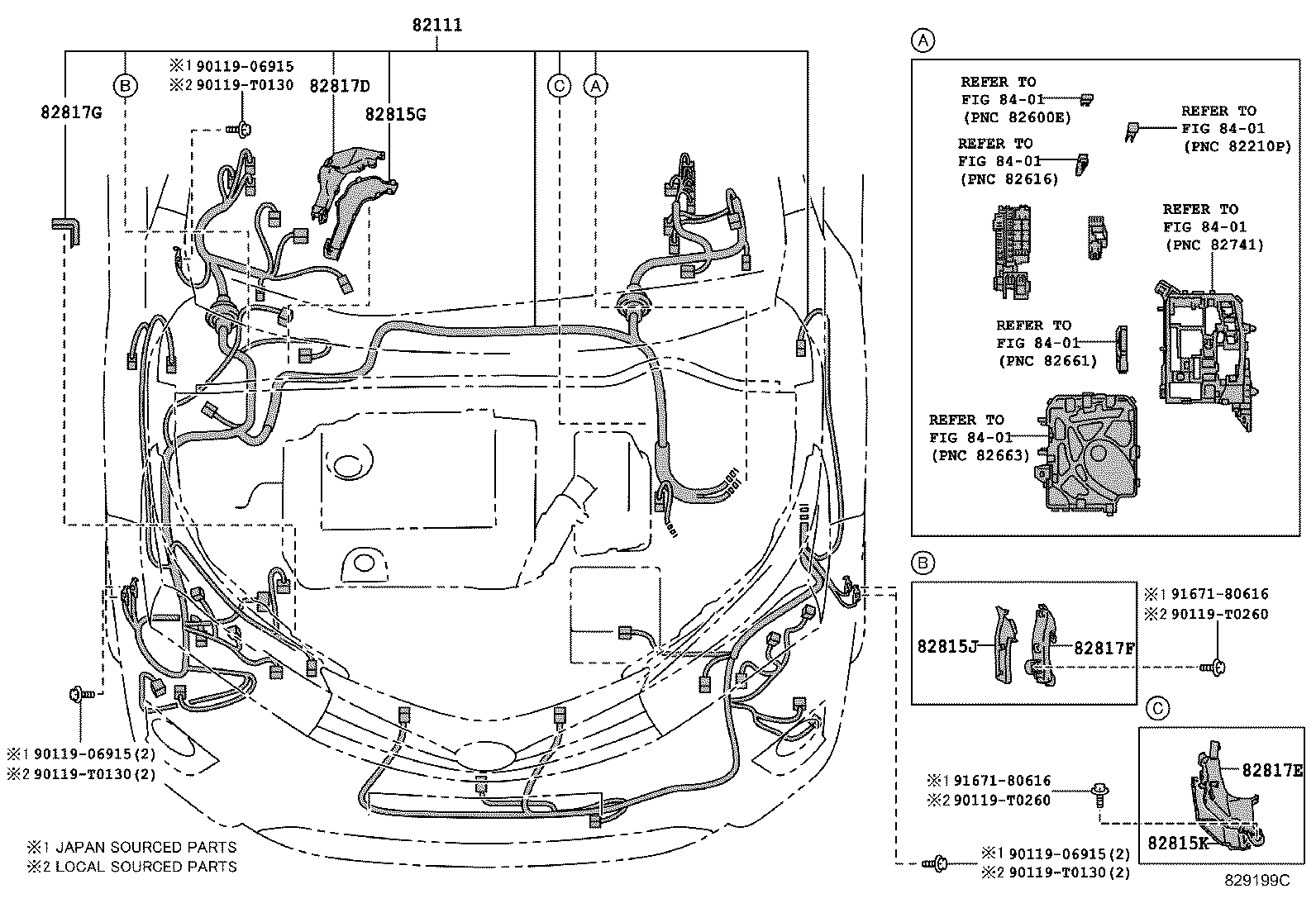

ILLUST NO. 1 OF11(1312- )RHD

Click highlighted areas on diagram

ENGINE ROOM

diagram 82111 82815G 82815J 82815K 82817D 82817E 82817F 82817G 8401 8401 8401 8401 8401 8401 9011906915 9011906915 9011906915 90119T0130 90119T0130 90119T0130 90119T0260 90119T0260 9167180616 9167180616
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82115-0ZX70

ZRE171..GLI..GEN

 1
82115-0ZN71

ZRE171..G

LOW GRADE PACKAGE

 1
82116-02W50

ZRE171..N

 1
82115-0ZN72

ZRE171..G

LOW GRADE PACKAGE

 1
82115-0ZX71

ZRE171..GLI..GEN

 1
82815G - COVER, WIRING HARNESS PROTECTOR NO.5
82815-12260

ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH

 1
82815J - COVER, WIRING HARNESS PROTECTOR, NO.7
82815-12330

ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH

 1
82815K - COVER, WIRING HARNESS PROTECTOR, NO.8
82815-12250

ZRE171..16J..HTWCF;ZRE171..LHD..4FC..GEN;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-12D60

ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH

 1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-12D50

ZRE171..16J..HTWCF;ZRE171..LHD..4FC..GEN;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
82817F - PROTECTOR, WIRING HARNESS, NO.7
82817-12E91

ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH

 1
82817G - PROTECTOR, WIRING HARNESS, NO.8
82817-12860

ZRE171..16J..HTWCF;ZRE171..LHD..4FC..GEN;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
Common parts
90119-06915
90119-T0130
90119-T0260
91671-80616
Linked diagrams
8401

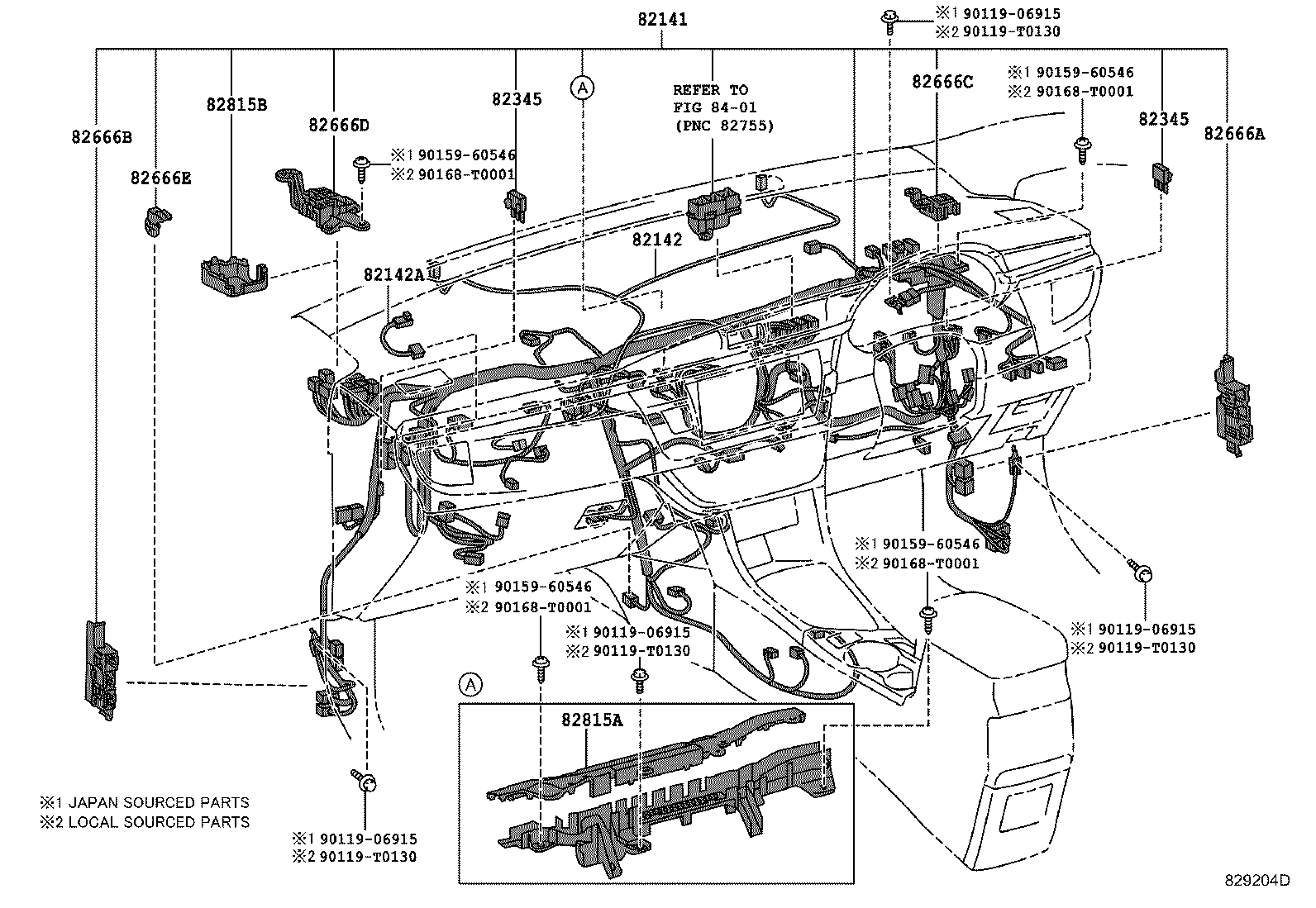

ILLUST NO. 3 OF11(1312- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 82141 82142 82142A 82345 82345 82666A 82666B 82666C 82666D 82666E 82815A 82815B 8401 9011906915 9011906915 9011906915 9011906915 90119T0130 90119T0130 90119T0130 90119T0130 9015960546 9015960546 9015960546 9015960546 90168T0001 90168T0001 90168T0001 90168T0001
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82117-0ZB52

ZRE171..GLI..GEN

 1
82117-0ZB01

ZRE171..G;ZRE172..18V..TH

 1
82117-0ZB53

ZRE171..GLI..GEN

 1
82117-0ZX91

ZRE171..GLI..GEN

JAMAICA SPEC

 1
82117-0ZZ80

ZRE171..G

LOW GRADE PACKAGE

 1
82117-0ZX91

ZRE171..GLI..GEN

CARIBBEAN NATIONS SPEC

 1
82117-0ZB54

ZRE171..GLI..GEN

 1
82117-0ZB02

ZRE171..G

 1
82117-0ZZ81

ZRE171..G

LOW GRADE PACKAGE

 1
82117-0ZX92

ZRE171..GLI..GEN

JAMAICA SPEC

 1
82117-0ZX92

ZRE171..GLI..GEN

CARIBBEAN NATIONS SPEC

 1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-02551

ZRE172..ARL..E;ZRE171..RHD..(CVT,MTM)..(GEN,SGP);ZRE17#..(18V,20V,GLI)..(GEN,MA,TH)

 1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82140-02420

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
82345 - DIODE
82345-22051

ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH

 2
82345 - DIODE
82345-22051

ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH

 2
82666A - HOLDER, CONNECTOR NO.2
82666-02510

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
82666B - HOLDER, CONNECTOR NO.3
82666-02520

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
82666C - HOLDER, CONNECTOR NO.4
82666-12510

ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH

 1
82666D - HOLDER, CONNECTOR NO.5
82666-12520

ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH

 1
82666E - HOLDER, CONNECTOR NO.6
82666-02630

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
82815A - COVER, WIRING HARNESS PROTECTOR
82815-12570

ZRE171..16J..HTWCF;ZRE17#..RHD..(ARL,GEN,IDN,MA,SGP);ZRE171,172..(16E,16G,18E)..(CNG,HTWCF)

 1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-12580

ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH

 1
Common parts
90119-06915
90119-T0130
90159-60546
90168-T0001
Linked diagrams
8401
