ZRE171R-GEPNK (2013)

Toyota Corolla/Altis

Production Dec 2013 - Oct 2016
Engine 1ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )RHD

Click highlighted areas on diagram

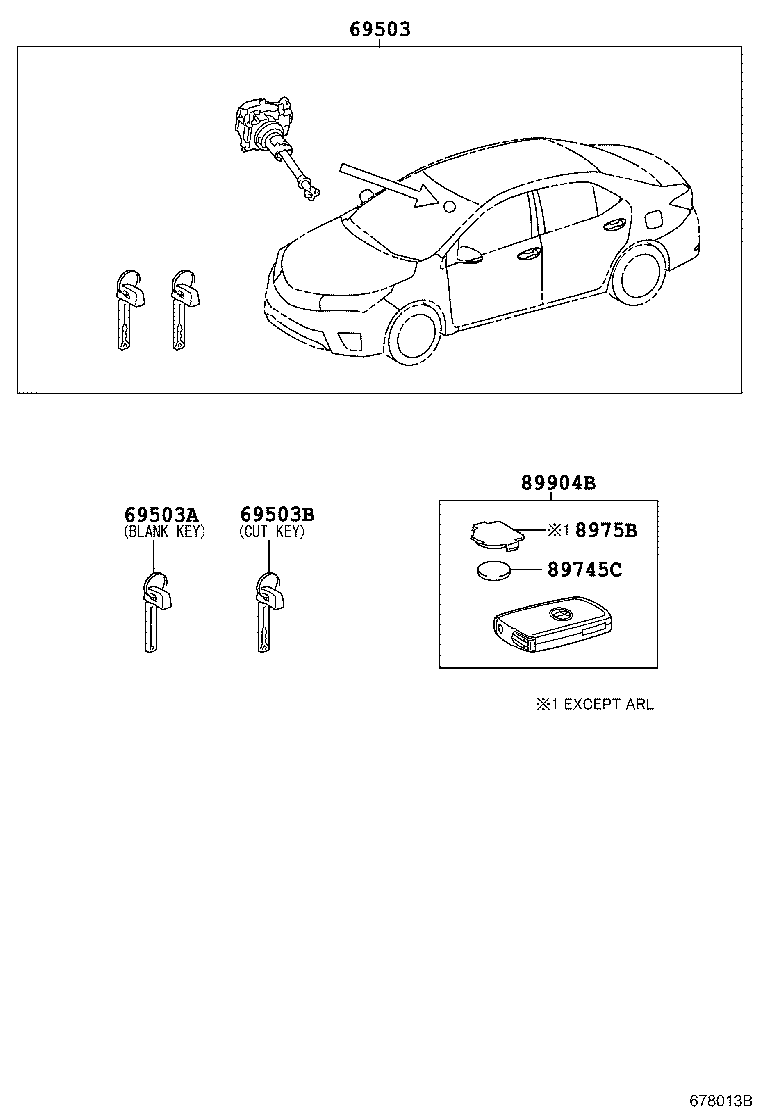

W(SMART ENTRY)

diagram 69503 69503A 69503B 89745C 8975B 89904B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-02C90

ZRE171..N;NZE170..4FC..GLI

 1
69005-02C30

ZRE171..RHD..4FC..GEN

 1
89704-02C00

ZRE171..G

LOW GRADE PACKAGE

 1
69503A - KEY, BLANK
90999-00188

ZRE171..N;NZE170..GLI

SUB KEY

 1
90999-00199

ZRE171..N;NZE170..GLI

MASTER KEY,W(*68)

 2
89745C - BATTERY, TRANSMITTER
89745-50020

ZRE171..G;ZRE171..LHD..(ATM,CVT)..(16V,XLI)..(GEN,PHL);ZRE172,173..(18G,18GS,18V,20V)..(IDN,MA,PHL,TH)

 1
89745-50020

ZRE171..G

LOW GRADE PACKAGE

 1
8975B - COVER, TRANSMITTER BATTERY HOUSING
8975B-33010

ZRE171..G

LOW GRADE PACKAGE

 1
8975B-33010

ZRE171..G;ZRE171..LHD..(ATM,CVT)..(16V,XLI)..(GEN,PHL);ZRE172,173..(18G,18GS,18V,20V)..(IDN,MA,PHL,TH)

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-33460

ZRE171..G;ZRE172..(18GS,18V)..TH;ZRE171,173..LHD..(ATM,CVT)..(16V,20V,XLI)..(GEN,PHL)

 2
89904-33460

ZRE171..G

LOW GRADE PACKAGE

 2

(1312- )RHD

Click highlighted areas on diagram

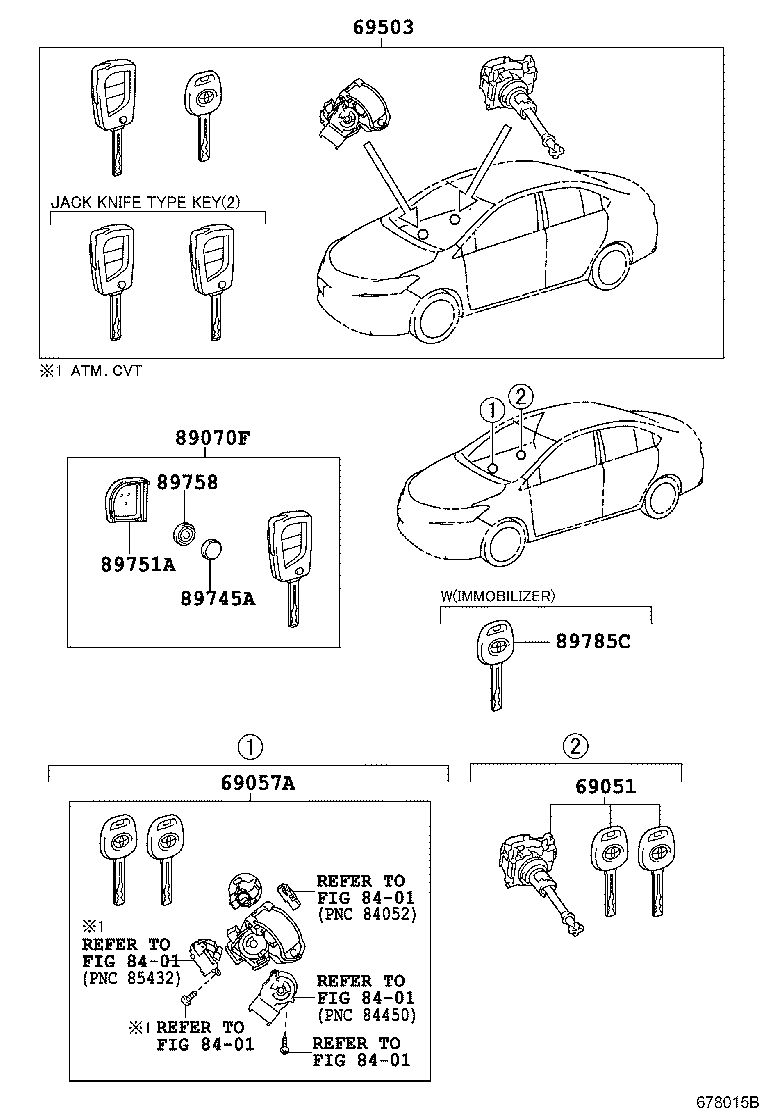

WIRELESS DOOR LOCK-INSIDE CUT TYPE

diagram 69051 69057A 69503 8401 8401 8401 8401 8401 89070F 89745A 89751A 89758 89785C
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-02290

ZRE171..G

LOW GRADE PACKAGE

 1
69051-02330

ZRE172..ARL..D;ZRE171..16E..PHL;ZRE171..RHD..GEN;ZRE171..16J..HTWCF

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-02A00

ZRE171..N;NZE170..4FC..GLI

 1
69057-02A70

ZRE171..RHD..4FC..GEN

 1
69057-02770

ZRE171..G

LOW GRADE PACKAGE

 1
69503 - CYLINDER SET, LOCK
69005-02C90

ZRE171..N;NZE170..4FC..GLI

 1
69005-02C30

ZRE171..RHD..4FC..GEN

 1
89704-02C00

ZRE171..G

LOW GRADE PACKAGE

 1
89070F - TRANSMITTER ASSY, DOOR CONTROL (CUT KEY)
89070-02D00

ZRE171..G

LOW GRADE PACKAGE,INSIDE CUT TYPE

 1
89745A - BATTERY, TRANSMITTER
89745-0D040

ZRE172..ARL..D;ZRE171..RHD..GEN;ZRE171,172..(16E,16G,18E)..(CNG,HTWCF);ZRE171..(CVT,MTM)..(16G,XLI)..(GEN,PHL)

 1
89745-0D040

ZRE171..G

CR1620,LOW GRADE PACKAGE

 1
89751A - COVER, TRANSMITTER HOUSING
89751-02180

ZRE171..G

LOW GRADE PACKAGE

 2
89758 - PACKING, DOOR CONTROL TRANSMITTER
89758-02010

ZRE171..G

LOW GRADE PACKAGE

 2
Linked diagrams
8401

(1312- )RHD

Click highlighted areas on diagram

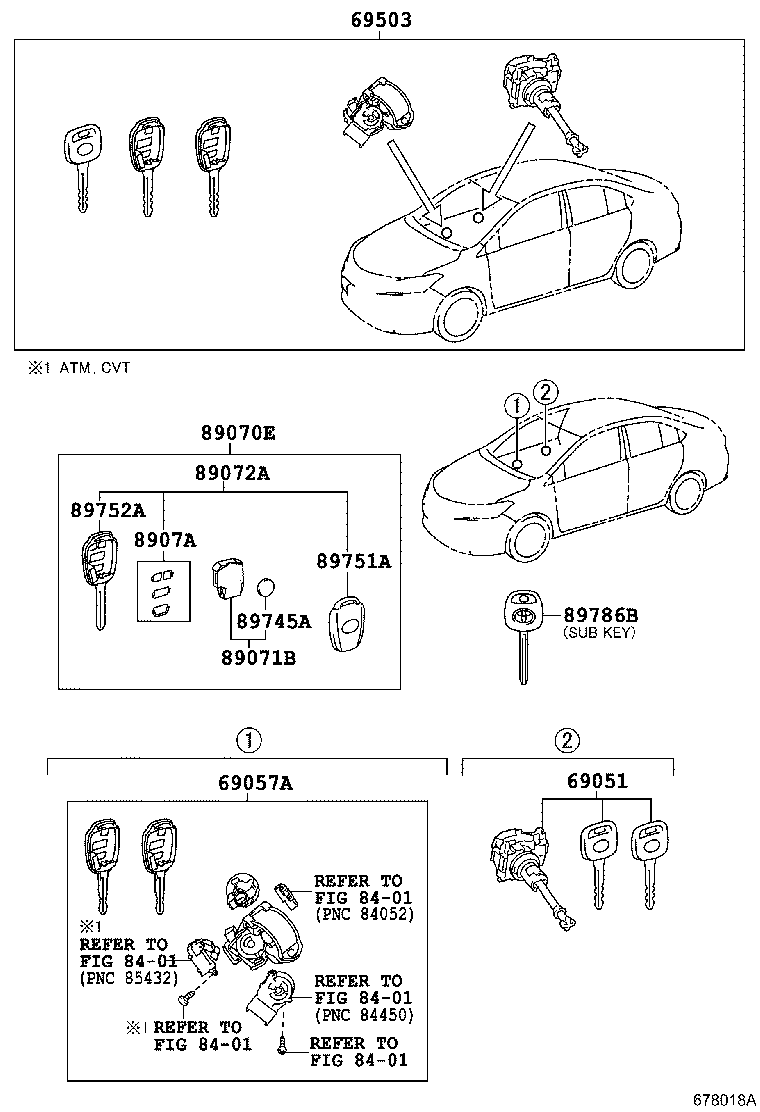

WIRELESS DOOR LOCK-OUTSIDE CUT TYPE

diagram 69051 69057A 69503 8401 8401 8401 8401 8401 89070E 89071B 89072A 8907A 89745A 89751A 89752A 89786B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-02290

ZRE171..G

LOW GRADE PACKAGE

 1
69051-02330

ZRE172..ARL..D;ZRE171..16E..PHL;ZRE171..RHD..GEN;ZRE171..16J..HTWCF

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-02A00

ZRE171..N;NZE170..4FC..GLI

 1
69057-02A70

ZRE171..RHD..4FC..GEN

 1
69057-02770

ZRE171..G

LOW GRADE PACKAGE

 1
69503 - CYLINDER SET, LOCK
69005-02C90

ZRE171..N;NZE170..4FC..GLI

 1
69005-02C30

ZRE171..RHD..4FC..GEN

 1
89704-02C00

ZRE171..G

LOW GRADE PACKAGE

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-02C50

ZRE171..RHD..GEN;ZRE171..6F..XLI..GEN

OUTSIDE CUT TYPE

 1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-02180

ZRE171..RHD..GEN;ZRE171..6F..XLI..GEN

 1
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-02750

ZRE171..RHD..GEN;ZRE171..6F..XLI..GEN

 1
8907A - SWITCH SET, TRANSMITTER
8907A-12020

ZRE171..RHD..GEN;ZRE171..6F..XLI..GEN

 1
89745A - BATTERY, TRANSMITTER
89745-0D040

ZRE172..ARL..D;ZRE171..RHD..GEN;ZRE171,172..(16E,16G,18E)..(CNG,HTWCF);ZRE171..(CVT,MTM)..(16G,XLI)..(GEN,PHL)

 1
89745-0D040

ZRE171..G

CR1620,LOW GRADE PACKAGE

 1
89751A - COVER, TRANSMITTER HOUSING
89751-02180

ZRE171..G

LOW GRADE PACKAGE

 2
89752A - CASE, TRANSMITTER HOUSING
89752-0R040

ZRE171..RHD..GEN;ZRE171..6F..XLI..GEN

 1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-0R020

ZRE172..ARL..D;ZRE171..RHD..GEN;ZRE171..6F..XLI..GEN

BLANK KEY,BLANK KEY

 1
Linked diagrams
8401
