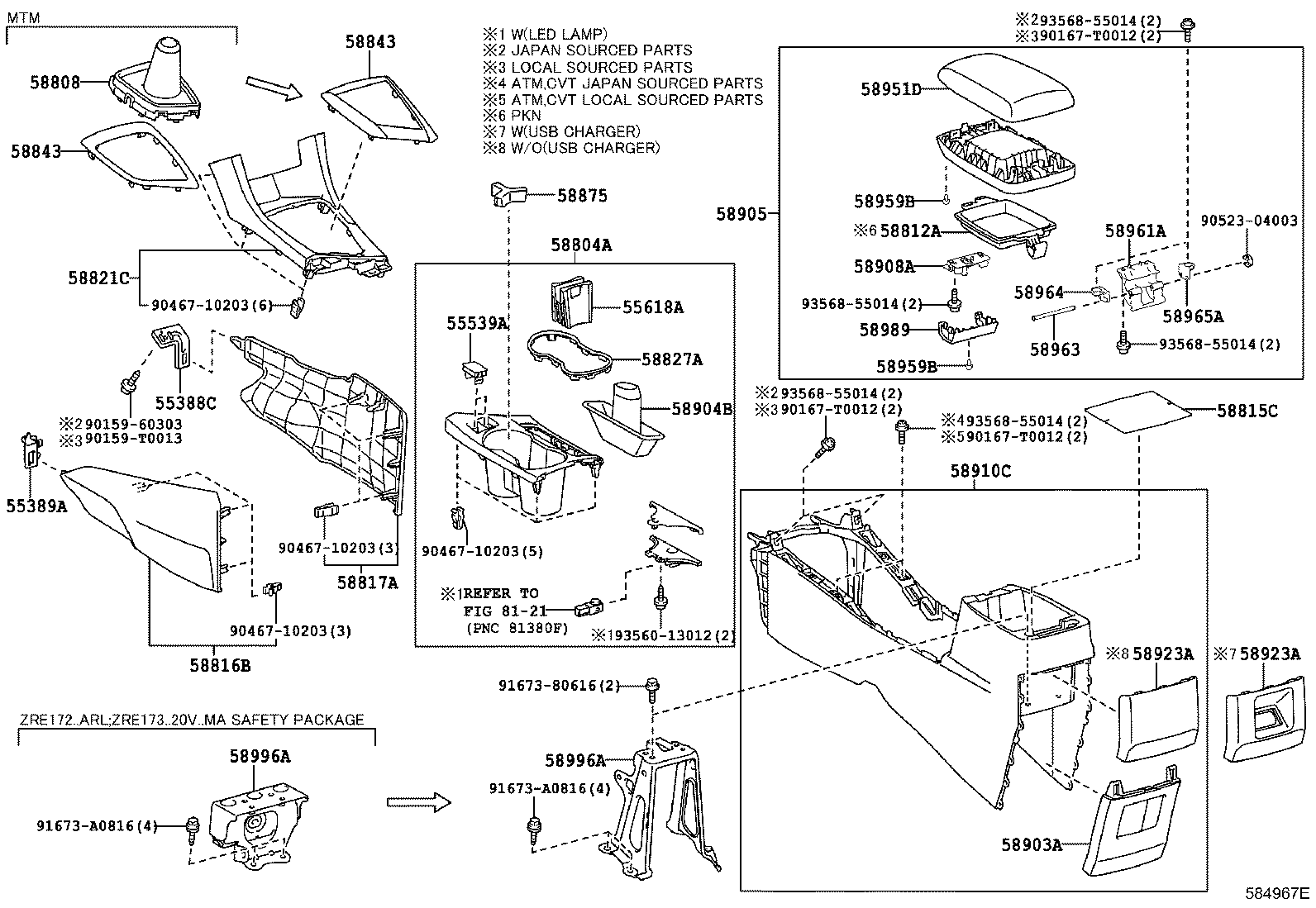

ZRE171R-GEPNK (2013)
Toyota Corolla/Altis
(1312- )RHD..ARL,GEN,IDN,MA,PKN,SGP,TH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55388C - BRACKET, CONSOLE MOUNTING, RH | ||||
| 55389-02060 |
ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH |
1 | ||
| 55389A - BRACKET, CONSOLE MOUNTING, LH | ||||
| 55388-02080 |
ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH |
1 | ||
| 55539A - COVER, SPARE SWITCH HOLE | ||||
| 55539-0D090C0 |
ZRE171..GEN BLACK,TRIM0#,1# |
1 | ||
| 55618A - HOLDER, CONSOLE BOX CUP | ||||
| 55618-02250C0 |
ZRE171..RHD..GEN BLACK,TRIM0#,1# |
1 | ||
| 55618-02250C0 |
ZRE171..G;ZRE172..18E..TH BLACK,TRIM0#,2# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-02330C0 |
ZRE171..RHD..GEN BLACK,TRIM0#,1# |
1 | ||
| 58804-02331C0 |
ZRE171..RHD..GEN BLACK,TRIM0#,1# |
1 | ||
| 58804-02331C0 |
ZRE171..G;ZRE172..18E..TH BLACK,TRIM0#,2# |
1 | ||
| 58815C - CARPET, CONSOLE BOX | ||||
| 58815-02310 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 58816B - INSERT, CONSOLE BOX | ||||
| 58816-02240C0 |
ZRE171..RHD..GEN BLACK,TRIM0#,1# |
1 | ||
| 58816-02240C0 |
ZRE171..G;ZRE172..18E..TH BLACK,TRIM0#,2# |
1 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-02240C0 |
ZRE171..G;ZRE172..18E..TH BLACK,TRIM0#,2# |
1 | ||
| 58817-02240C0 |
ZRE171..RHD..GEN BLACK,TRIM0#,1# |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-02790C0 |
ZRE171..G;ZRE172..18E..TH BLACK,TRIM0#,2# |
1 | ||
| 58821-02790C0 |
ZRE171..RHD..GEN BLACK,TRIM0#,1# |
1 | ||
| 58827A - GARNISH, CONSOLE BOX POCKET | ||||
| 58827-02130 |
ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH |
1 | ||
| 58843 - BEZEL, SHIFTING HOLE | ||||
| 58843-02630 |
ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH);ZRE171,173..RHD..(ATM,CVT)..(GEN,MA,SGP) |
1 | ||
| 58843 - BEZEL, SHIFTING HOLE | ||||
| 58843-02630 |
ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH);ZRE171,173..RHD..(ATM,CVT)..(GEN,MA,SGP) |
1 | ||
| 58875 - SPACER, CONSOLE BOX | ||||
| 58875-02010 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-02010C0 |
ZRE171..GEN BLACK,TRIM0#,1# |
1 | ||
| 58904B - COVER SUB-ASSY, PARKING BRAKE HOLE | ||||
| 58904-02290C0 |
ZRE171..G;ZRE172..18E..TH BLACK,TRIM0#,2# |
1 | ||
| 58904-02290C0 |
ZRE171..RHD..GEN BLACK,TRIM0#,1# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-02B00B2 |
ZRE171..RHD..GEN GRAY/BLACK,TRIM1# |
1 | ||
| 58905-02B00A2 |
ZRE171..6F..16G;ZRE171..CVT..(PHL,SGP);ZRE171,172..RHD..(16E,18E,GLI,GXLI,XLI)..(GEN,TH) IVORY/BLACK,TRIM0# |
1 | ||
| 58905-02B10A2 |
ZRE171..G UP GRADE PACKAGE,IVORY/BLACK,TRIM0# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-02120 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 58910C - BOX ASSY, CONSOLE, REAR | ||||
| 58910-02480C0 |
ZRE171..GEN BLACK,TRIM0#,1# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-02200C0 |
ZRE171..GEN BLACK,TRIM0#,1# |
1 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-02200C0 |
ZRE171..GEN BLACK,TRIM0#,1# |
1 | ||
| 58951D - DOOR, CONSOLE COMPARTMENT, OUTER | ||||
| 58951-02850A0 |
ZRE171..6F..16G;ZRE171..CVT..(PHL,SGP);ZRE171,172..RHD..(16E,18E,GLI,GXLI,XLI)..(GEN,TH) IVORY,TRIM0# |
1 | ||
| 58951-02850B0 |
ZRE171..RHD..GEN GRAY,TRIM1# |
1 | ||
| 58951-02860A1 |
ZRE171..G UP GRADE PACKAGE,IVORY,TRIM0# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 90541-03078 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
3 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 90541-03078 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
3 | ||
| 58961A - HINGE, CONSOLE COMPARTMENT DOOR MALE | ||||
| 58961-02140 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 58963 - SHAFT, CONSOLE COMPARTMENT DOOR HINGE | ||||
| 58963-02060 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1 | ||||
| 58964-02210 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2 | ||||
| 58965-02220 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 58989 - PANEL, CONSOLE COMPARTMENT DOOR | ||||
| 58989-02160 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-02150 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..IDN,MA,PHL,TH |
1 | ||
| 58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2 | ||||
| 58996-02150 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..IDN,MA,PHL,TH |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90159-T0013 | ||||
| 90167-T0012 | ||||
| 90467-10203 | ||||
| 90523-04003 | ||||
| 91673-80616 | ||||
| 91673-A0816 | ||||
| 93560-13012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
