ZRE171R-GEPNK (2013)

Toyota Corolla/Altis

Production Dec 2013 - Oct 2016
Engine 1ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )ZRE17#..ARL,GEN,IDN,MA,PHL,SGP,TH,VN

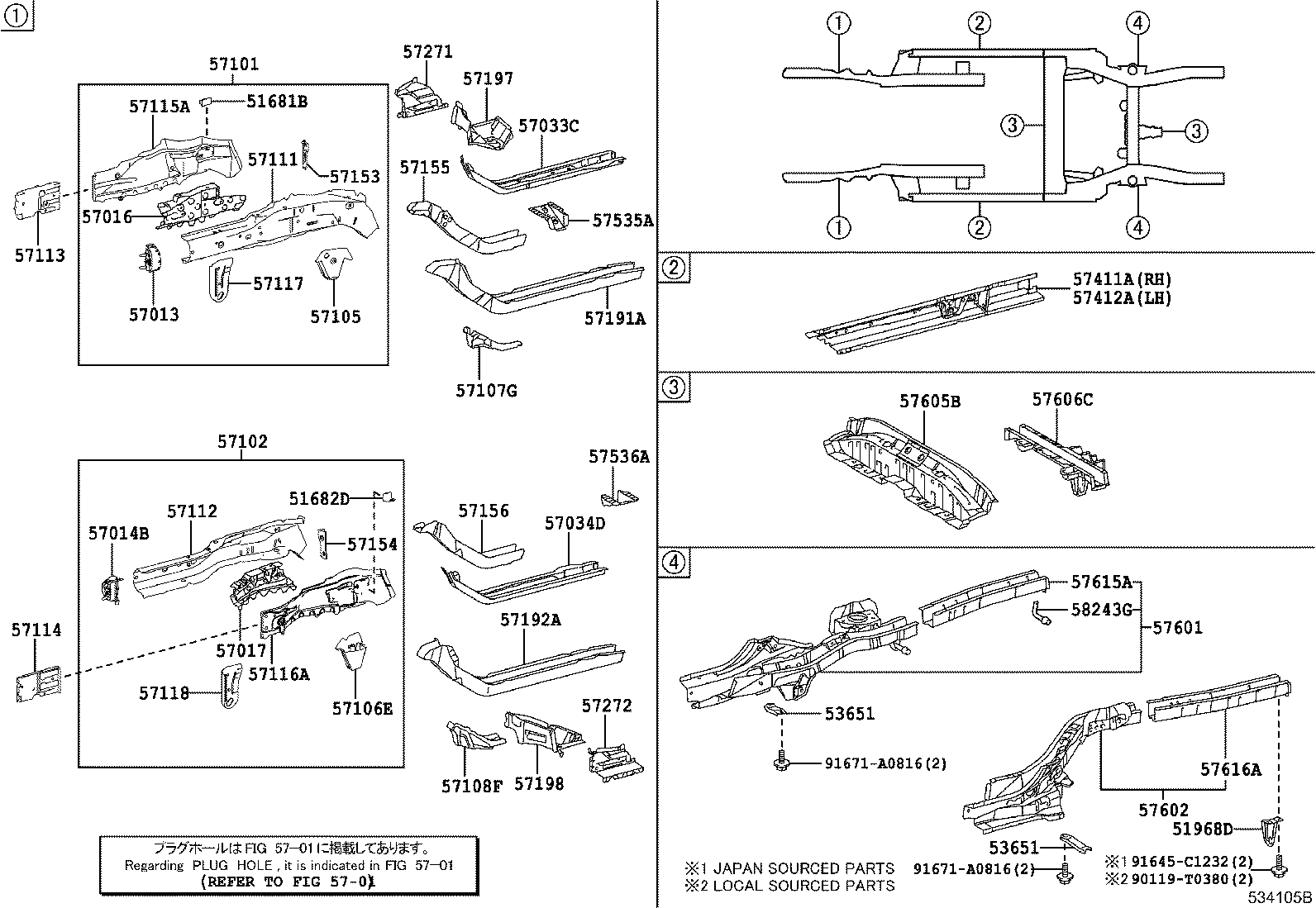

Click highlighted areas on diagram

diagram 51681B 51682D 51968D 53651 53651 5701 57013 57014B 57016 57017 57033C 57034D 57101 57102 57105 57106E 57107G 57108F 57111 57112 57113 57114 57115A 57116A 57117 57118 57153 57154 57155 57156 57191A 57192A 57197 57198 57271 57272 57411A 57412A 57535A 57536A 57601 57602 57605B 57606C 57615A 57616A 58243G 90119T0380 91645C1232 91671A0816 91671A0816
Part # Description Qty Price
51681B - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH
51681-32050

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
51682D - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH
51682-32040

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
51968D - HOOK, TRANSPORT, REAR LH
51968-02120

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
53651 - BRACE, REAR FLOOR SIDE MEMBER
53651-02080

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 2
53651 - BRACE, REAR FLOOR SIDE MEMBER
53651-02080

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 2
57013 - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57013-02170

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57014B - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
57014-02160

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57016-02120

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57017-02160

ZRE171..4FC..GEN

 1
57033C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH
57033-02110

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57034D - REINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH
57034-02120

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-02917

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-02931

ZRE171..4FC..GEN

 1
57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO
57105-12140

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO
57106-12130

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57107G - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA
57107-12110

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57108F - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REA
57108-12130

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57111 - MEMBER, FRONT SIDE, RH
57111-02160

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57112 - MEMBER, FRONT SIDE, LH
57112-02160

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-02110

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-02110

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57115-02080

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57116-02090

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57117 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH
57117-12130

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57118 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH
57118-12130

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH
57153-32030

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH
57154-32030

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH
57155-02040

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH
57156-02060

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57191A - MEMBER, FRONT SIDE, INNER REAR RH
57191-13010

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57192A - MEMBER, FRONT SIDE, INNER REAR LH
57192-13010

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57197 - BOX, TORQUE, FRONT RH
57197-02100

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57198 - BOX, TORQUE, FRONT LH
57198-02100

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57271 - EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH
57271-02100

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57272 - EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH
57272-02100

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57401-02280

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57402-02280

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57535A - BRACE, FRONT FLOOR, RH
57535-02030

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57536A - BRACE, FRONT FLOOR, LH
57536-02030

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-02400

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-02570

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-02200

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-02181

ZRE171..HTWCF;ZRE171..GEN,PHL,SGP;ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57615-02923

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57616-02922

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
58243G - BRACKET, EXHAUST PIPE MOUNTING SIDE, RH
58243-12020

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
Common parts
90119-T0380
91645-C1232
91671-A0816
Linked diagrams
5701
