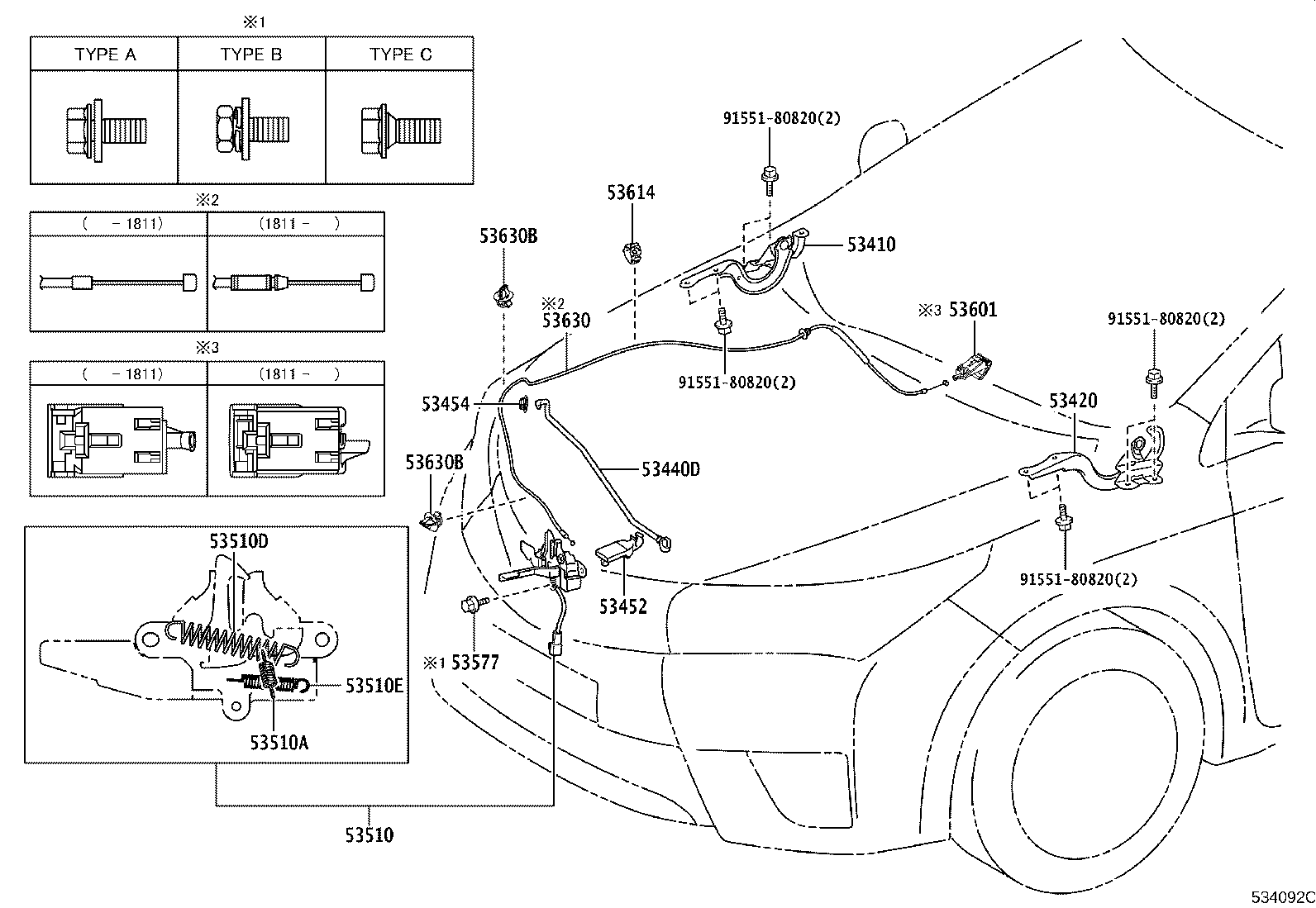

ZRE171R-GEPNK (2013)
Toyota Corolla/Altis
(1312- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-02360 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-02360 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 53440D - SUPPORT ASSY, HOOD | ||||
| 53440-02220 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 53452 - HOLDER, HOOD STAY | ||||
| 53452-02180 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 53454 - CLIP, HOOD SUPPORT ROD | ||||
| 53454-12040 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-02660 |
ZRE172..RHD..(D,N);ZRE171..RHD..(4FC,6F);NZE170,ZRE172,173..RHD..(18E,20G,20V,GLI,XLI)..HTWC |
1 | ||
| 53510-02671 |
ZRE172..IDN,TH;ZRE171,172..RHD..(E,G);ZRE171..CVT..(CNG,HTWCF) |
1 | ||
| 53510-02661 |
ZRE171..16J..HTWCF;ZRE172..ARL..(D,N);ZRE17#..RHD..(GEN,MA) |
1 | ||
| 53510A - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-10046 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH WD=1.0,CW=15.5 |
1 | ||
| 53510D - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-T0003 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH WD=1.8,CW=13 |
1 | ||
| 53510E - SPRING, TENSION(FOR HOOD LOCK) | ||||
| 90506-T0005 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH WD=0.9,CW=21 |
1 | ||
| 53577 - BOLT, HOOD LOCK | ||||
| 90119-T0143 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,PKN,SGP;ZRE171..CVT..(CNG,HTWCF);NZE170,ZRE172,173..ARL,IDN,MA,PHL,PKN,TH,VN TYPE B:REFER ILLUST. |
3 | ||
| 90119-06939 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH,VN TYPE A:REFER ILLUST. |
3 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-02030C0 |
ZRE171..GEN BLACK,TRIM0#,1# |
1 | ||
| 53614 - CLAMP, HOOD LOCK CONTROL CABLE | ||||
| 53614-12040 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
2 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-02310 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90469-T0003 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH (L) |
2 | ||
| 90469-06005 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH (J) |
2 | ||
| 53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90469-T0003 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH (L) |
2 | ||
| 90469-06005 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH (J) |
2 | ||
| Common parts | ||||
| 91551-80820 | ||||
