ZRE171R-GEPNK (2013)
Toyota Corolla/Altis

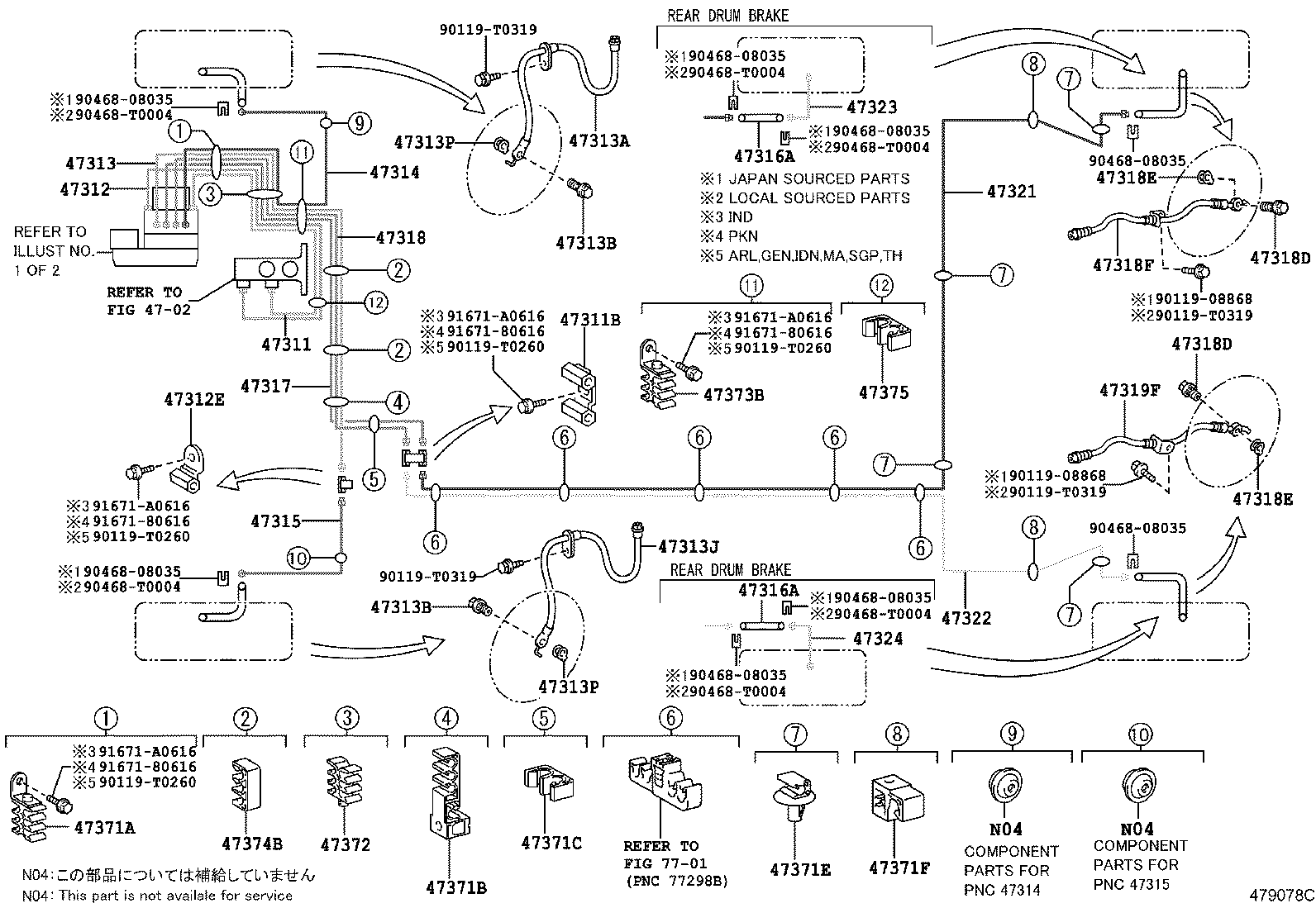

ILLUST NO. 1 OF 2(1312- )ZRE172,173..ARL,IDN,MA,TH ; (1312-)RHD..CNG,HTWC..GEN,SGP,TH
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-02A00 |
ZRE171..G;ZRE17#..RHD..(16E,18E,18G,18V,20G,XLI)..(CNG,HTWC) |
1 | ||
| 47311-02A10 |
ZRE172..ARL;ZRE171,173..RHD..(20V,GLI,GXLI);ZRE171,172..(16G,16J,18V)..HTWCF |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-02760 |
ZRE171..G;ZRE17#..RHD..(16E,18E,18G,18V,20G,XLI)..(CNG,HTWC) |
1 | ||
| 47312-02770 |
ZRE172..ARL;ZRE171,173..RHD..(20V,GLI,GXLI);ZRE171,172..(16G,16J,18V)..HTWCF |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10272 |
ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-02A90 |
ZRE171..G;ZRE17#..RHD..(16E,18E,18G,18V,20G,XLI)..(CNG,HTWC) |
1 | ||
| 47313-02B00 |
ZRE172..ARL;ZRE171,173..RHD..(20V,GLI,GXLI);ZRE171,172..(16G,16J,18V)..HTWCF |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-T2090 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-T2091 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-02A00 |
ZRE171..G;ZRE17#..RHD..(16E,18E,18G,18V,20G,XLI)..(CNG,HTWC) |
1 | ||
| 47314-02A10 |
ZRE172..ARL;ZRE171,173..RHD..(20V,GLI,GXLI);ZRE171,172..(16G,16J,18V)..HTWCF |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-02370 |
ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-02850 |
ZRE172..ARL;ZRE171,173..RHD..(20V,GLI,GXLI);ZRE171,172..(16G,16J,18V)..HTWCF |
1 | ||
| 47317-02840 |
ZRE171..G;ZRE17#..RHD..(16E,18E,18G,18V,20G,XLI)..(CNG,HTWC) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-02870 |
ZRE172..ARL;ZRE171,173..RHD..(20V,GLI,GXLI);ZRE171,172..(16G,16J,18V)..HTWCF |
1 | ||
| 47318-02860 |
ZRE171..G;ZRE17#..RHD..(16E,18E,18G,18V,20G,XLI)..(CNG,HTWC) |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRE171..GEN,SGP;ZRE172..6F..ARL;ZRE171..16J..HTWCF;ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH);ZRE171,173..(16V,20G,20V)..(MA,PHL) |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRE171..GEN,SGP;ZRE172..6F..ARL;ZRE171..16J..HTWCF;ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH);ZRE171,173..(16V,20G,20V)..(MA,PHL) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
ZRE171..GEN,SGP;ZRE172..6F..ARL;ZRE171..16J..HTWCF;ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH);ZRE171,173..(16V,20G,20V)..(MA,PHL) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
ZRE171..GEN,SGP;ZRE172..6F..ARL;ZRE171..16J..HTWCF;ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH);ZRE171,173..(16V,20G,20V)..(MA,PHL) |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-T2087 |
ZRE171..GEN,SGP;ZRE172..6F..ARL;ZRE171..16J..HTWCF;ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH);ZRE171,173..(16V,20G,20V)..(MA,PHL) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-T2088 |
ZRE171..GEN,SGP;ZRE172..6F..ARL;ZRE171..16J..HTWCF;ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH);ZRE171,173..(16V,20G,20V)..(MA,PHL) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-02440 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-02440 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-04053 |
ZRE172..ARL;ZRE171,173..RHD..(20V,GLI,GXLI);ZRE171,172..(16G,16J,18V)..HTWCF |
1 | ||
| 47371-12240 |
ZRE171..G;ZRE17#..RHD..(16E,18E,18G,18V,20G,XLI)..(CNG,HTWC) |
2 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01D17 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
4 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01C82 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01C51 |
ZRE171..G;ZRE17#..RHD..(16E,18E,18G,18V,20G,XLI)..(CNG,HTWC) |
1 | ||
| 90949-01D33 |
ZRE172..ARL;ZRE171,173..RHD..(20V,GLI,GXLI);ZRE171,172..(16G,16J,18V)..HTWCF |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-04054 |
ZRE172..ARL;ZRE171,173..RHD..(20V,GLI,GXLI);ZRE171,172..(16G,16J,18V)..HTWCF |
1 | ||
| 90464-00857 |
ZRE171..G;ZRE17#..RHD..(16E,18E,18G,18V,20G,XLI)..(CNG,HTWC) |
3 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00857 |
ZRE172..ARL;ZRE171,173..RHD..(20V,GLI,GXLI);ZRE171,172..(16G,16J,18V)..HTWCF |
2 | ||
| 90949-01D27 |
ZRE171..G;ZRE17#..RHD..(16E,18E,18G,18V,20G,XLI)..(CNG,HTWC) |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90464-00920 |
ZRE172..ARL;ZRE171,173..RHD..(20V,GLI,GXLI);ZRE171,172..(16G,16J,18V)..HTWCF |
1 | ||
| 90464-00904 |
ZRE171..G;ZRE17#..RHD..(16E,18E,18G,18V,20G,XLI)..(CNG,HTWC) |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-T0260 | ||||
| 90119-T0319 | ||||
| 90468-08035 | ||||
| 90468-T0004 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||

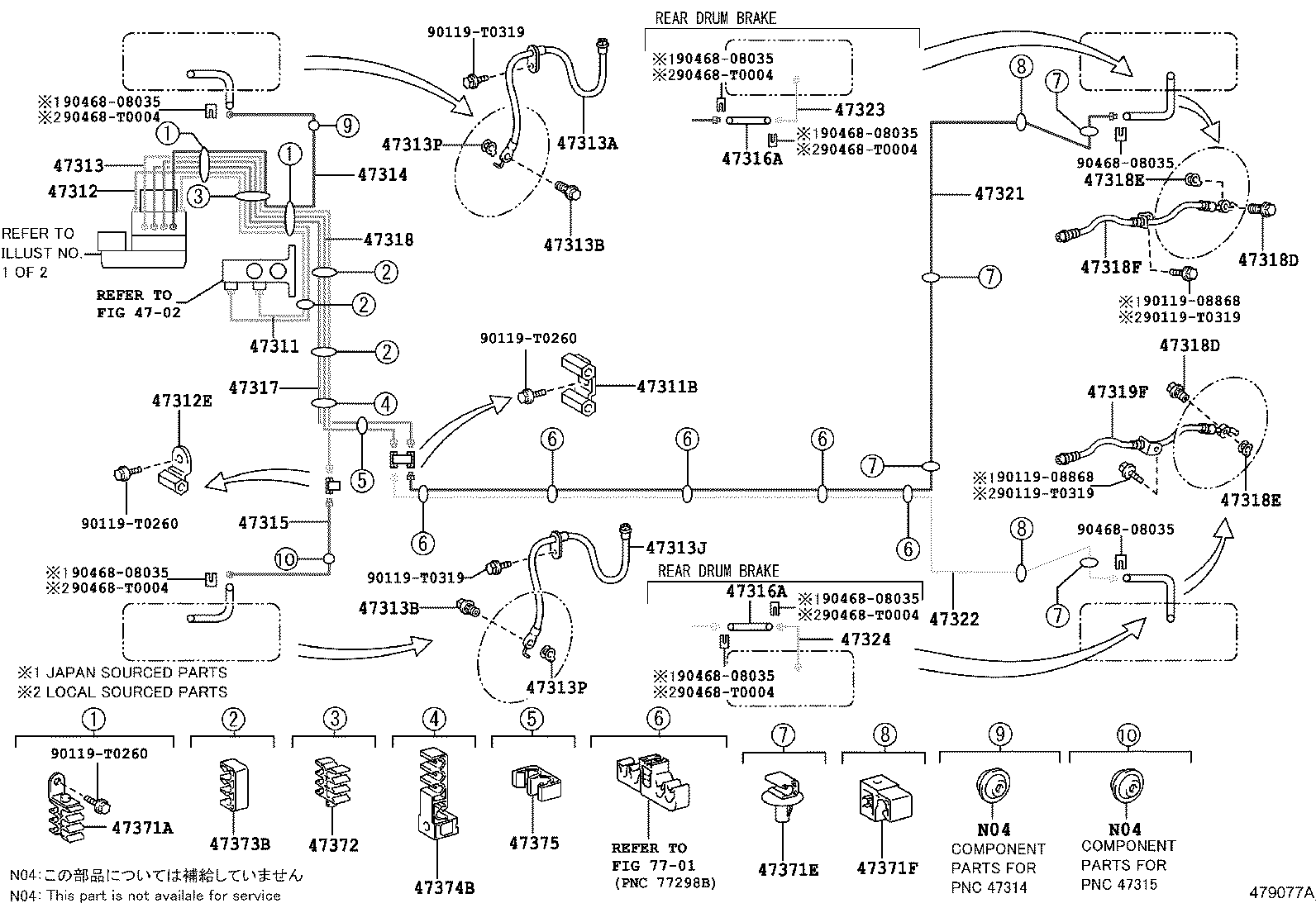

ILLUST NO. 1 OF 2(1312- )RHD
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-02A00 |
ZRE171..G;ZRE17#..RHD..(16E,18E,18G,18V,20G,XLI)..(CNG,HTWC) |
1 | ||
| 47311-02A10 |
ZRE172..ARL;ZRE171,173..RHD..(20V,GLI,GXLI);ZRE171,172..(16G,16J,18V)..HTWCF |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-02760 |
ZRE171..G;ZRE17#..RHD..(16E,18E,18G,18V,20G,XLI)..(CNG,HTWC) |
1 | ||
| 47312-02770 |
ZRE172..ARL;ZRE171,173..RHD..(20V,GLI,GXLI);ZRE171,172..(16G,16J,18V)..HTWCF |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10272 |
ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-02A90 |
ZRE171..G;ZRE17#..RHD..(16E,18E,18G,18V,20G,XLI)..(CNG,HTWC) |
1 | ||
| 47313-02B00 |
ZRE172..ARL;ZRE171,173..RHD..(20V,GLI,GXLI);ZRE171,172..(16G,16J,18V)..HTWCF |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-T2090 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-T2091 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-02A00 |
ZRE171..G;ZRE17#..RHD..(16E,18E,18G,18V,20G,XLI)..(CNG,HTWC) |
1 | ||
| 47314-02A10 |
ZRE172..ARL;ZRE171,173..RHD..(20V,GLI,GXLI);ZRE171,172..(16G,16J,18V)..HTWCF |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-02370 |
ZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-02850 |
ZRE172..ARL;ZRE171,173..RHD..(20V,GLI,GXLI);ZRE171,172..(16G,16J,18V)..HTWCF |
1 | ||
| 47317-02840 |
ZRE171..G;ZRE17#..RHD..(16E,18E,18G,18V,20G,XLI)..(CNG,HTWC) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-02870 |
ZRE172..ARL;ZRE171,173..RHD..(20V,GLI,GXLI);ZRE171,172..(16G,16J,18V)..HTWCF |
1 | ||
| 47318-02860 |
ZRE171..G;ZRE17#..RHD..(16E,18E,18G,18V,20G,XLI)..(CNG,HTWC) |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRE171..GEN,SGP;ZRE172..6F..ARL;ZRE171..16J..HTWCF;ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH);ZRE171,173..(16V,20G,20V)..(MA,PHL) |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
ZRE171..GEN,SGP;ZRE172..6F..ARL;ZRE171..16J..HTWCF;ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH);ZRE171,173..(16V,20G,20V)..(MA,PHL) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
ZRE171..GEN,SGP;ZRE172..6F..ARL;ZRE171..16J..HTWCF;ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH);ZRE171,173..(16V,20G,20V)..(MA,PHL) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
ZRE171..GEN,SGP;ZRE172..6F..ARL;ZRE171..16J..HTWCF;ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH);ZRE171,173..(16V,20G,20V)..(MA,PHL) |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-T2087 |
ZRE171..GEN,SGP;ZRE172..6F..ARL;ZRE171..16J..HTWCF;ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH);ZRE171,173..(16V,20G,20V)..(MA,PHL) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-T2088 |
ZRE171..GEN,SGP;ZRE172..6F..ARL;ZRE171..16J..HTWCF;ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH);ZRE171,173..(16V,20G,20V)..(MA,PHL) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-02440 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-02440 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-04053 |
ZRE172..ARL;ZRE171,173..RHD..(20V,GLI,GXLI);ZRE171,172..(16G,16J,18V)..HTWCF |
1 | ||
| 47371-12240 |
ZRE171..G;ZRE17#..RHD..(16E,18E,18G,18V,20G,XLI)..(CNG,HTWC) |
2 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01D27 |
ZRE172..ARL;ZRE171,173..RHD..(20V,GLI,GXLI);ZRE171,172..(16G,16J,18V)..HTWCF |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90464-00904 |
ZRE172..ARL;ZRE171,173..RHD..(20V,GLI,GXLI);ZRE171,172..(16G,16J,18V)..HTWCF |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01D17 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
4 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-01C82 |
ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01C51 |
ZRE171..G;ZRE17#..RHD..(16E,18E,18G,18V,20G,XLI)..(CNG,HTWC) |
1 | ||
| 90949-01D33 |
ZRE172..ARL;ZRE171,173..RHD..(20V,GLI,GXLI);ZRE171,172..(16G,16J,18V)..HTWCF |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-04054 |
ZRE172..ARL;ZRE171,173..RHD..(20V,GLI,GXLI);ZRE171,172..(16G,16J,18V)..HTWCF |
1 | ||
| 90464-00857 |
ZRE171..G;ZRE17#..RHD..(16E,18E,18G,18V,20G,XLI)..(CNG,HTWC) |
3 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90464-00857 |
ZRE172..ARL;ZRE171,173..RHD..(20V,GLI,GXLI);ZRE171,172..(16G,16J,18V)..HTWCF |
2 | ||
| 90949-01D27 |
ZRE171..G;ZRE17#..RHD..(16E,18E,18G,18V,20G,XLI)..(CNG,HTWC) |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90464-00920 |
ZRE172..ARL;ZRE171,173..RHD..(20V,GLI,GXLI);ZRE171,172..(16G,16J,18V)..HTWCF |
1 | ||
| 90464-00904 |
ZRE171..G;ZRE17#..RHD..(16E,18E,18G,18V,20G,XLI)..(CNG,HTWC) |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-T0260 | ||||
| 90119-T0319 | ||||
| 90468-08035 | ||||
| 90468-T0004 | ||||
| 91671-80616 | ||||
| 91671-A0616 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
