ZRE171R-GEPNK (2013)

Toyota Corolla/Altis

Production Dec 2013 - Oct 2016
Engine 1ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )ZRE17#..ARL,GEN,IDN,MA,PHL,SGP,TH,VN; (1703- )IND

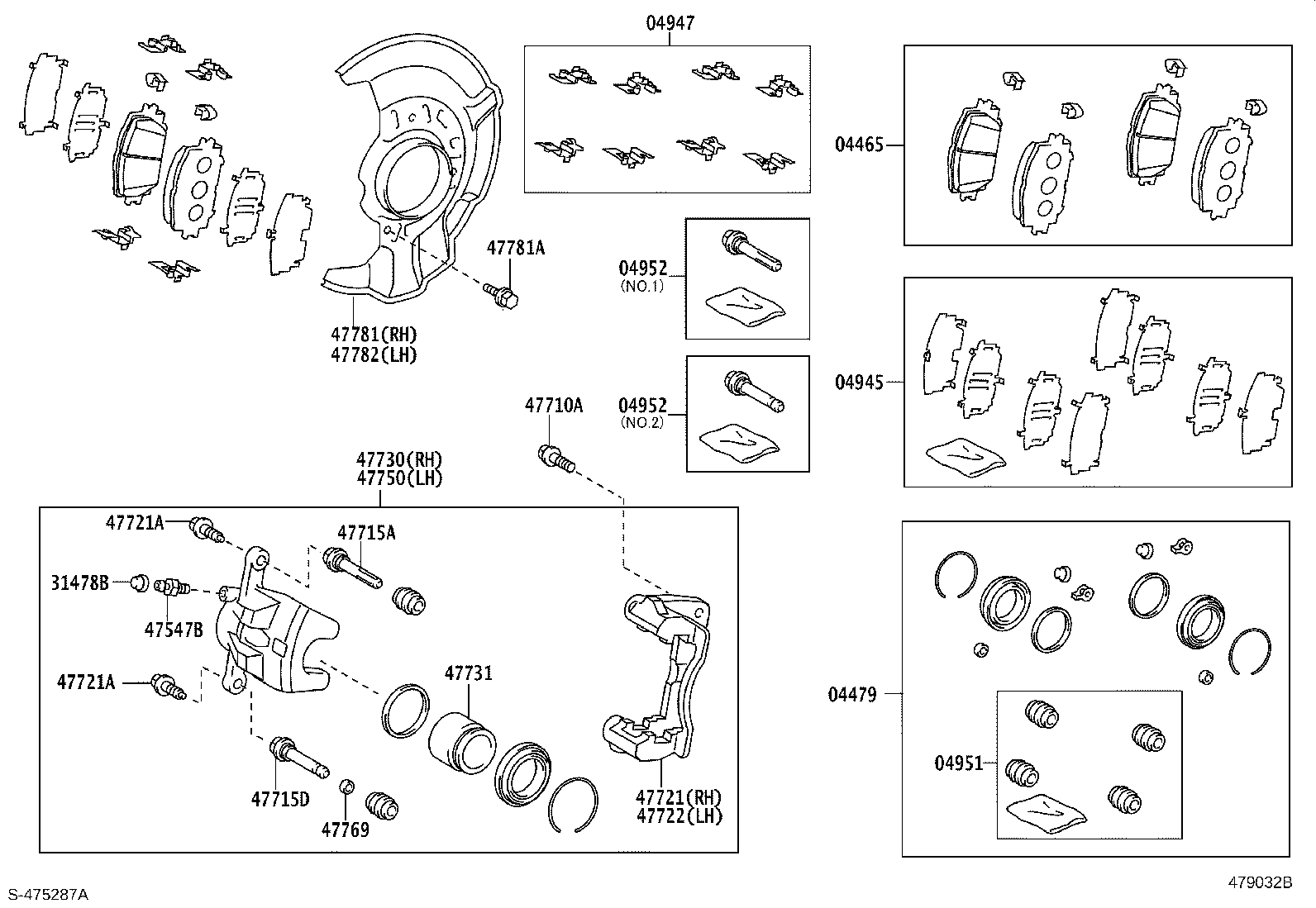

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 04951 04952 04952 31478B 47547B 47710A 47715A 47715D 47721 47721A 47721A 47722 47730 47731 47750 47769 47781 47781A 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-02400

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

MARK ADVICS PV565H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-02340

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-02230

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-0D030

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
04951 - BUSH KIT, DISC BRAKE, FRONT
04951-02010

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
04952 - PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE
04952-02320

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

NO.1:REFER ILLUST.

 2
04952-02330

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

NO.2:REFER ILLUST.

 2
04952 - PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE
04952-02320

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

NO.1:REFER ILLUST.

 2
04952-02330

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

NO.2:REFER ILLUST.

 2
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-0D040

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-0D030

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

*12-1.25PX29.5-23

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-02450

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90016-AA603

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

*8-1.00PX23-15

 4
47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
90016-AA603

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

*8-1.00PX23-15

 4
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-02450

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-02450

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
47731 - PISTON, FRONT DISC BRAKE
47731-02450

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-02450

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-06040

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 2
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-02160

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90119-T0005

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 6
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-02160

ZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH

 1
