ZRE171R-GEPNK (2013)

Toyota Corolla/Altis

Production Dec 2013 - Oct 2016
Engine 1ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )RHD..4FC

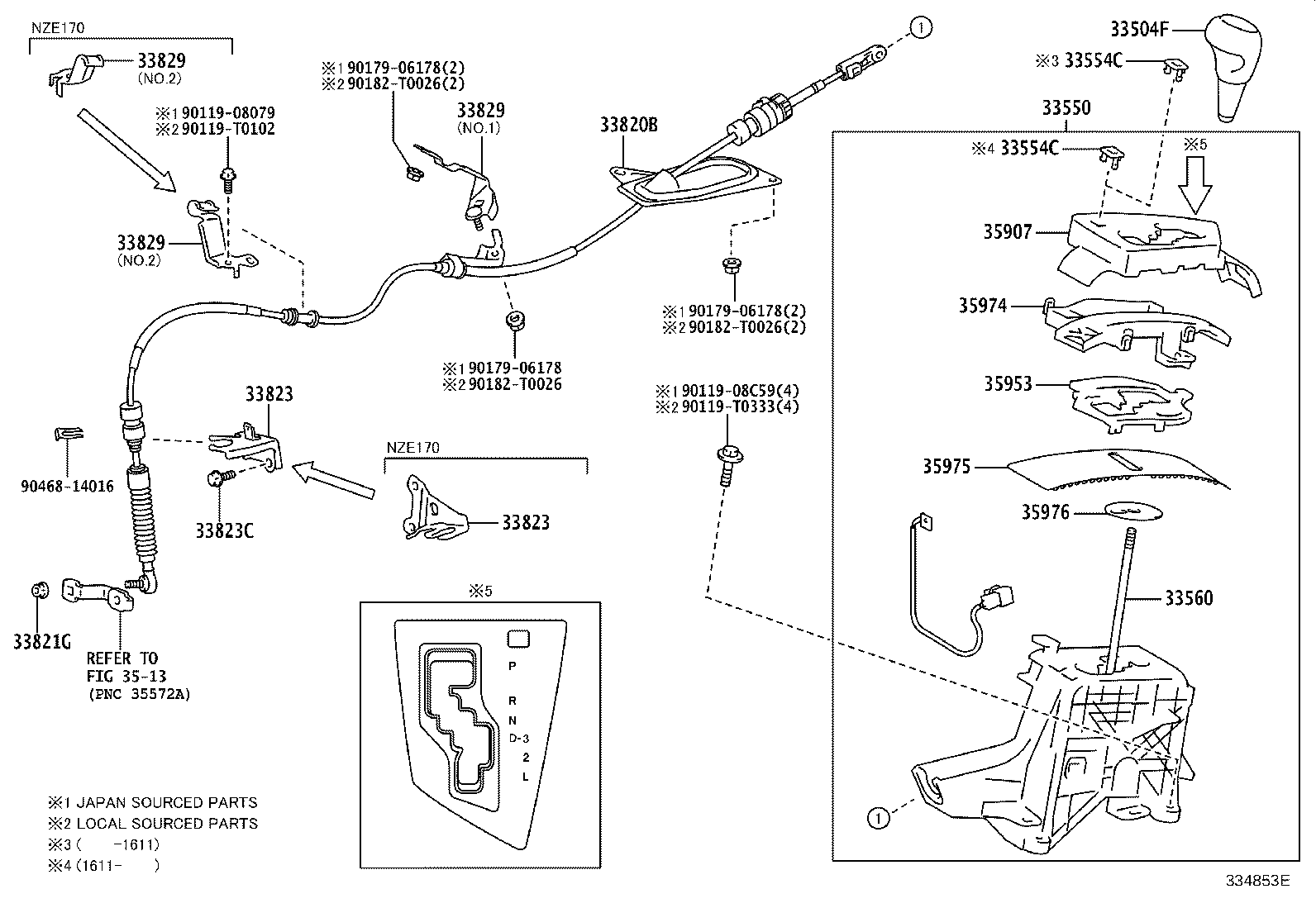

Click highlighted areas on diagram

diagram 33504F 33550 33554C 33554C 33560 33820B 33821G 33823 33823 33823C 33829 33829 33829 3513 35907 35953 35974 35975 35976 9011908079 9011908C59 90119T0102 90119T0333 9017906178 9017906178 9017906178 90182T0026 90182T0026 90182T0026 9046814016
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-02450C0

ZRE171..GLI..GEN

BLACK & MD.SILVER,TRIM0#,1#

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-02460

ZRE171..RHD..4FC..GEN

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-02140

ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH);ZRE171,173..RHD..(ATM,CVT)..(GEN,MA,SGP)

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-02140

ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH);ZRE171,173..RHD..(ATM,CVT)..(GEN,MA,SGP)

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-02290

ZRE171..RHD..4FC..GEN

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-02770

ZRE171..4FC..GEN

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
90080-17130

ZRE171..4FC..GEN

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-02130

ZRE171..4FC..GEN

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-02130

ZRE171..4FC..GEN

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-T0102

ZRE171..4FC..GEN

 2
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-02100

ZRE171,173..(ATM,CVT)..(20G,20V,GLI,XLI)..(GEN,MA,PHL)

NO.1:REFER ILLUST.

 1
33829-02120

ZRE171..4FC..GEN

NO.2:REFER ILLUST.

 1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-02100

ZRE171,173..(ATM,CVT)..(20G,20V,GLI,XLI)..(GEN,MA,PHL)

NO.1:REFER ILLUST.

 1
33829-02120

ZRE171..4FC..GEN

NO.2:REFER ILLUST.

 1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-02100

ZRE171,173..(ATM,CVT)..(20G,20V,GLI,XLI)..(GEN,MA,PHL)

NO.1:REFER ILLUST.

 1
33829-02120

ZRE171..4FC..GEN

NO.2:REFER ILLUST.

 1
35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
35907-02280

ZRE171..RHD..4FC..GEN

 1
35953 - GUIDE, POSITION INDICATOR LIGHT
35953-02120

ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH);ZRE171,173..RHD..(ATM,CVT)..(GEN,MA,SGP)

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-02140

ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH);ZRE171,173..RHD..(ATM,CVT)..(GEN,MA,SGP)

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-02070

ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH);ZRE171,173..RHD..(ATM,CVT)..(GEN,MA,SGP)

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-06070

ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH);ZRE171,173..RHD..(ATM,CVT)..(GEN,MA,SGP)

 1
Common parts
90119-08079
90119-08C59
90119-T0102
90119-T0333
90179-06178
90182-T0026
90468-14016
Linked diagrams
3513
