ZRE171R-GEPNK (2013)

Toyota Corolla/Altis

Production Dec 2013 - Oct 2016
Engine 1ZRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1312- )1ZR#,2ZR#,3ZRFE..ARL,GEN,IDN,MA,PHL,PKN,SGP,TH,VN

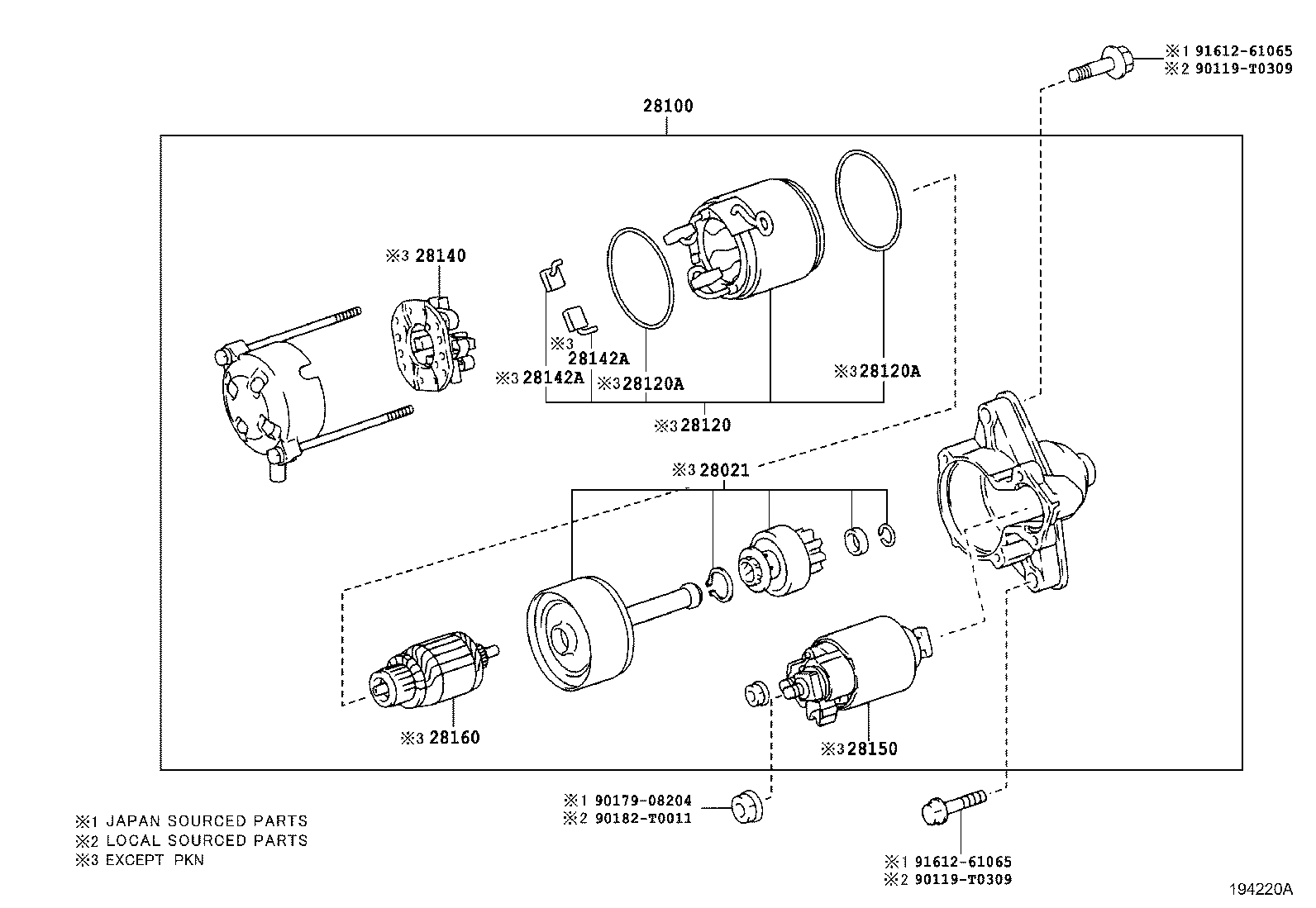

Click highlighted areas on diagram

12V 0.8KW,1.0KW

diagram 28021 28100 28120 28120A 28120A 28140 28142A 28142A 28150 28160 90119T0309 90119T0309 9017908204 90182T0011 9161261065 9161261065
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-0T070

1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH

 1
28100 - STARTER ASSY
28100-0T100

1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE..ZRE171,172..ARL,IDN,MA,TH

12V 0.8KW

 1
28120 - YOKE ASSY, STARTER
28120-0D040

1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE..ZRE171,172..ARL,IDN,MA,TH

 1
28120A - RING, O(FOR STARTER YOKE)
90068-14029

1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH

 2
28120A - RING, O(FOR STARTER YOKE)
90068-14029

1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH

 2
28140 - HOLDER ASSY, STARTER BRUSH
28140-0T070

1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH

 1
28142A - STARTER KIT
28142-70020

1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH

 2
28142A - STARTER KIT
28142-70020

1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH

 2
28150 - SWITCH ASSY, MAGNET STARTER
28150-0T070

1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH

 1
28160 - ARMATURE ASSY, STARTER
28160-0T100

1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE..ZRE171,172..ARL,IDN,MA,TH

 1
Common parts
90119-T0309
90179-08204
90182-T0011
91612-61065
