ZRE171R-GEPNK (2013)
Toyota Corolla/Altis
ILLUST NO. 2 OF 2(1601- )1ZRF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

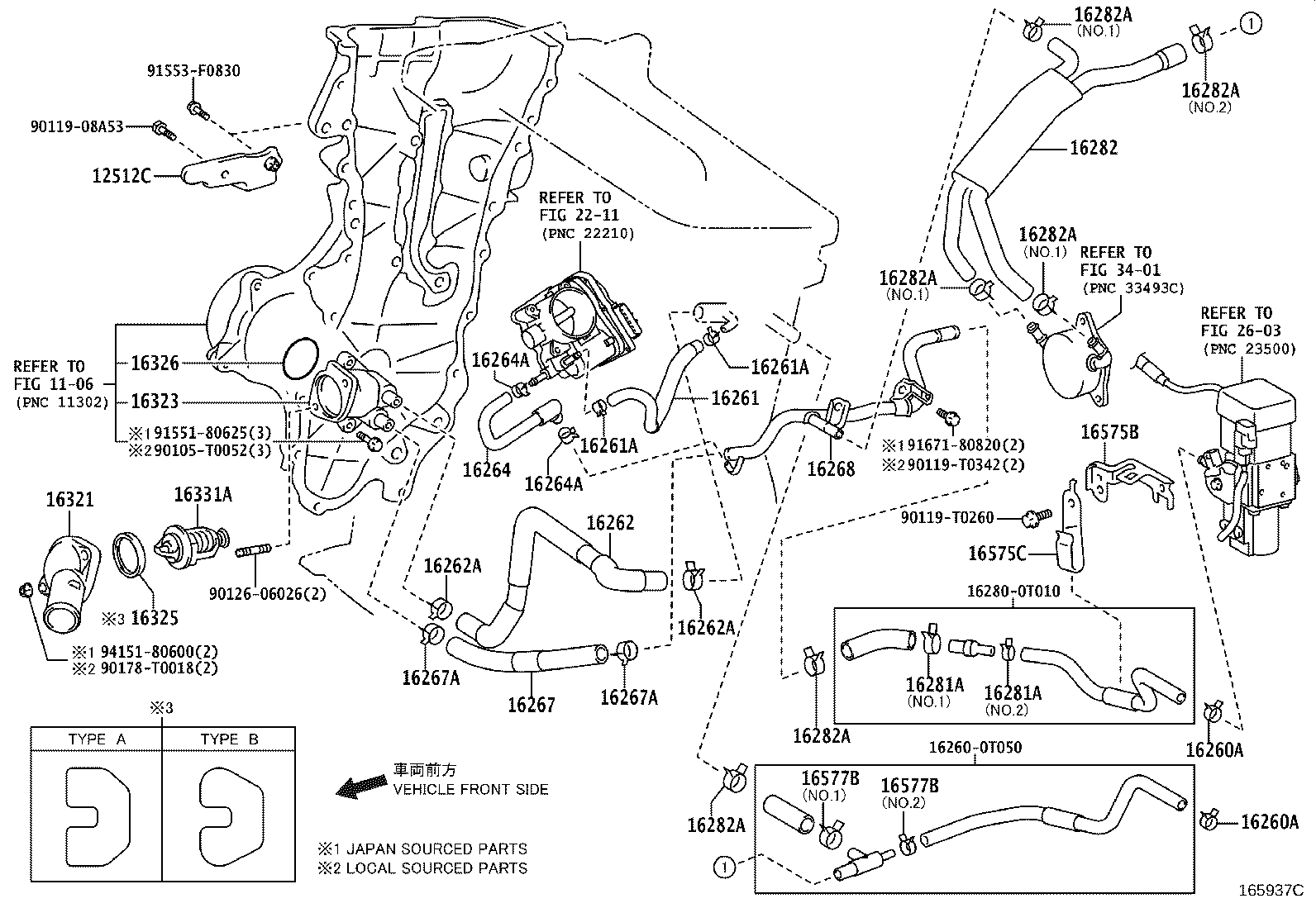

| 12512C - BRACKET, ALTERNATOR, NO.2 | ||||
| 12512-37010 |
1ZRF..ZRE171 CNG PACKAGE |
1 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 90466-T0015 |
1ZRF..ZRE171 |
2 | ||
| 16260A - CLIP(FOR WATER BY-PASS HOSE ASSY) | ||||
| 90466-T0015 |
1ZRF..ZRE171 |
2 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0T111 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (L) |
1 | ||
| 16261-37022 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (J) |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-0T020 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH (L) |
1 | ||
| 16262-37010 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH (J) |
1 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90466-T0020 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH (L) |
2 | ||
| 96136-42501 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH (J) |
2 | ||
| 16262A - CLIP(FOR WATER INLET HOSE) | ||||
| 90466-T0020 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH (L) |
2 | ||
| 96136-42501 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH (J) |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-37022 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (J) |
1 | ||
| 16264-0T071 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP (L) |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41501 |
1ZRF,1ZRFBE..ZRE171;1ZRFE..ZRE171..GEN,PHL,SGP |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0T040 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE..ZRE171,172..ARL,IDN,MA,TH (L) |
1 | ||
| 16267-37010 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE..ZRE171,172..ARL,IDN,MA,TH (J) |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE..ZRE171,172..ARL,IDN,MA,TH (J) |
2 | ||
| 90466-T0020 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE..ZRE171,172..ARL,IDN,MA,TH (L) |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE..ZRE171,172..ARL,IDN,MA,TH (J) |
2 | ||
| 90466-T0020 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE..ZRE171,172..ARL,IDN,MA,TH (L) |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-37031 |
2ZRFE..ZRE172..6F..ARL;1ZRFE..ZRE171..GEN,PHL,SGP;1ZRFBE,2ZRFE..ZRE171,172..IDN,MA,TH |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-15022 |
1ZRF..ZRE171 NO.2 |
1 | ||
| 90466-T0020 |
1ZRF..ZRE171 NO.1 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90467-15022 |
1ZRF..ZRE171 NO.2 |
1 | ||
| 90466-T0020 |
1ZRF..ZRE171 NO.1 |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16260-0T010 |
1ZRF..ZRE171 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-T0020 |
1ZRF..ZRE171 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-T0020 |
1ZRF..ZRE171 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-T0020 |
1ZRF..ZRE171 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-T0020 |
1ZRF..ZRE171 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-T0020 |
1ZRF..ZRE171 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-T0020 |
1ZRF..ZRE171 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-37010 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-0T060 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,2ZRFE..ZRE171,172..ARL,IDN,MA,TH (L),*264 |
1 | ||
| 16323-37021 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,2ZRFE..ZRE171,172..ARL,IDN,MA,TH (J),*264 |
1 | ||
| 16323-37040 |
1ZRF..ZRE171 CNG PACKAGE,(J) |
1 | ||
| 16323-0T090 |
1ZRF..ZRE171 CNG PACKAGE,(L) |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-0H020 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH TYPE B:REFER ILLUST. |
1 | ||
| 16325-28010 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,1ZRFBE,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH TYPE A:REFER ILLUST. |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-37010 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH |
1 | ||
| 16326-37030 |
1ZRF..ZRE171 CNG PACKAGE |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03144 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH *WAX 82-95,*264,KUZEH |
1 | ||
| 90916-03145 |
1ZRFE..ZRE171..GEN,PHL,SGP;1ZRF,2ZRFE,3ZRFE..ZRE17#..ARL,IDN,MA,PHL,TH *WAX 82-95,*264,FUJISEIKO |
1 | ||
| 90916-03148 |
1ZRF..ZRE171 *WAX 80-93,CNG PACKAGE,NTCL |
1 | ||
| 16575B - BRACKET, WATER HOSE CLAMP, NO.2 | ||||
| 16570-0T020 |
1ZRF..ZRE171 |
1 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16570-0T030 |
1ZRF..ZRE171 |
1 | ||
| 16577B - CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE) | ||||
| 90467-15022 |
1ZRF..ZRE171 NO.2 |
1 | ||
| 90466-T0020 |
1ZRF..ZRE171 NO.1 |
1 | ||
| 16577B - CLAMP OR CLIP, HOSE(FOR RADIATOR PIPE) | ||||
| 90467-15022 |
1ZRF..ZRE171 NO.2 |
1 | ||
| 90466-T0020 |
1ZRF..ZRE171 NO.1 |
1 | ||
| Common parts | ||||
| 16260-0T050 | ||||
| 16280-0T010 | ||||
| 90105-T0052 | ||||
| 90119-08A53 | ||||
| 90119-T0260 | ||||
| 90119-T0342 | ||||
| 90126-06026 | ||||
| 90178-T0018 | ||||
| 91551-80625 | ||||
| 91553-F0830 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 2211 | ||||
| 2603 | ||||
| 3401 | ||||
